Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
Автоматическая машина для производства бутылок с распылителем и дезинфицирующими средствами
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou Huangyan Ouge Machine Mould Co. Ltd.
Share on (62552268705):
Product Overview
Description
Product Description
Features:
1.The machine adopts human-computer interface to control the whole working procedures,auto-loading,auto blowing,auto droping.Action cylinders are all assembled with magnetic induction switches.

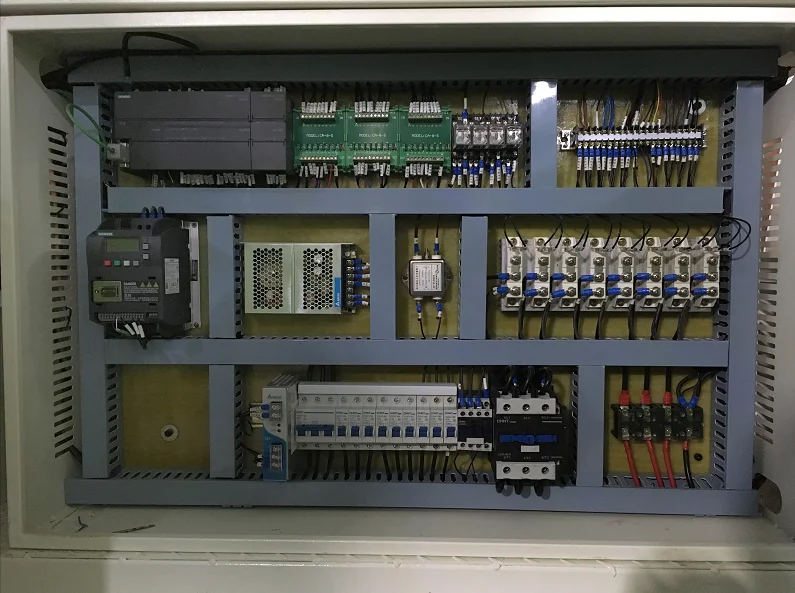

2.Connect with PLC to control every step and test every cylinder.Next action will continue after the former step done.If former step is not finished ,alarm automatically and do not work.PLC displays problem position.
3.According to special demand,adopt cross double crank pressed clamping, with strong clamping force.Mould open stroke can be adjustable according to the bottle size to save the time.
4.Far infrared heater lamps have strong penetrations,prefrms are heated uniformly while rotating,PLC or electronic pressure adjustor controls each group of temperature separately.
5.Particular pre-heater design makes preform close while heating,Change space,shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
3.According to special demand,adopt cross double crank pressed clamping, with strong clamping force.Mould open stroke can be adjustable according to the bottle size to save the time.
4.Far infrared heater lamps have strong penetrations,prefrms are heated uniformly while rotating,PLC or electronic pressure adjustor controls each group of temperature separately.
5.Particular pre-heater design makes preform close while heating,Change space,shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
Specification
ITEM | 单位 | OGB-3S | ||||
理论产量 | Theoretical output | Pcs/h | 4500 | |||
瓶型规格 PRODUCT | 最大容积 | Max. Volume | L | 1.5 | ||
最大高度 | Max. height | mm | 360 | |||
最大直径 | Max. diameter | mm | 105 | |||
成型组规格 MOULD | 模穴数 | Number of cavities | / | 3 | ||
模板尺寸 | Mould plate dimension(LxH) | mm | 430×360 | |||
模厚 | mould thickness | mm | 188 | |||
开模行程 | Mould opening stroke | mm | 110 | |||
电力规格 ELECTRICAL | 电源 | Power | 220-380V | |||
50-60Hz | ||||||
总功率 | Total power | KW | 18 | |||
加热功率 | Heating power | KW | 15 | |||
空压机规格 AIR SYSTEM | 动作压力 | Operation pressure | Mpa | 0.8-1.0 | ||
动作耗气量 | Action air consuming | M3/min | ≥1.6 | |||
吹气压力 | Blowing pressure | Mpa | 2.4-4.0 | |||
吹气耗气量 | Blowing air consuming | M3/min | ≥3.2 | |||
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(LxWxH) | M | 2.7×1.45×2.05 | ||
吹瓶机主机重量 | Main body weight | KG | 2300 | |||
瓶坯输送带尺寸 | Preform autoloader(LxWxH) | M | 1.9×1.9×2.2 | |||
瓶坯输送带重量 | Preform automatic weight | KG | 200 | |||
Company Profie
Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $50/day during the engineer’s journey.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $50/day during the engineer’s journey.
Exhibition
The 125th Canton Fair
2019 Chinaplas
2019 Swop Show
Certifications

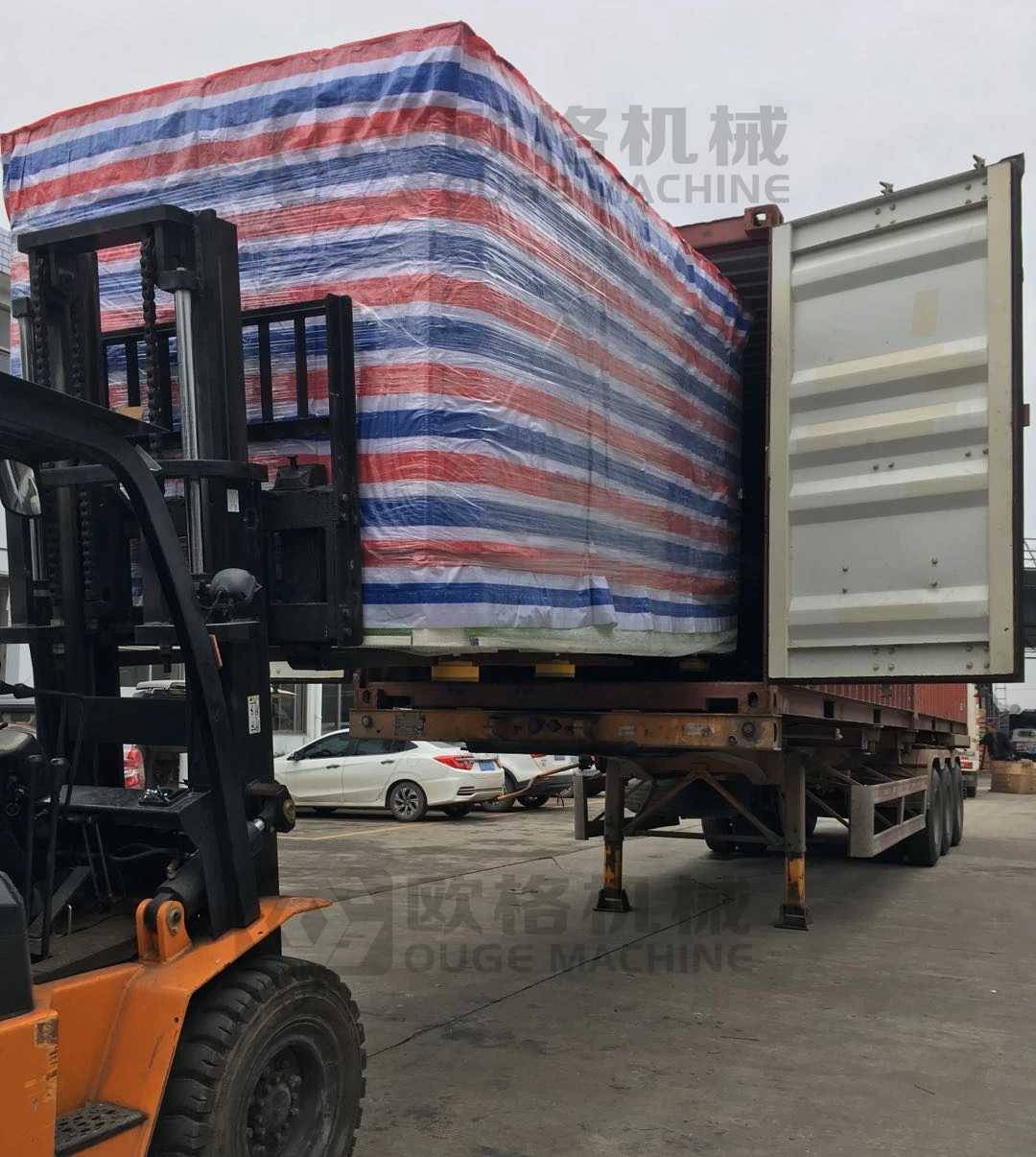

Packing & Delivery
Packaging
√Package type: wooden case &plastic packaging
Shipping
√Shipping:By sea
Payment term
√30% by T/T as deposit, the balance should be paid by T/T before shipment.
Delivery time
√30-45days after customer send the deposit and confirm the bottle drawing.
Guarantee time
√12 months after machine running in buyer’s factory.
√Package type: wooden case &plastic packaging
Shipping
√Shipping:By sea
Payment term
√30% by T/T as deposit, the balance should be paid by T/T before shipment.
Delivery time
√30-45days after customer send the deposit and confirm the bottle drawing.
Guarantee time
√12 months after machine running in buyer’s factory.
FAQ
Q1.How can I get a sample to check your quality?
A:After mold finishing we will test and send bottles for your check.
A:After mold finishing we will test and send bottles for your check.
Q2.How about quality control in your factory?
A: “ Quality first,Reputation above all.”
OUGE machine focuses on quality,quality controls from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
A: “ Quality first,Reputation above all.”
OUGE machine focuses on quality,quality controls from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
Q3. How many people is required to operate machine?
A: 1 people is enough,it is full auto blowing machine.
A: 1 people is enough,it is full auto blowing machine.
