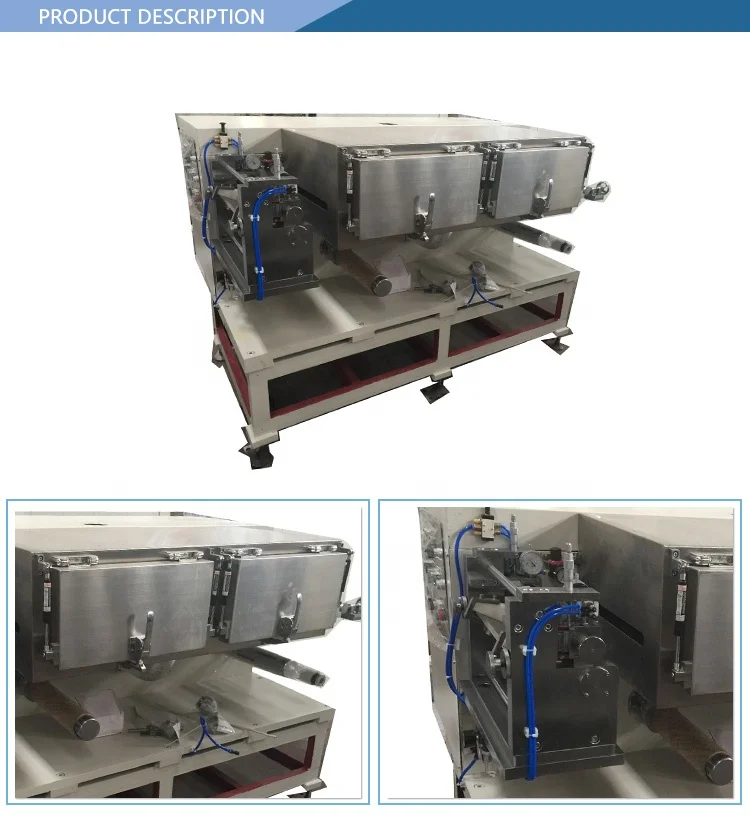

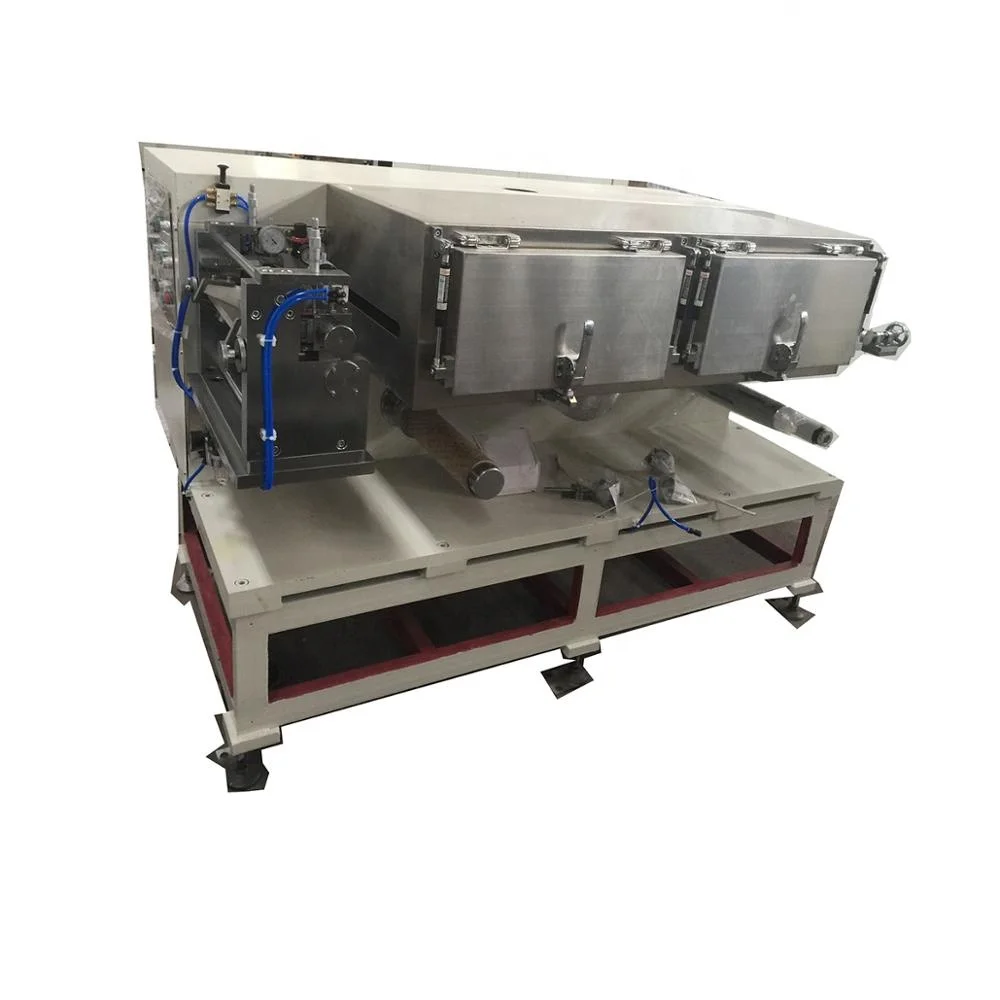

small Automatic Roll to Roll Film Coating machine for lithium ion battery Lab AME-135 Roll to roll small film coating machine

1. Introductions:

This equipment is mainly used for lithium battery pole piece in the production

process slurry drying process, is mainly used in the experiments ,using this technology

can replace the original production of hand-scraped pulp, oven drying operations, and

improve the uniformity and scrape pulp drying efficiency is indispensable equipment

for mass production.

2. The technical parameters

1. transfering Speed: 0.5m/min continuously adjustable;

2. Furnace temperature: room temperature ~ 150 ℃ adjustable;

3. Electrode width: ≤ 300mm;

4. Coated precision: ≤ ± 0.003mm

5. Retractable tension: Adjustable

6. Coating method: single row,continuously coating;

7. For baseband: copper foil, aluminum foil, etc.;

8. Heating zone: 1 zone, 1.2meters;

9. Power supply voltage: 380V/50HZ three-phase power supply;

10. Power consumption: 6.5KW, Convulsions power:60w;

11. Dimensions: L × W × H = 1800 × 810 × 1300;

3. Device structures:

This equipment received by the main drive pulley driven movement, metal

belt pulley mounted on the release, in the driving wheel driven slowly walked

from scratch slurry tank, slurry coated tapes made by scraping pulp slurry evenly

after attached to the belt by adjusting the roll gap scraping pulp and process to

achieve the required size. Then after oven drying, and then Re-rolling good.

4. The equipment features:

The equipment brought by the discharge roller, magnetic powder brake

unwinding, scraping slurry tank, coating roll, closing with a roller, to close with a

tension adjusting mechanism, dry boxes, some of the main drive, fan and

chassis, electrical parts etc., simple structure , compact, and also simple and

convenient.

1, scrape pulp systems, precision machining parts, slurry for the stainless steel

3

contact parts, scrape pulp thickness adjustable.

2, the main drive with frequency conversion control, wide speed range and

speed constant and reliable torque for the constant speed control system.

3. Drying box with quartz heating tube, thermal efficiency, long life, easy

installation;

4. With hot air circulation system inside the temperature uniformity can not easily

burn great film;

5. Temperature control with PID regulation system, control of high precision,

reliable;

5. Using pre-prepared:

1. Equipment placed in place, the level should be adjusted;

2. Wipe clean the roller, coating should focus on cleaning up bucket, roller, blade

oil should go on the net, to prevent the impact of sizing;

3. The transmission part of the lubrication;

4. Access to the equipment required by the circuit three-phase 380V AC power,

and its reliable grounding.

6. Adjust and use:

1. Adjustment roller and scrape pulp slurry coating gap between the requirement

to value.

2. Sizing of the metal strip will be put in place with a roller and allowed to fight in

the plasma from the coating to the oven through the entrance, with the scrap

metal strip from the oven through to closing with a roller at the entrance to the

old band in the oven overlap with the new band.

3. Close the "Power Control" switch, power indicator lights.

4. The "rewinding tension", "winding tension,"knob switch to the "on" Office,

adjust "rewinding tension adjustment", "winding tension adjust" knob to tension

directed to the appropriate value of current meter.

5. The " fan control," knob switch to the "on" Office, "temperature control"

devices have electrical work, temperature control instrumentation for use by

setting the required drying temperature. To " Heating control " switch right at "on"

4

Department so that the oven temperature to set temperature.

6. Adjust scraper scrape pulp space requirements found in the pulp slurry added

to struggle. Click the "coating control start" button, start a continuous coating

coating motor rotation, adjust the speed inverter controls to meet the need to go

with speed.

7. Click the "Exhaust Control Start" button to switch to open exhaust systems.

8. Slurry coating after the tape after drying with a roll after the paper received

well. Work under dry conditions at any time adjust the belt speed, according to a

retractable reel diameter change at any time to adjust track tension to prevent

belt retractable belt.

9. Downtime:

Click the "coating control stop" button to stop the coating, the "drying control

heating" L switch to "off" stops heating, the " fan control," L switch knob to "off"

hot air circulation stops, click the "Stop exhaust control" button switches turn off

ventilation systems. Finally, "Power Control" switch power off .

7. Note:

1. Work should pay attention to motor drive parts and whether the abnormal

noise fan;

2. Slurry coating struggle as the key components, by professional service

personnel overhaul. Converter products for the professional manufacturers,

generally do not need maintenance, such as removal of stitches checks must be

careful not to input and output lines reversed. Otherwise, it will burn converter.

3. Inverter, temperature controller of the proper use and maintenance please

refer to the use of their manual.

4. Open the oven door, to observe the work should be careful not to touch live

parts inside to safety.
