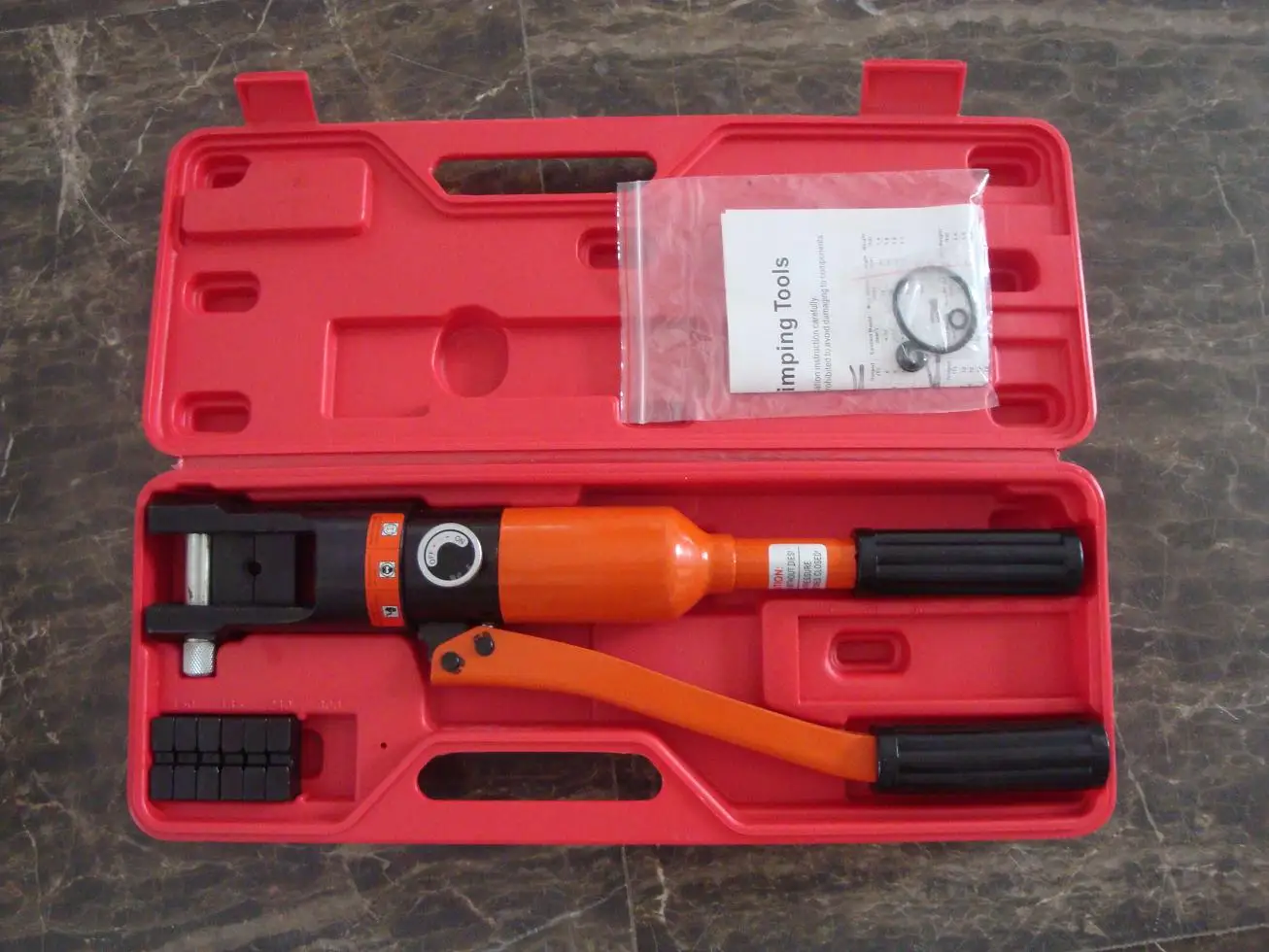

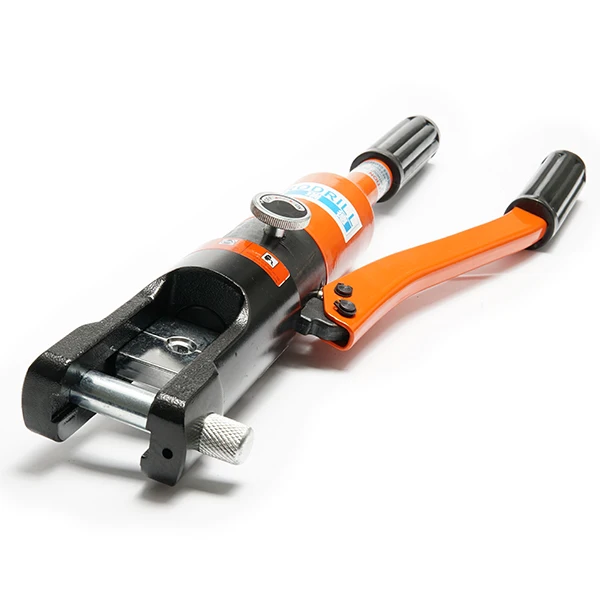

Hydraulic Professional HB 300B Hydraulic Crimping Tools with Crimping Range

Specification & Application

The tool pressure could be automatically adjusted in any direction. Stable crimping in low resistance and high efficiency. It is ideal for compression of Cu/Al terminals in the end and middle of power wiring line. It's the only choice for all electric power companies.

Operation Manual

In crimping conductor, select demanded conductor size, match relevant crimping size. Then put terminal in the middle of crimping die. Tighten oil return switch. Turn movable handle to drive plunger work. Then oil pressure lifts. Big plunger push crimping die ahead until two pieces of dies touch slightly. (Don't impose more pressure. Otherwise parts inside would be damaged.) If fitted with safety unit, inside safety unit would release pressure automatically when pressure reach to preset limit. Then undo oil return switch. The piston automatically reset. The first step finishes. The step 2 is by analogy with step one. It is normal that there is little oil appearing from plunger and big piston in operation.

Terms & Conditions of Ordering:

1 .Payment Terms:

T/T (Telegraphic Transfer) or Western Union

2. Delivery Term:

Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3. Transportation:

Sample order: we suggest Courier express or by air

Bulk order: we suggest by air or by sea.

4. Quality & Service:

A. There will be strict inspection and testing for every order before shipping out.

B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded)

C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with

a refund.
