Product Overview
Description
Product Overview

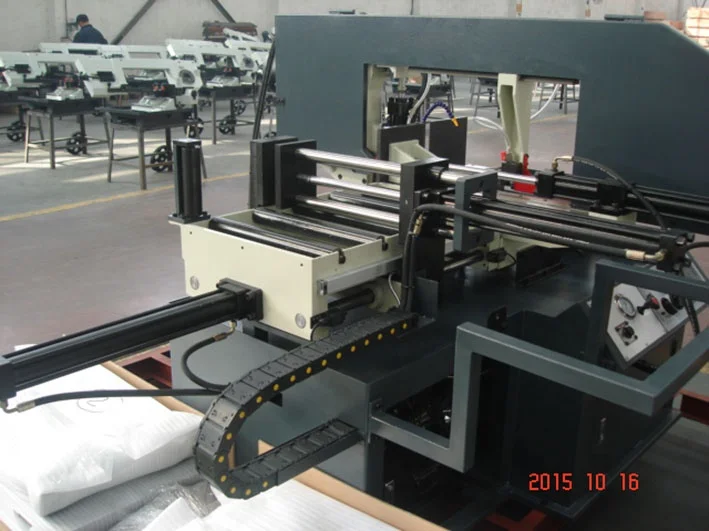

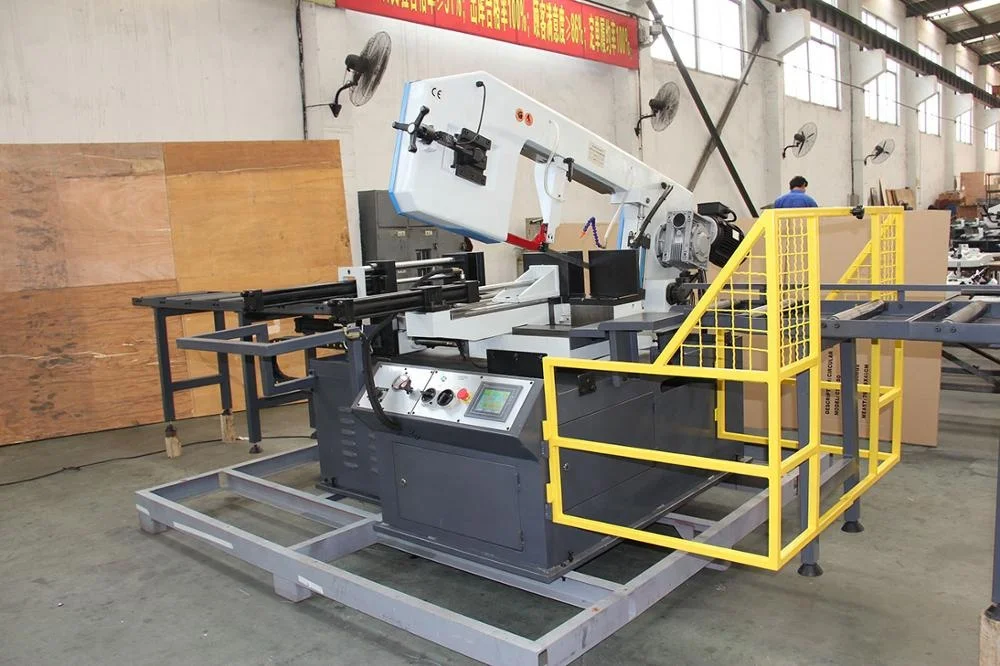

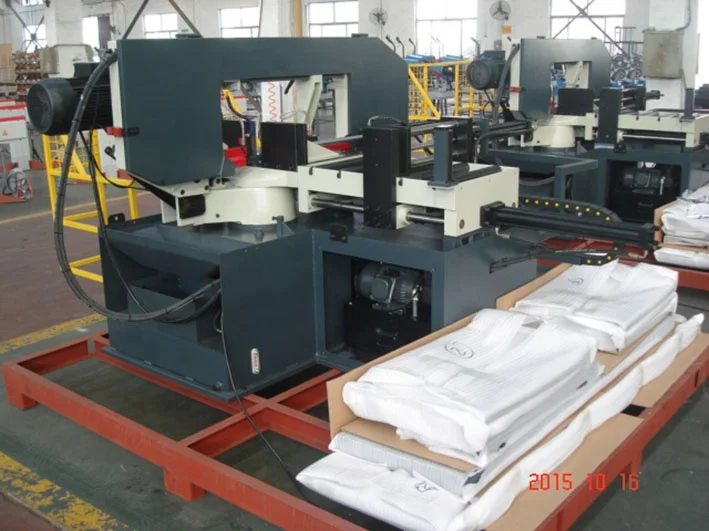

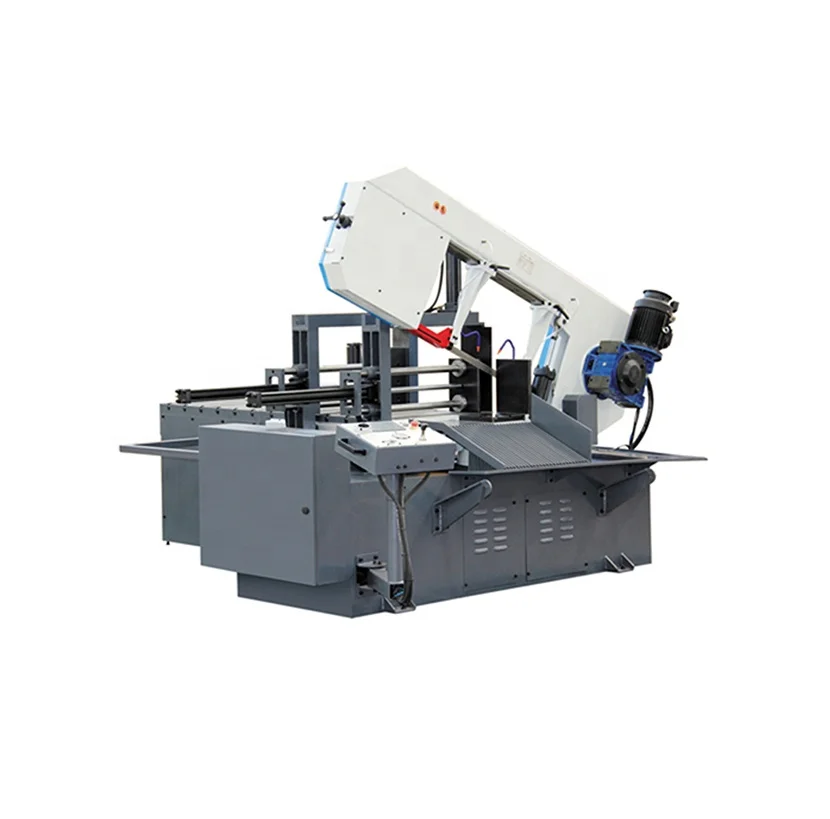

TTMC Semi Metal Cutting Bandsaw BS-460GB
The BS-460GB will improve your efficiency with a hydraulic vise, downfeed, and bow return.
FEATURES AT A GLANCE
Maximum capacity of 13” OD round at 90°.
Gear-driven transmission makes the machine more reliable. No belts to break and replace.
Saw head miters up to 45°
Gear-driven transmission makes the machine more reliable. No belts to break and replace.
Saw head miters up to 45°
Double speed motor, achieve two cutting speed, ** Servo motor available for optional at extra cost.

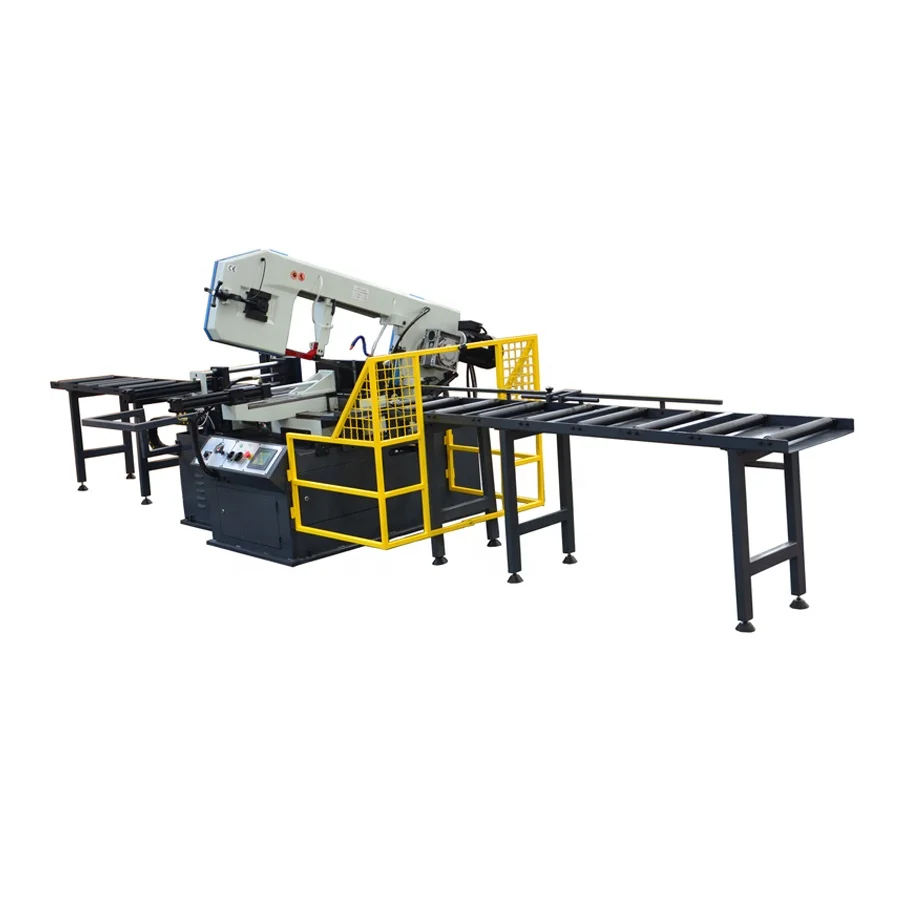

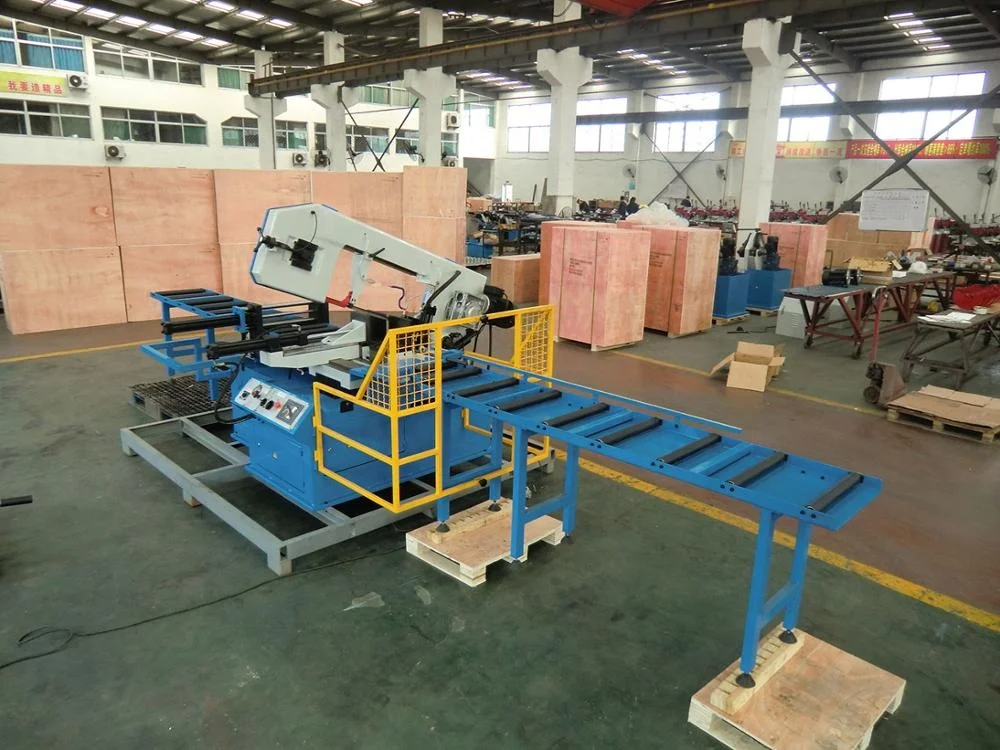

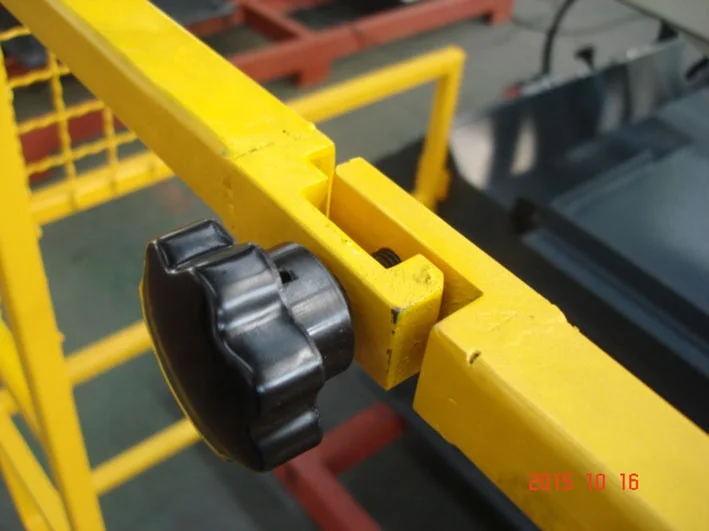

Standard with 6 meters material support
PRODUCT SPECIFICATIONS
TTMC Metal Cutting Bandsaw BS-460G & BS-460G
Item No. | 388125 | 388127 |
Model | BS-460G | BS-460GB |
Cut circular @90° | 330mm | 330mm |
Cut rectangular @90° | 460x250 mm | 460x250mm |
Cut circular @60° | 205mm (Right) | 205mm (Right) |
Cut rectangular @60° | 205x250mm (Right) | 205x250mm (Right) |
Cut circular @45° | 305mm (Left & Right) | 305mm (Right) |
Cut rectangular @45° | 305x250mm (Left & Right) | 305x250mm (Right) |
Blade speed @50HZ | 40/80 MPM | 40/80 MPM |
Blade speed @60HZ | 48/96 MPM | 48/96 MPM |
Motor | 1.5/2.2 kW | 1.5/2.2 kW |
Drive | Gear | Gear |
Packing size | 230x105x163 cm | 265x230x163 cm |
N.W./G.W. | 900/1060 kg | 1520/1655 kg |
SIMILAR PRODUCTS

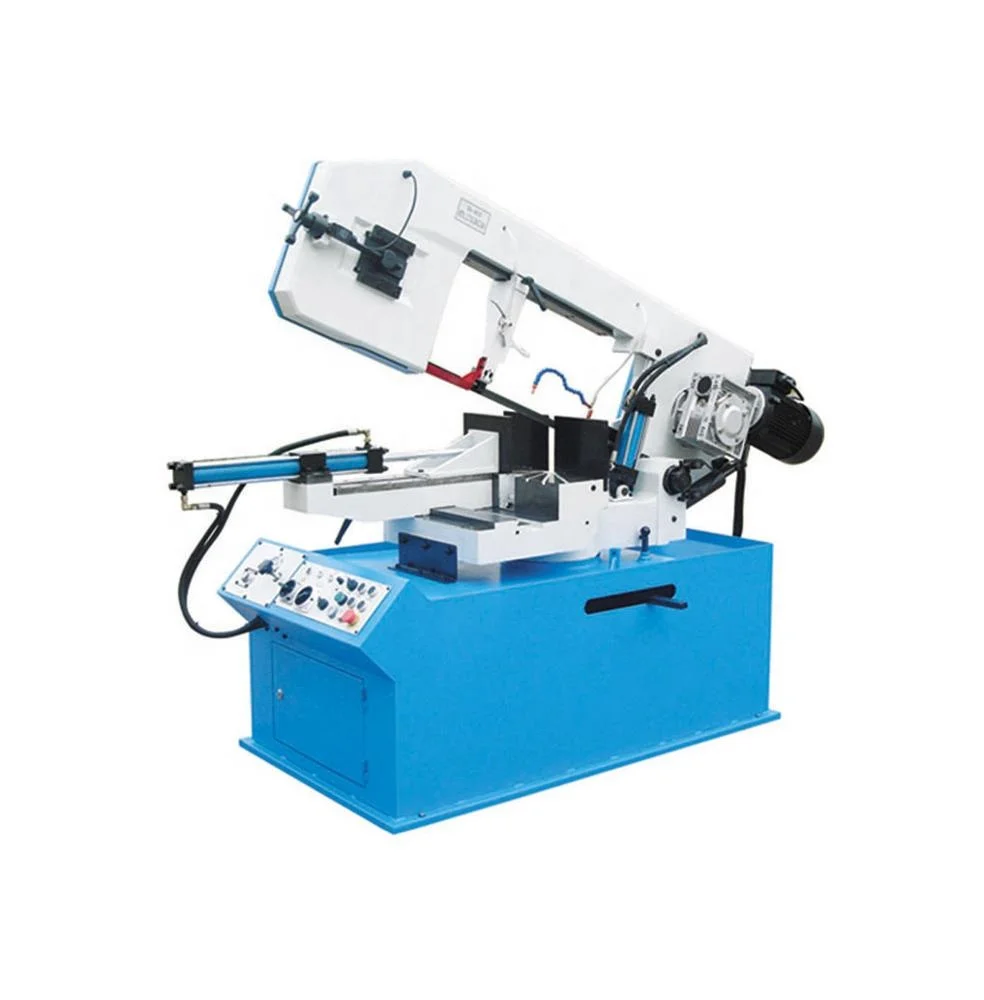

BS-460G
