Good quality Cast steel flange pressure reducing ball float steam trap
- Category: Diaphragm Valves >>>
- Supplier: Chongqing Taiyou Machinery And Electrical Equipment Co. Ltd.
Share on (62561556015):
Product Overview
Description
Product Description
Working Range
|
Maximum working pressure (PMO) |
14bar |
|
Maximum working temperature (TMO) |
300℃ |
|
Maximum allowable operating temperature (TMA) |
220℃@14bar |
Caliber & Connection
|
Model |
LFT212 |
LFT218 |
|
|
Caliber (DN) |
15,20,25 |
40,50 |
|
|
Connection |
Thread |
PN16/PN25 Flange |
PN16/PN25 Flange |

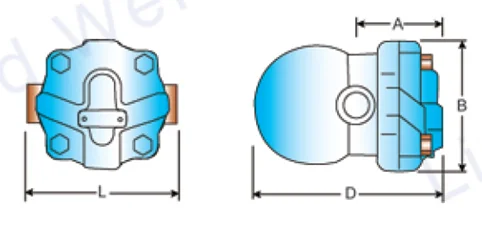

Specifications (Thread)
|
LFT212 Float steam trap |
||||||
|
Caliber |
Connection |
A |
B |
L |
D |
Weight |
|
1/2in |
Thread |
70 |
110 |
120 |
150 |
3.4 |
|
3/4in |
Thread |
70 |
110 |
120 |
150 |
3.4 |
|
1in |
Thread |
80 |
110 |
145 |
170 |
4.4 |

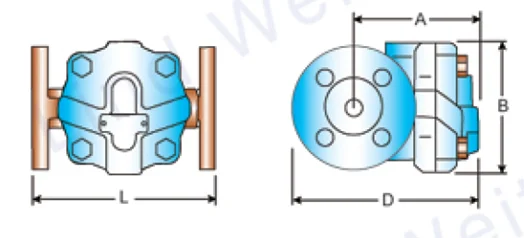

Specifications (Flange)
|
LFT212 Float steam trap |
||||||
|
Caliber |
Connection |
A |
B |
L |
D |
Weight |
|
1/2in |
Flange |
100 |
110 |
150 |
160 |
6.2 |
|
3/4in |
Flange |
100 |
110 |
150 |
170 |
6.2 |
|
1in |
Flange |
70 |
120 |
160 |
170 |
6.8 |

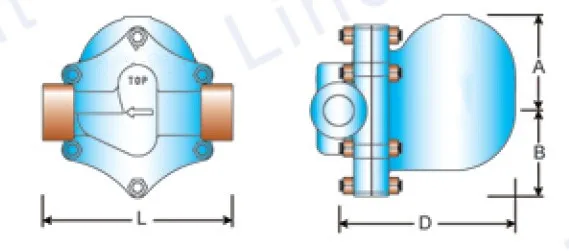

Specifications (LFT218)
|
LFT218 Float steam trap |
||||||
|
Caliber |
Connection |
A |
B |
L |
D |
Weight |
|
1 1/2in |
Flange |
136 |
122 |
270 |
251 |
33 |
|
2in |
Flange |
136 |
122 |
270 |
251 |
33.5 |

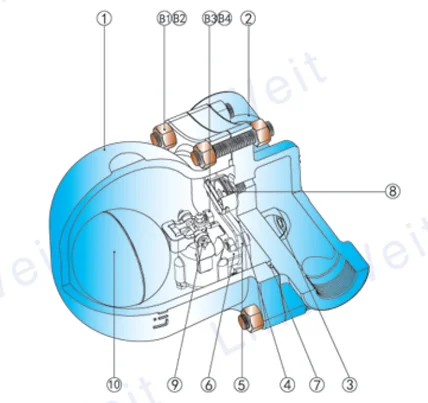

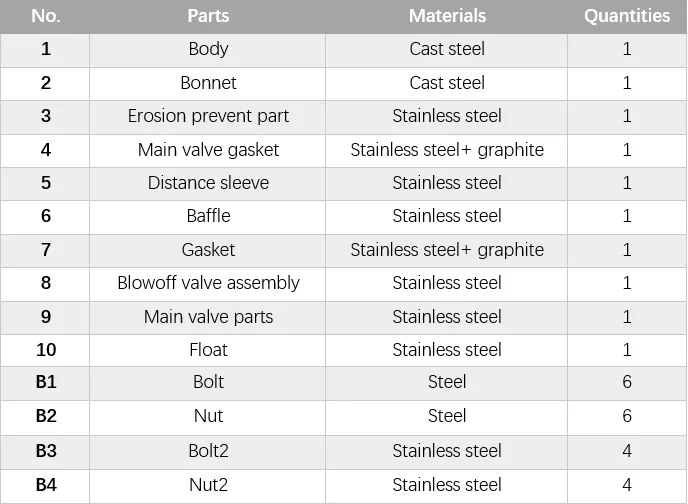

Raw Materials
Features
1. suitable for recycling system.
2. All hardened stainless steel parts inside the valve.
3. built-in filter screen, save installation cost and space.
4. continuous discharge of condensed water at saturation temperature, the displacement is large.
5. the built-in check valve can be optionally installed to save installation space and cost.
6. able to adapt to the change of high and low load, not affected by the change of pressure.
7. stable dual valve seat design eliminates water seal loss caused by floating ball shaking.
8. equipped with a new automatic exhaust valve, the machine can quickly exhaust a large amount of air and non-condensing gas
