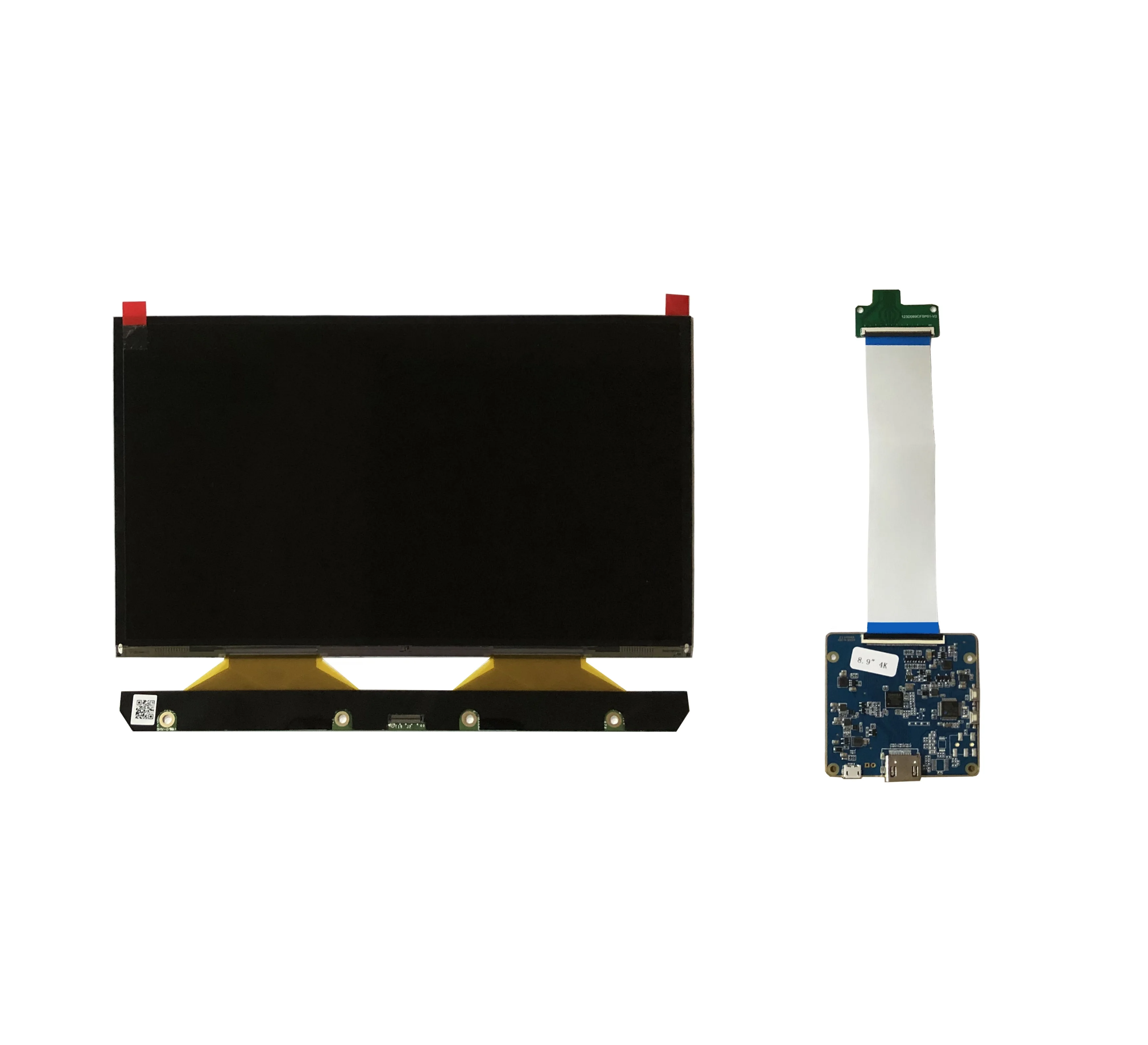

DuoBond 8.9 inch 4K Mono LCD no backlight and Raspberry Pi HDM I Board for 3D Printer
- Category: LCD Module >>>
- Supplier: Shenzhen Duobond Display Technology Co. Ltd.
Share on (62561705090):
Product Overview
Description
Related Products
Product Description

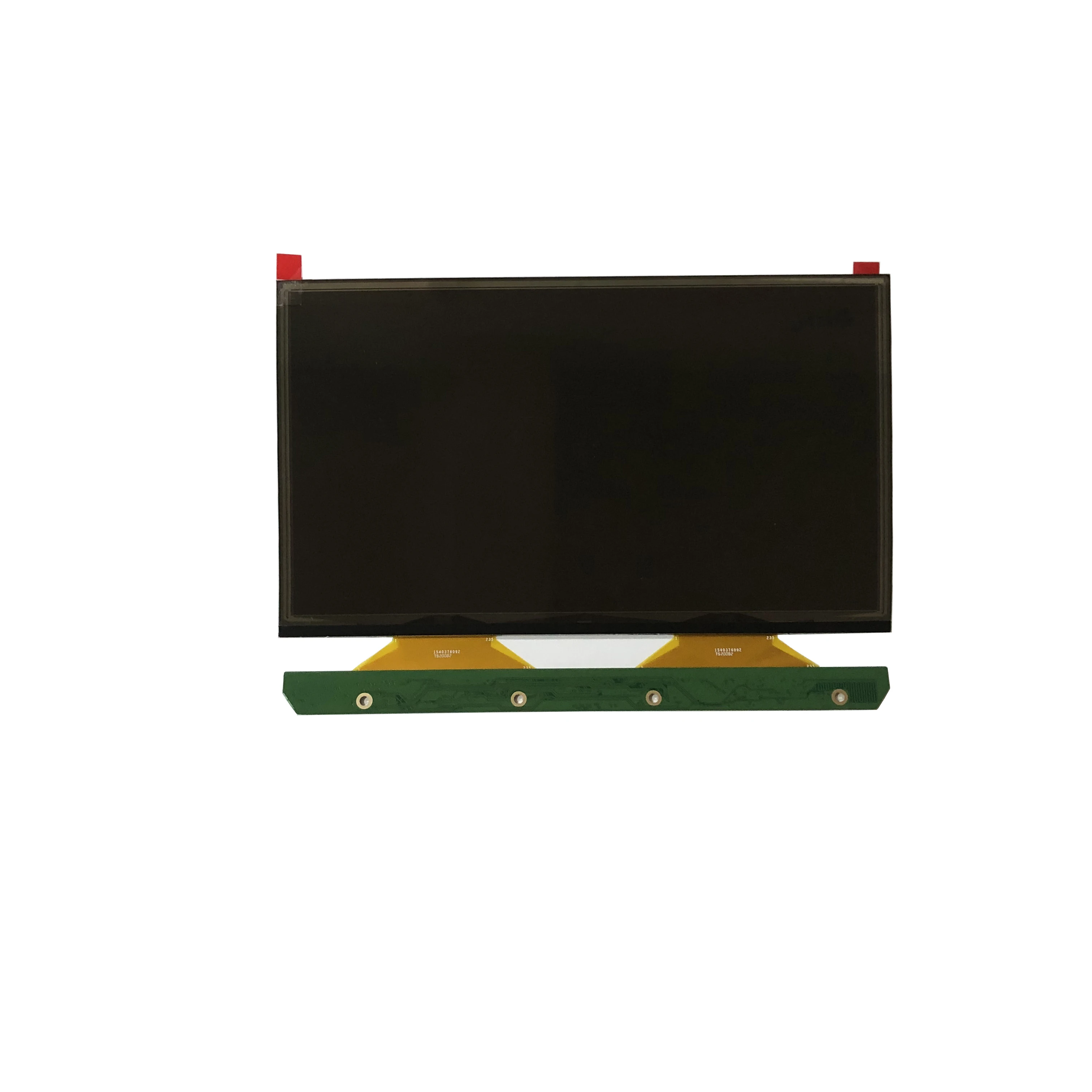

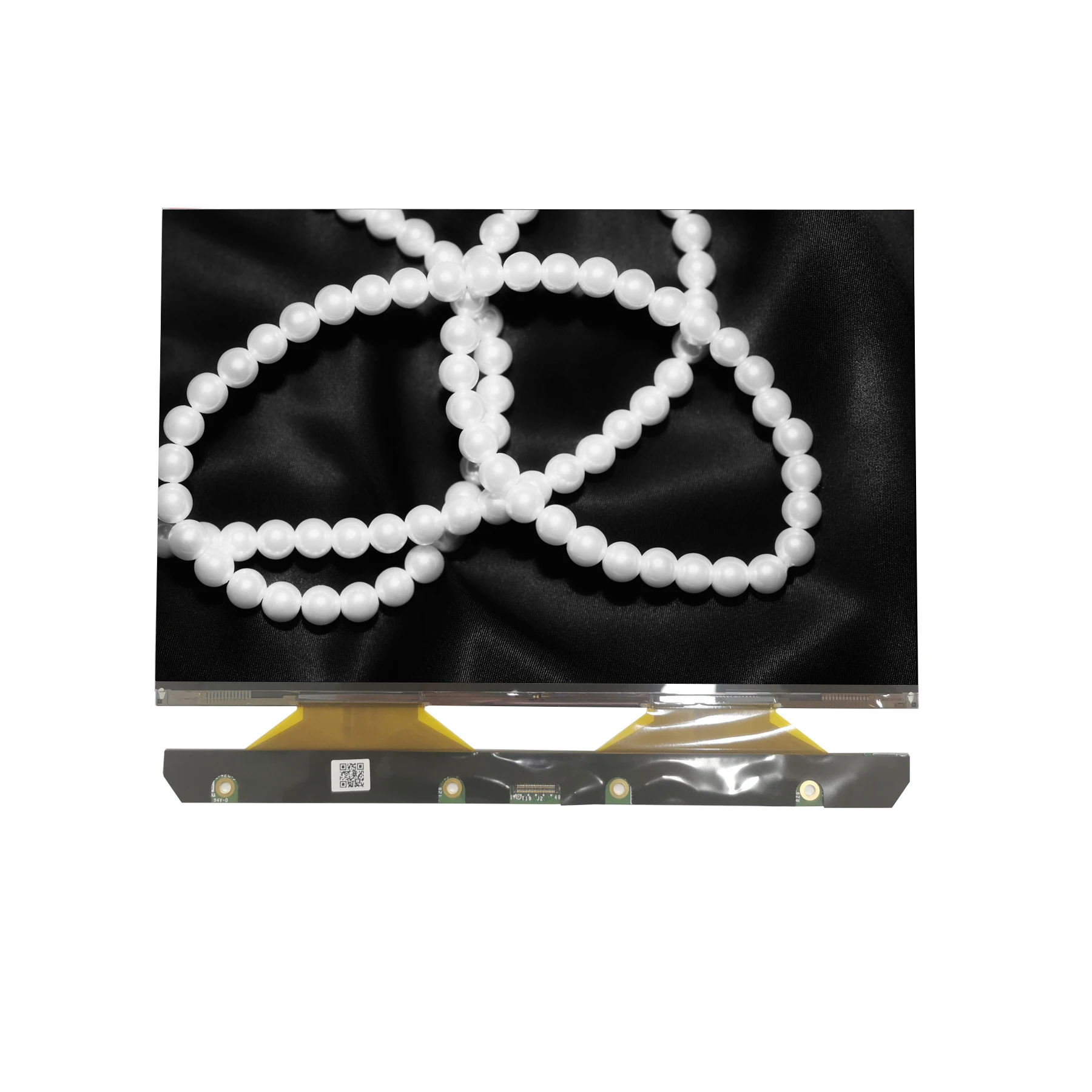

8.9 inch 4K Monochrome LCD screen for 3D Printer
No. | Item | Specification |
1 | LCD size | 8.9 inch(Diagonal) |
2 | Model Name | DBT089TIU50M0 |
3 | Resolution | 3840*2400( 4K mono LCD) |
4 | Display Area | 192(W)×120(H) mm |

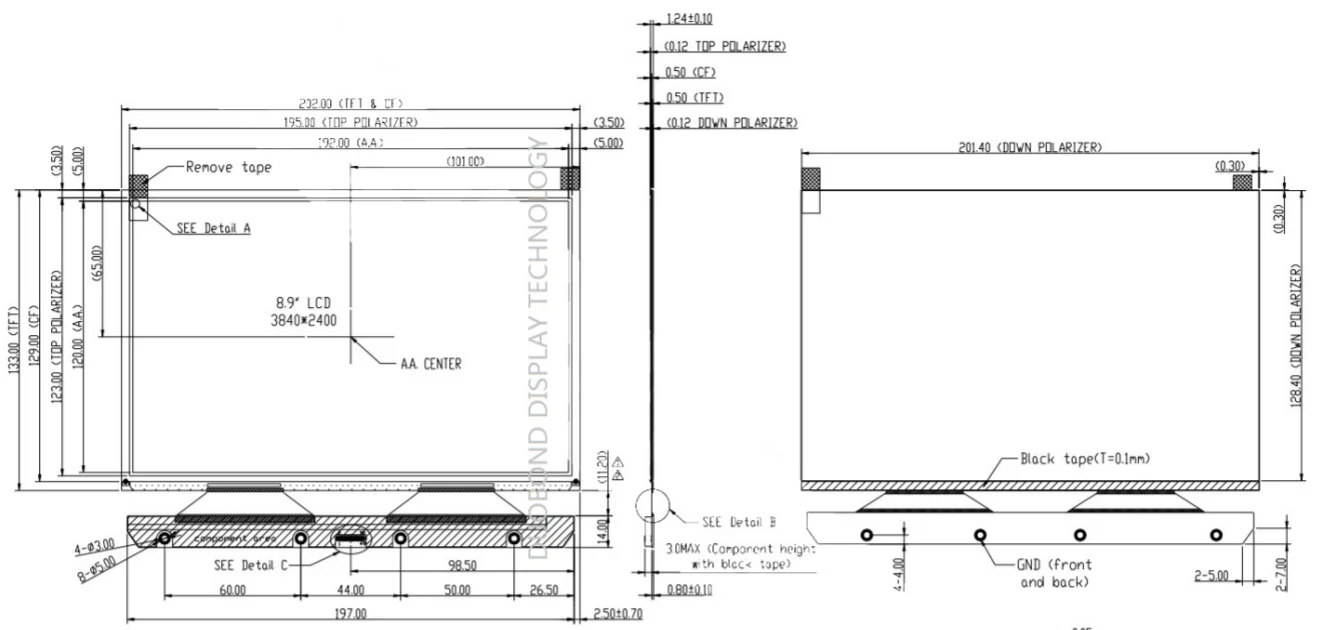

5 | Outline Size | 202(W)×133(H)x1.24 mm |
6 | Backlight | Without backlight,original open cell |
7 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
8 | Pixel pitch | 50*50 um |
9 | Display Colors | 16.7M 100% (CIE1931) |
10 | Signal Interface | 50pins MIPI |
11 | Environment | Operating Temp.: -10~ 70 °C Storage Temp.: -20 ~ 80 °C |
12 | Contrast Ratio | 800:1 (Typ.) |
13 | Application | 3D printer |
Details Images
Advantages of Monochrome LCD for 3D Printer
(1). High Transmittance: 405 nm UV light, monochrome 4.5~6% VS RGB LCD <1%
(2). High Resolution : Pixel Pitch 50*50 um
(3).Durable LCD: 1.24 mm thickness,not easily to be broken
(4). Original Open Cell(mono LCD without backlight)
(2). High Resolution : Pixel Pitch 50*50 um
(3).Durable LCD: 1.24 mm thickness,not easily to be broken
(4). Original Open Cell(mono LCD without backlight)

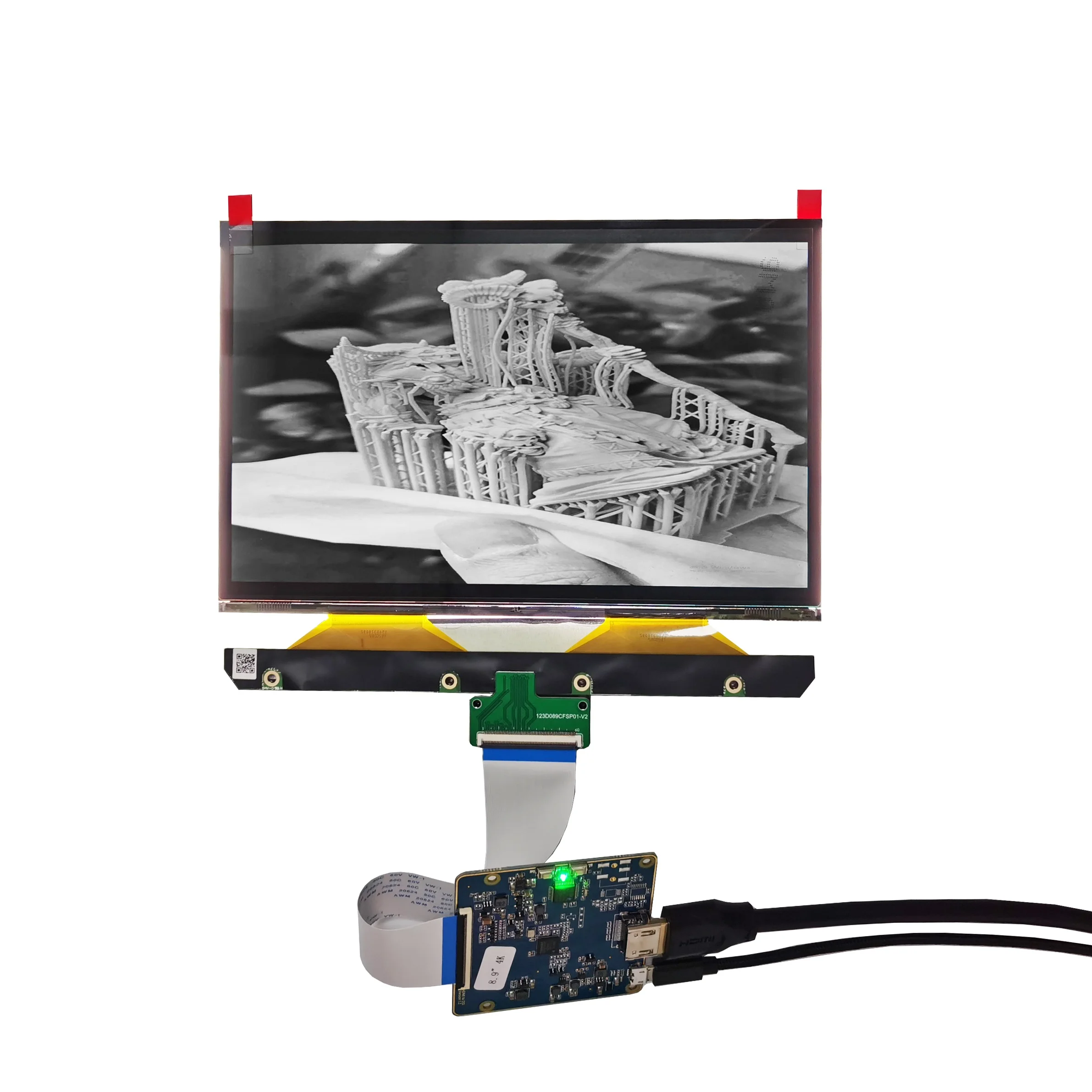

HDMI driver board for 8.9 inch 4k mono LCD
(We can provide HDMI board, LCD cable and connector)

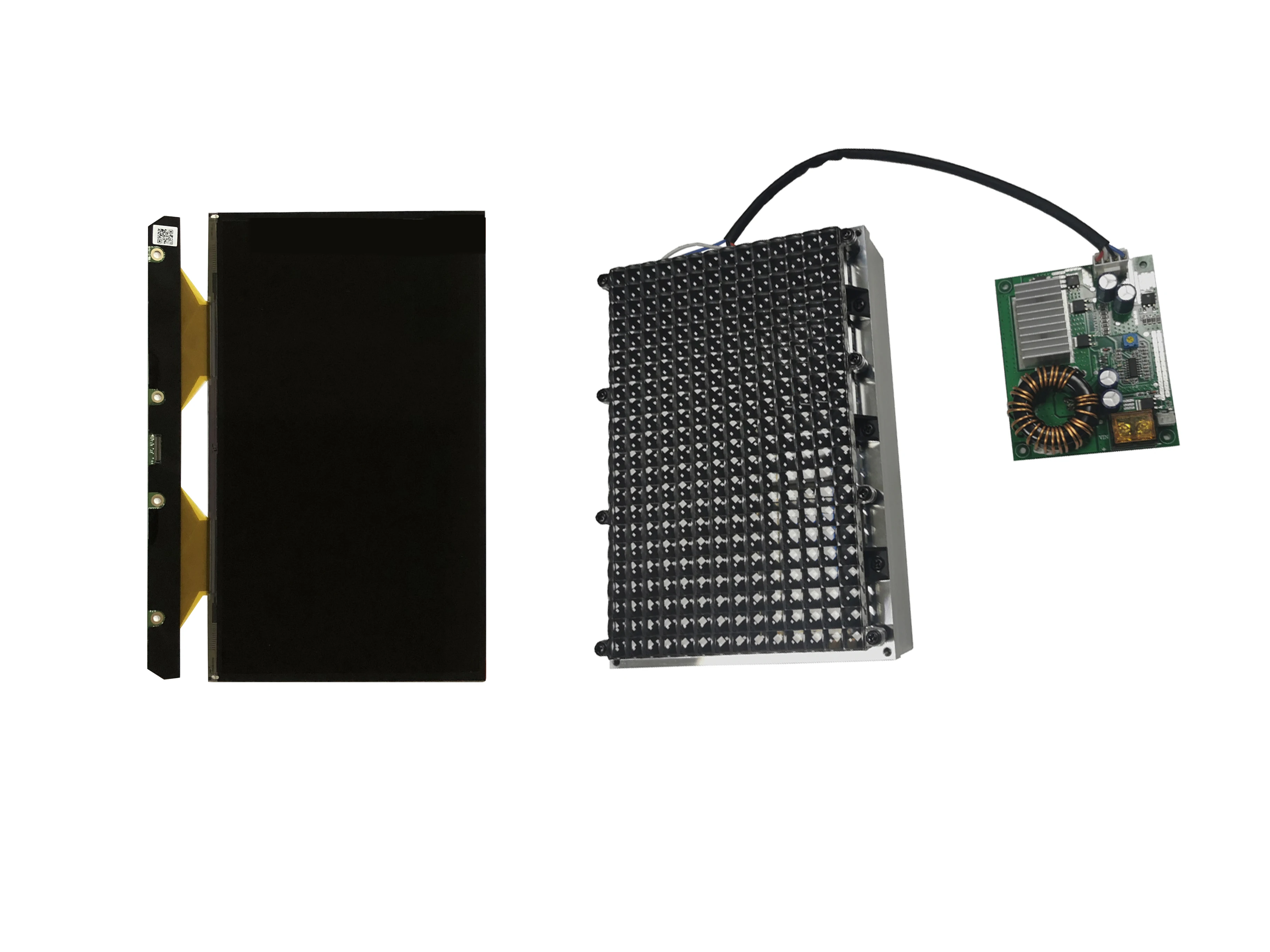

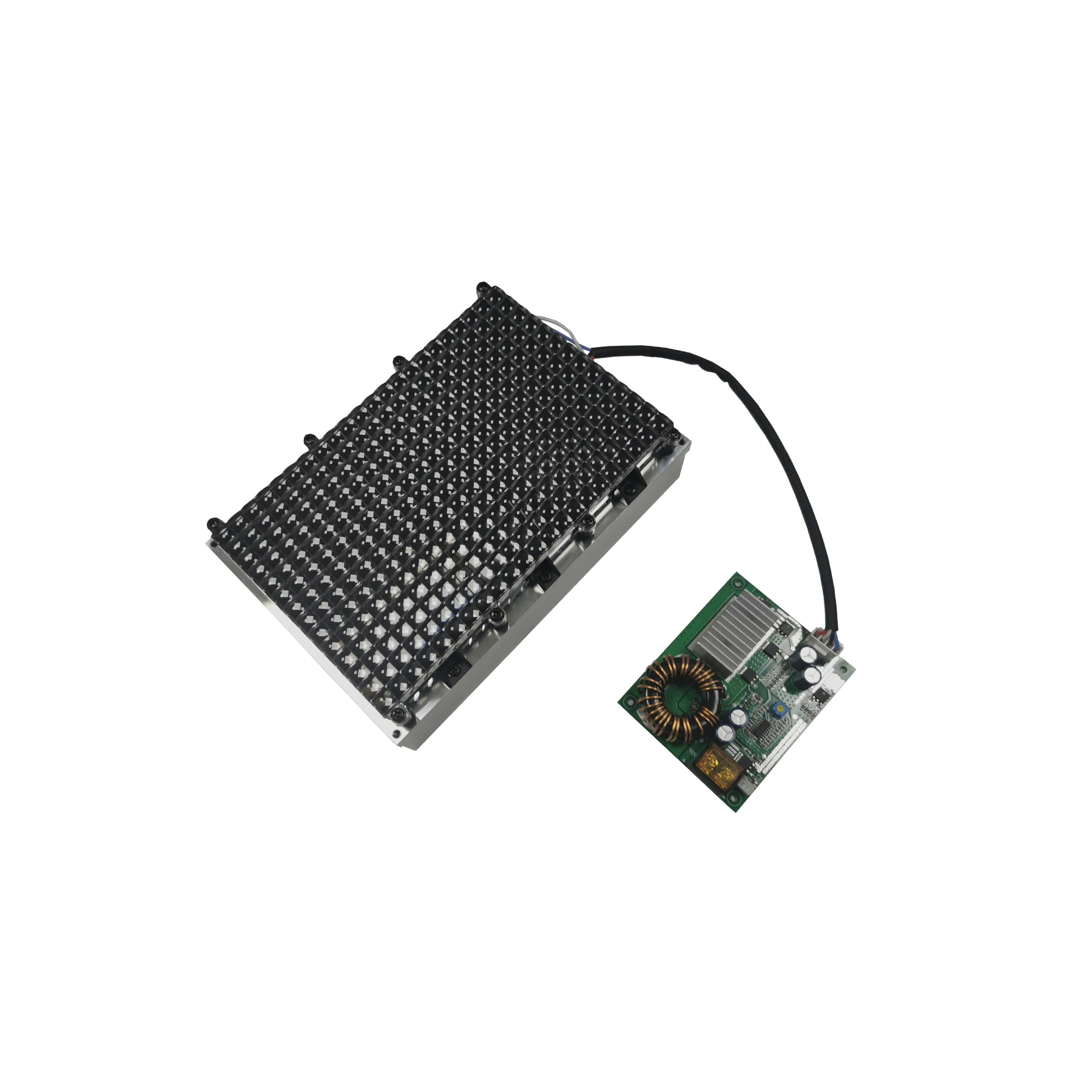

200W 405nm Parallel UV light source for 8.9" LCD
(It includes UV light source and driver board)
Please contact sales for datasheet
Outline Size of 8.9" UV light source: 216*150*63.9mm
About Us
We are professional display solution company for 3D printer. We provide LCD, control kit, parallel UV light source.
Certifications
Patent Certificate
Patent number: ZL 2019 3 0018260.5
Patent number: ZL 2019 2 0120538.4
Patent number: ZL 2019 3 0018797.1
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We have 8.9 inch 4k monochrome LCD in stock,can ship them within 5 working days.
Q: Does your product have any warranty?
A: It is well known that UV damage LCDs, and the heat generated by resin curing damages LCDs. Different user cause different damages to LCDs. We guarantee that when you receive the LCD, it will work properly. We do not provide guarantees for damage caused during use.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
