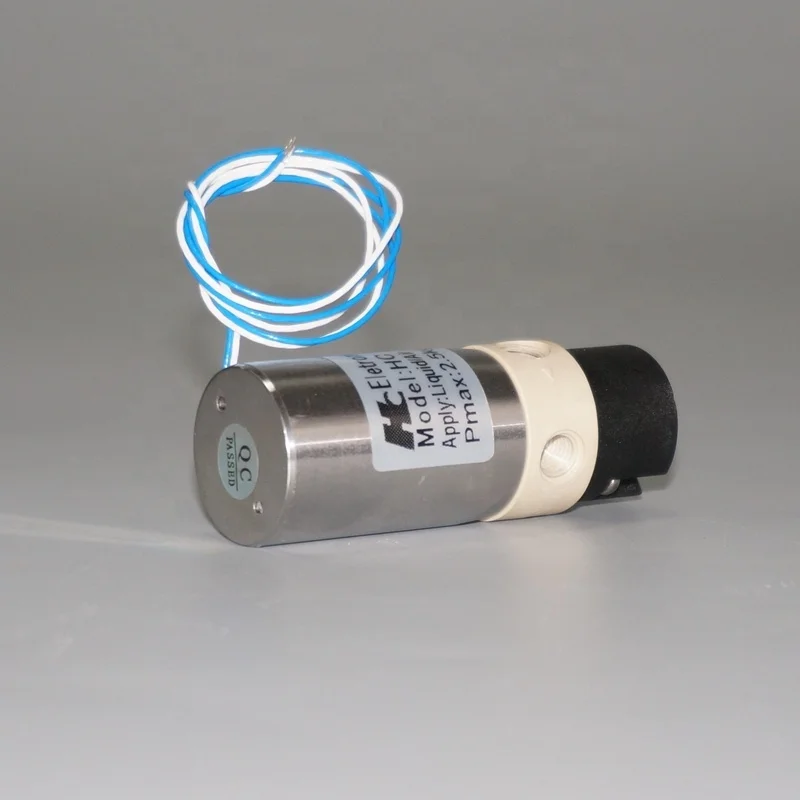

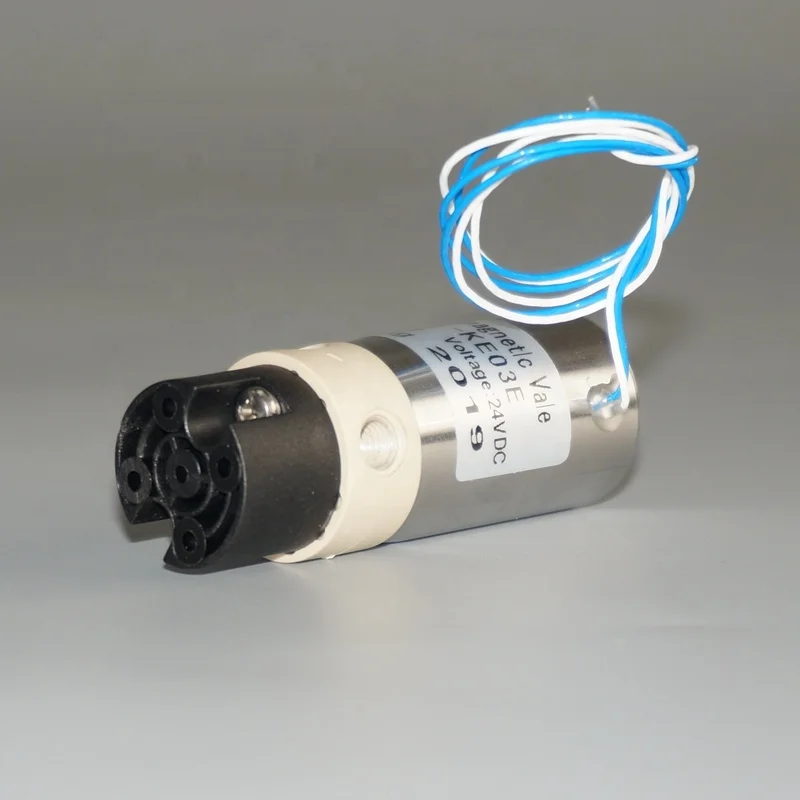

3way normal closed DC diaphrgam isolation valve for fluid control
- Category: Diaphragm Valves >>>
- Supplier: Shenzhen Hungsung Weiye Electronic Technology Co. Ltd.
Share on (62561947594):
Product Overview
Description

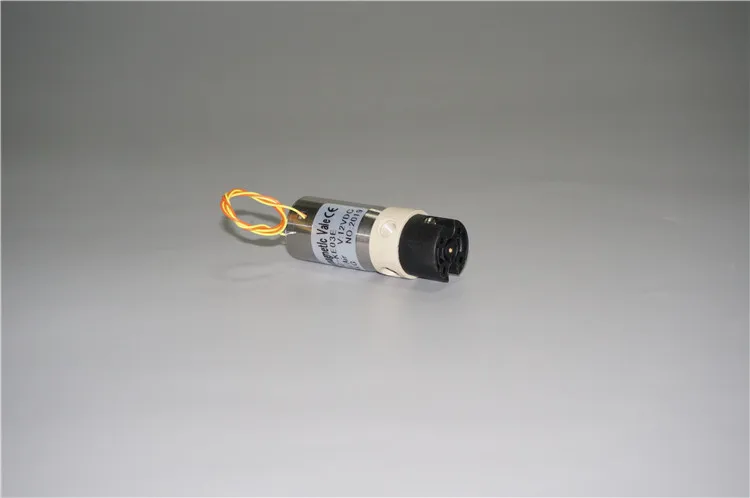

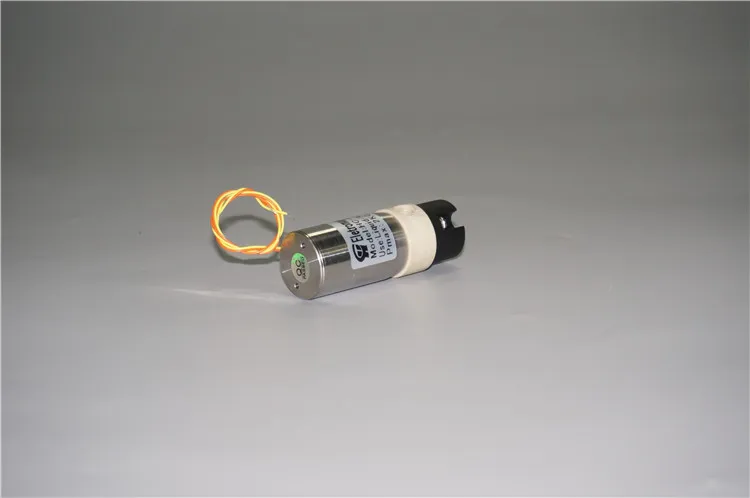

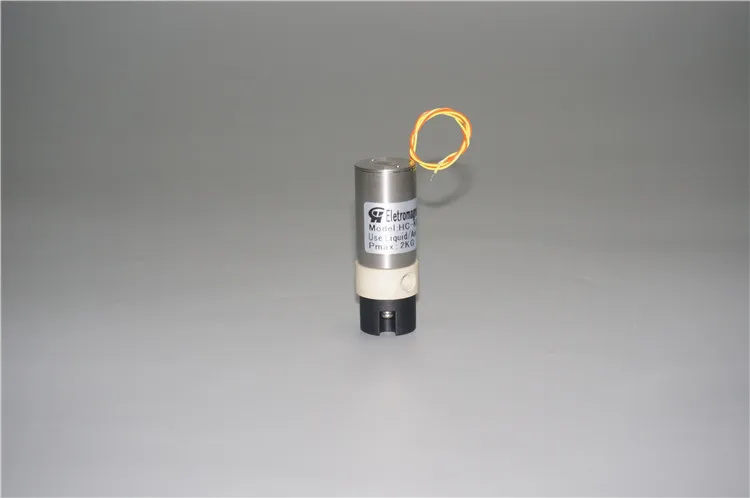

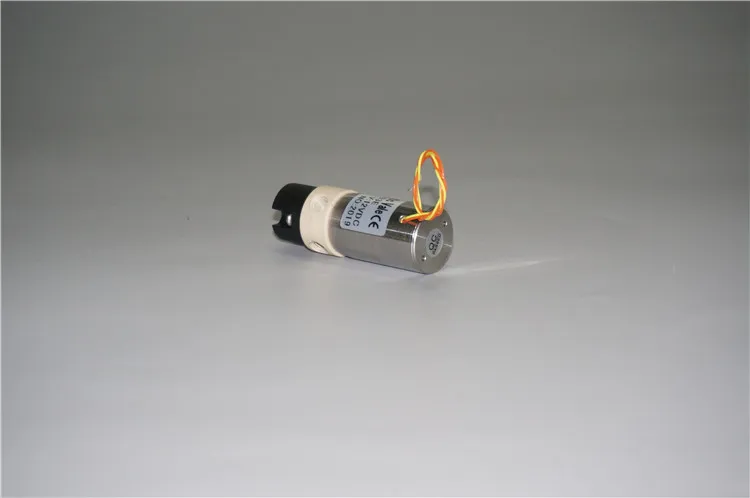

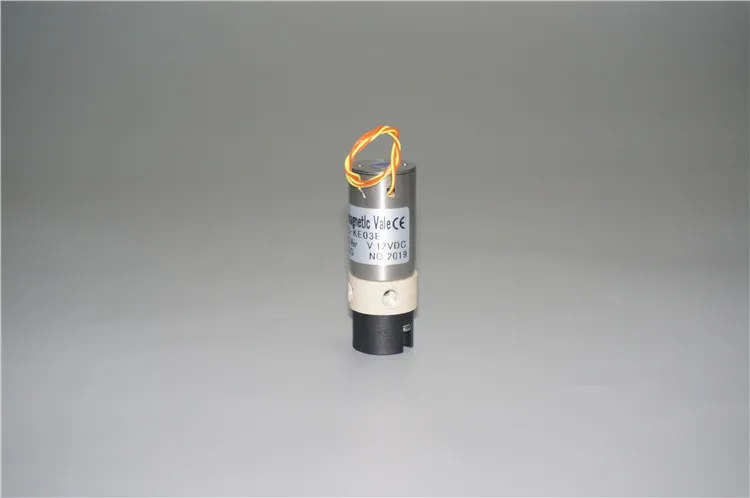

3way normal closed DC diaphrgam isolation valve for fluid control
Product Description
I.Work principle
Normally closed: when the coil is energized, the attraction of the coil pulls the iron core, to open the main valve port and the medium passes.
Normally opened: when the coil has interruption of power supply, the iron core resets by the spring, and the valve port closes and the medium is stopped.
Normally opened: when the coil has interruption of power supply, the iron core resets by the spring, and the valve port closes and the medium is stopped.
II.CHARACTERISTICS
1.Low power consumption, Weak acid and base resistance
2.The electromagnetic coil is designed with complete isolation.
3.able to work continuously for 10 million times.
4.Small size and small space is occupied.
5.Extremely short response time and resistance to high voltage
6.Internal fixed volume is small.
2.The electromagnetic coil is designed with complete isolation.
3.able to work continuously for 10 million times.
4.Small size and small space is occupied.
5.Extremely short response time and resistance to high voltage
6.Internal fixed volume is small.
III. SCOPE OF APPLICATION
1.Liquid medicine relating to analysis apparatus and semiconductor
2.Medical analysis apparatus for use in, biochemistry and immunology, etc.
3.Testing apparatus for water quality, atmosphere and waste gas, etc.
4.Chemical analysis apparatus such as liquid/gas chromatograph
5.Medical apparatus such as dialysis apparatus
6.Manufacturing device for semiconductor and liquid crystal
7.The control device for such special circulation medium as ink and medicinal liquid, or such fluid as drinks.
8.COD, water quality detector
IV.Technical parameters

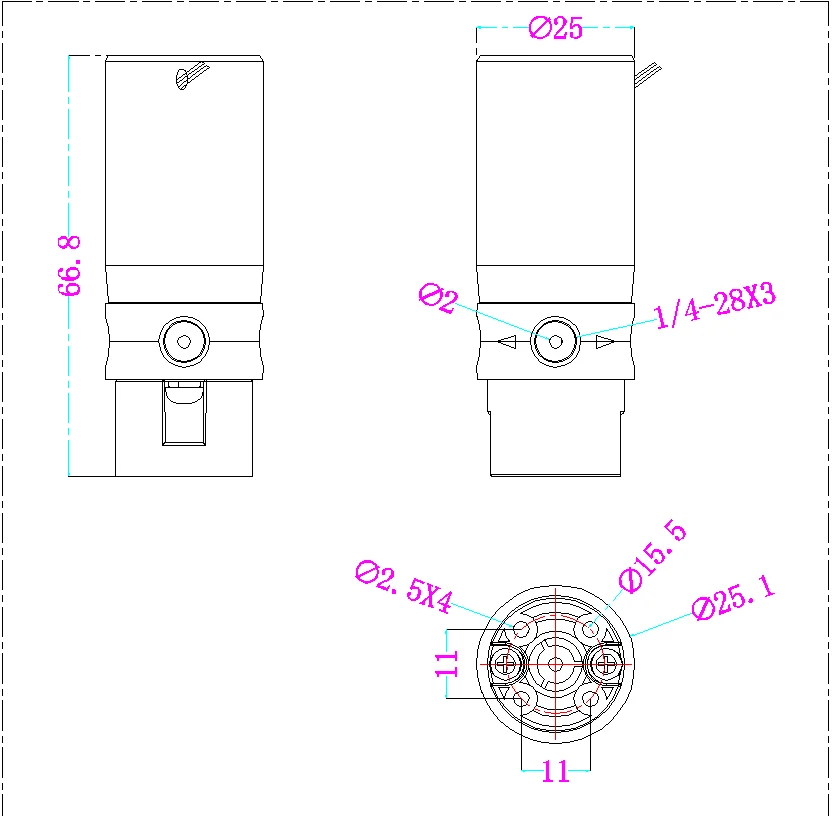

Model | HC-K E03E |
Drive method | Electromagnetic coil |
type | Normally closed type |
Orifice(mm) | 2.0 |
port type | 1/4-28 UNF |
OUT Pressurization (kpa) | 200 |
Material of valve body | PPS |
Seal material | EPDM |
Voltage(DC) | 12V/24V |
current(A) | 0.27/0.15±% |
Power consumption (W) | 3/3.6±5% |
Response time | <30ms |
Leak rate | 0 |
Load cycle | It can work continuously |
Fluid temperature | 0 ~ 180℃ |
Environment temperature | 0 ~ 60 ℃ |
Weight (kg) | 0.11 |
Recommended maternit
Company Information

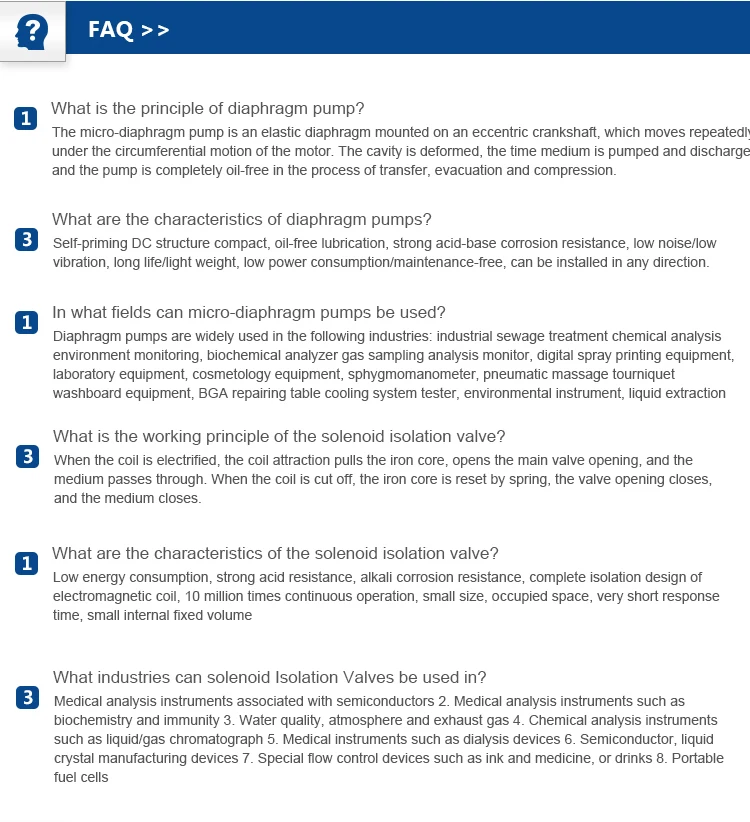

FAQ
