TES 32A Lithium Battery Capacity Tester 0 500AH with DCV Resistance Measurement RS232
- Category: Battery Testers >>>
- Supplier: Shanghai Yiniu Network Technology Limited
Share on (62563344408):
Product Overview
Description
TES-32A Battery Capacity Tester 0-500AH with DCV Resistance Measurement RS232
Product Features:
1.Test Condition Without Shutting Down Battery.
2.Simultaneously Measure Battery Resistance, Voltage.
3.Comparator Function.
4.Rates Conditions as Pass, Warning, or Fail.
5.Memory and Read Function
6.Compact and Lightweight.
7.RS232 PC Interface
Specifications:
| Battery Types Tested | Compact storage batteries, Alkali and lead-acid batteries.. |
| Battery Capacity | 0 to 500AH |
| Resistance | Ranges : 40m, 400m, 4, 40 Resolution : 10, 100, 1m, 10m Accuracy : (1%reading + 8digits) on all ranges. |
| Measurement | Current : 25mA, 2.5mA, 250A,25A Frequency : 1KHz Accuracy : 10% |
| Voltage | Measurement : 4V, 40V Resolution : 1mV, 10mV Accuracy : (0.1%rdg 6digits) |
| Open Circuit Voltage | 3.5Vpp max |
| Data Memory | 500 data sets |
| Continuous Data Memory | 9600 data sets (only use PC download) |
| Comparator | Setting : Resistance upper and lower limits and voltage |
| Operating Environment | 0Cto 50C (32F to 122F), 80%RH or less, non-condensing. |
| Maximum Input Voltage | 50VDC |
| Power Supply or AC Adapter | Six size AAA 1.5V |
| Battery Life | 7 hours |
| Weight | Approx. 500g including batteries |
| Dimensions | Approx. 250(L)×100(W)×45(H)mm |

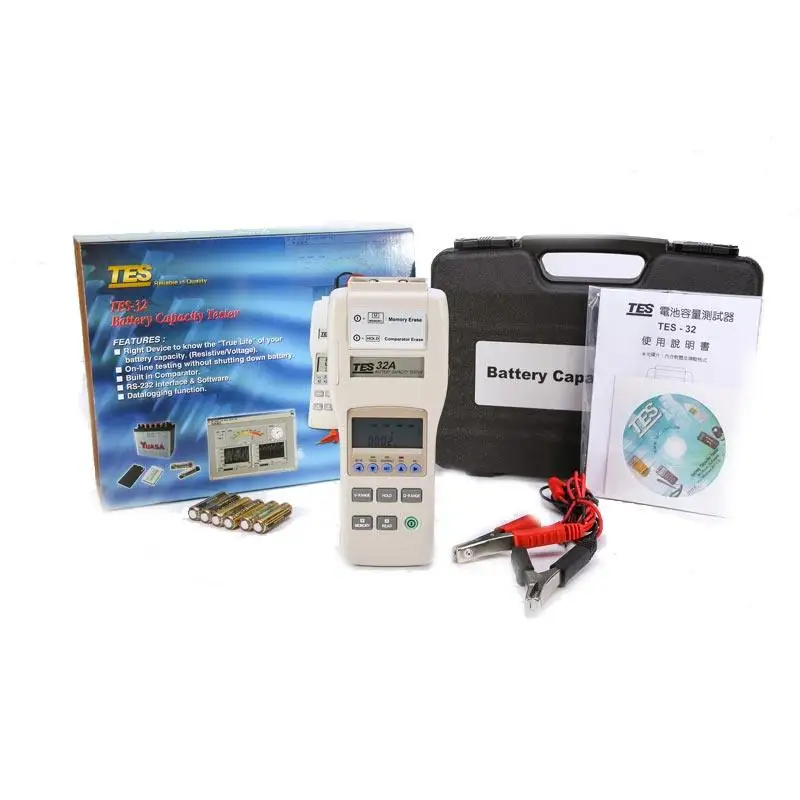

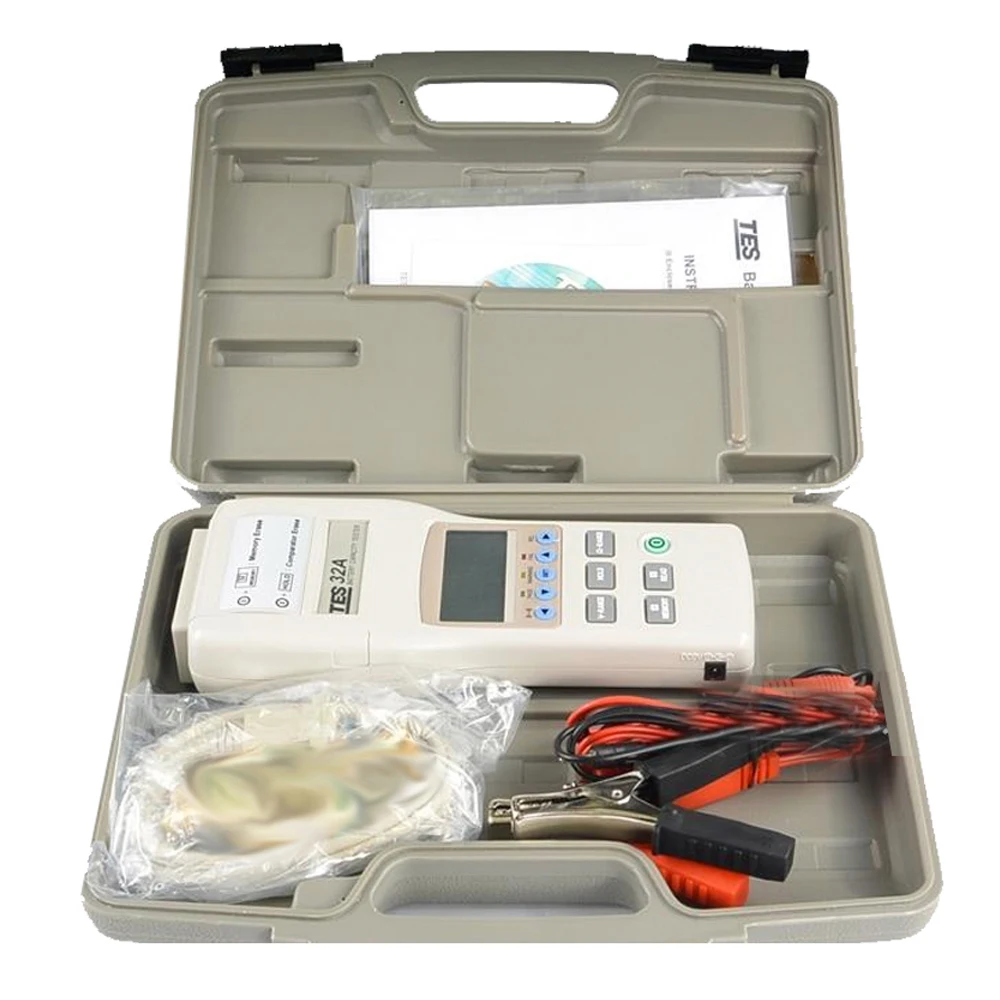

| Accessories | Instruction manual, Batteries, Test probe, Software, RS232 cable. |
| Optional Accessories | AC adaptor (Isolated output 9VDC) |
