Vibratory Deburring Bowls Finishing Machine
US $750.00-$800.00
Высокоточная каменная машина Wanlong для обработки камня, многофункциональная мостовая пила, режущая машина
- Category: Metal Polishing Machine >>>
- Supplier: Huzhou Xinfeng Grinding Co. Ltd.
Share on (62565943410):
Product Overview
Description
High Precision Wanlong Stone Machine For Stone Processing, Mutible Bridge Saw Cutting Machine
Features and applications
Characteristics of vibrating motor light decoration machine:
1, the use of the world's advanced spiral rolling flow, three times vibration principle, so that the parts and grinding tools grinding each other. 2, suitable for large quantities of medium and small size parts finishing processing, improve the efficiency of 6-10 times. 3, the processing process does not destroy the original size and shape of parts. 4, can achieve automation, unmanned operations, easy to operate, in the process of work, can at any time spot check the processing of parts.

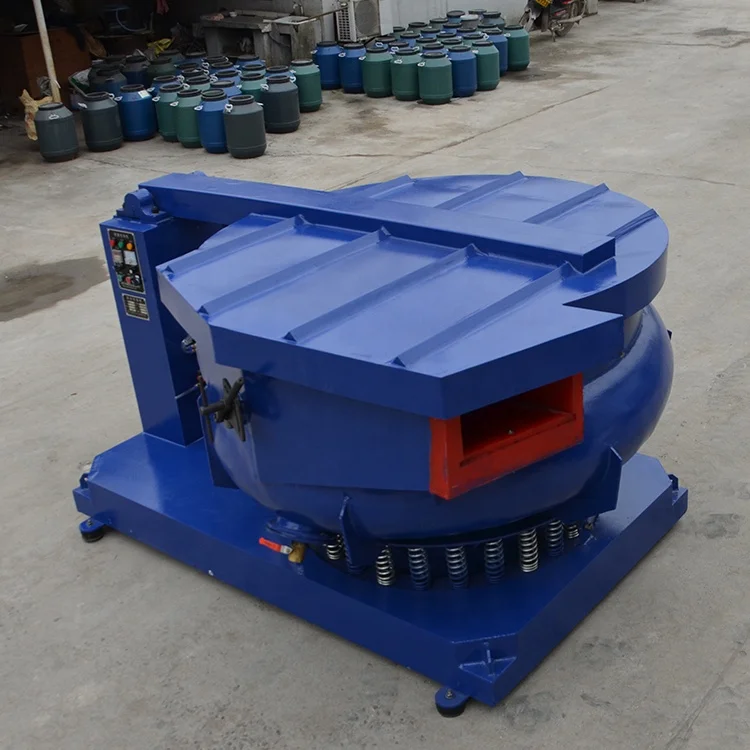

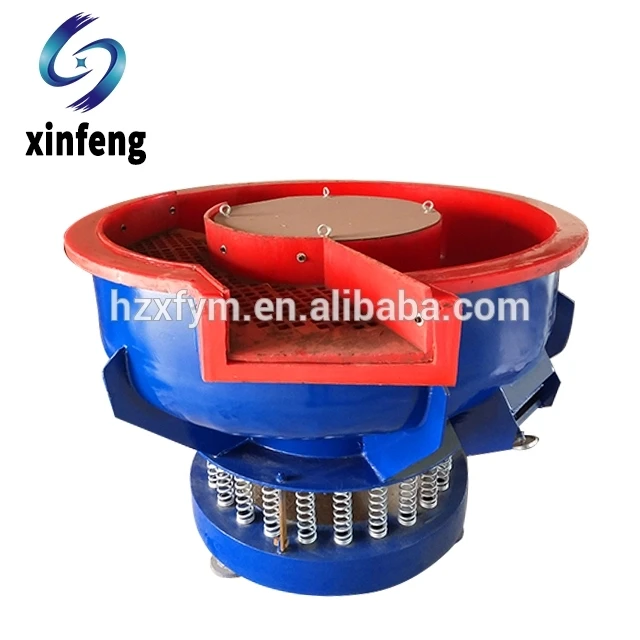

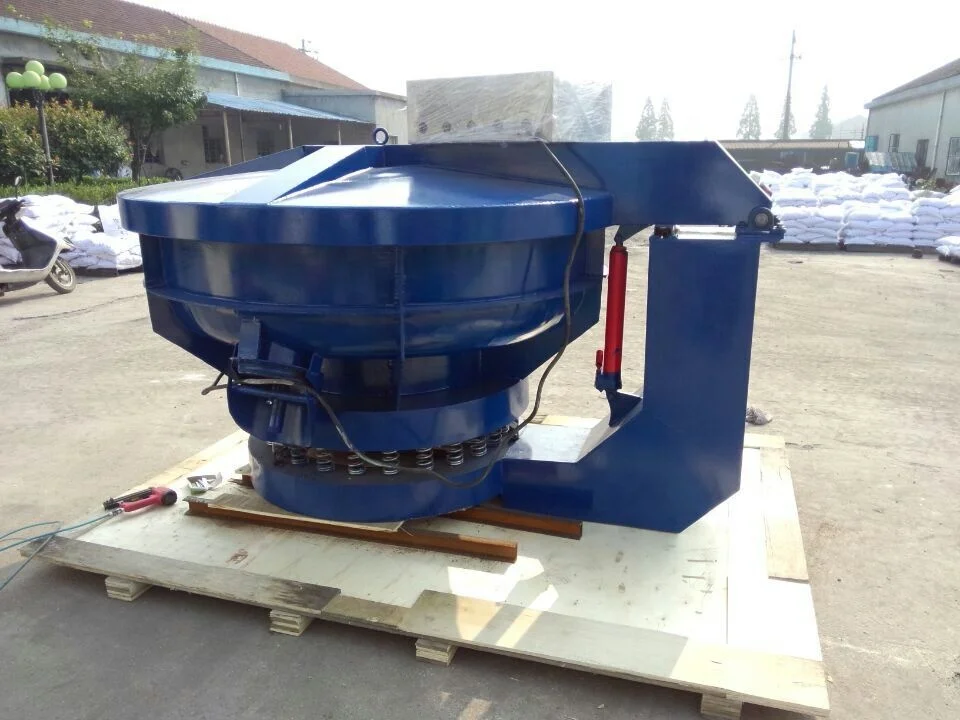

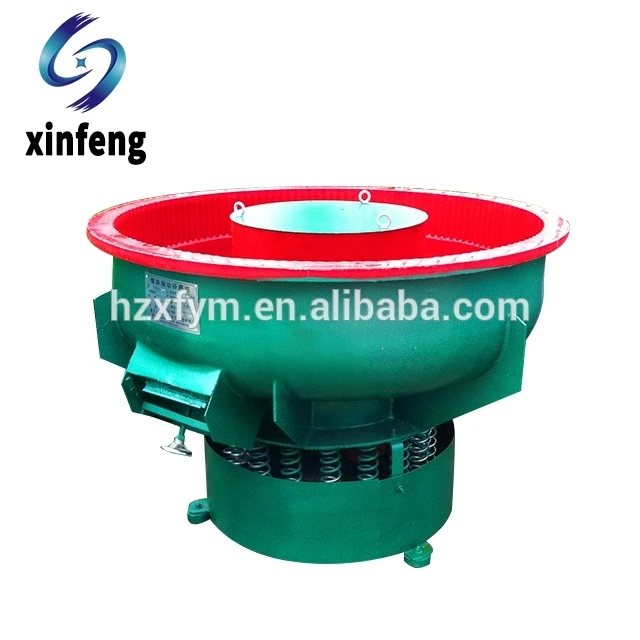

Vibrating finishing machine:
In the working tank of the vibratory lighting machine: the workpiece, abrasive, water and chemical auxiliaries are driven by the vibratory driving system to produce motion.This results in continuous relative motion between the abrasive and the workpiece.The interactions between water, chemical auxillaries, abrasives, and vibratory finishing machines achieve the required surface treatment.With the sorting screen device, it is convenient to realize the sorting, easy to operate and reduce the working intensity.Especially suitable for chamfering of various metal and non-metallic parts (such as bearing rollers, rings, retainers, auto parts and gears, etc.), deburring and improving surface roughness.To improve the overall appearance quality of parts, is the first choice of aircraft manufacturing, automotive, bearing, textile, crafts and other industries essential equipment. Can be equipped with PLC programming control system;Fully automatic control.
Characteristics of vibrating type light decoration machine:
Large output, high efficiency, energy saving, long life, low noise, no pollution, high quality. 1. Make use of the vibration deviation generated by the inertia exciter (vibration motor eccentric block) to make the machine move in the three-dimensional surface, thus making the workpiece and abrasive run in the same direction and rub against each other to achieve the effect of surface treatment. 2, suitable for large quantities of medium, small, size parts of light finishing processing, processing effect is good, consumption time is short. 3, the processing process does not destroy the original size, shape of the parts, suitable for the various shape of the workpiece finishing processing. 4, easy to operate, in the process of work can be at any time to check the processing effect of parts, another can be equipped with PLC control box, can achieve automatic control. 5. The container liner is made of PU material (polyurethane);The direct contact between the workpiece and the metal is prevented, and the service life of the machine is greatly prolonged. 6. Discharging device and other screening equipment provided;The grinding block can be separated from the workpiece, the workpiece automatically discharge.
Model | Power (kw) | Amplitude (mm) | Speed (r/min) | Weight (kg) | Size (mm) |
60L | 0.75 | 0.8-2 | 1450 | 100 | 650*650*650 |
80L | 1.1 | 0.8-2 | 1450 | 120 | 900*900*880 |
100L | 1.1 | 0.8-2 | 1450 | 200 | 900*900*880 |
150L | 1.5/2.2 | 0.8-2 | 1450 | 300 | 1150*1150*950 |
200L | 2.2/3.0 | 0.8-2 | 1450 | 400 | 1250*1250*1000 |
300L | 3.7/5.0 | 0.8-2 | 1450 | 550 | 1350*1350*1100 |
400L | 3.7/5.0 | 0.8-2 | 1450 | 700 | 1450*1450*1150 |
600L | 5.5/7.5 | 0.8-2 | 1450 | 850 | 1880*1880*1400 |
800L | 9 | 0.8-2 | 1450 | 1000 | 1950*1950*1450 |
900L | 11 | 0.8-2 | 1450 | 1400 | 2150*2150*1500 |
1200L | 15 | 0.8-2 | 1450 | 1600 | 2400*2400*1600 |
Our laboratory services are available to you at no cost. Mass Finishing and determination of Process Capability allows you to use the right media to ensure consistent production capability and built-in reproducibility of your manufacturing processes. We will work with you to determine the best media and the best processes for your parts. This step can result in:
- Reduced Cycle Times
- Improved RMS Finishes
- Reduced Finishing Costs
- Access to Latest Technology
- R & D for Special Process Media
Mass Finishing describes a mechanical process where large amounts of parts are economically processed to achieve one or several surface improvement functions. These surface improvement functions include:
- Cleaning
- Deburring
- Surface refinement
- Inhibiting
- Drying
These functions are not independent of each other. It is common to have several or all of these functions take place in a single mass finishing process.
Process Capability is the measured, built-in reproducibility of the product turned out by the process. Such a determination is made using statistical data, not wishful thinking. Statistically determined limits are compared to specification limits to decide if a process can consistently produce acceptable product. Process capability is best established through closely monitored testing and recording of data over a set period of actually production.
