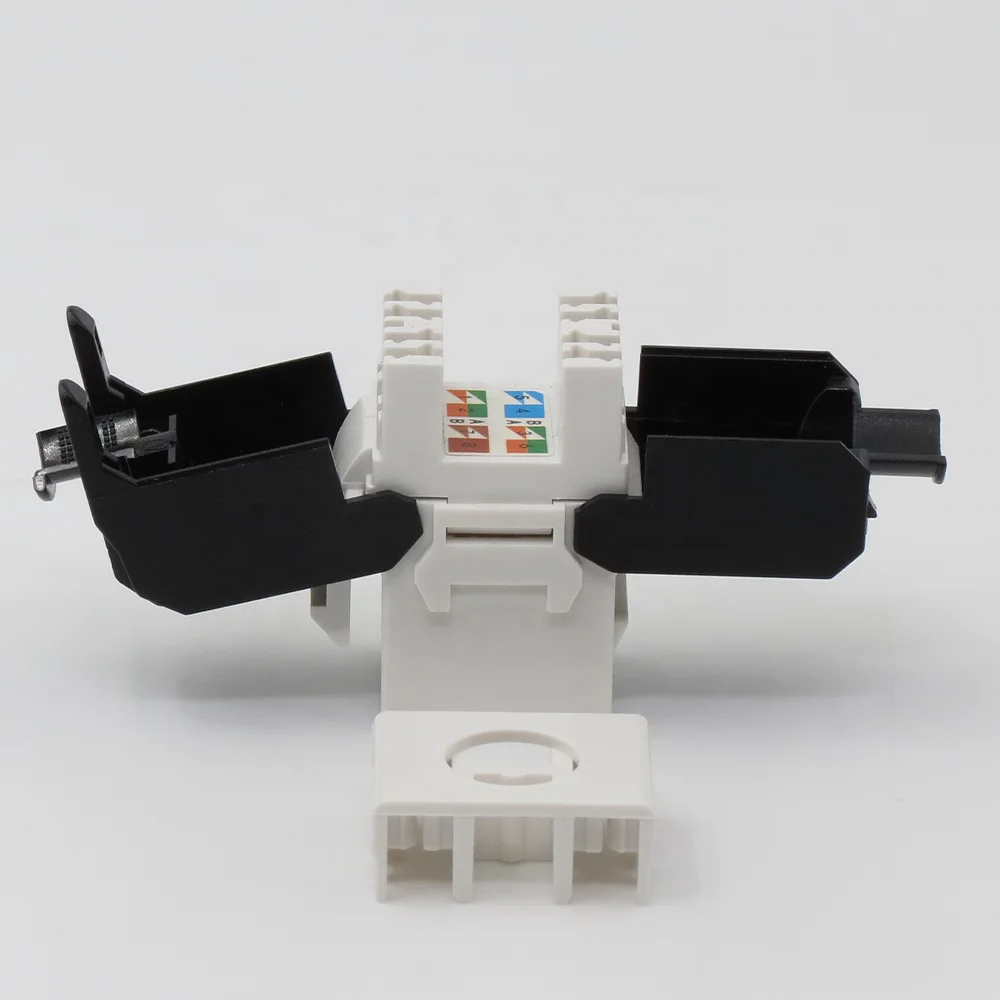

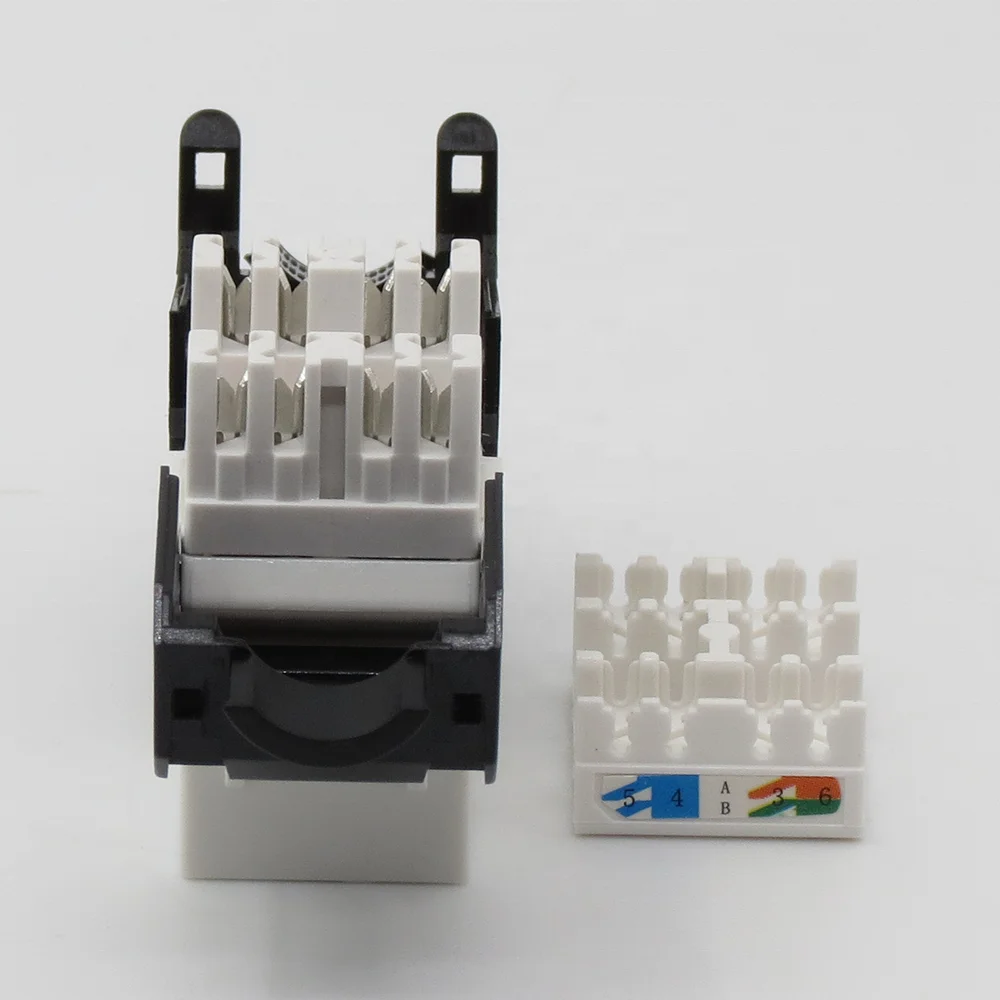

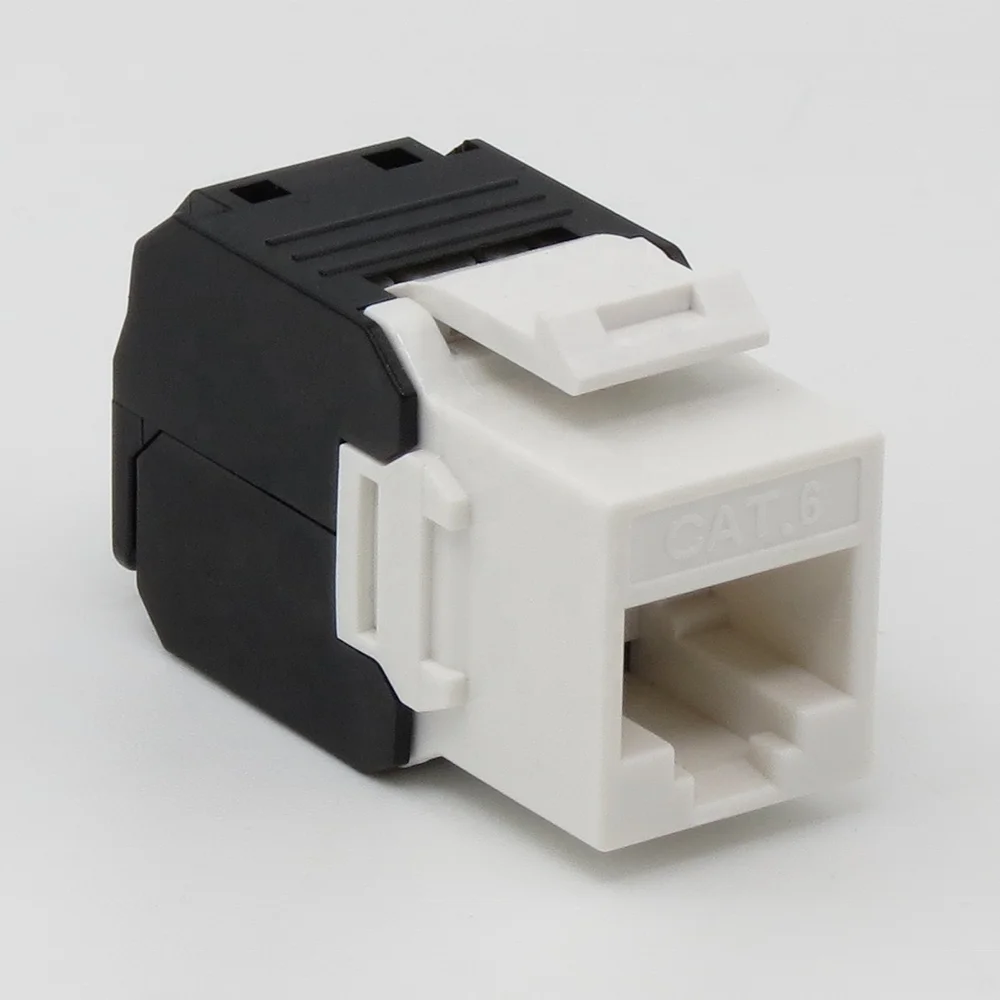

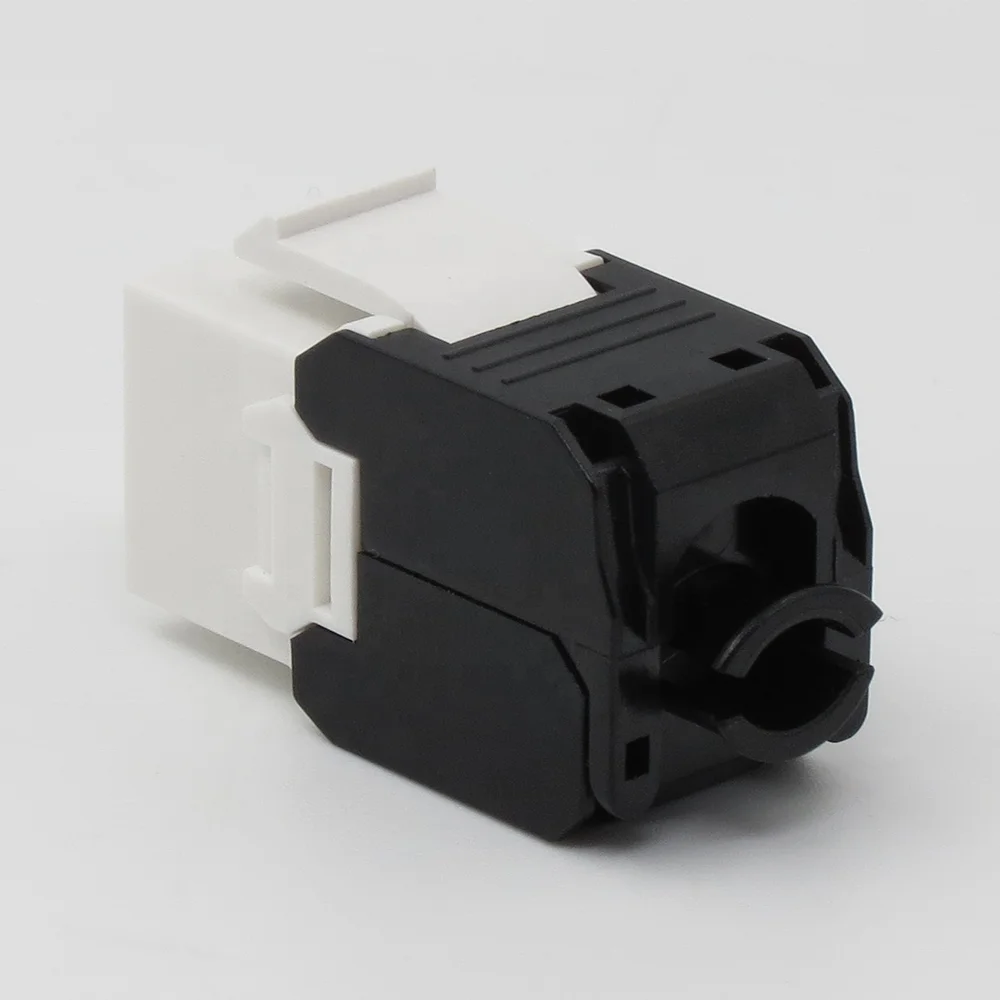

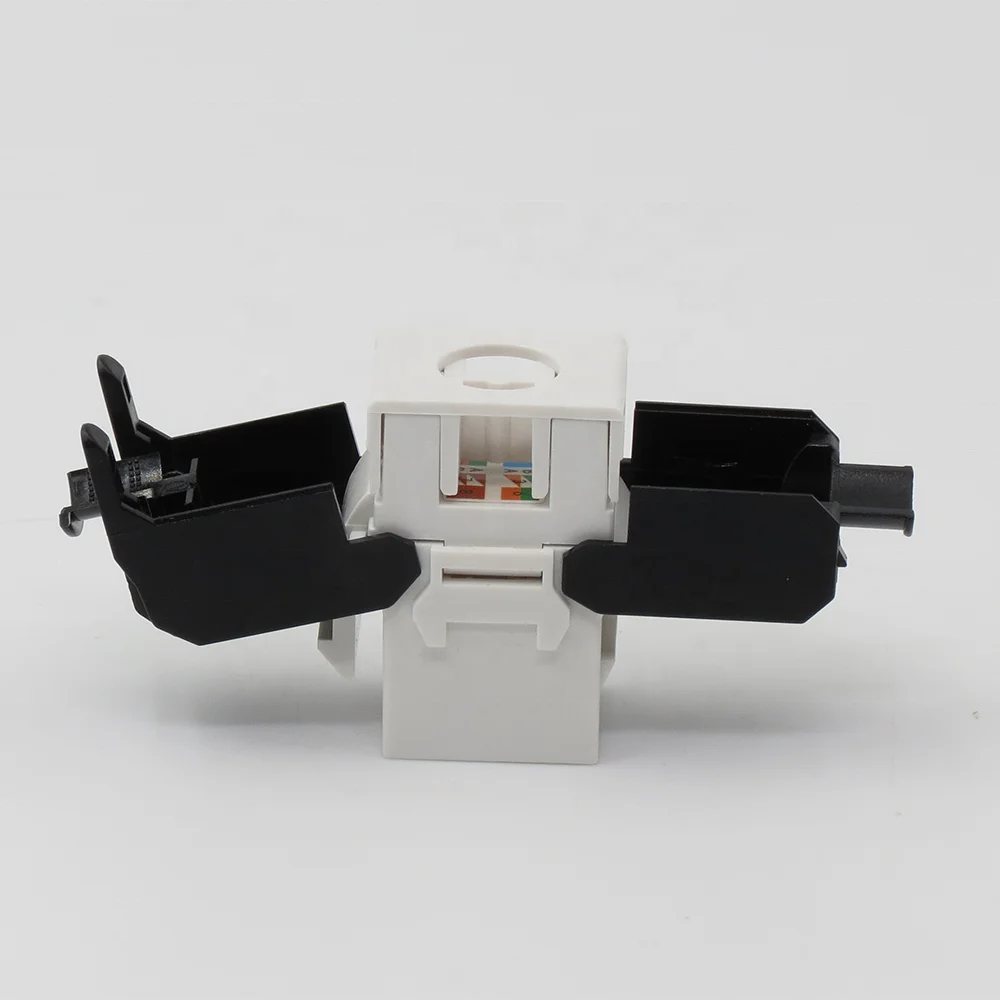

TM-8025-UTP AMP Type RJ45 Cat6 180 Degree UTP Keystone Jack
Electrical | |||||||
Voltage Rating : | AC 125V | ||||||
Current Rating : | 1.5 AMPS | ||||||
Insulation Resistance: | 500MΩ Min | ||||||
Withstand Voltage: | DC 1000V RMS 50-60Hz Min | ||||||
Contact Resistange: | 20MΩ Max | ||||||
Mechanical | |||||||
Insertion Force: | 2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N | ||||||
Retention Strength: | 70N between jack and plaug;60N between wire and IDC | ||||||
Durability: | Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini | ||||||
Wire: | AWG 24-26 | ||||||
Material | |||||||
Housing: | PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0) | ||||||
IDC Hosing: | PC(UL94V-0);PBT(UL94V-0) | ||||||
Spring Wire: | T=0.35mm phosphor bronze alloy selective gold 0.45 dia phosphor bronze gold plating over nickel | ||||||
IDC Contact : | Phosphor bronze;Nickel plating | ||||||
Shielding: | T=0.25mm copper alloy with tin plated gold | ||||||
Plating : | 3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch | ||||||
Working Environment | |||||||
Temperature: | -10°c TO 60°c | ||||||
Humidity: | 10-90% | ||||||
