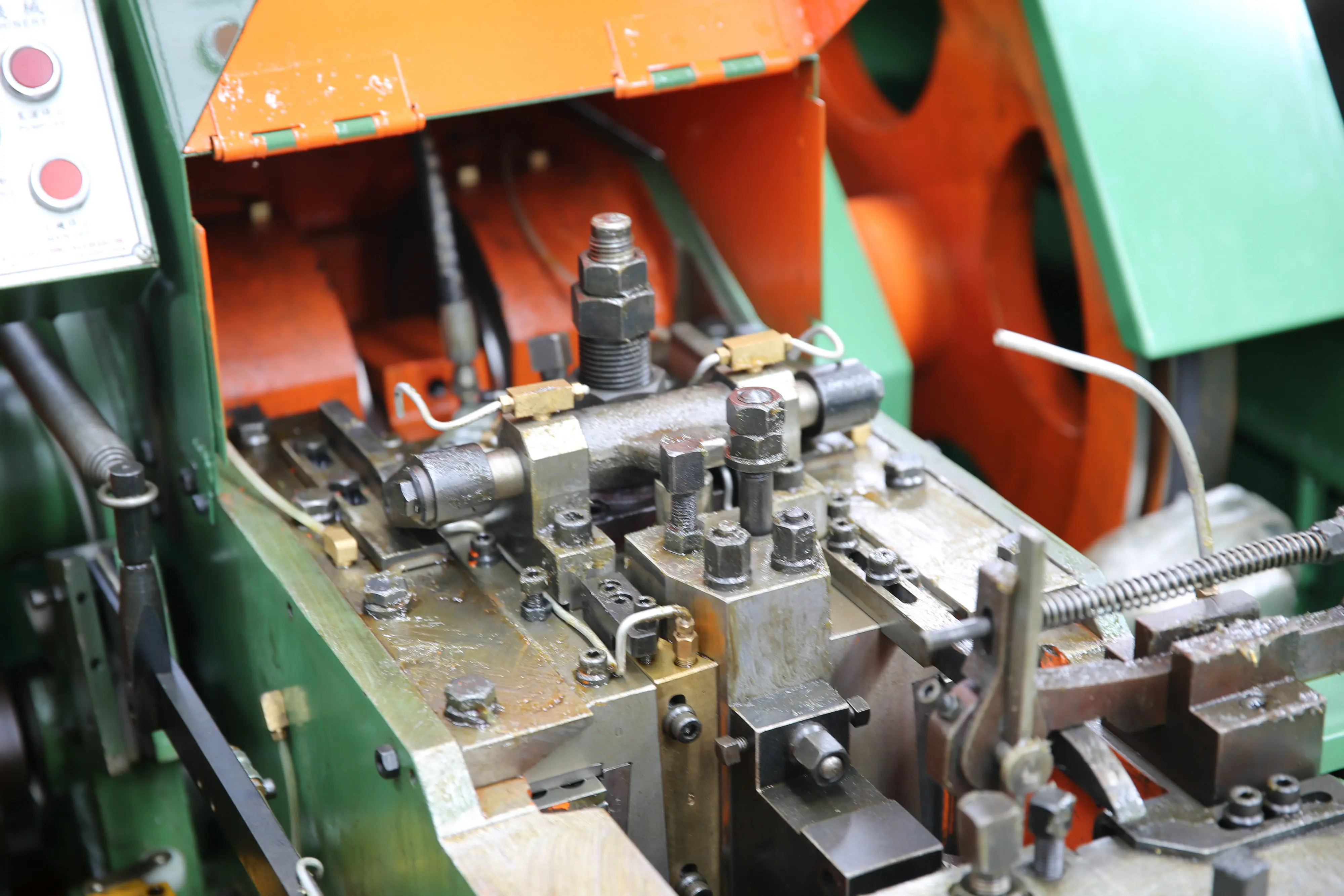

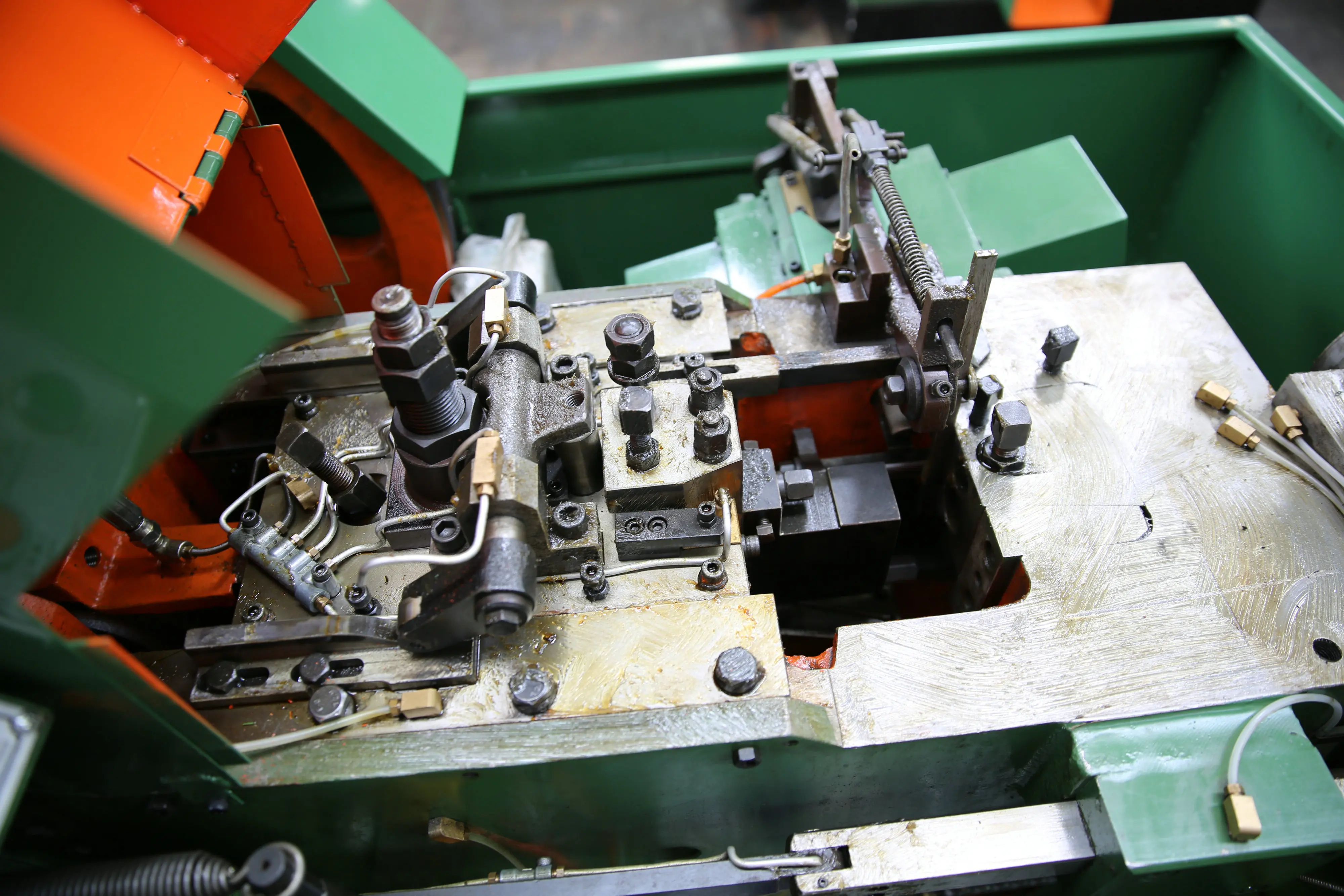

M6*60 Taiwan TX 15B Automatic 1 Die 2 Blow Cold heading Screw Making Machine

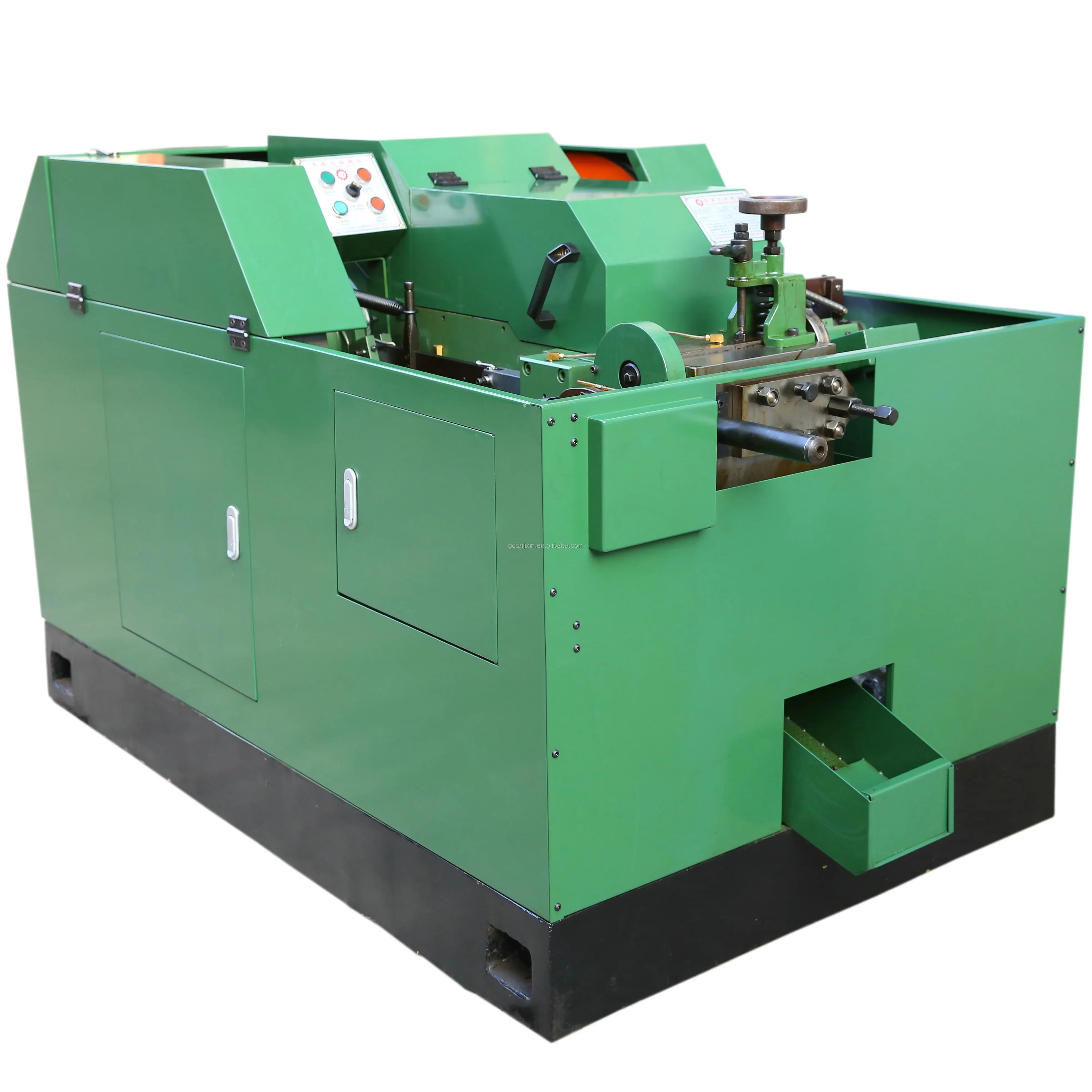

Taiwan TX-15B Automatic 1-Die 2-Blow Cold heading Screw Making Machine

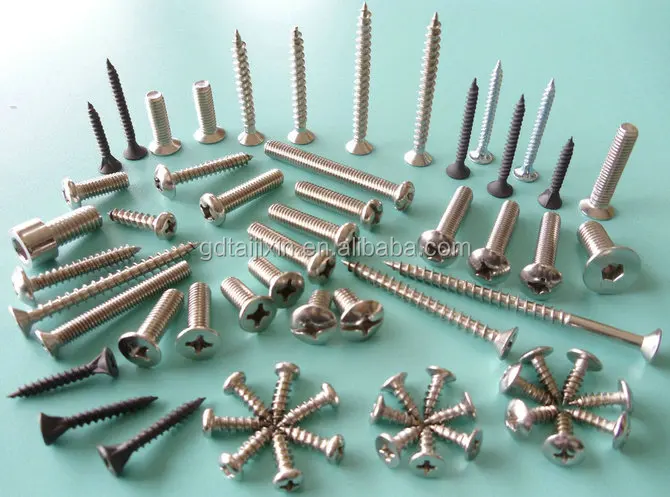

Please kindly see our machines' end products picture as below:

 Functions of heading machine:

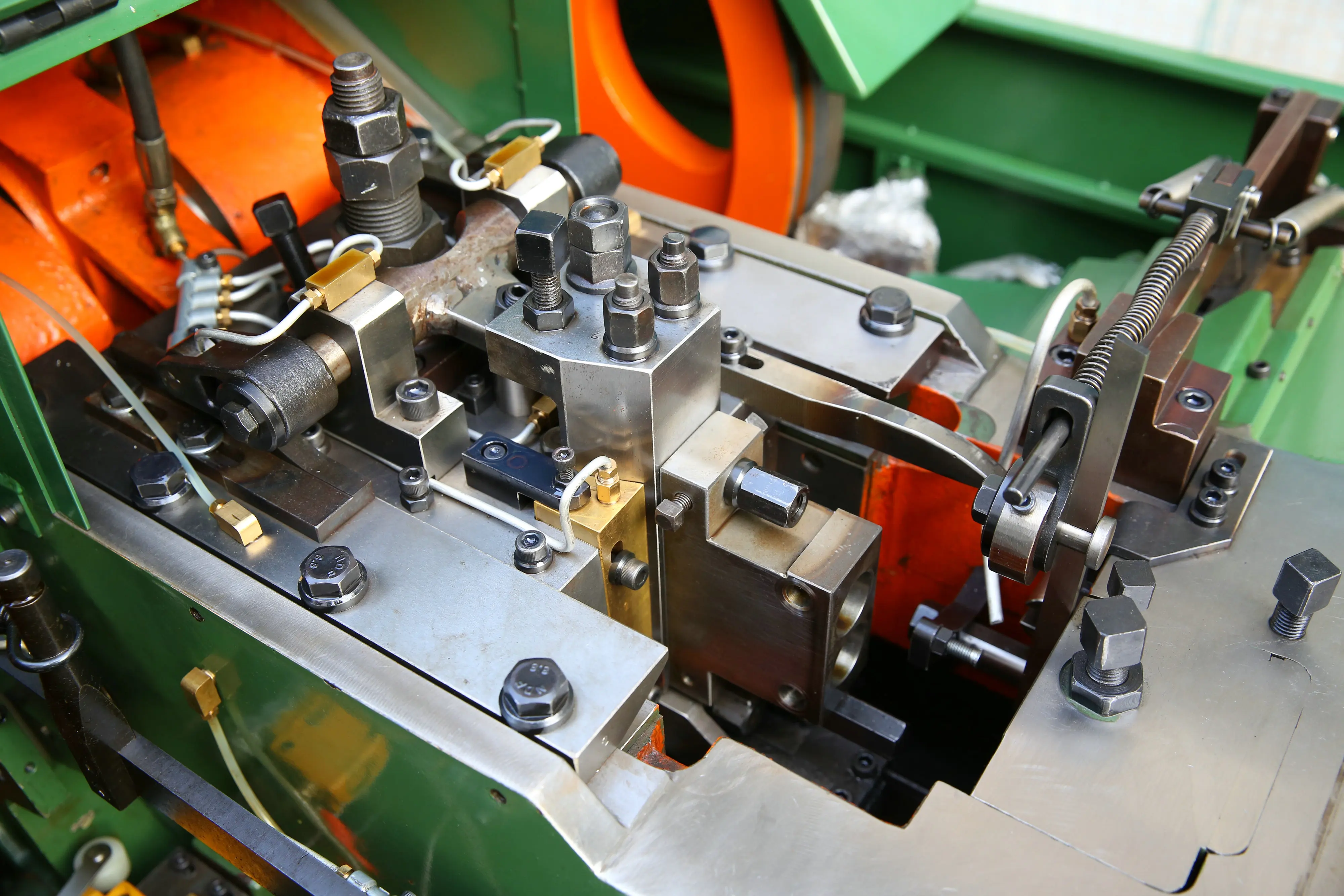

      (1). The machine belong to the cold heading machine, the function is the first molding and the second punching products, which is mainly used for forming the heads of the screw products, the work principle is line materials calibration, accessing lines, sending materials to the main mold, first punching initial forging, and second punching the formed blank materials and withdraw. The work gets done without any letup, the production capacity can be up to about 150-180pcs per minute, which belongs to the more advanced products in the current technology.

      (2).  Upsetter various materials: Common steel, carbon steel, stainless steel, copper, aluminum, and alloy steel etc with widely functions. (For the stainless steel and alloy steel, can heat them to the appropriate temperature with the heater, and can upsetter.)

      (3). The machine can make the common products such as the common self-tapping screw, electric screw, micro-screw, socket head cap bolts, self drilling screw, fiber plate screw etc. For an example PKO can upsetter other non standard abnormal hardware and metal products.

Basic manufacturing processes of screw

Heading →Thread rolling → Heat treatment → Plating (color) → Packing

Brief introduction of processes and machines needed:

      (2). Adjust, produce, and form the head of screw on the heading machine. (Screw heading machine)

      (3).Grind tooth on the coil thread rolling machine, and form the screw completely (Thread rolling machine)

      (4). Treat the semi-finished screw in the heat treatment according to the standard (Heat treatment furnace)

      (5). process plating etc. (Zinc plating machine)

1.Apply and Features:

(1) Perfect design,easy operation.
(2) Single rail skidway design make the machine runs in high speed,and the production efficiency is also high.
(3) Major installation kit of our machines are made from high quality material, undergoing high abrasion-resistance and low deformation heat treatment process,the machine is endurable with long time preciseness
(4) Our machines adopt the forced oil feeding system,to make sure all components of the machine run in films of oil condition,and the machine could be durable for long time.
(5) The key components of our machines are imported from Taiwan,Japan and Germany,which are all complied with the all high- precision,high-hardness,high-abrasion resistant requirments.
(6) Male mould ejection design,which solve the screws blocking problem when running down.

The cold heading machine we currently make include 1-die 2-blow, 2-die 4-blow,  3-die 3-blow, 4-die 4-blow,5-die 5-blow,6-die 6-blow,etc, to make screws such as wooden screws, self-tapping screws, chipboard screws and dry wall screws, etc, with various structure from simple type to complicated type -- multiple-station formed head and stepped shank are also available.

4.Our factory and office show:

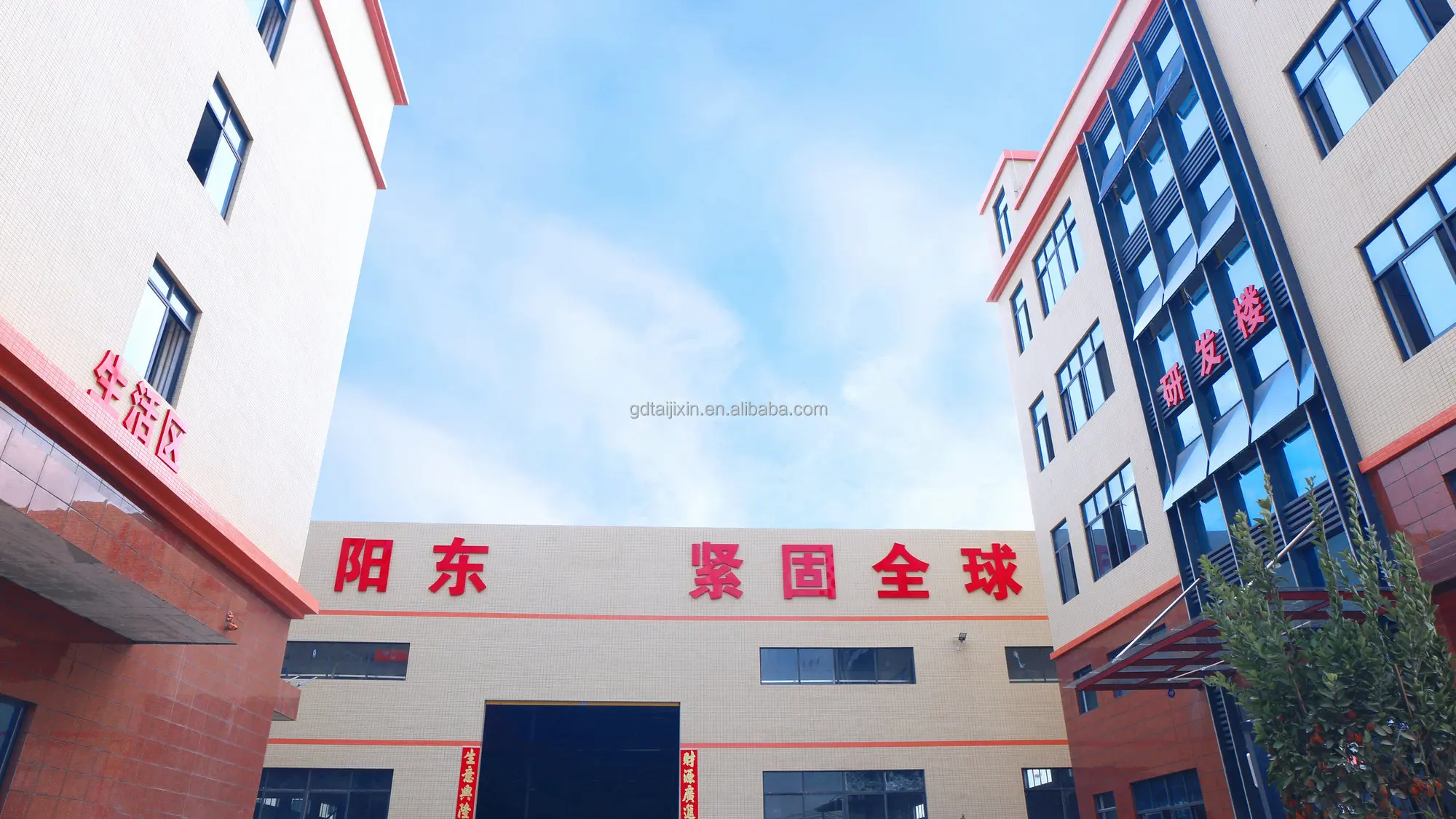

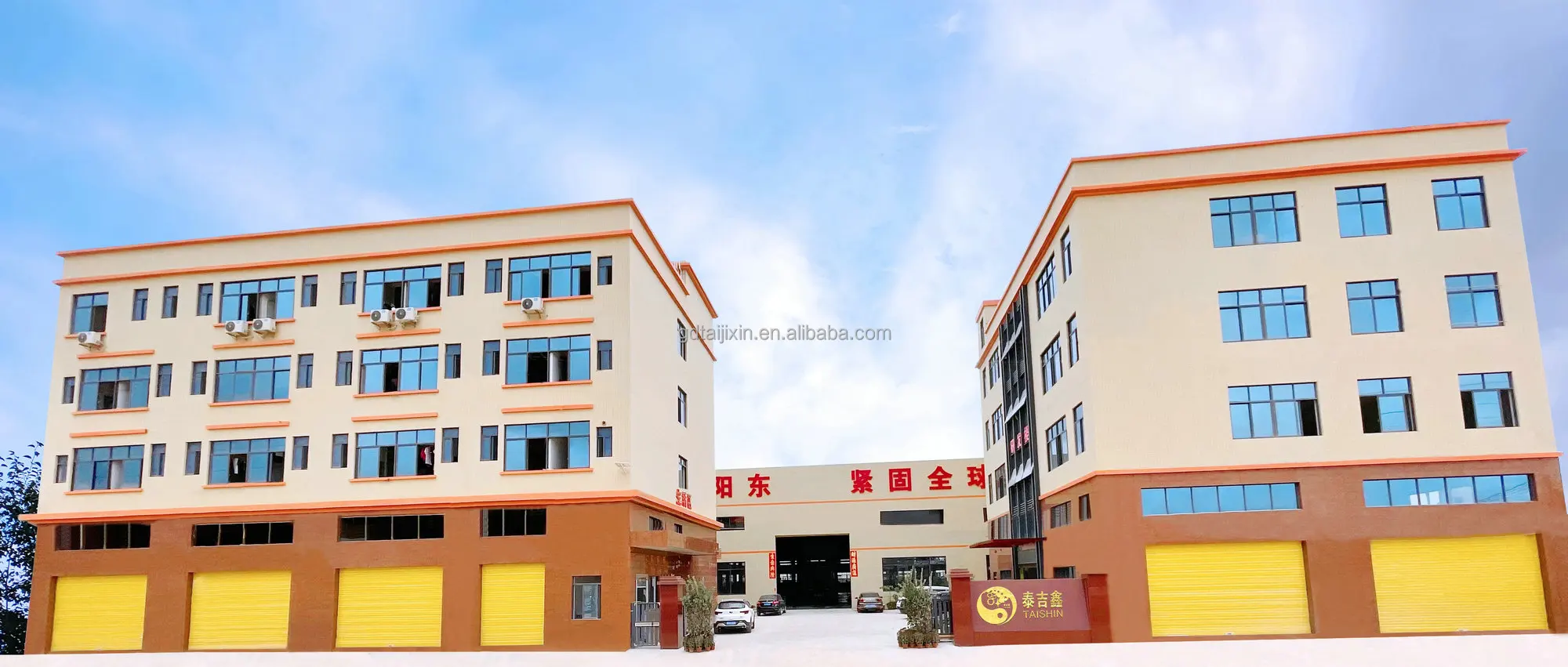

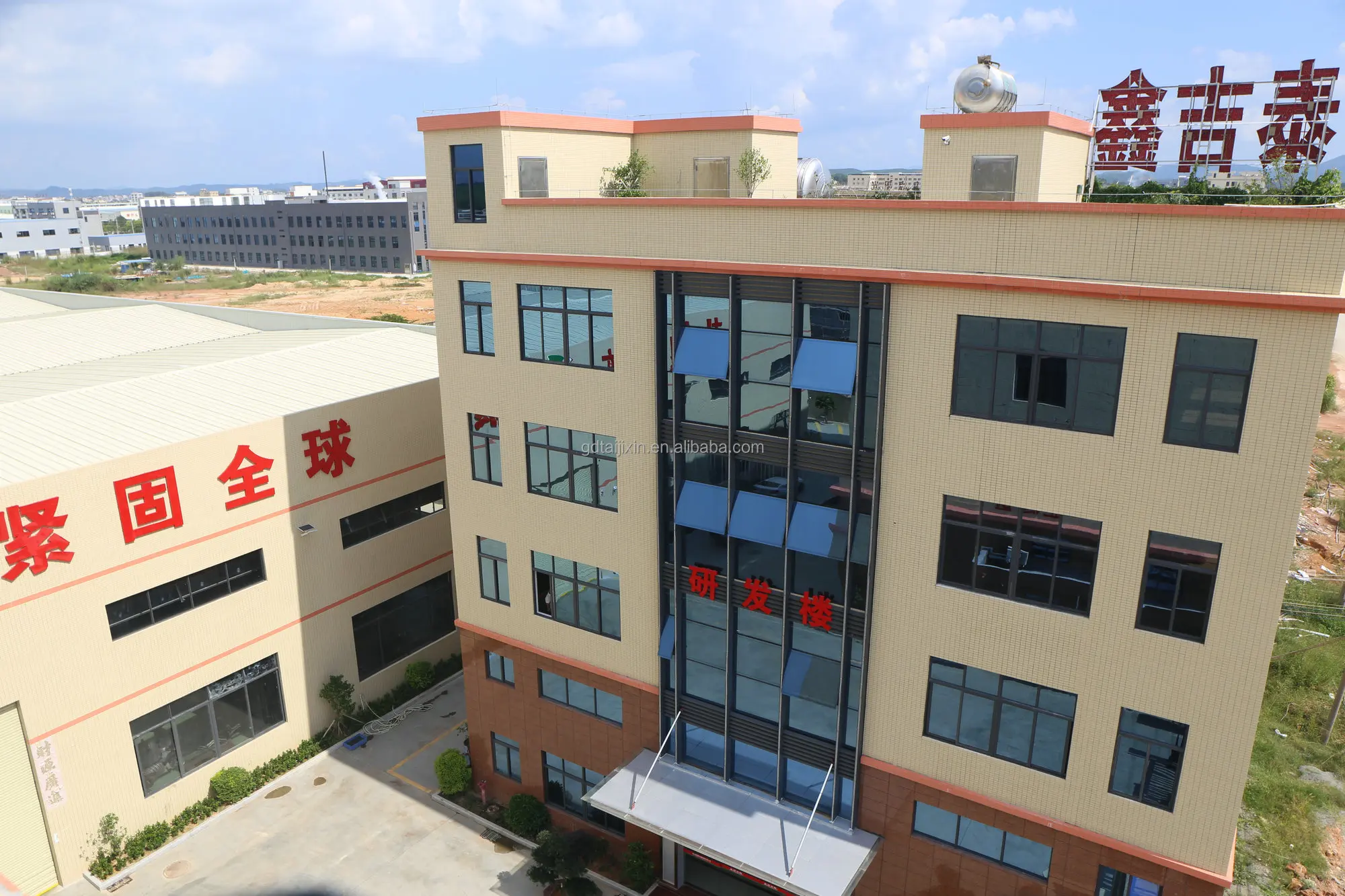

A.Factory and ofice:

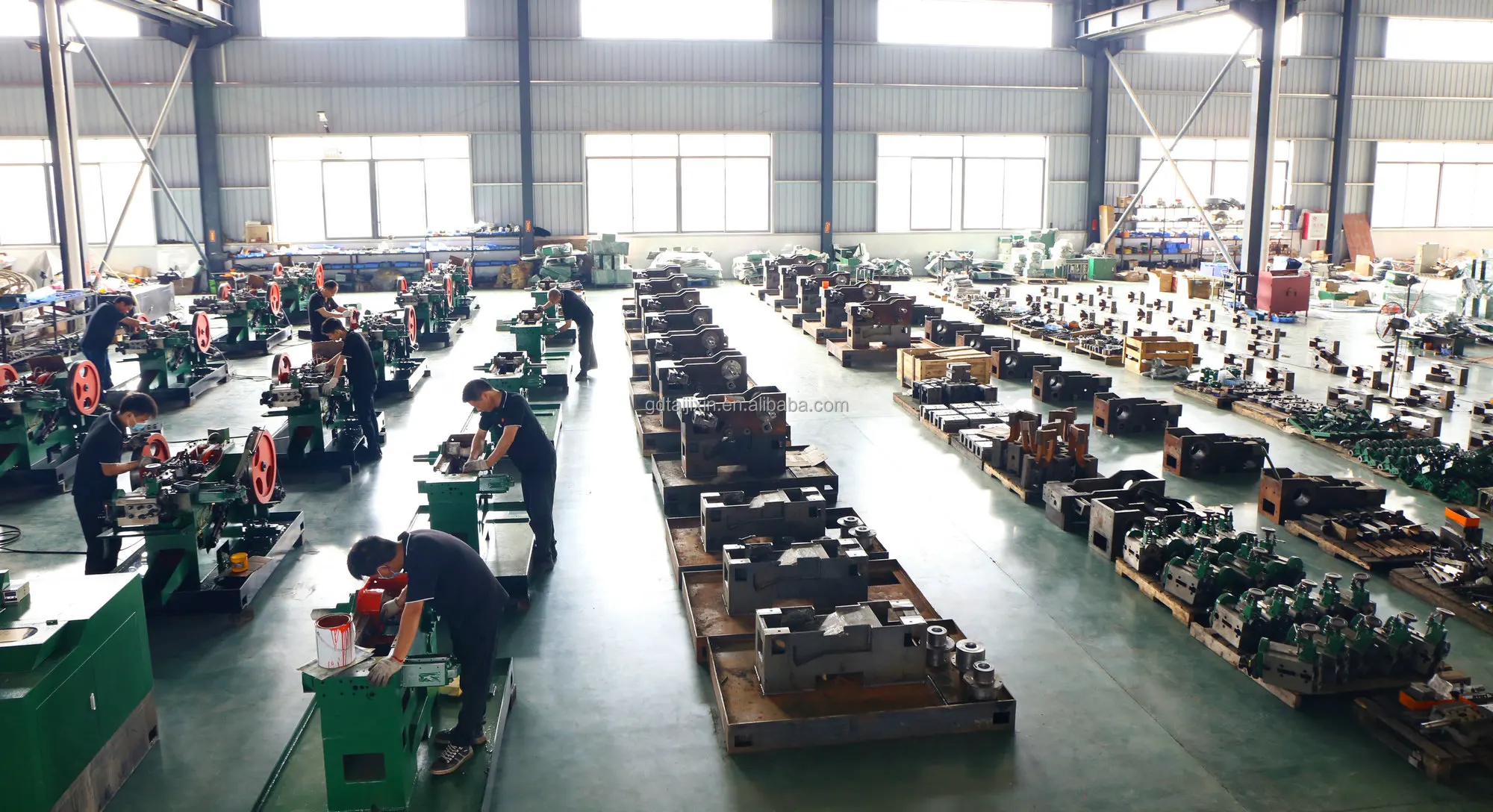

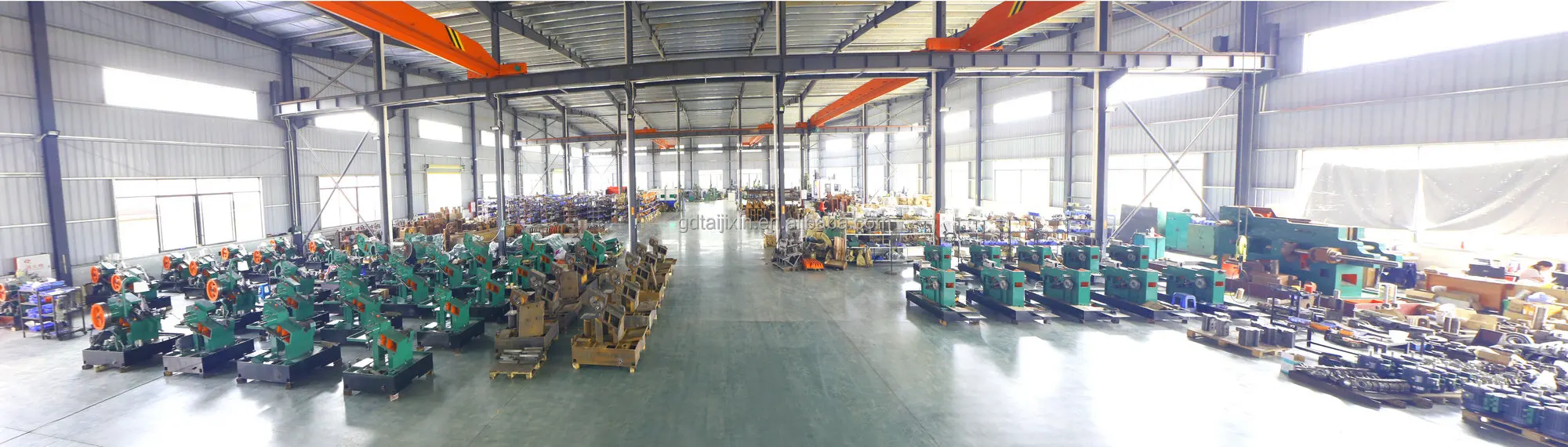

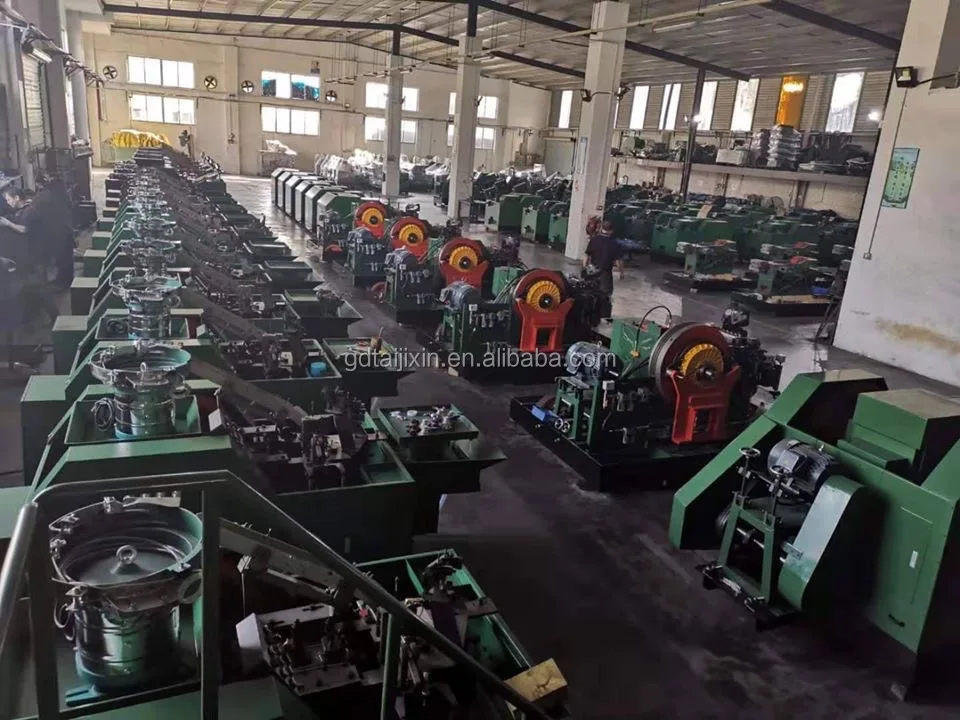

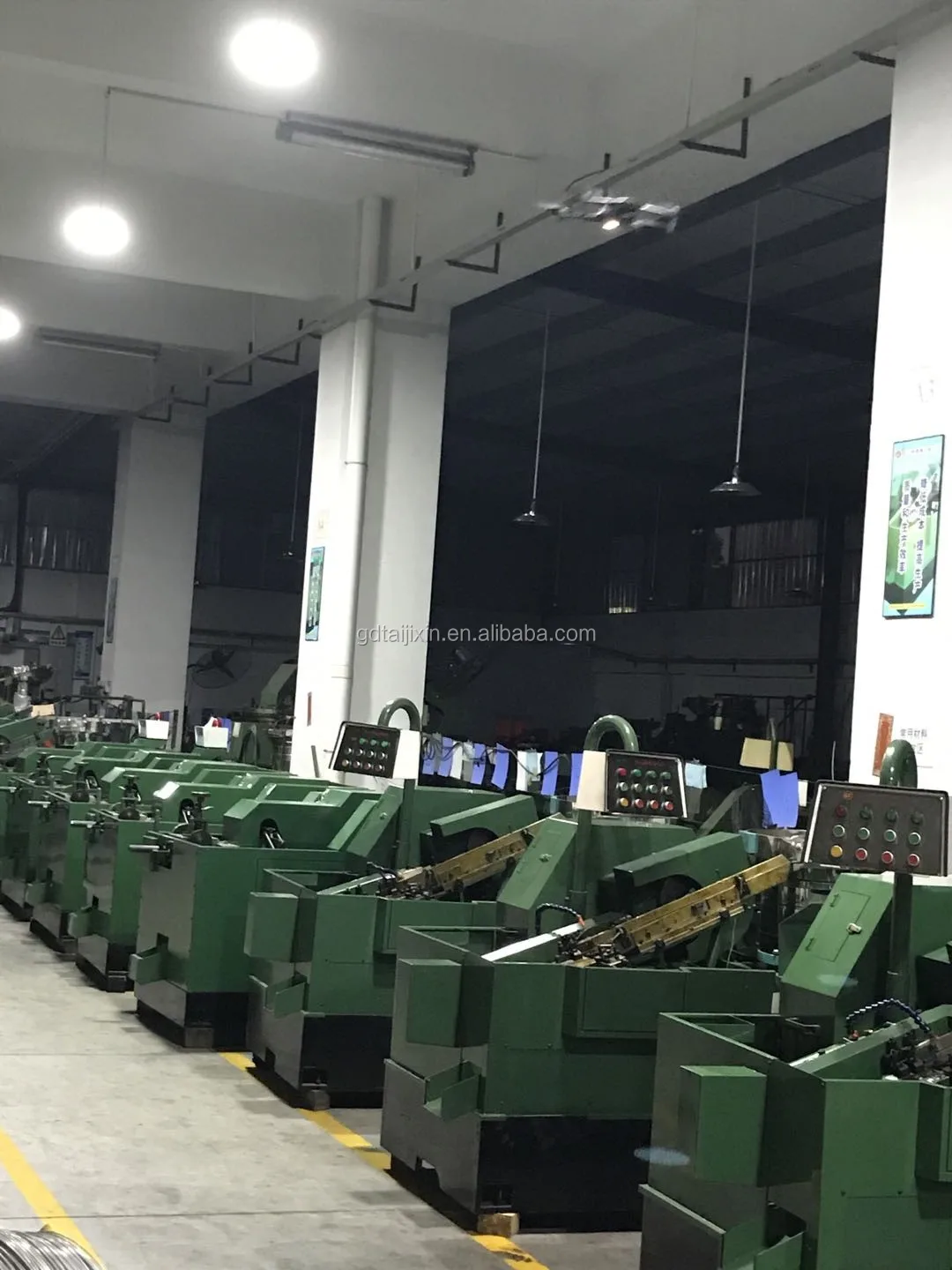

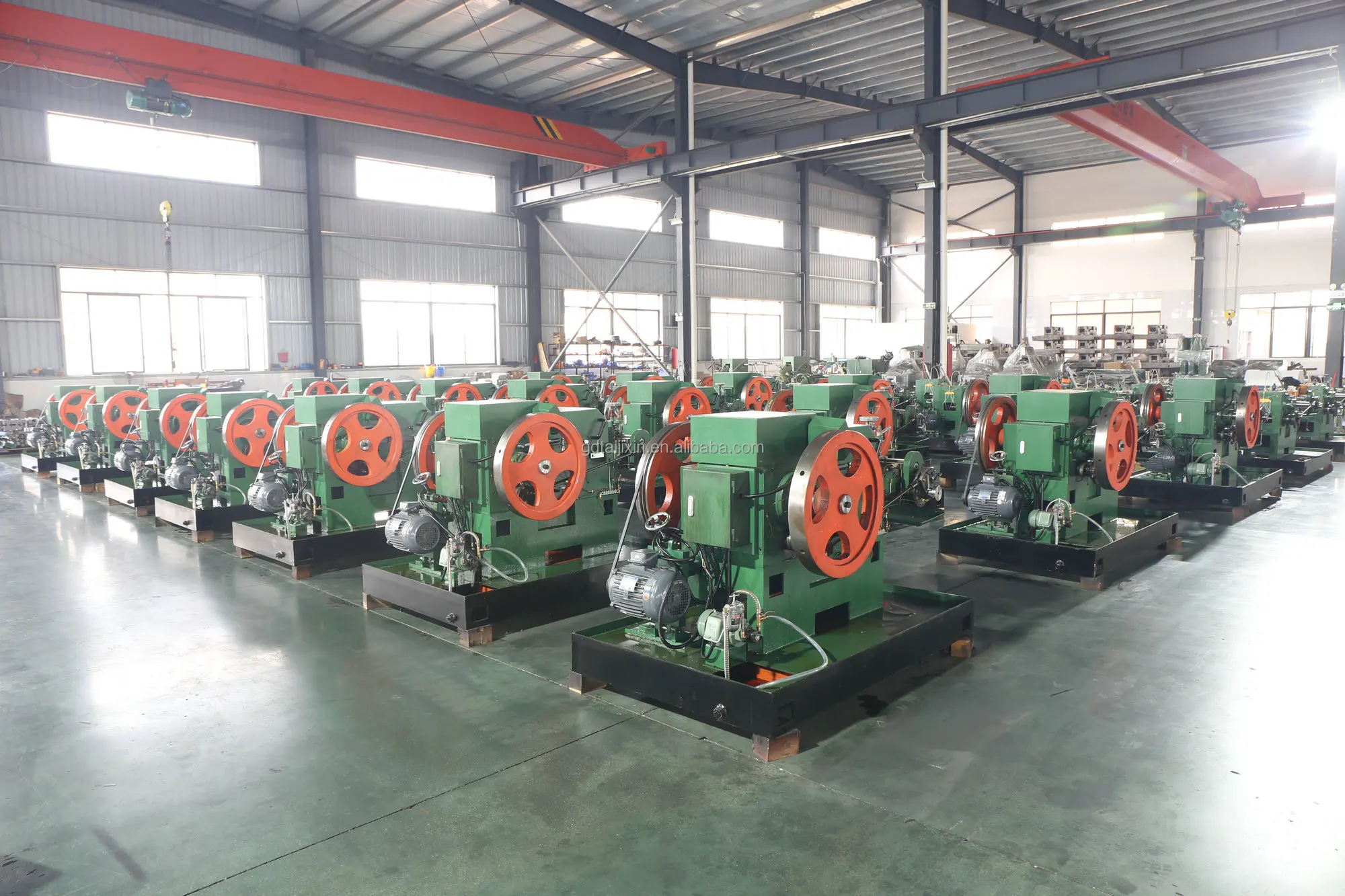

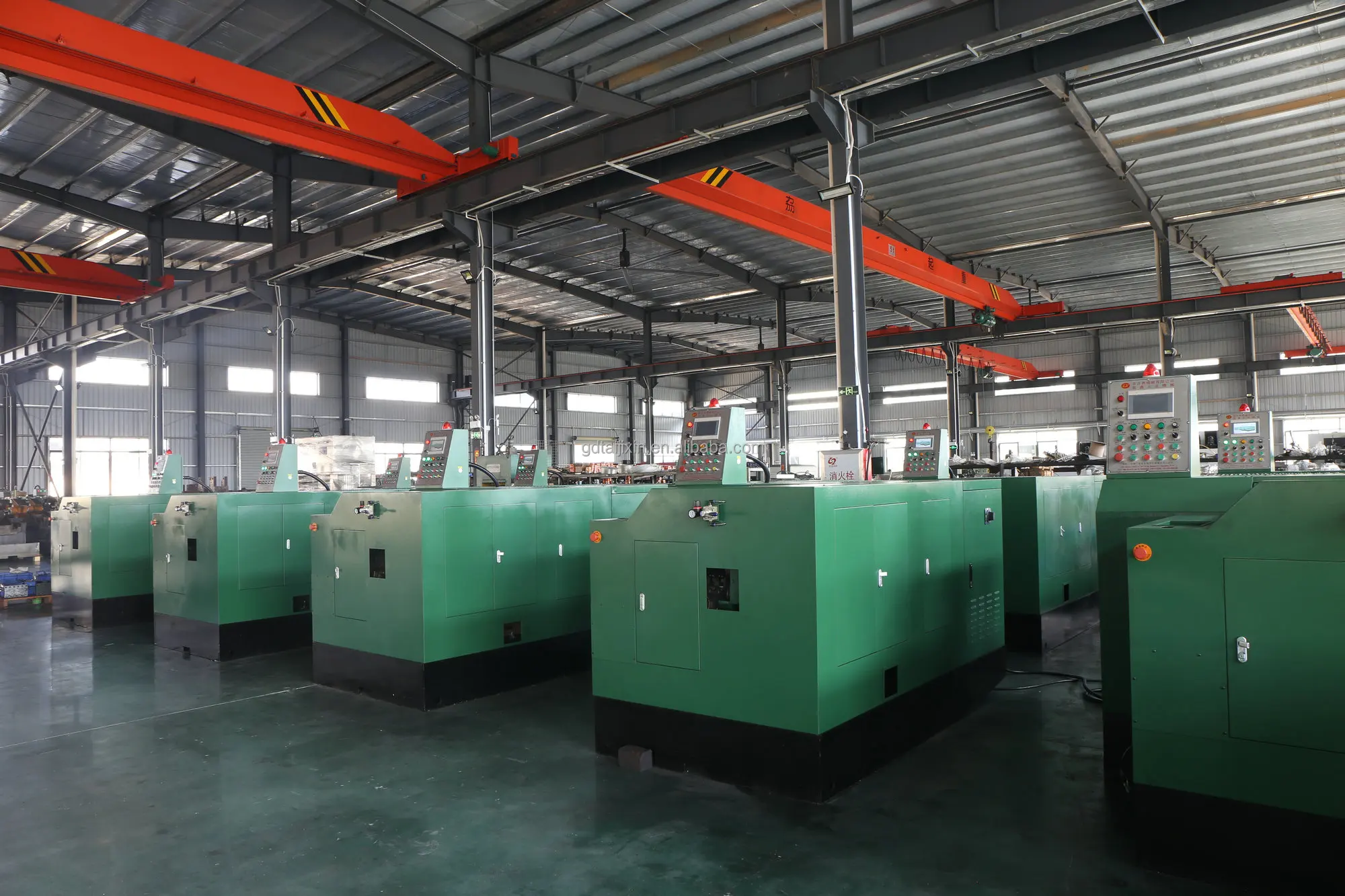

B.Our Workshop Show:

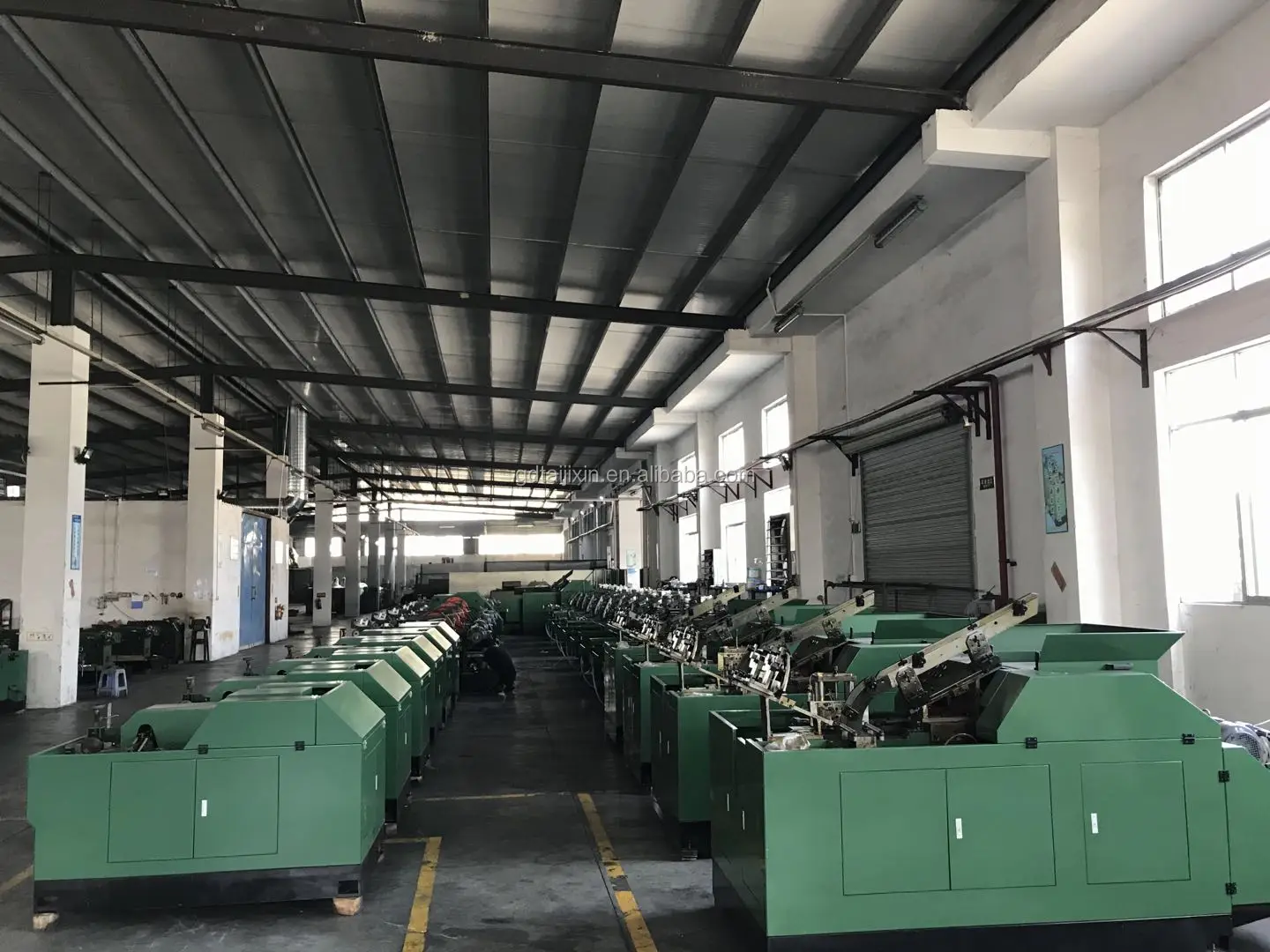

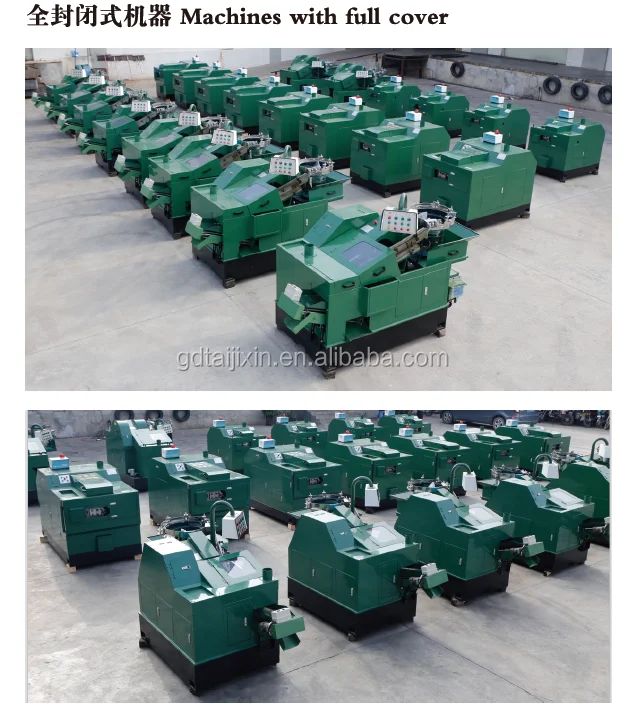

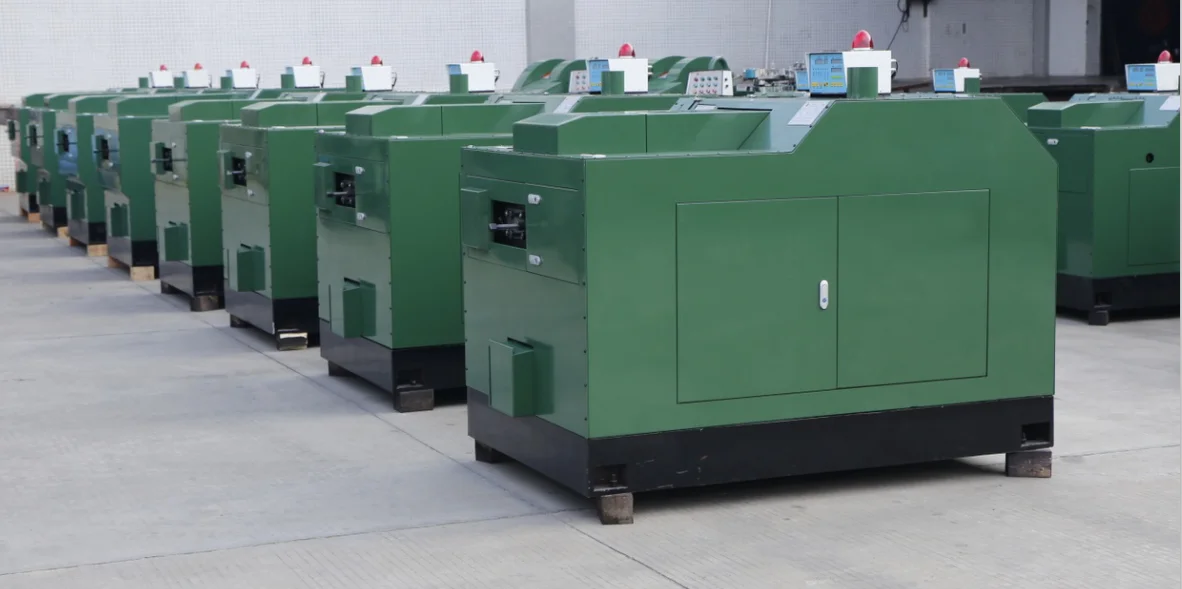

C.Machines with full cover

5.Customers Scene:

(1)In 2011,we manufacture 300 sets screws cold heading machine & thread rolling machines for Asia's biggest screw manufacturer Gem-Year Group,and we make over 600 sets cold heading machine, thread rolling machines for it's branch company--Gem-Duo company,we have been highly praised by our clients due to the good quality and perfect performance of our machines.

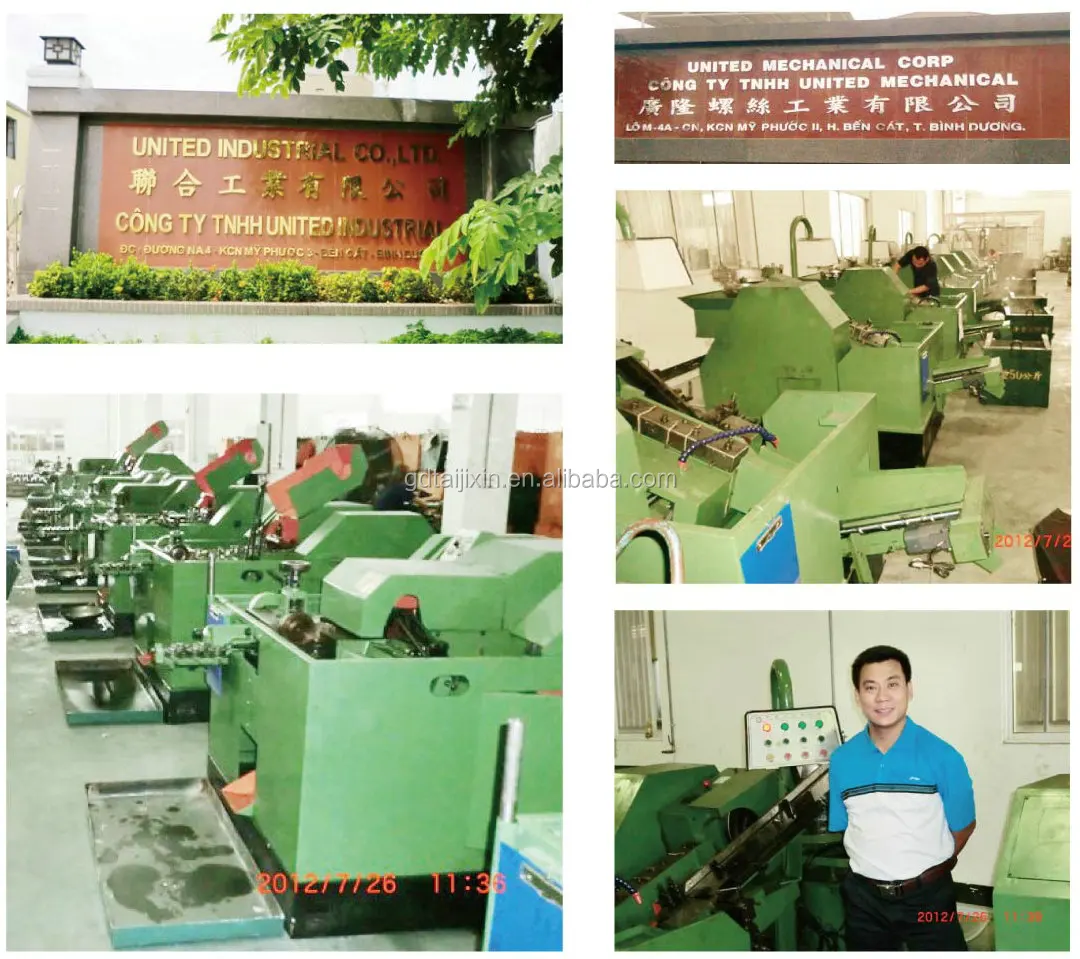

(2) In 2012,we manufacturer 50 sets screws cold heading machine and thread rolling machines for United Industry Company and United Mechanical Corp in Vietnam,and in July 2012,our vice General Manager Mr.Deng visited these two companies to train their employees how to debug the screw machines.

6.Customers Visit:

7.Service:

We can design and make all kinds of fasteners machines for our clients,based on the business concept of "quality first,customers supreme",we'll provide the best products and service to you.

We've passed the ISO9001:2008 Quality Management System Certification.

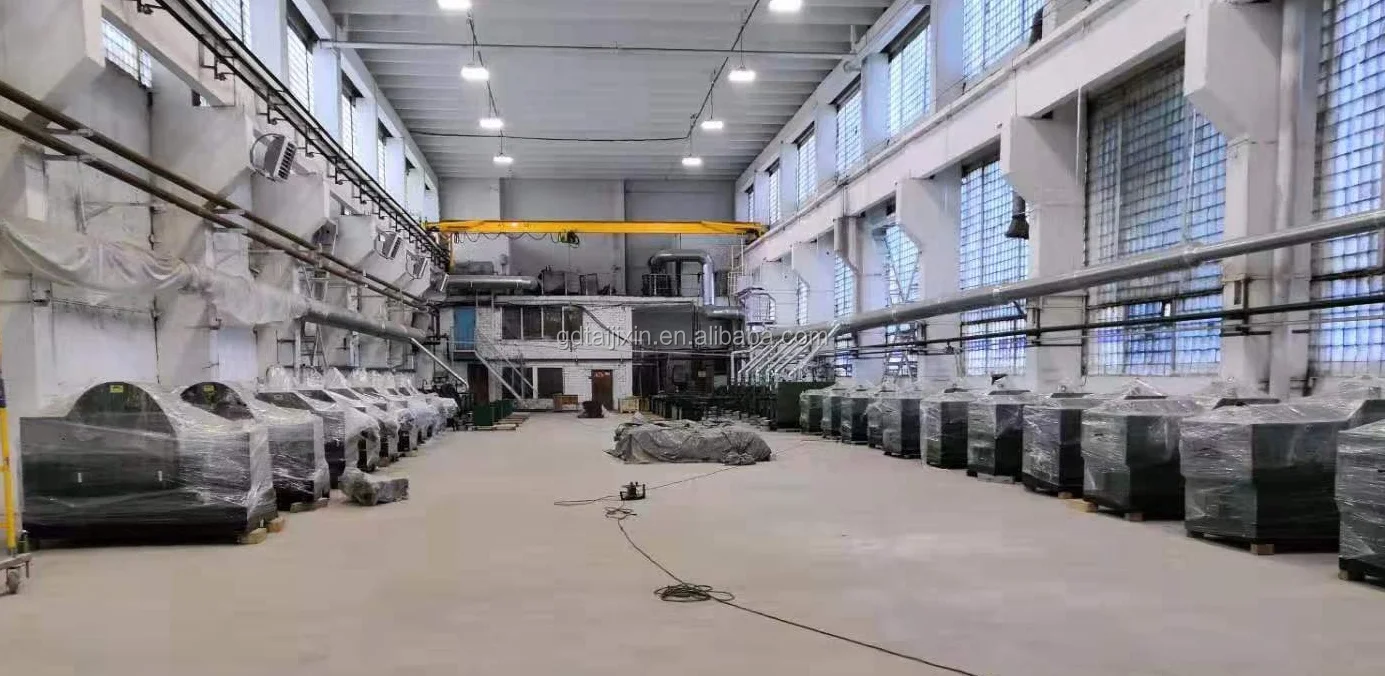

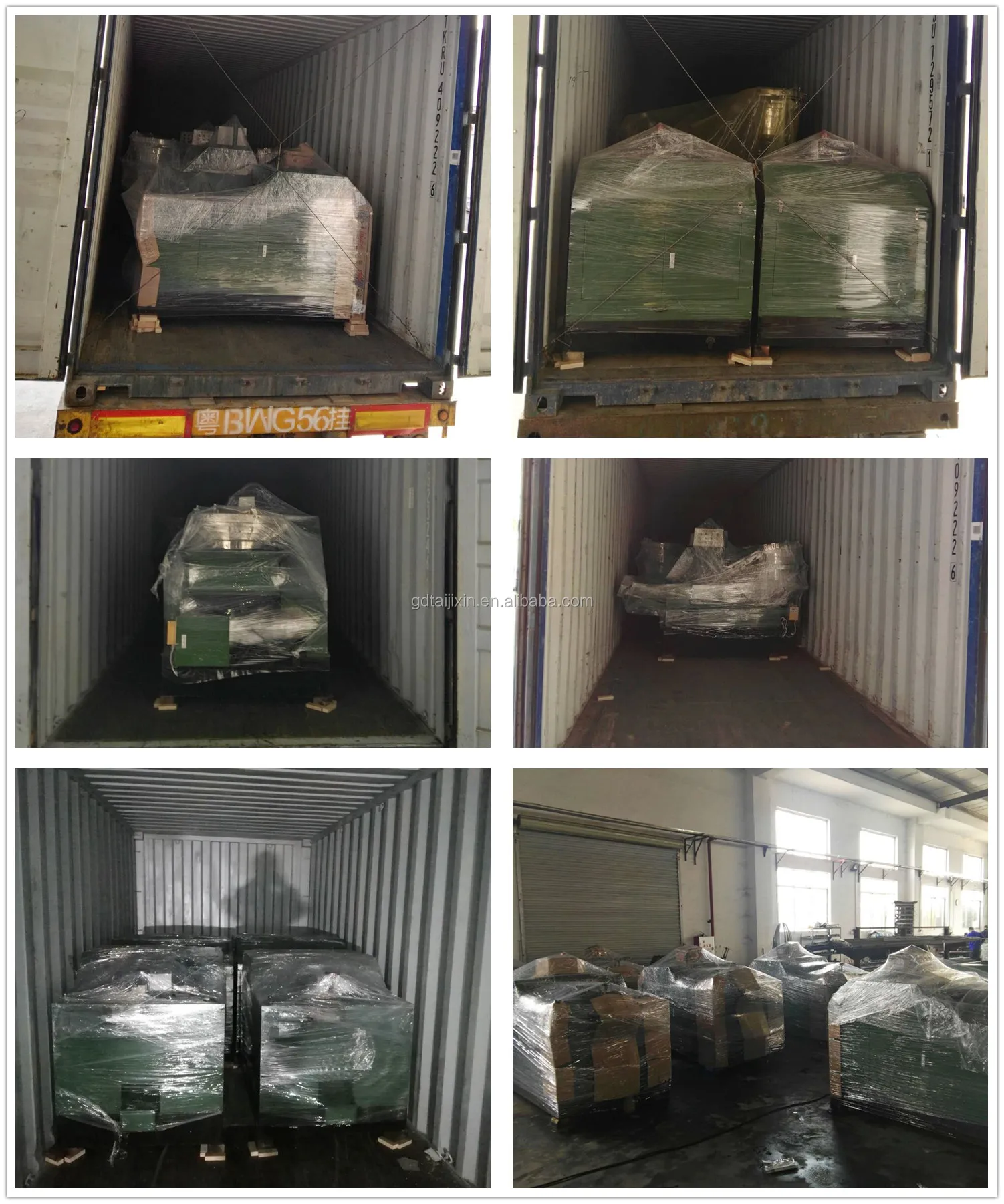

Please kindly see our machines shipped abroad as below:

Company Profile

Taishin Screw Machinery Manufacturing Co., Ltd. was founded in 1998, The plant area of our company is 11000 square meters.we have been manufacturing screw cold heading machine,thread rolling machine,multi-station cold forging machines and other screw machines for over 30 years,which makes us accumulated rich experience in screw machinery manufacturing industry.

We have formed a professional design and development team, and our company is equipped with many CNC lathe machine,grinder machine, milling machine,boring machine,drilling machine and other high-precision processing equipments,and also,the key components of all mahcinery products are directly imported from Taiwan, Japan, Germany and other country,which ensure our machinery products reach the requirements of high precision, high hardness, high wear resistance standards.
