Safety squeeze sensor
- Category: Switches >>>
- Supplier: Qinghe County Kaitian Security Protection Products Technology Co. Ltd. [Hebei China]Qinghe Ltd.
Share on (62571271652):
Product Overview
Description

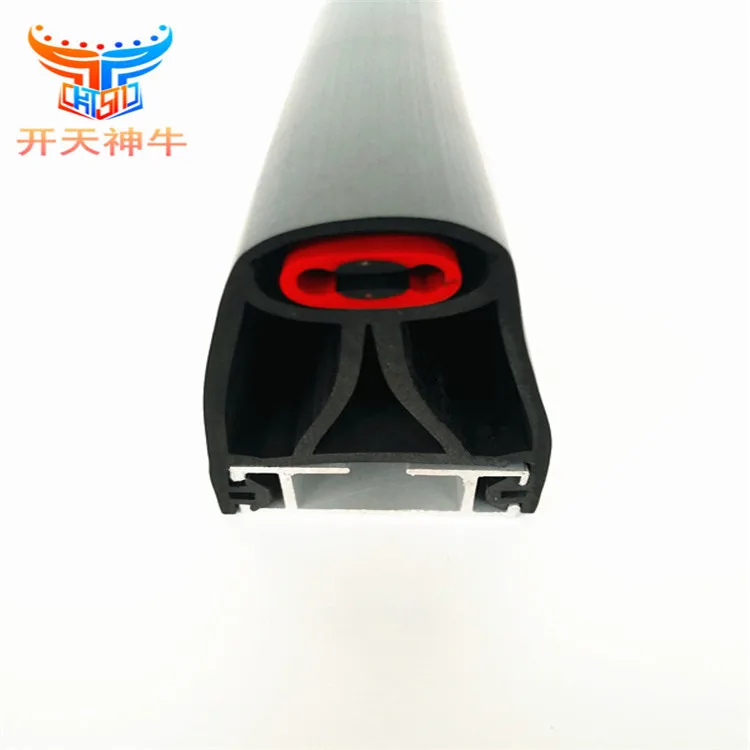

Safety sensing edge: safety sensing edge is a pressure sensitive device, safety touch edge, used to protect the safety of industrial site personnel and equipment; Complete types, low voltage start, according to customer requirements customized shape construction; When used with the controller, automatic fault diagnosis can be realized, which conforms to safety level 3 of EN954; Multiple safety edges can be connected in series, greater than 45 degrees operating Angle; Its structure is to put the continuous belt type switch into the wear-resistant material frame, and it is embedded in the aluminum guide rail; Common application places: equipment safety protection, elevator, automatic door, conveyor belt system, equipment for the disabled, medical equipment, transportation facilities, etc.

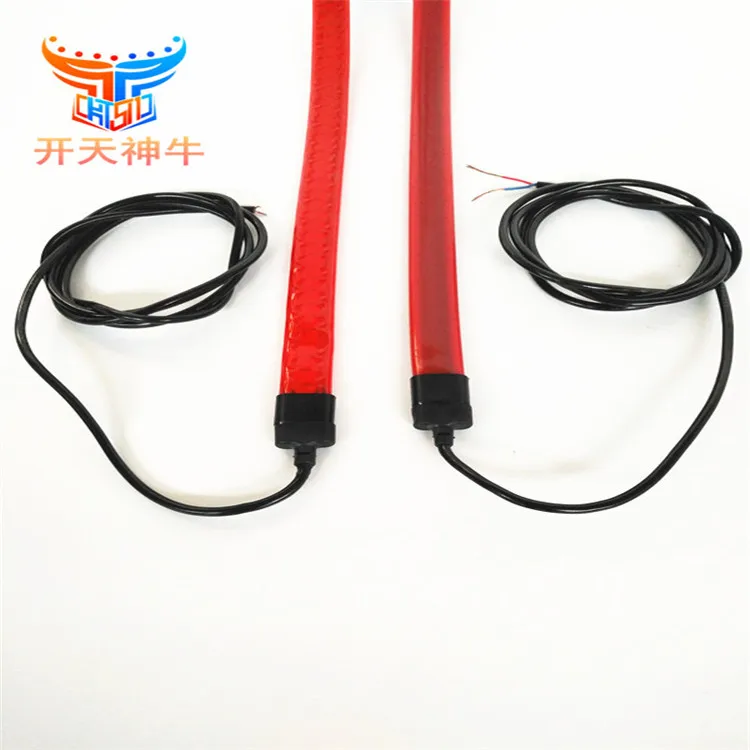

Belt safety switch: using the belt pressure switch principle, provides a wide range of surface materials, a variety of lengths and a variety of colors; Has a strong resistance to moisture and heat, chemical substances; The internal switch is a continuous, instantaneous, normally open contact, actuated by pressure; It is used to control the movement of the machine or moving parts to effectively prevent accidents. It can provide a length of up to 300 meters, its conductive body is made of alloy, with a long external mechanical life, any point of mechanical switch action life is more than 3 million times; When used with the ps-3 controller, it can be installed by bonding on the back. For the long-term installation in industrial places, it can be installed by aluminum or PVC rolling guide.
Typical applications of belt safety switches: equipment manufacturers can apply them to: emergency switches for any machine; Control conveyor belt; Mobile protective door, etc. : safety protection system for machinery and equipment; Start the device at any position of the machine and touch the edge safely. Anti-extrusion of elevator doors, car doors, and train doors; Disabled device control
