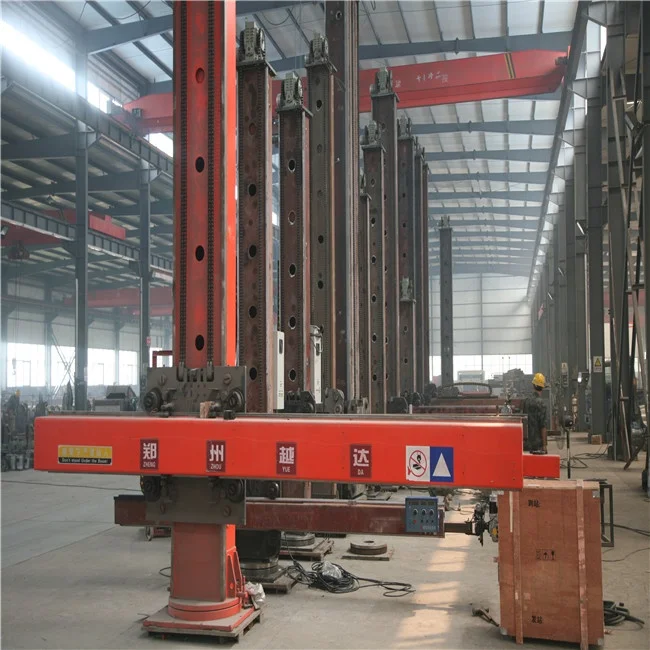

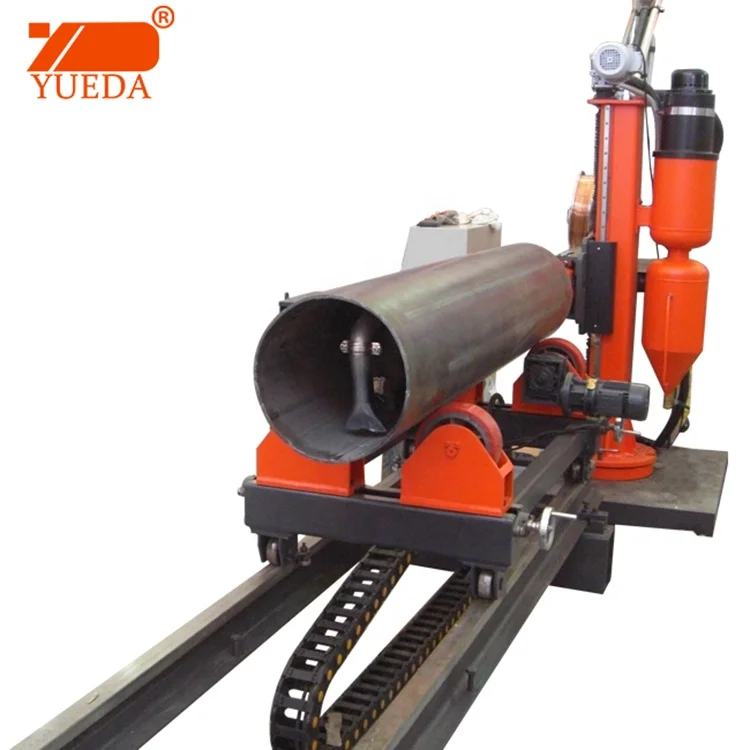

Column and boom automatic welding manipulator

Column and boom automatic welding manipulator description:

Welding manipulator combine with welding rotator and welding positioner to become the dedicated automatic welding device for welding structure parts´   internal and external circular seam, fillet weld, inside and outside longitudinal seam and has different structure forms such as fixed type, rotary type, versatile position types, etc. And according to user´s requirements, we also can choose structure or equipped with different kinds of welding machines and adding tracking, swing, monitoring, solder recycling & conveying functions. The welding manipulator is widely used for many kinds of industries such as pressure vessel, cooling device, power plant construction, metallurgical construction, engineering machinery, shipbuilding, roll surfacing welding, petrochemical construction, etc.

Column and boom automatic welding manipulator technical parameter:

 Column and boom automatic welding manipulator Performance and Features:

1.    Column and beam with steel profile structure, planar guide rail design, which has good rigidity and low structural deflection.

2.    Beam´s lifting with AC motor constant speed operation, steady lifting with constant speed.

3.    Beam´s stretch with AC variable frequency stepless speed regulation, constant torque output, steady speed, guide rail is 45# steel, stress reduction treatment after welding, plane forming, high intensity, good stability and guarantee no deformation long time.

4.    Beam´s stretch with gear and rack transmission, high transmission accuracy, steady operation, speed digital display and can be preset.

5.    Beam´s lifting, beam´s stretch, trolley advance and retreat all equipped with electrical and mechanical double protection device.

6.    Adopt high quality slewing bearing, flexible rotation, long lifespan.

7.    Adopt plastic towing wiring technology, durable, convenient, beautiful and safe.

8.    Control station and hand operator form remote control method, adopt computer control technology, all welding parameters digital and can be preset, flexible operation and control station reserved linkage interface which can be interconnected with other products. Hand controller in your hand can make remote control easily for welding manipulator, welding center and other structure, and make real-time control for welding process.

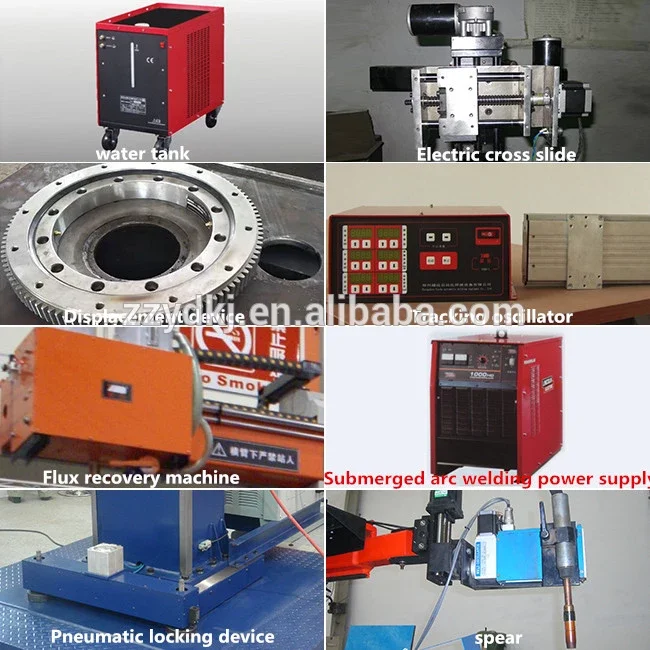

Details Configuration:

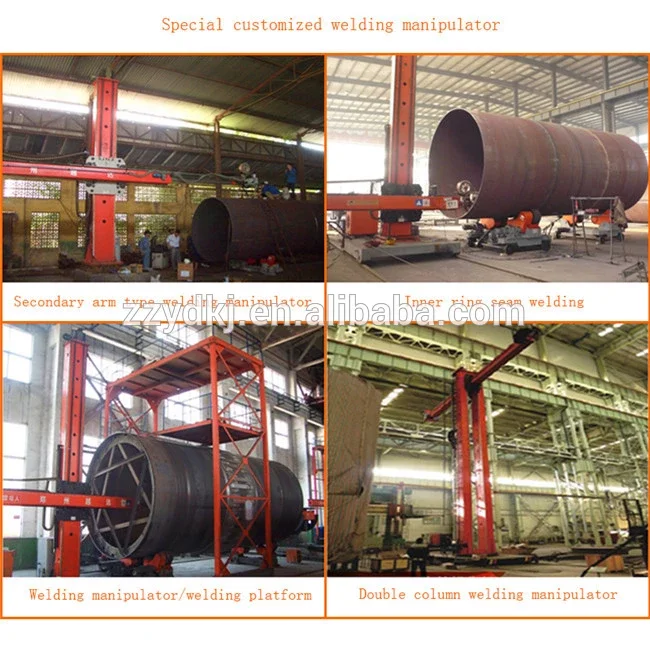

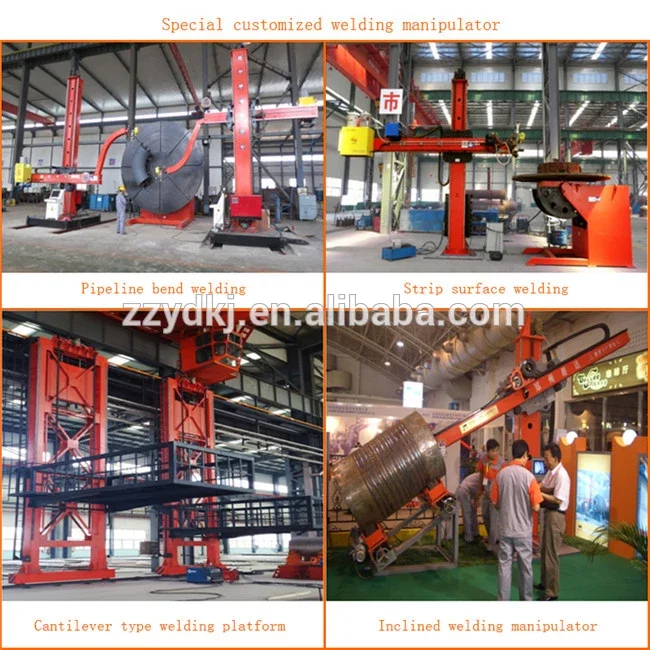

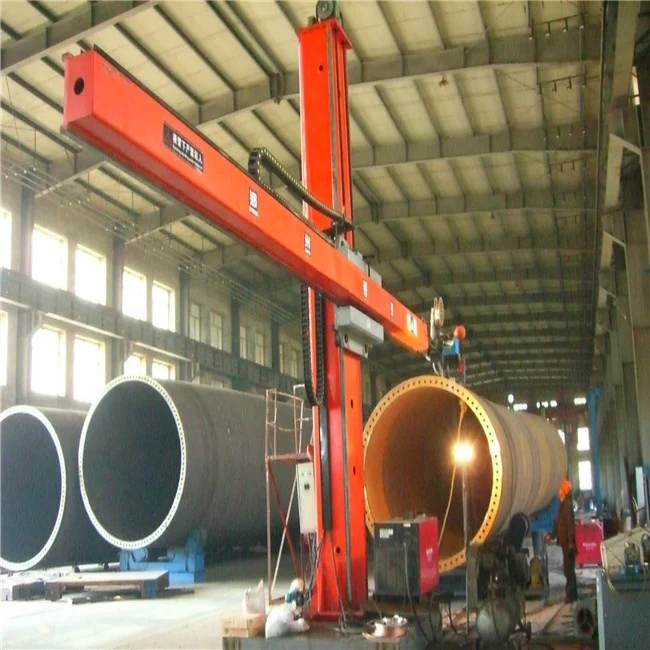

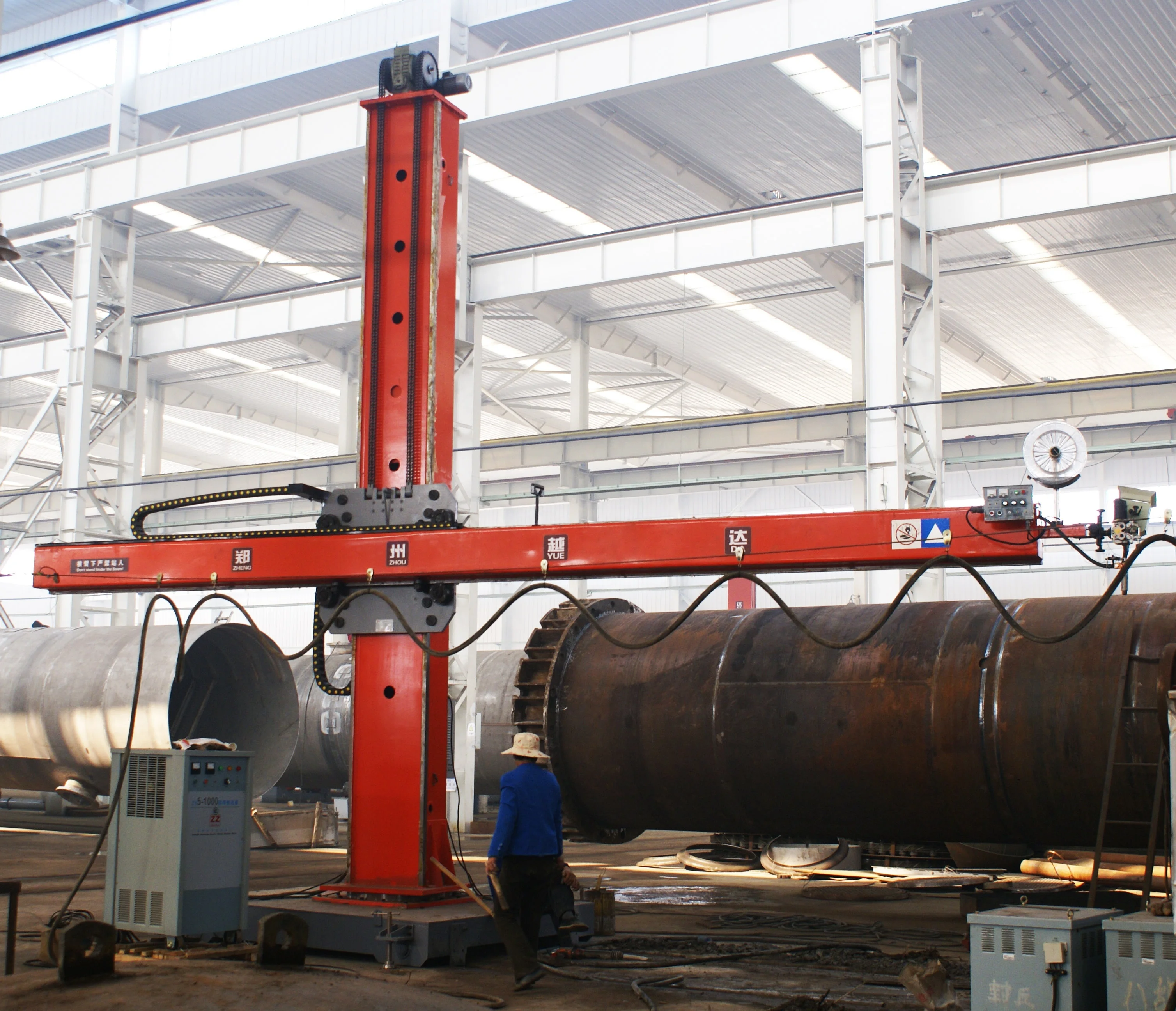

Customer Product:

Yueda company more product:

Zhengzhou Yueda Technology Equipment Co.,Ltd(former name is Zhengzhou Yueda Automatic Welding Equipment Co.,Ltd) located in Zhengzhou, Henan, China, is a high-tech enterprise with 20 years' history and specializing in the design and manufacture of welding&cutting automation equipment, We are committed to provide clients at home and abroad with one-stop automatic welding and cutting solutions.

Our main products: welding column&boom(welding manipulator),welding rotator,welding positioner,welding robot, automatic cutting machine, electric tower rod welding machine,surfacing welding machine, wind tower production line, special tanker production line, grinding machine series, painting production line and robot system integration.

In order to provide our clients with outstanding service, we constantly promote equipment technology R&D investment,attract talents to optimize technical teams. Up to now, Yueda have became a professional team with over 300 employees.

Our honors:

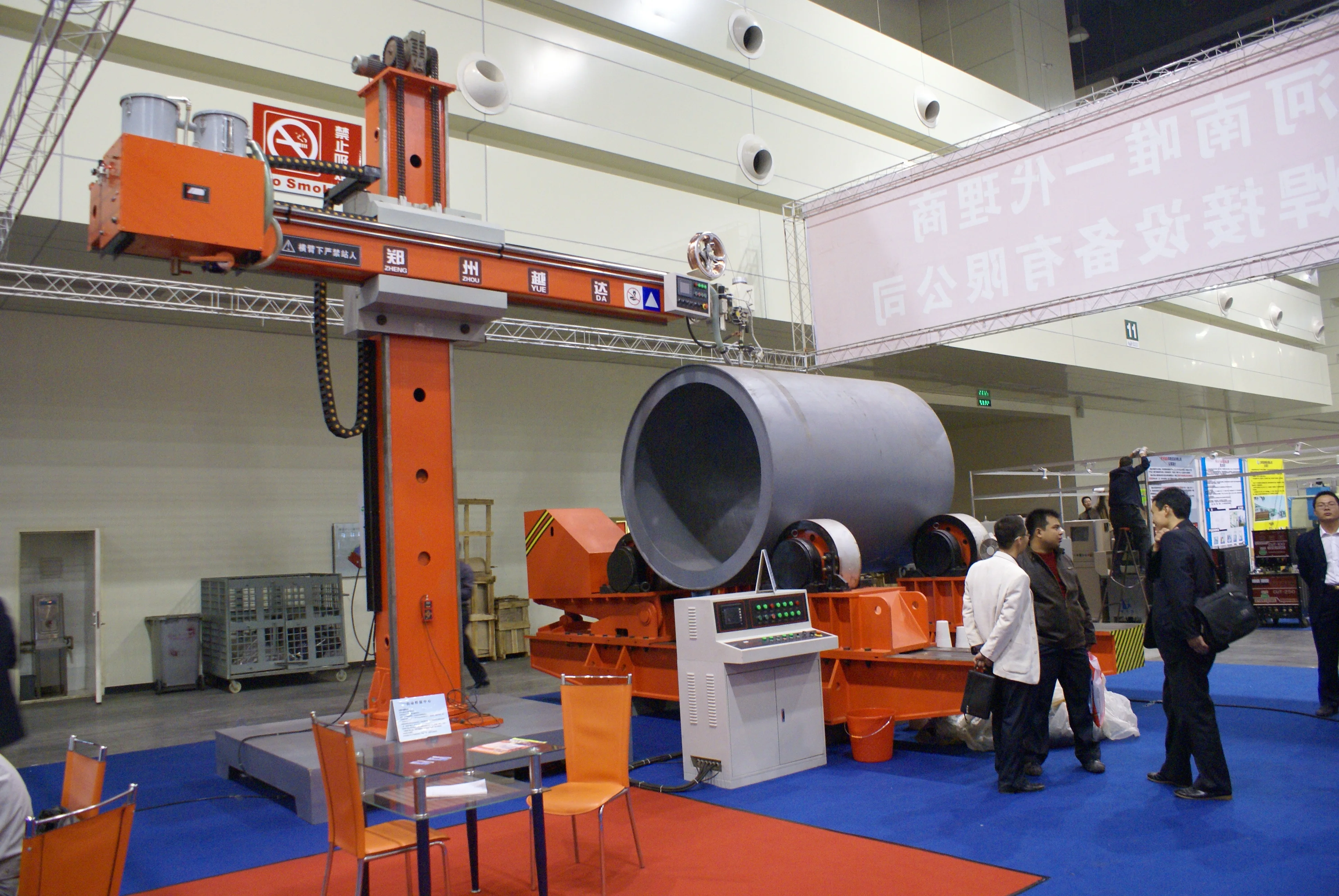

Exhibition:

FAQ:

Q: Are you a factory or trading company?

A: We are a factory with 20 years production history.

Q: How does your factory do regarding quality control?

A:  We have strict quality control system in the production process and we welcome clients come to visit us to check the product quality before delivery.

Q: Can machines be customized?

A: Yes, OEM and ODM are available.

 Welcome your inquiry for Column and boom automatic welding manipulator, welcome visit us!
