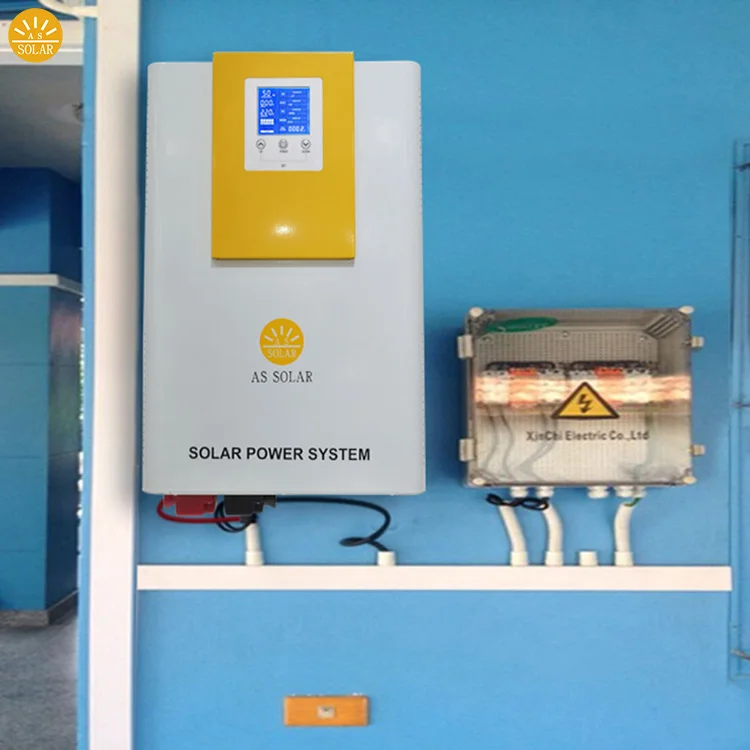

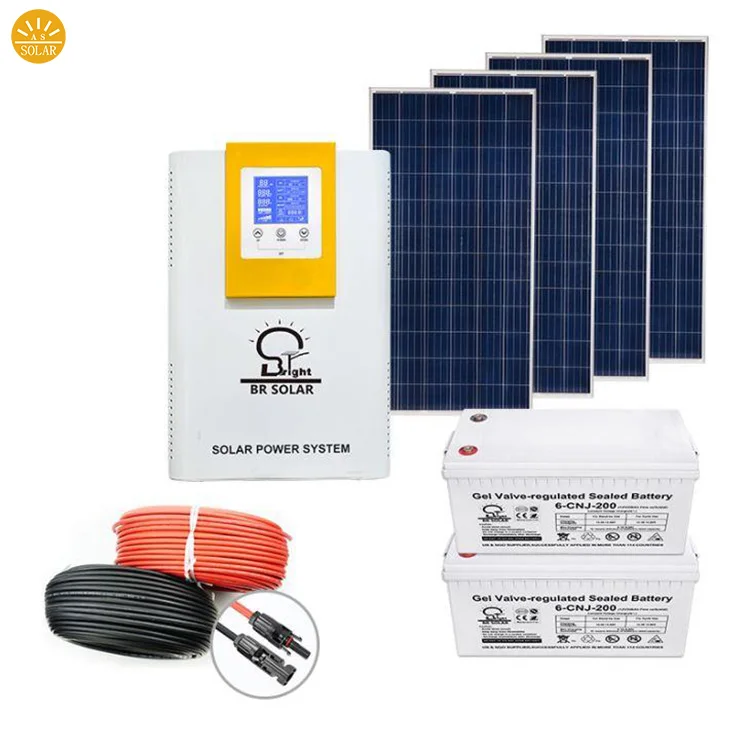

3kw off grid power solar home system
- Category: Solar Energy Systems >>>
- Supplier: Yangzhou Intelligence Solar Co. Ltd.
Share on (62576220220):
Product Overview
Description
Our Service
Product Description
3kw off grid power solar home system

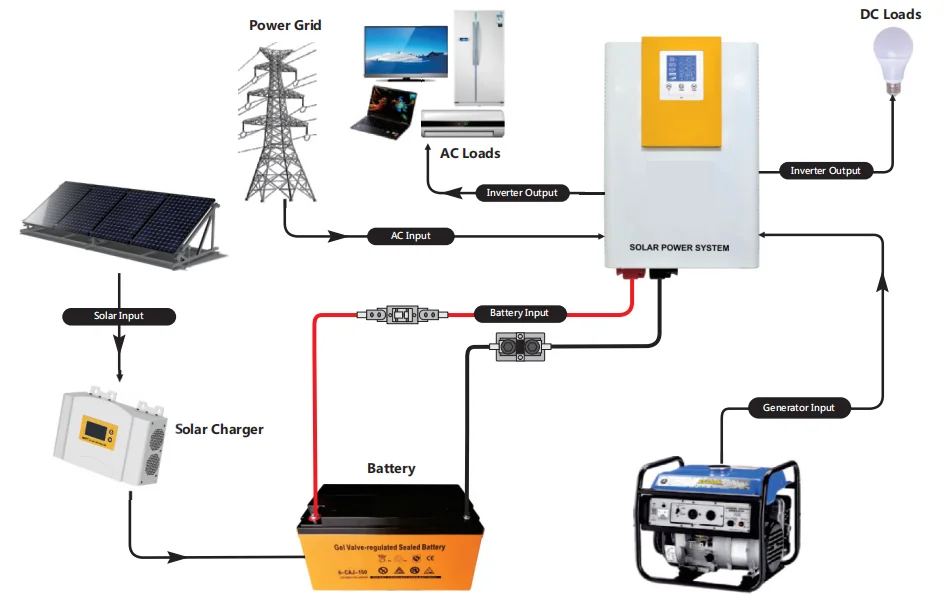

Wiring Diagram:
 |
Off grid solar inverter&controller
inverter > Pure sine wave output Low frequency toroidal lower loss(50/60HZ±1%) > Brand new wide LCD screen,clearly and precisely shows working data > Three-stage charging:Constant current,condtant voltage,float charge(220VAC±2%) > Three Types Working modes;Battery type selectable > Added fault code query function,easy to monitor the operation in real time > Supports RS232 or RS485 communication port controller >Built-in 50A controller >pure sine wave, high frequency output >support grid/Diesel input |

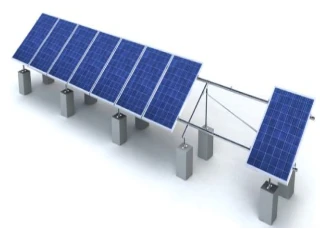

Solar Mounting System > Customized for :Rooftop(Flat/Pitched) Ground .Carport etc > Adjustable tile angle from 0 to 65 > QTY: 1PC
|
|

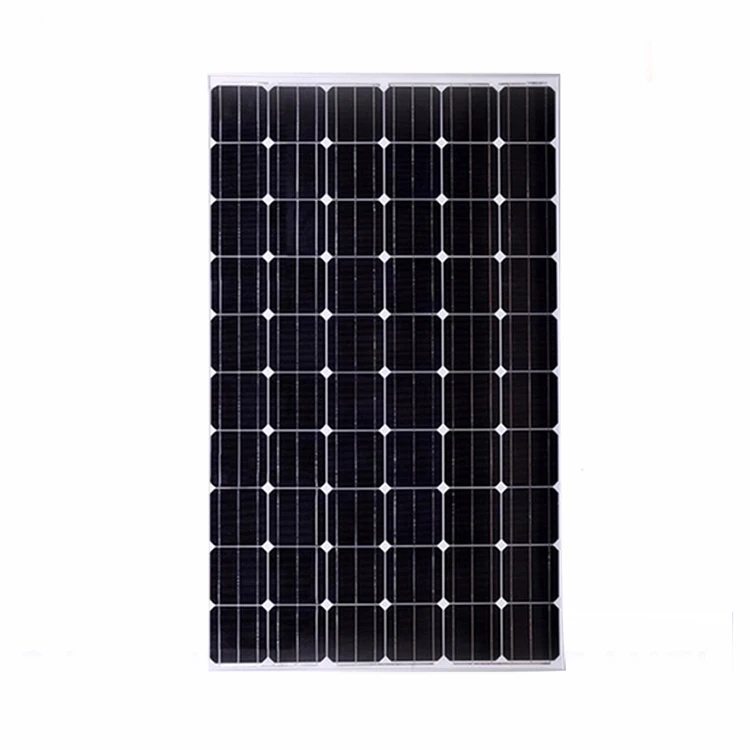

| Solar Panel > Optional Mono/Poly Panels > 25 years Warranty > Excellent mechanical load resistance > PID Resistant,High salt and ammonia resistance |

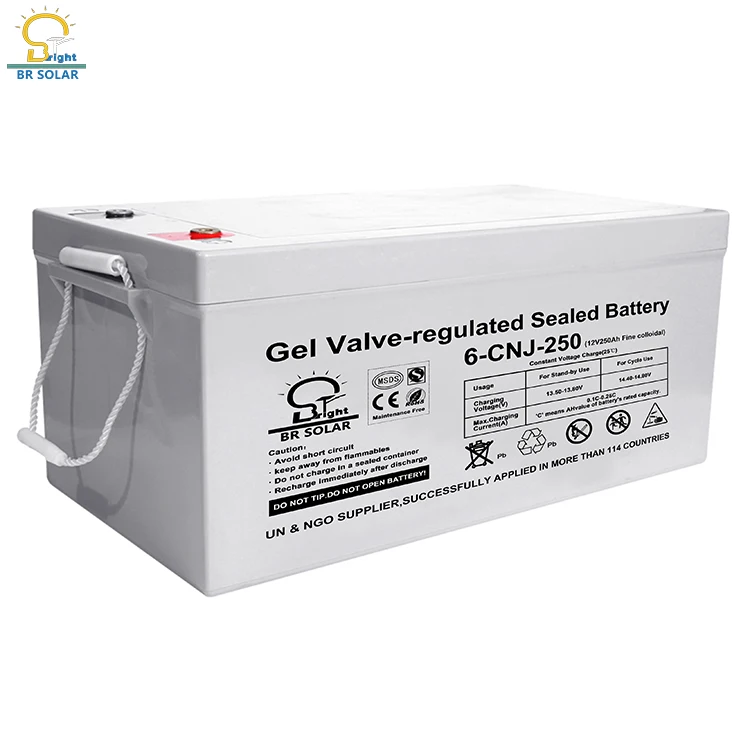

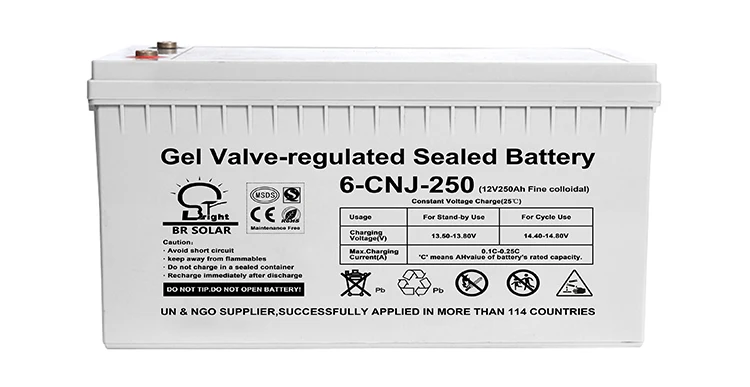

| Solar Battery > Capacity: 250AH/12V |  |

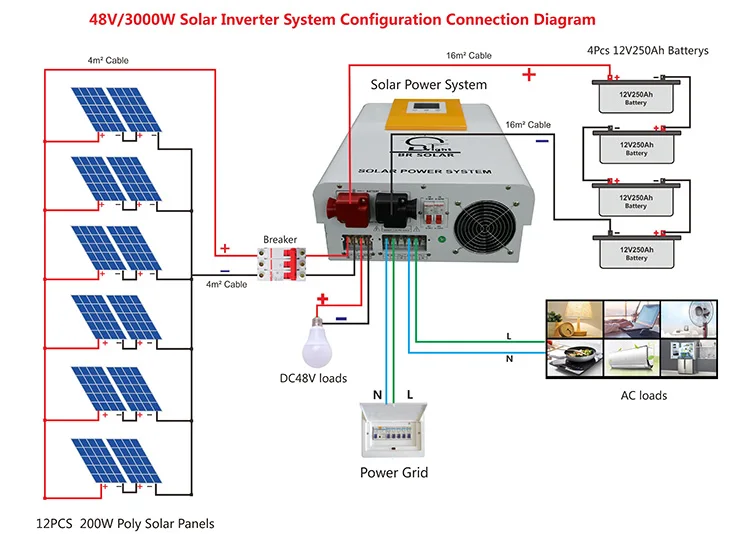

Wiring Diagram:
| Specification | |||||||
| Model:AS | 10224-30 | 20248-30 | 30248-50 | 40248-60 | 50296-50 | 60296-50 | |
| Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Battery Voltage | 24VDC | 48VDC | 48/96VDC | 96VDC | |||
| Size(L*W*Hmm) | 470*316*130 | 620*400*181 | |||||
| Packing Size(L*W*Hmm) | 555*385*220 | 700*485*181 | |||||
| N.W.(kg) | 10.5 | 21 | 24 | 25 | 26 | 30 | |
| G.W.(kg)(Carton Packing) | 12 | 23 | 26 | 27 | 28 | 32 | |
| Parameter | |||||||
| Input | DC Input Voltage Range | 10.5-15VDC(singe battery Voltage) | |||||
| AC Input Voltage Range | 145VAC-275VAC | ||||||
| AC Input Frequency Range | 45HZ-65HZ | ||||||
| Output | Effciency | ≥85% | |||||
| Output Voltage(Battery Mode) | 220VAC±2% | ||||||
| Output Frequency(Battery Mode) | 50/60HZ±1% | ||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||
| AC Output Voltage Range | 220VAC±10% | ||||||
| AC Output Frequency Range | Tracking Automatically | ||||||
| Inside Solar controller(Optional) | Charging Mode | PWM | |||||
| Charging current | 30A | 30A | 50A | 60A | 50A | 50A | |
| PV Input Voltage Range | 30V-44V | 60V-88V | 60V-88V | 60V-88V | 120V-176V | 120V-176V | |
| Max PV Input Voltage(At 25℃) | 50V | 100V | 100V | 100V | 200V | 200V | |
| PV Array Maximum Power | 840W | 1680W | 2800W | 3360W | 5600W | 5600W | |
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||
| AC Charging current(selectable) | 0-30A | ||||||
| Transfer Time | ≤4ms | ||||||
| Display | LCD | ||||||
| Thermal method | Cooling fan in intelligent control | ||||||
| Battery Type(selectable) | LEAD | Charge Voltage:14V;Float Voltage:13.8V(Single battery voltage,x2 for 24V;x4 for 48V) | |||||
| OP-LE | Charge Voltage:14V;Float Voltage:13.8V(Single battery voltage,x2 for 24V;x4 for 48V) | ||||||
| LITHIUM | Charge Voltage:13V;Float Voltage:13.8V(Single battery voltage,x2 for 24V;x4 for 48V) | ||||||
| Remark | The charging parameters of other types battery can be user-defined | ||||||
| Protection | Over-load/Over-discharge/Short circuit/High temperayure/Reverse polarity | ||||||
| Communication | RS232/RS485(Optional) | ||||||
Product guidance
A.Just connect the solar panel interface to the input end of the machine, and then adjust the button. The machine will be charged automatically.
B.This kind of system can only use TV, fans, computers, lights and other small power appliances.
C.The configuration of this system is provided by our company. ,We can change the configuration of the battery and solar panels according to the customer's needs.
D.When the machine has overload, short circuit, low pressure, high pressure, high temperature and so on, the machine will make noise and stop working automatically. Protection machine will not be damaged
E. Charging mode: 1.Solar 2.City power
Safe Packing

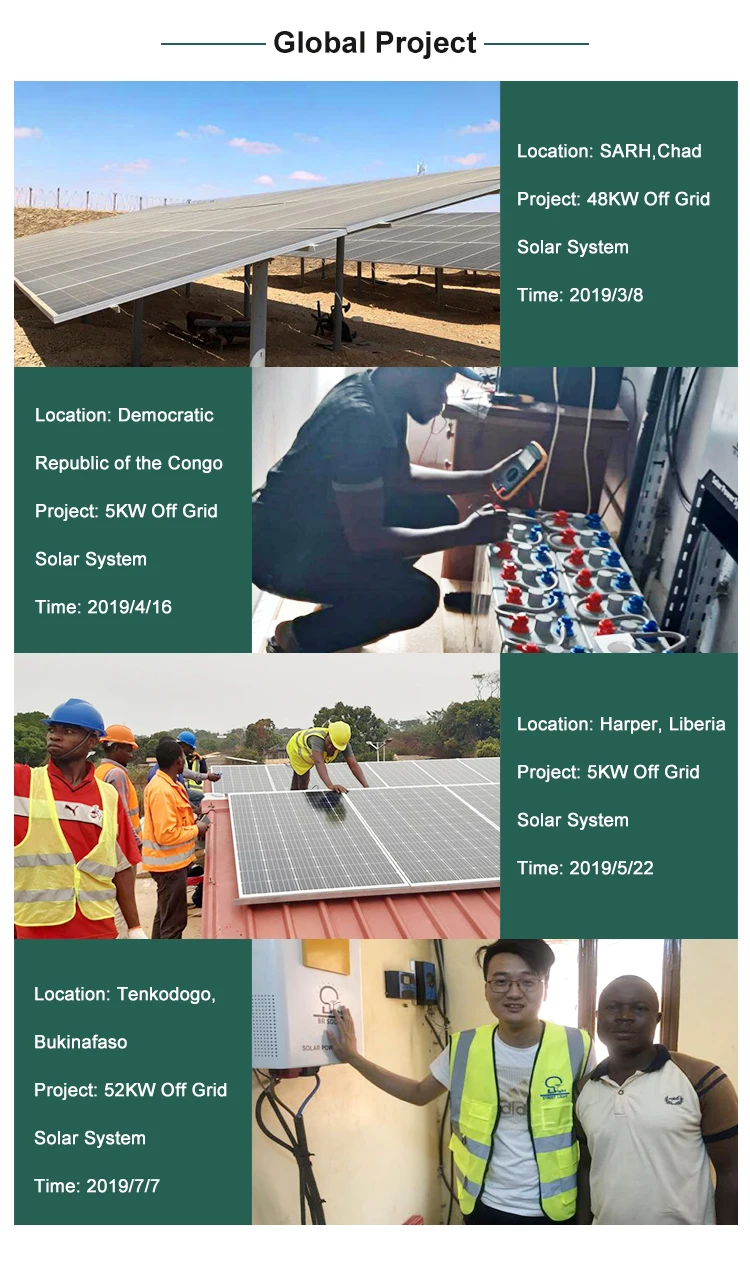

Global Project
Certifications
FAQ
Q1: Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 5-7 days, mass production,Depend on the quantity
Q3: Are you a factory or a trading company?
A: We are the factory with high production capacity and product range of solar products in China. Welcome to visit us anytime.
Q4: How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL, UPS, FedEx ,TNT etc. It usually takes 7-10 days to arrive. Airline and sea shipping also optional .
Q5: What is your Warranty Policy?
A: We offer 3 to 5 years warranty for the entire system and replace with new ones for free in case of quality problems.
