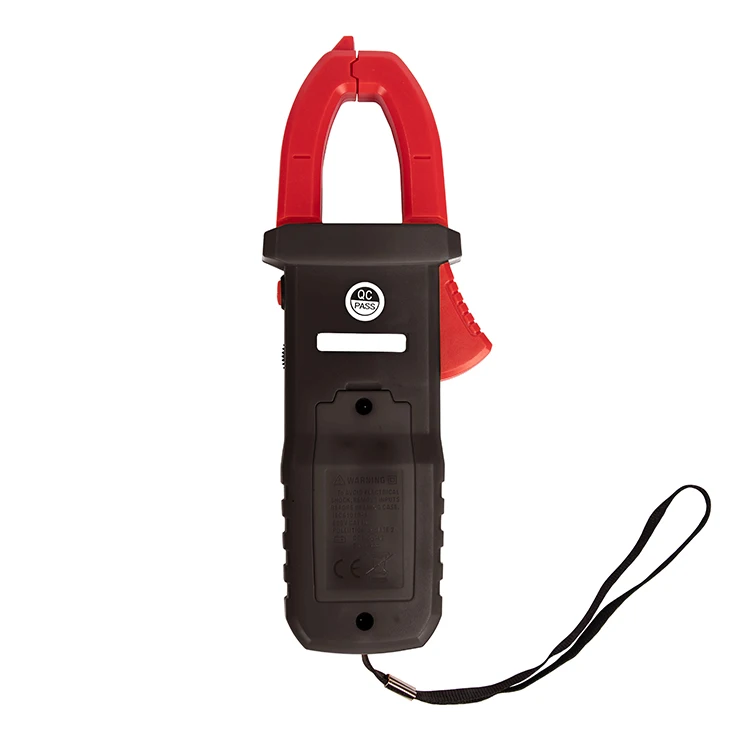

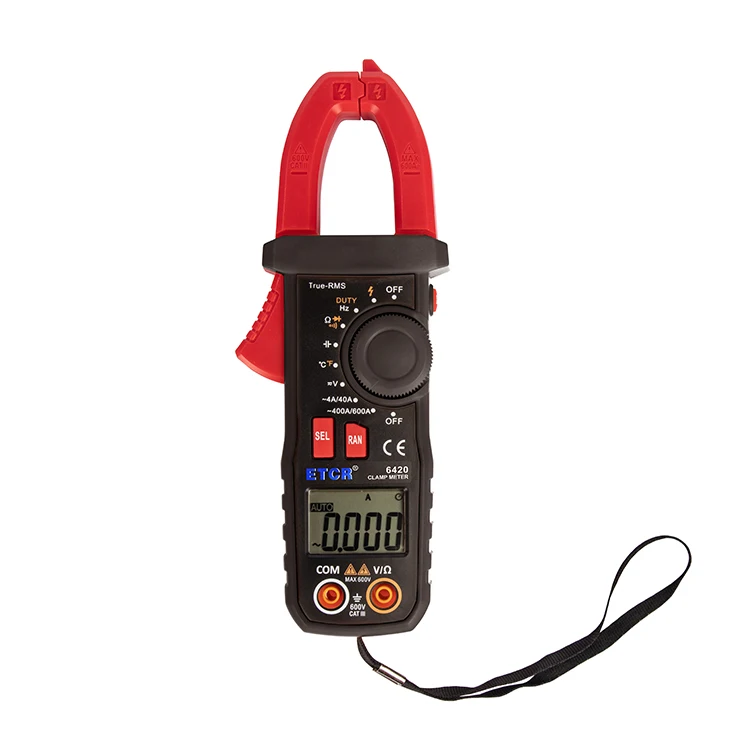

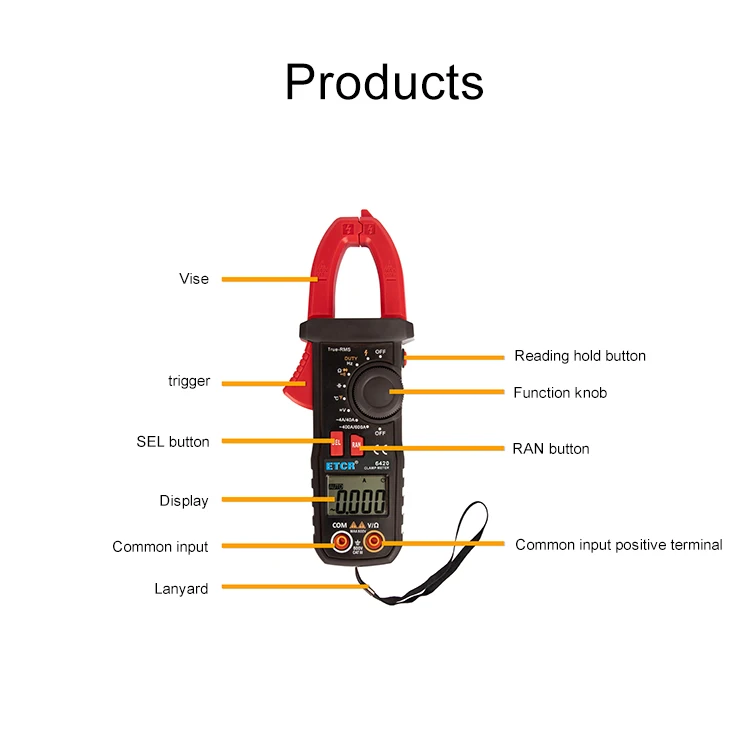

ETCR6420 Auto ac leakage current ac dc clamp meter true rms digital multimeter meter clamp

 Basic function

DC Voltage

400m/4/40/400/600V                    ±(0.5%+5)

AC Voltage

4/40/400/600V                         ±(1.2%+5)

AC Current

4A/40A/400A/600A                      ±(2%+10)

Resistance

100/4k/40k/400k/4M/40MΩ               ±(1%+5)

Capacitance

10n/100n/1u/10u/100uF/1000uF/10mF      ±(3%+5)

Frequency

10/100/1k/10k/100k/1M/10m/40MHz       ±(0.5%+3)

Temperature

-50°C~1000°C                          ±(1%+4)

Special function

Auto Range

√

Manual Range

√

AC Conversion Type

true RMS

Input Protection

√

Auto Shutdown

about 10 minutes, can be set and cancel auto shutdown function

Diode Test

Can measure the LED work voltage below 3V

Duty Ratio Measurement

√

NCV(Live line)Measurement

√

Short Circuit Buzzer

√

Low Voltage Indicator

√

Input Impedance

About 10MΩ

Data Hold

√

Blue Backlight

√

CT Size

27mm

General features

Power Supply

AAA1.5VX2

Weight

230g(with battery)

Meter Dimension

213X80X35mm

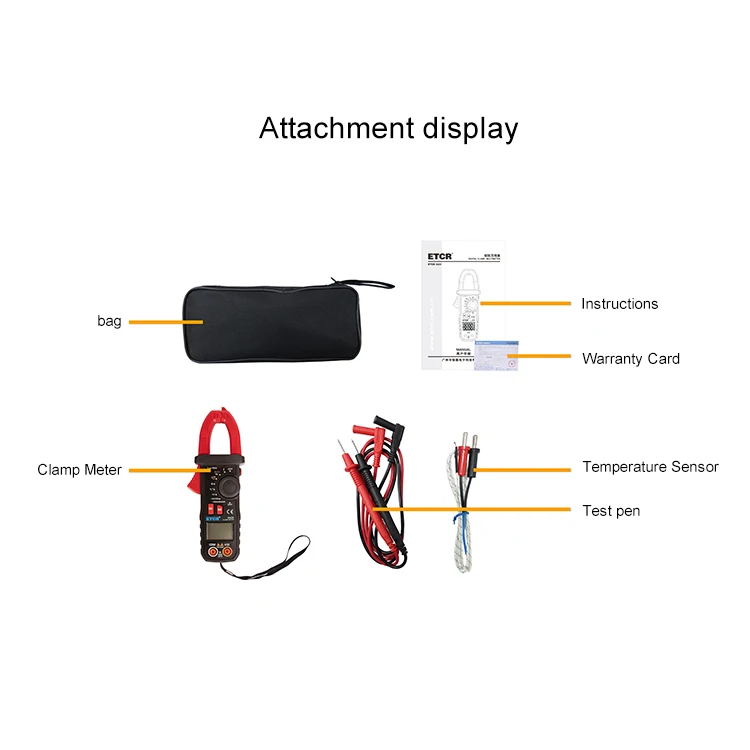

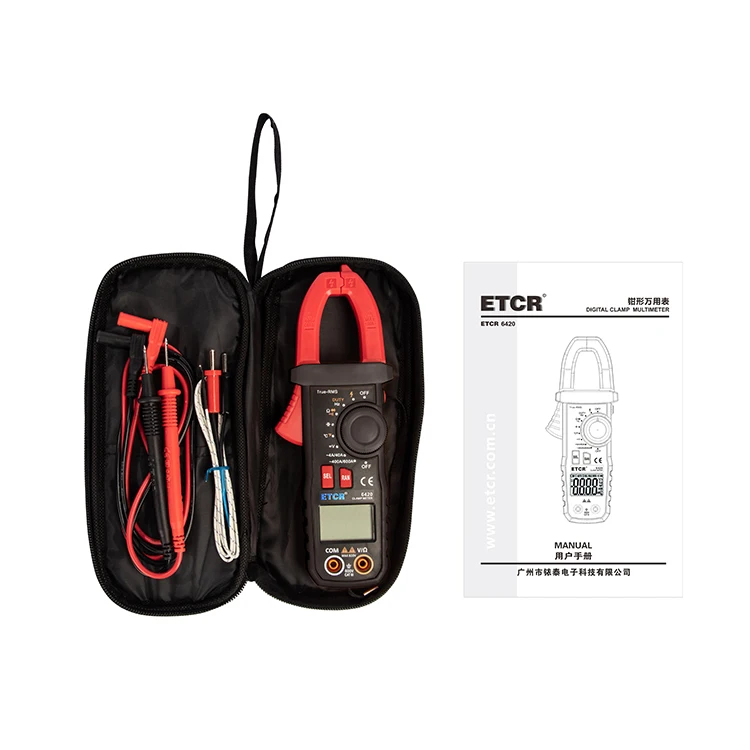

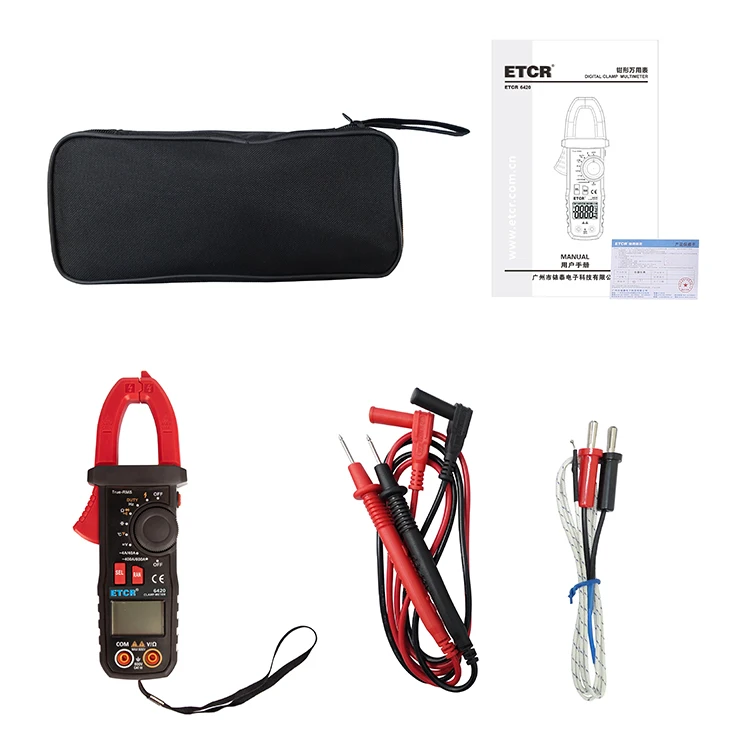

Accessories

Meter:1pcs;Pen probe:1set;Temperature sensor:1pcs;Tester Bag:1pcs
