Price:1,50 $ - 2,70 $

Quantity:


Product Overview

Description



Product Description


Introduction

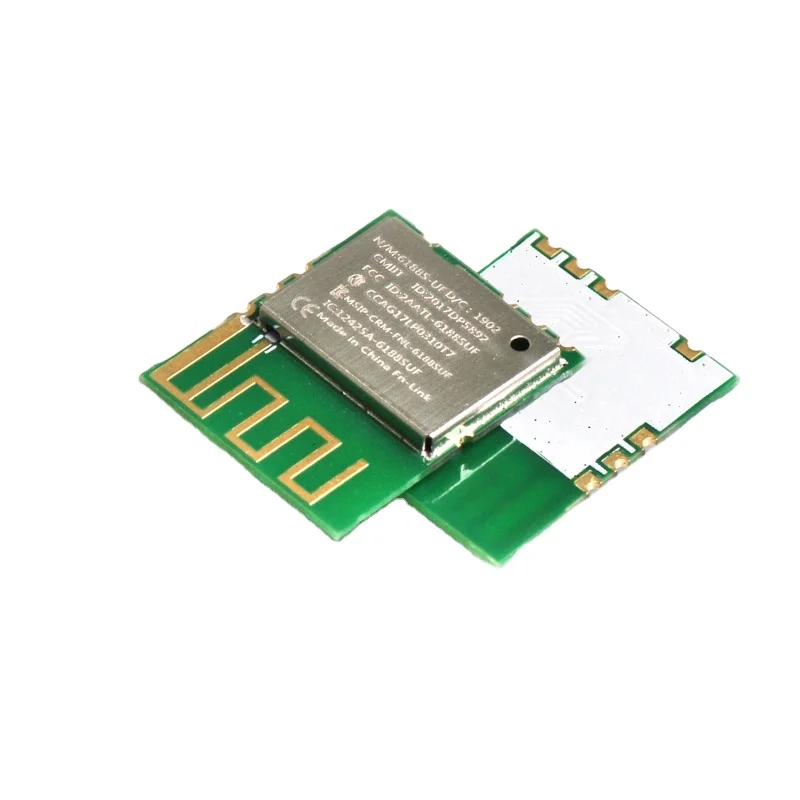

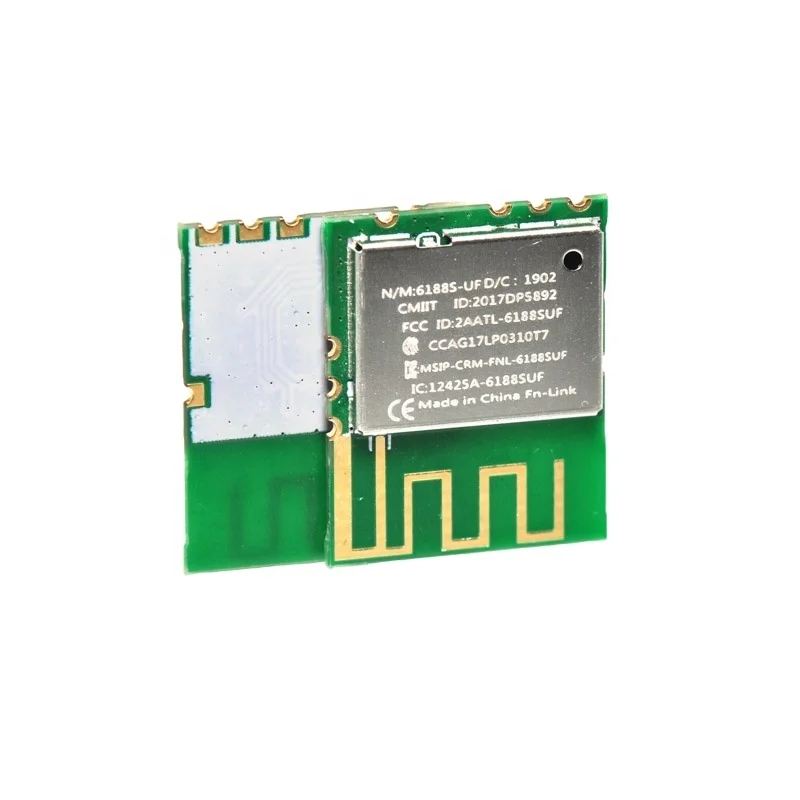

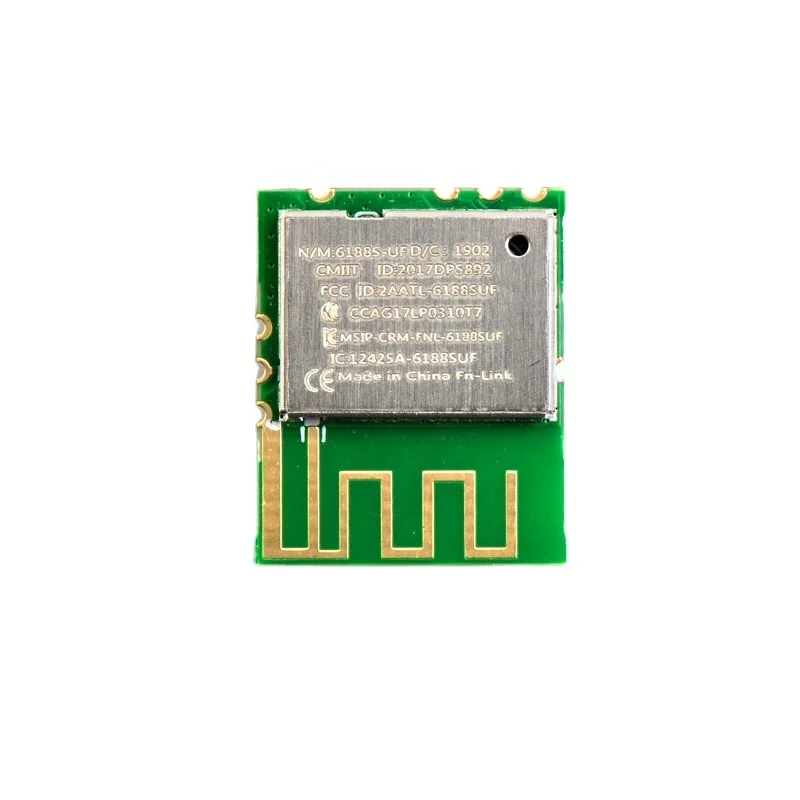

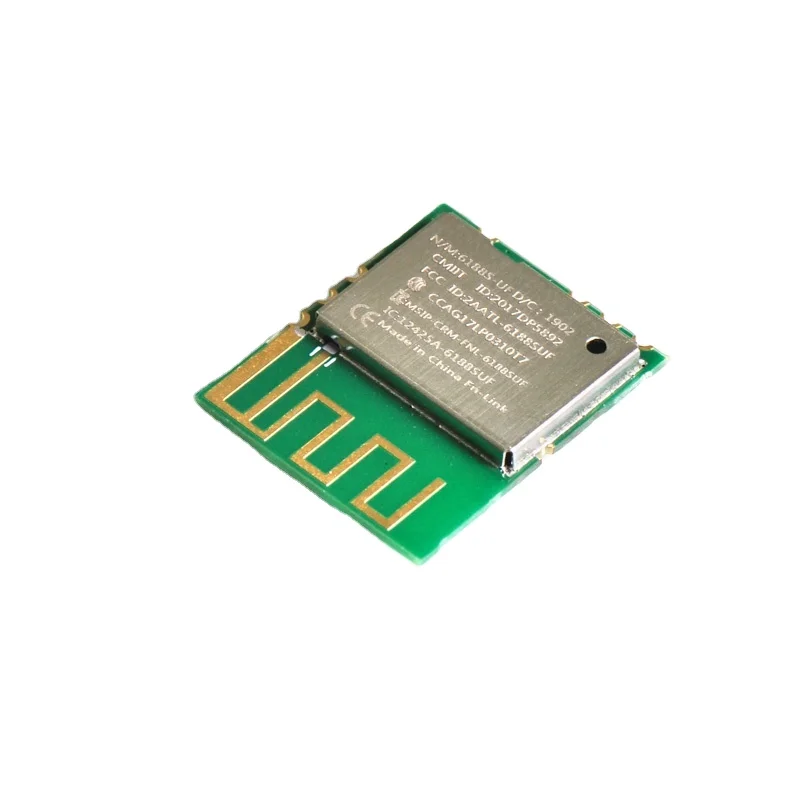

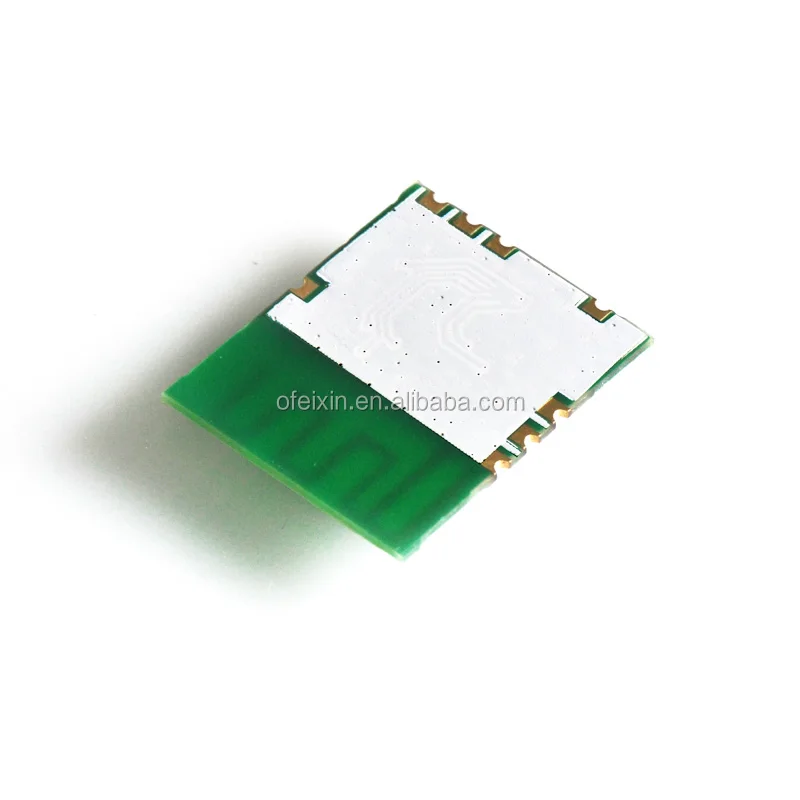

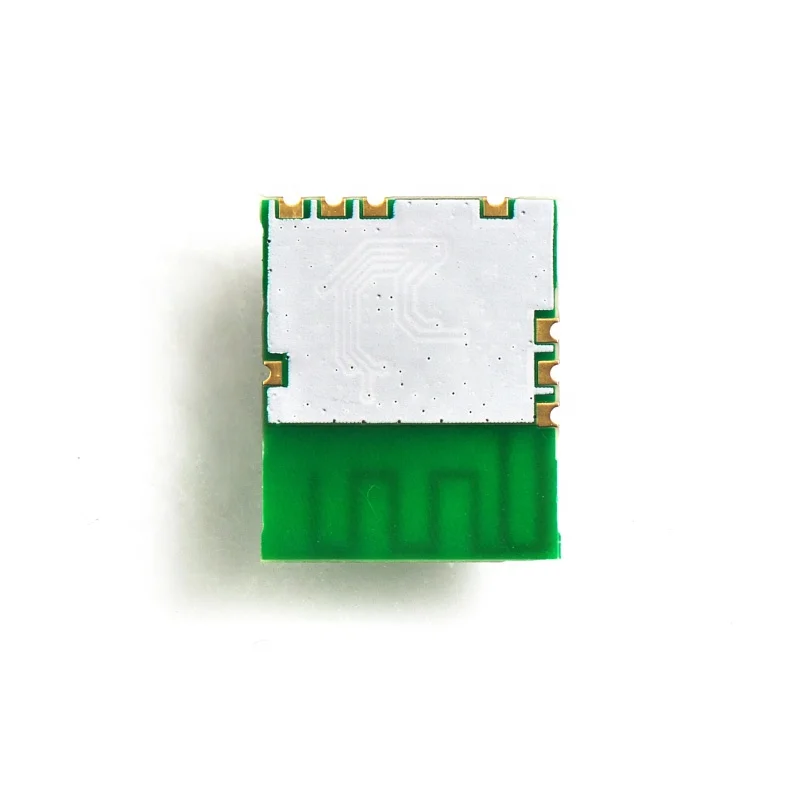

6188S-UF is a small size and low profile of Wi-Fi module, board size is 14.8mm*18.2mm with module thickness of 1.9mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for Wi-Fi. The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility.

6188S-UF uses highly integrated Wi-Fi single chip based on advanced COMS process. 6188S-UF integrates whole Wi-Fi function blocks into a chip, such as USB/PCM, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.

This compact module is a total solution for Wi-Fi technology. The module is specifically developed for Smart phones and Portable devices.



Features

Operate at ISM frequency bands (2.4GHz)
USB for Wi-Fi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi. 
Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates




Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products





Detailed Parameters


Model No
6188S-UF
Main Chipset
RTL8188FTV
WIFI/BT Interface
USB2.0
WIFI Standard
IEEE 802.11b/g/n
Date Rates
150Mbps
Certification
RoHS,REACH
RF Antenna
PCB Antenna
OS Supported
Android /Linux/Windows
Operating Frequency
2.4GHz
Operating Voltage
3..3V
Dimensions
L x W : 14.8x 18.2mm
RF Chains
1T1R
Operating Temperature
O°C to 70°C
Storage Temperature
-40°C to 85°C


Note


 Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
