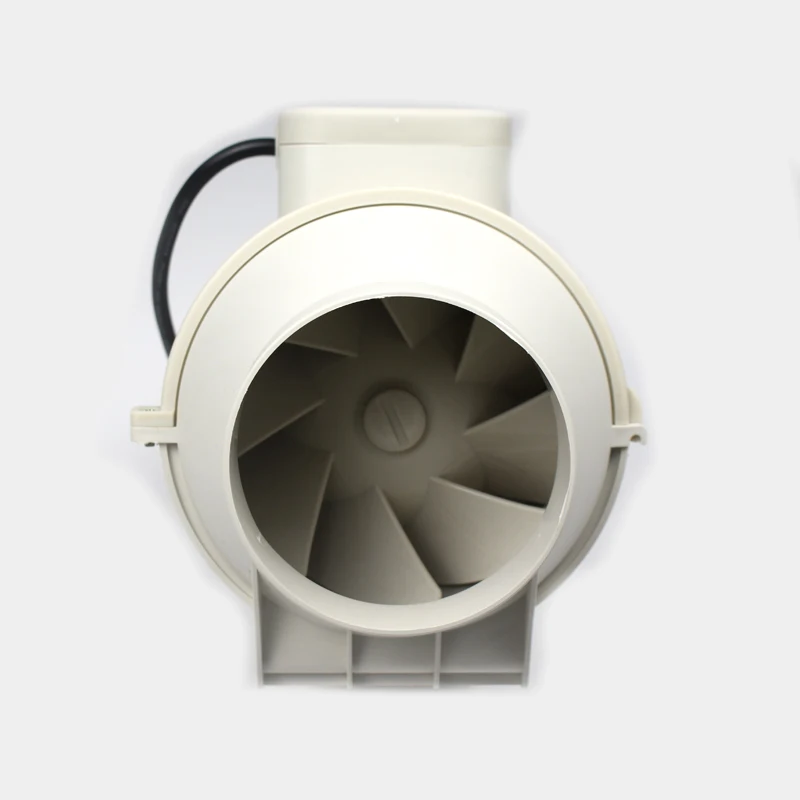

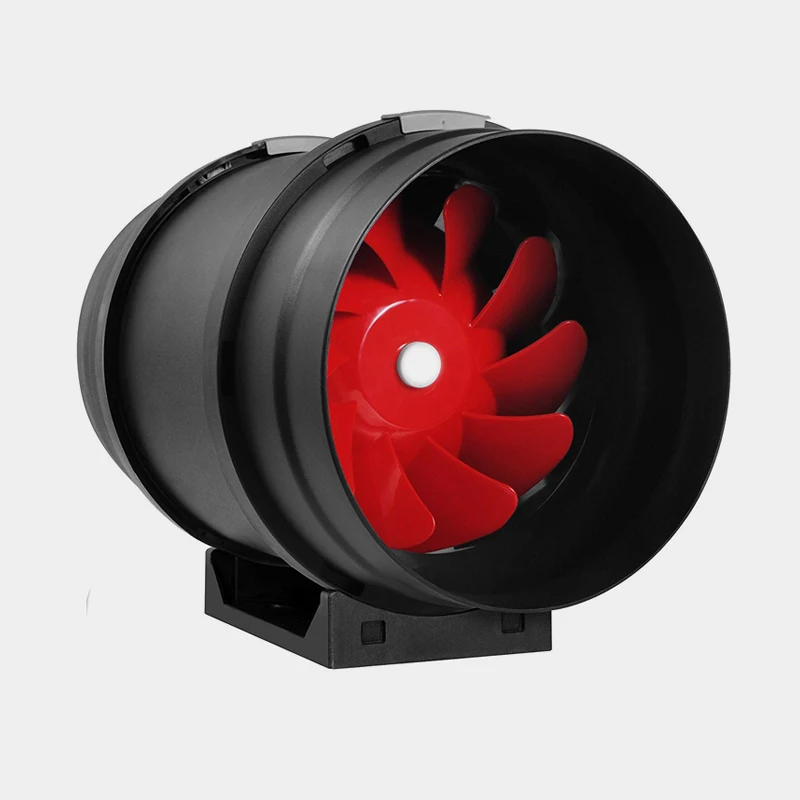

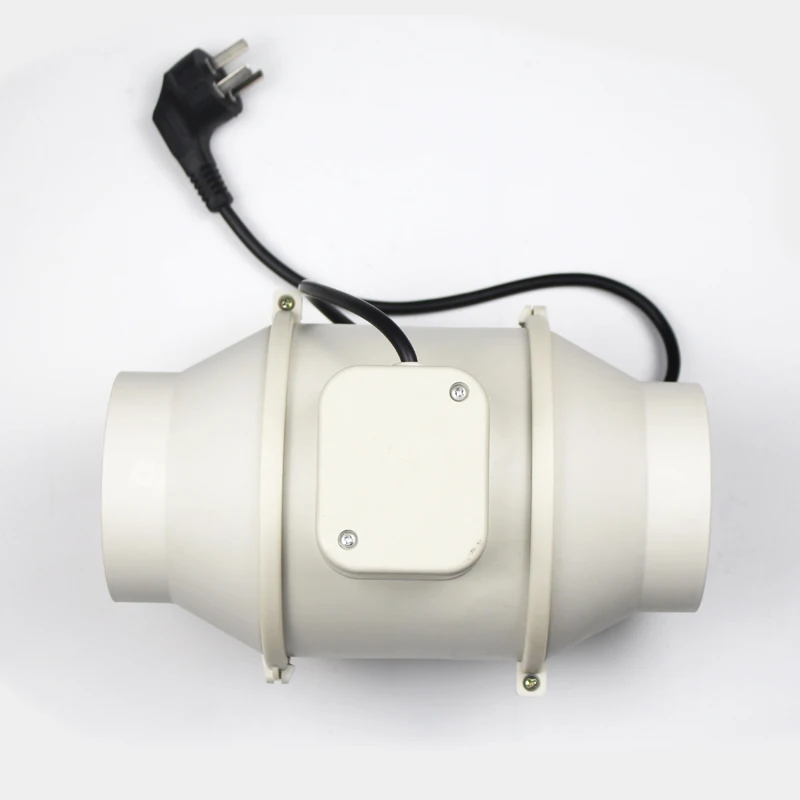

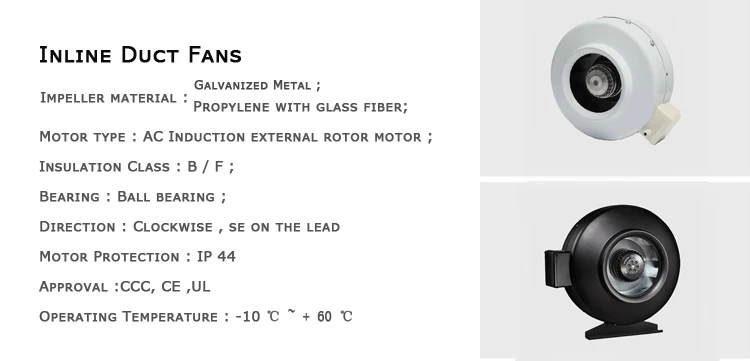

Air inline duct fans centrifugal ducted exhaust fan

Product Overview

Description

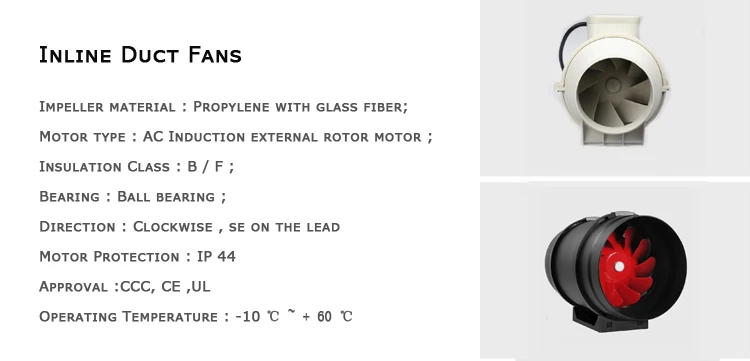

• Specifications :

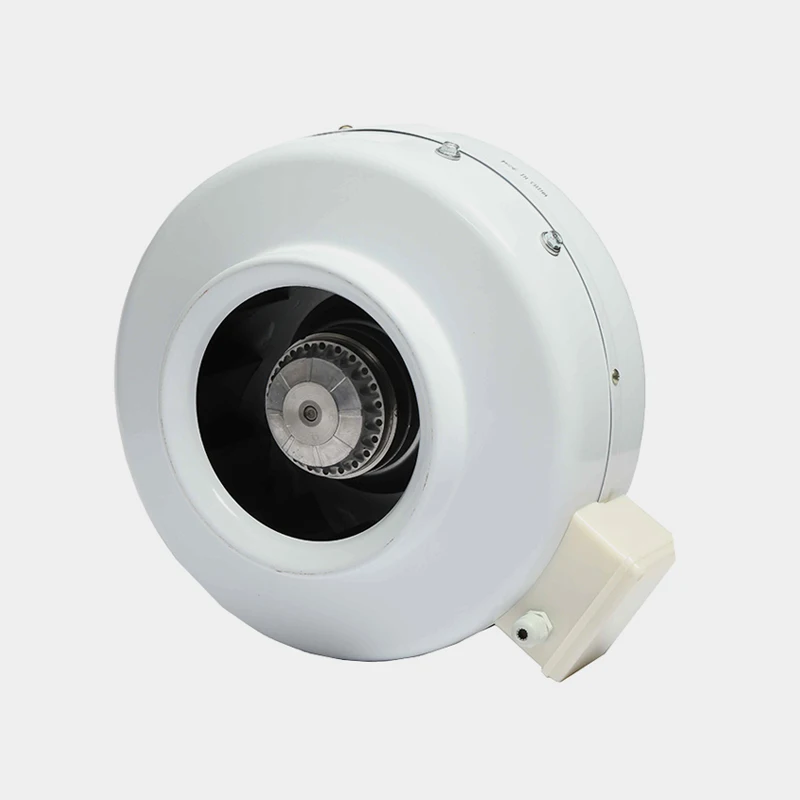

Metal Type :



Model	Voltage (v)	Frequency (Hz)	Power (W)	Current (A)	Speed (RPM)	Air Flow (m³/h)	Pressure (Pa)	Noise (dBA)	IP  Dgree
LWID100 (4")	110-120	60	72	0.61	2700	345	350	49	44
	220-240	50	62	0.26	2550	300	300	48	44
LWID125 (5")	110-120	60	75	0.65	2700	430	380	49	44
	220-240	50	62	0.27	2550	370	330	48	44
LWID150 (6")	110-120	60	132	1.00	2650	700	430	50	44
	220-240	50	102	0.47	2550	620	355	49	44
LWID160 (6")	110-120	60	135	1.10	2650	730	450	50	44
	220-240	50	105	0.48	2550	660	380	49	44
LWID200 (8")	110-120	60	200	1.70	2550	1150	550	53	44
	220-240	50	150	0.70	2500	1000	430	52	44
LWID250 (10")	110-120	60	315	1.80	2550	1200	600	53	44
	220-240	50	165	0.71	2500	1100	490	52	44
LWID315 (12")	110-120	60	245	2.00	2550	1800	790	53	44
	220-240	50	215	1.00	2450	16000	710	53	44

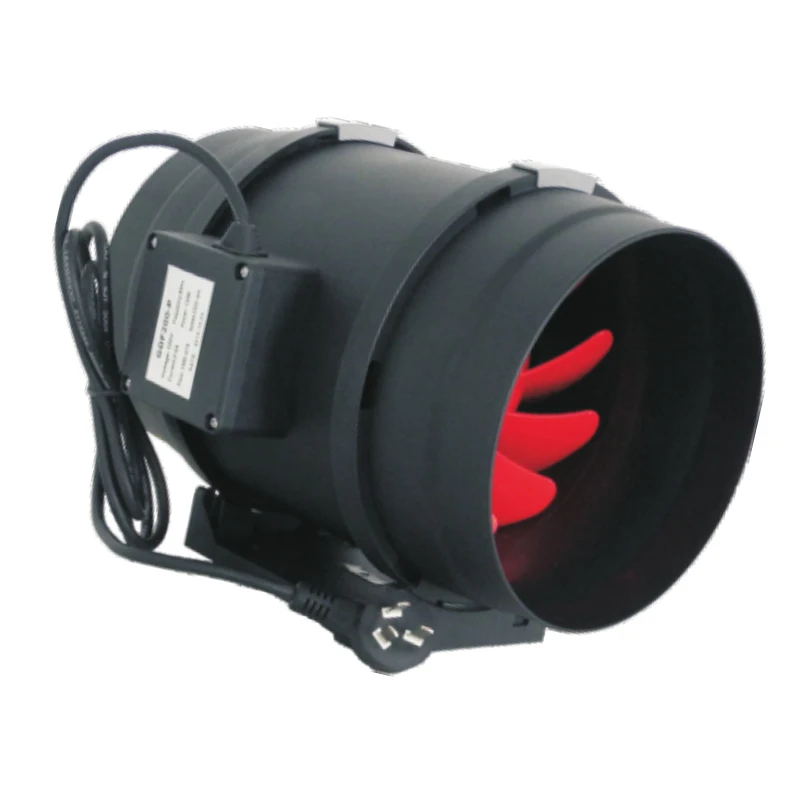

 Plastic Type :

Model	Voltage (v)	Frequency (Hz)	Gear	Power (W)	Current (A)	Speed (RPM)	Air Flow (m³/h)	Pressure (Pa)	Noise (dBA)
LWID100 (4")	220-240	50	H	36	0.16	2360	325	163	30
			L	25	0.11	1900	205	135	24
	110-120	60	H	34	0.29	2360	325	163	30
			L	34	0.23	1900	205	135	24
LWID125 (5")	220-241	50	H	39	0.18	2360	330	168	31
			L	28	0.14	1950	293	137	30
	110-121	60	H	37	0.31	2360	330	168	31
			L	29	0.24	1950	293	137	30
LWID150 (6")	220-242	50	H	59	0.22	2400	660	168	32
			L	41	0.19	2050	530	137	30
	110-122	60	H	59	0.49	2480	674	355	32
			L	44	0.36	2050	535	302	30
LWID200 (8")	220-243	50	H	130	0.60	2300	910	384	40
			L	113	0.55	1650	735	303	38
	110-123	60	H	182	1.59	2480	1250	435	41
			L	128	1.06	1950	750	303	38

Please contact us directly if you have any questions ,click here to inquiry us .

• Certificating :

• Factory Introduction :

LONGWELL is a manufacturer of HVAC fans, blowers , motors and components , as well as water purifier pumps and home appliances , established in 1990 , equipped with high advanced testing and production facilities .

Customers can select form the large variety of preexisting products developed by Longwell including but not limited to :

AC motorized centrifugal fans & blowers ;

Brushless DC/EC motorized backward / forward centrifugal fans & blowers ;

cross flow fan / wheel / blower with motor ( plastic or metal metal ) ;

axial fans / blades with plastic or metal material ;

Shaded Pole Motors ;

Duct fans ;

Parts or assemble parts or repair parts for HVAC,AHU,FCU,FFU,etc.

Please contact us directly if you have any questions ,click here to inquiry us .

• Delivery Item :

Sample :7~10 days ;

Bulk order : 18~23 days after receiving order information .

Package : Standard exporting package , carton with pallet . ( package can be customized )

Shippment : Air express ,sea shippment , EXW ,LCL ,etc all available .

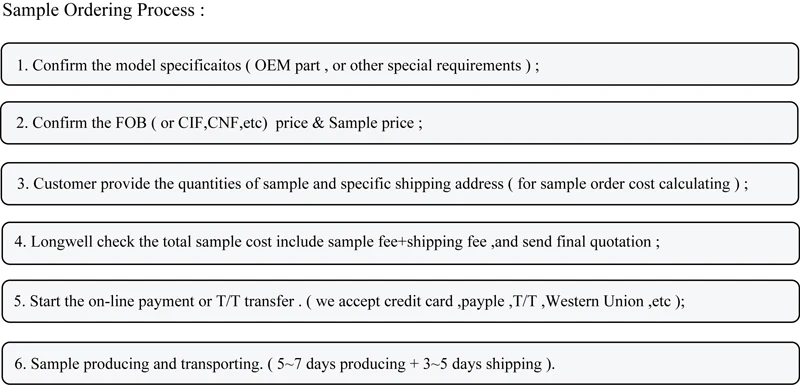

• Order Process :
