45ft Gooseneck Skeleton Chassis Semi Trailer Steel Customized Panda Truck Trailers Car Carrier Truck Trailer 12v / 24v, 7 Line
- Category: >>>
- Supplier: Shandong Panda Mechanical Co. Ltd.
Share on (62579930664):
Product Overview
Description
Product OverView

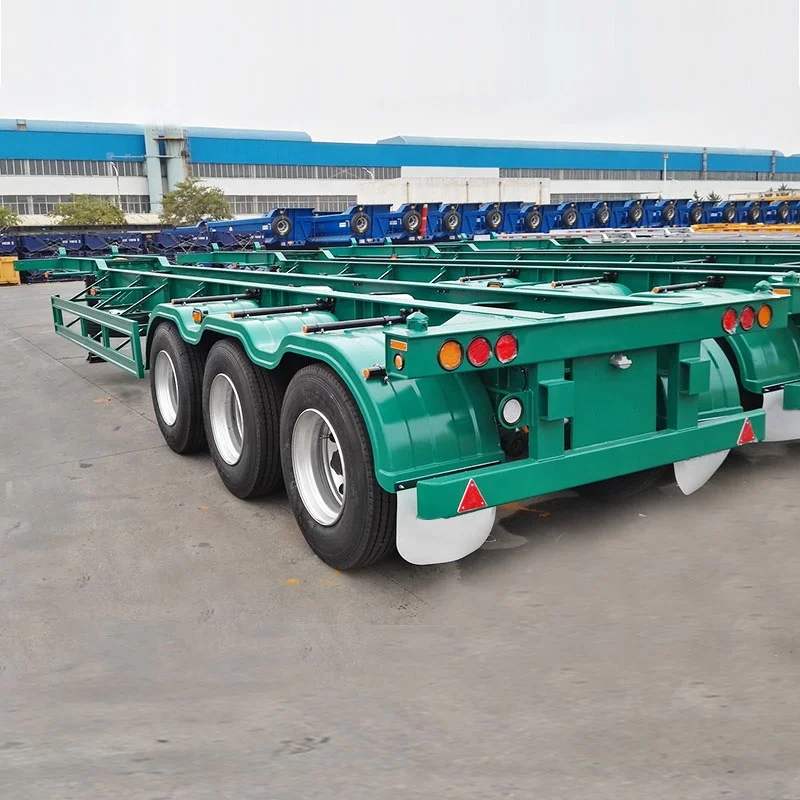

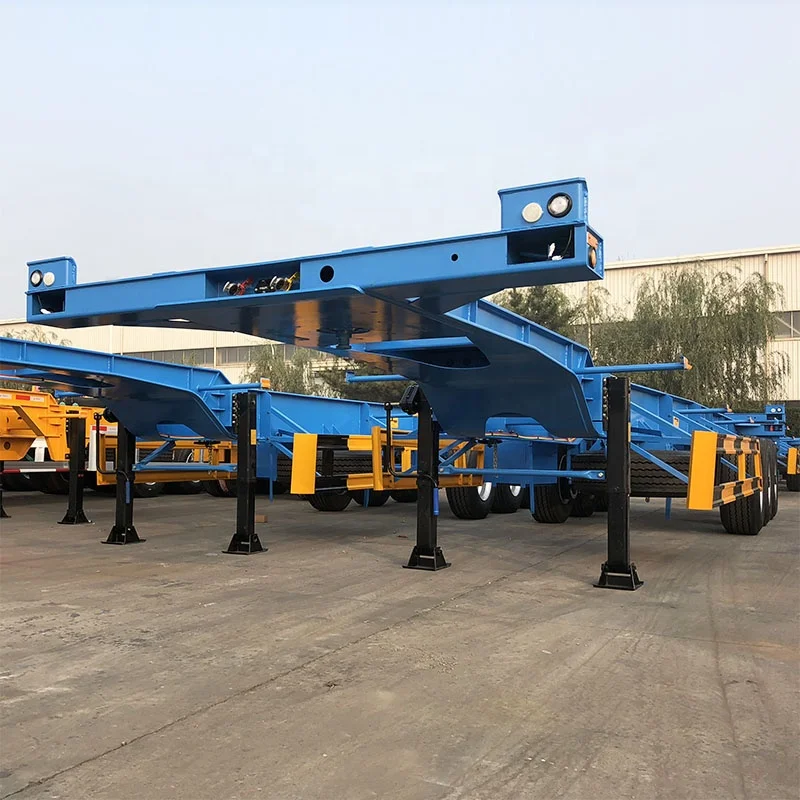

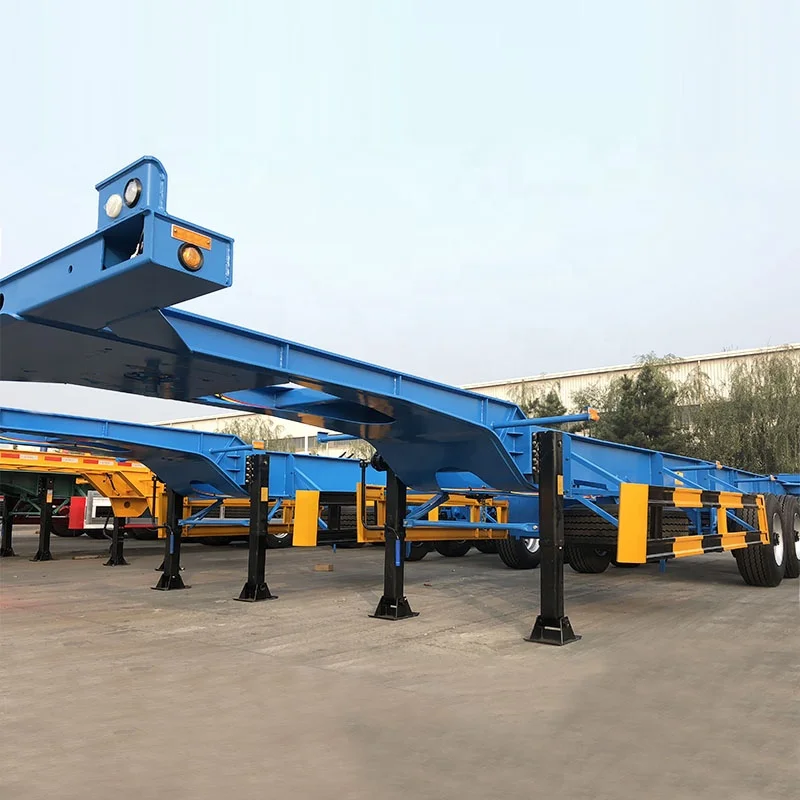

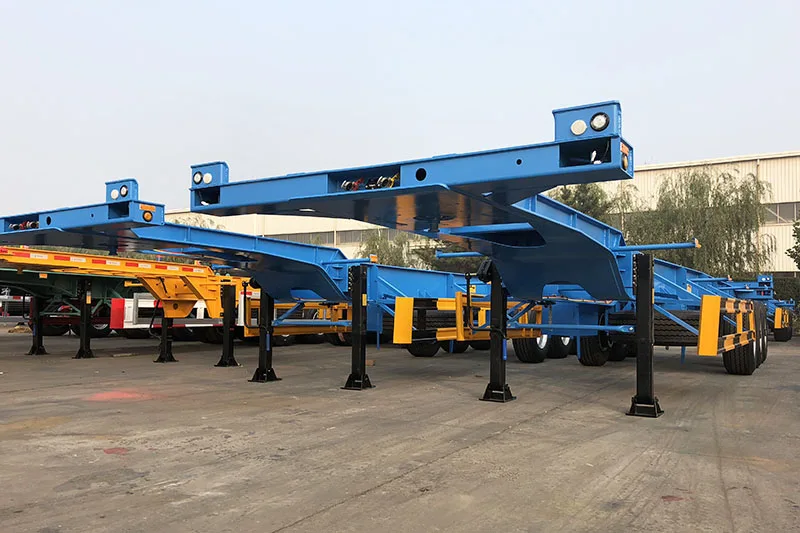

45ft gooseneck skeleton chassis semi trailer for 45 foot RF/HC/HQ container
Worldwide research, strict quality control system, famous production equipment, experienced
work team, focus on resolve vehicle pain points in use, supply quality products.
Skeleton container chassis trailer Video Display
World-class producing equipment with excellent manufacturing capability is our backbone for high quality products.
Each vehicle will be tested before supply to customers, making sure to supply perfect products to the world.

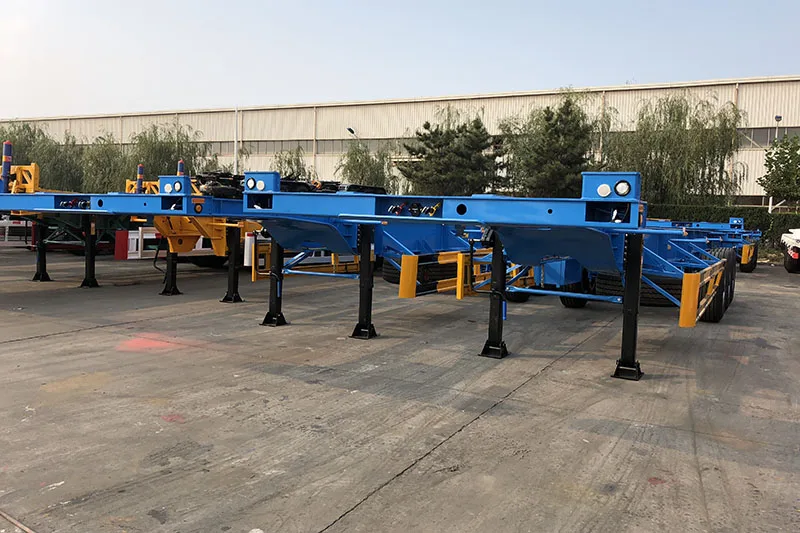

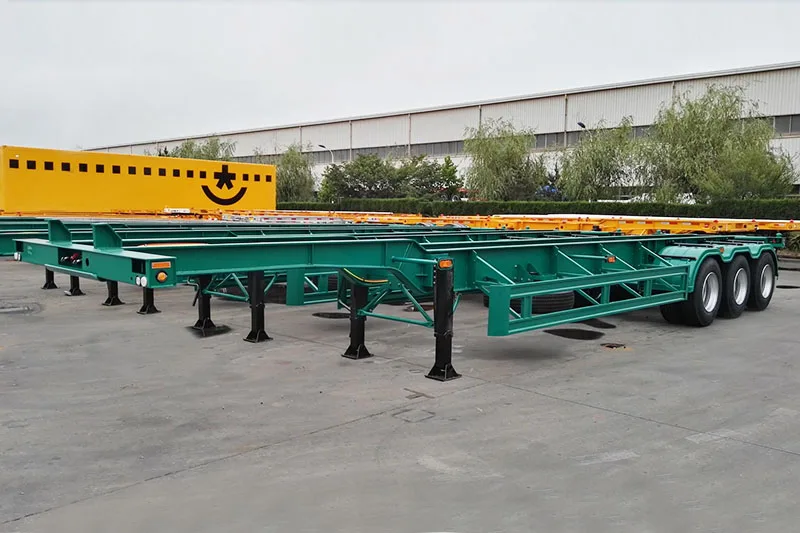

20ft Skeleton container chassis trailer

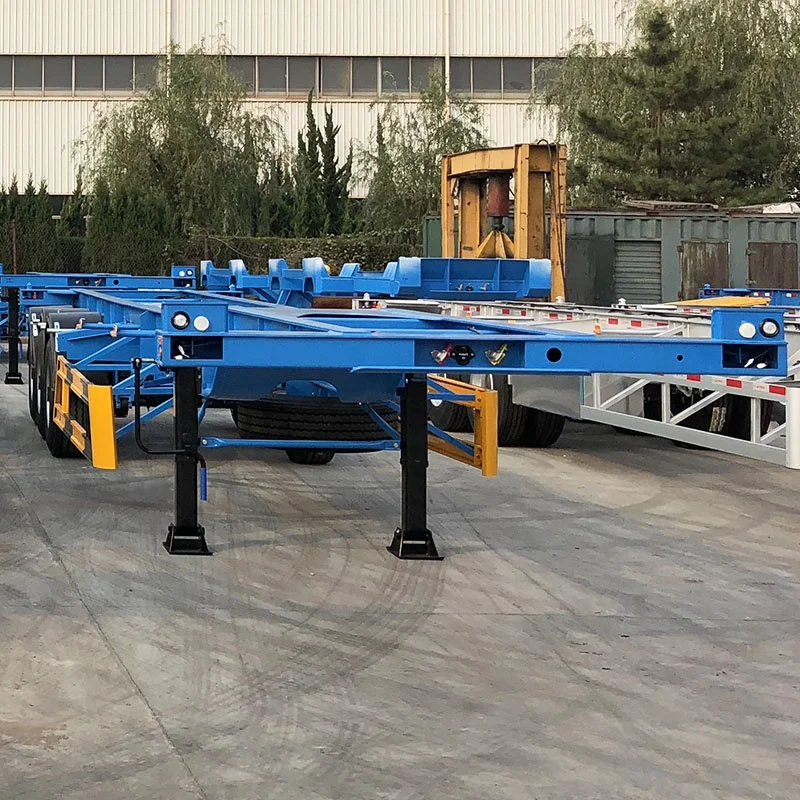

40ft Skeleton container chassis trailer
Search "PandaMech" on Youtube for More Video.
Product Details

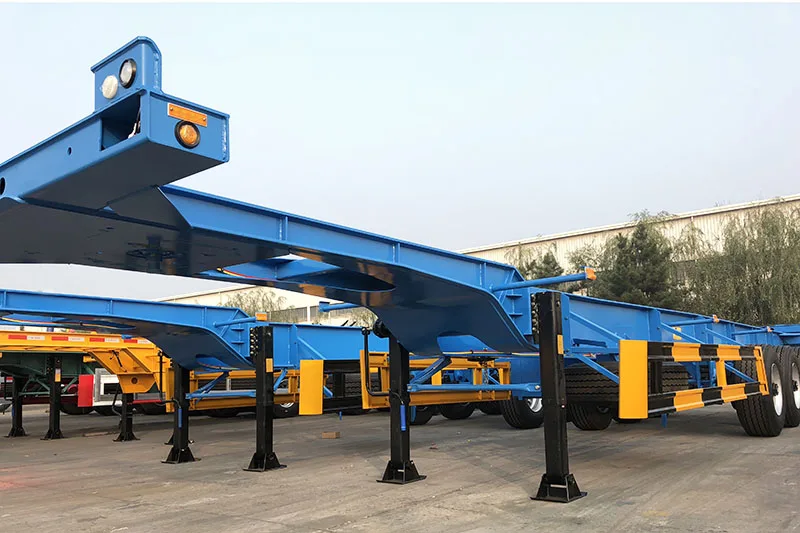

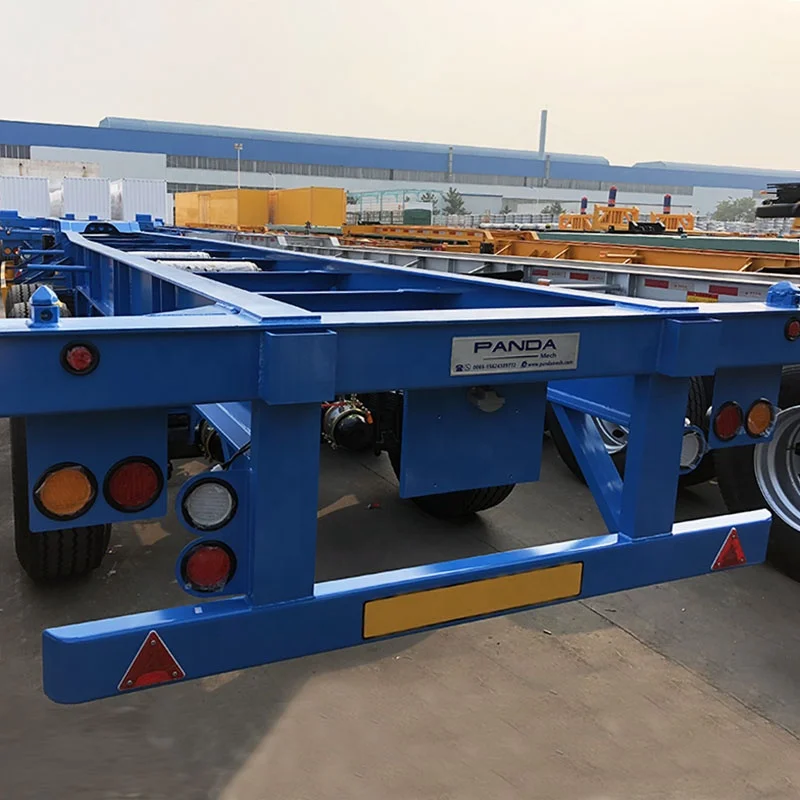

45ft gooseneck skeleton chassis semi trailer for 45 foot RF/HC/HQ container Products Details
Vehicle quality is determine by quality of raw materials and parts, vendor screening, material and parts check and
test support The selection of suppliers, the testing of raw materials and parts provide assurance for this.
Construction
Mainbeam:
High strength Q345 or T700 steel materail welded by submerged arc
Twist Lock:
ISO standard lock suitable worldwide container, additional protection switch avoid mistake opperate
Kingpin：
JOST brand bolting type, changing between 2” or 3.5" pssible
Running System
Axle:
BPW, FUWA, PD brands optitional support longer working without maintenance
Tire:
Famous brand tire optitional, size customized
Rim:
Quality steel or alu rim customized
Suspenssion and Brake System
Suspension:
Heavy duty mechanical suspension with equalizers quality spring
Brake system:Dual line air brake system, T30/30 chamber and WABCO relay emergency valve, ABS and EBS system optitional
Brake Pipe:
Nylon wire pipe more safty for high pressure braking
Specification
45ft gooseneck skeleton chassis semi trailer for 45 foot RF/HC/HQ container Specification
Standard specifications showing below, welcome customized any parts brand and size
20FT Skeleton Semi Triler | 40FT Skeleton Semi Triler | 45FT Skeleton Semi Triler | |||
Dimension | 7500*2500*1550mm | 12500*2500*1550mm | 13950*2500*1550mm | ||
Main Beam | "I" Section 500mm hieght Q345/T700 matirial | ||||
Twist Lock | 4/8 set ISO Standard | 12/14 set ISO Standard | 12/14 set ISO Standard | ||
Suspenssion | Mechanical / Air / Bogie | Mechanical / Air / Bogie | Mechanical / Air / Bogie | ||
Axle | 2/3 axles BPW/FUWA/PDME | 2/3/4 axles BPW/FUWA/PDME | 3 axles BPW/FUWA/PDME | ||
Rim | 8/12 pieces 9.0-22.5 Steel/Aluminum | 8/12/16 pieces 9.0-22.5 Steel/Aluminum | 12 pieces 9.0-22.5 Steel/Aluminum | ||
Tire | 8/12 pieces 12R22.5 Bridgeston/Triangle/Linglong | 8/12/16 pieces 12R22.5 Bridgeston/Triangle/Linglong | 12 pieces 12R22.5 Bridgeston/Triangle/Linglong | ||
Brake Valve | WABCO | WABCO | WABCO | ||
Chamber | 4/6sets T30/30 | 4/6/8 sets T30/30 | 6sets T30/30 | ||
Air Tank | 28L | 28L | 28L | ||
Brake Pipe | Nylon Wire Pipe | Nylon Wire Pipe | Nylon Wire Pipe | ||
Support Leg | 28T Lifting JOST/YAHUA | 28T Lifting JOST/YAHUA | 28T Lifting JOST/YAHUA | ||
Kingpin | 2"(50mm)/3.5"(90mm) JOST | 2"(50mm)/3.5"(90mm) JOST | 2"(50mm)/3.5"(90mm) JOST | ||
Lights | 12v/24v LED Waterproof | 12v/24v LED Waterproof | 12v/24v LED Waterproof | ||

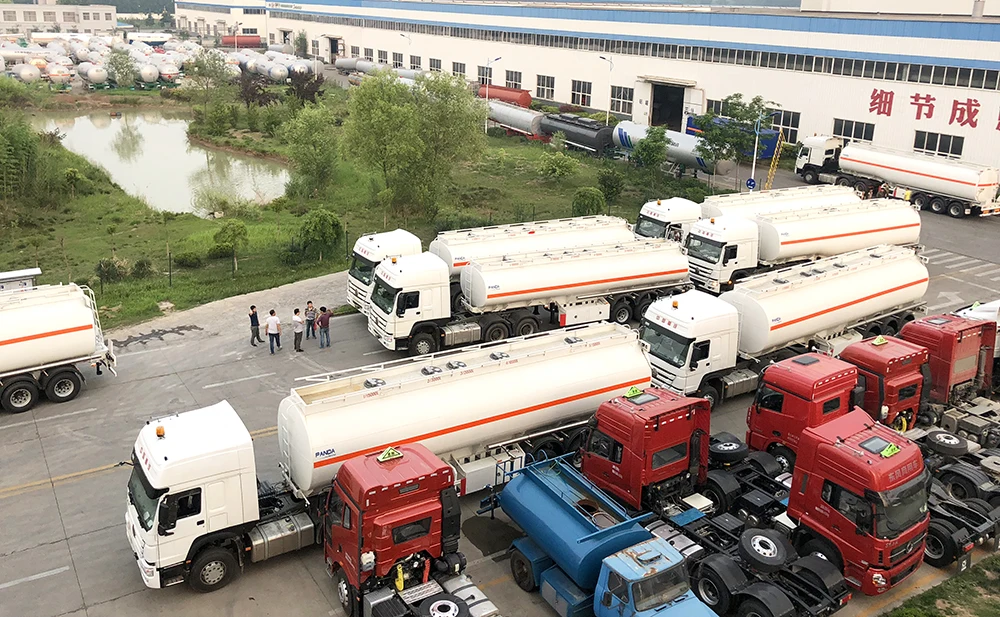

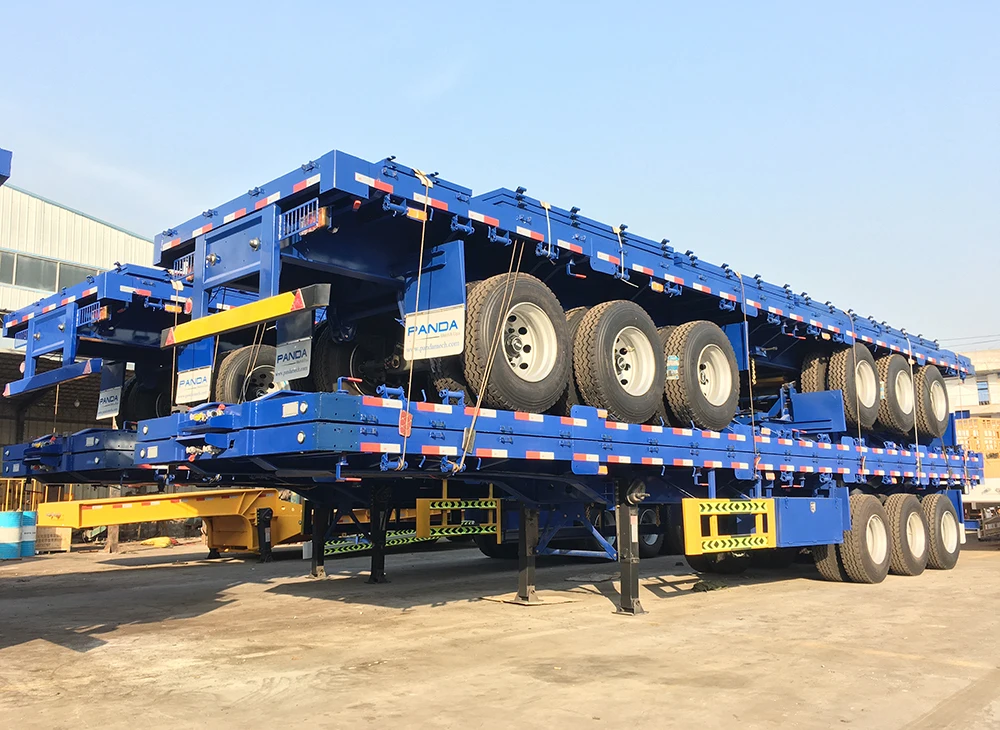

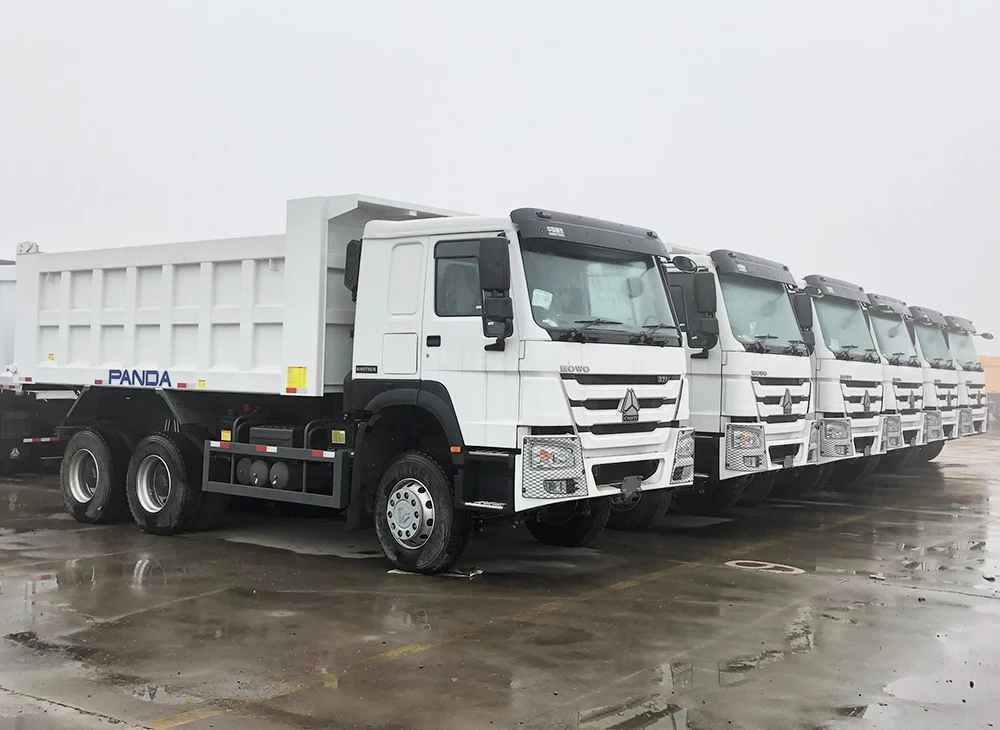

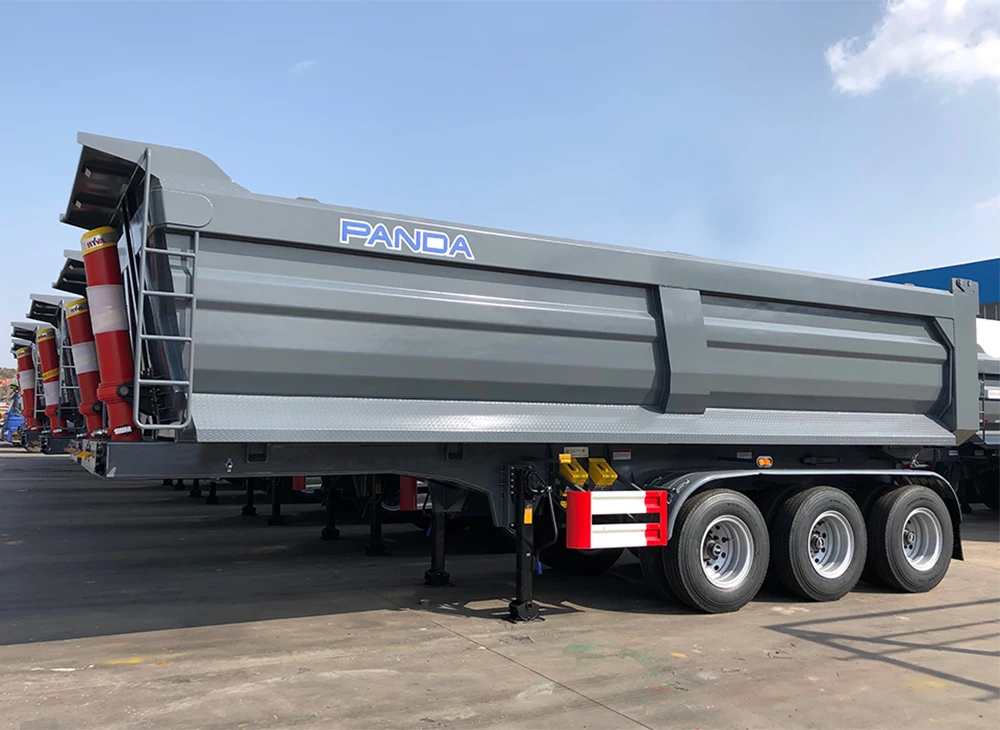

More Models
1000+ Models Vehicles for Chooseing
Panda visit customers, industry leaders and standard makers all over the world, summarize customers needs
on site, provide 1000+models vehicles help customers improve efficiency and resolve pain points in use
Testimonial
Testimonial
Base on effecienty pre-sale, well after-sale and quality products, now PANDA serve
for thousands customers in 100+ countries, widely praised by users. Learn More...
Customer Vioce
Malawi Ronald
"Fantastic products, well comply with laws and regulations, i like them"
Venezuela Remiglo
"The workmanship and paiting are good, like an artwork"
Ivory Coast Arnaud
'Very good service, parts supply fast thanks support"
Order Process
PANDA Follow Standerdized Process
Each order fllow standardized process, effect pre-sale sevice, excactly design, excellent manutacture, strict QC.
experienced deliver, well after-sale service, try our best providing satisfactory service and product!
1. Pre-sale Service
Confirm requirement and configuration with egineer in factory or online
2 .Order Start
Start to produce when advanced payment recieved
3. Design Confirm
Confirm requirement by drawing, ensure customer get excactly products
4. Manufacturing
World-class producing equipment with excellent manufacturing capability is our backbone for high quality product
5. Test and Delivery
Each vehicle pass 100+test and anti-corrosion wax before shipping, support clients get fantastic products
6. After-sale Service
Online and oversea training and after-sale service,help customers well using and resolve pain points in next order
Packing & Shipping
Safety and Economic Shipping
Experienced teams choose the most suitable shipping way for different clients among containers, Roro and bulk shipment, balance safety and economic cost.
Cooperate with well-known shipping companies, such as MAERSK, NYK and
Wallenius, ensuring the transportation of each shipment.
Wallenius, ensuring the transportation of each shipment.
RO-RO Shipping
Bulk Cargo Shipping
Container Shipping
About Panda
PANDA actually is company's mission, consists on Chinese "PAN" means rock mountain, and "DA" means successful arrive destination.
"PANDA" means supply products quality as rock help client's business successfully.
Hope our PANDA brand become another symbol of China like panda animal, become a last hundred years company well known in the world.
Hope our PANDA brand become another symbol of China like panda animal, become a last hundred years company well known in the world.
PANDA approved by ministry of industry and information technology of China to produce kinds of commercial vehicles.
Based on "one-stop service" philosophy, our products line cover 9 series 300 model, 6 brands 70 series truck. Now PANDA become a professional transport solution supplier, service more than thousands clients in 100+ countries. KONW MORE...
