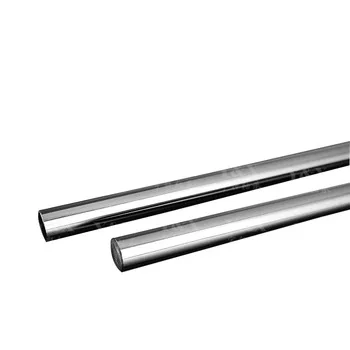

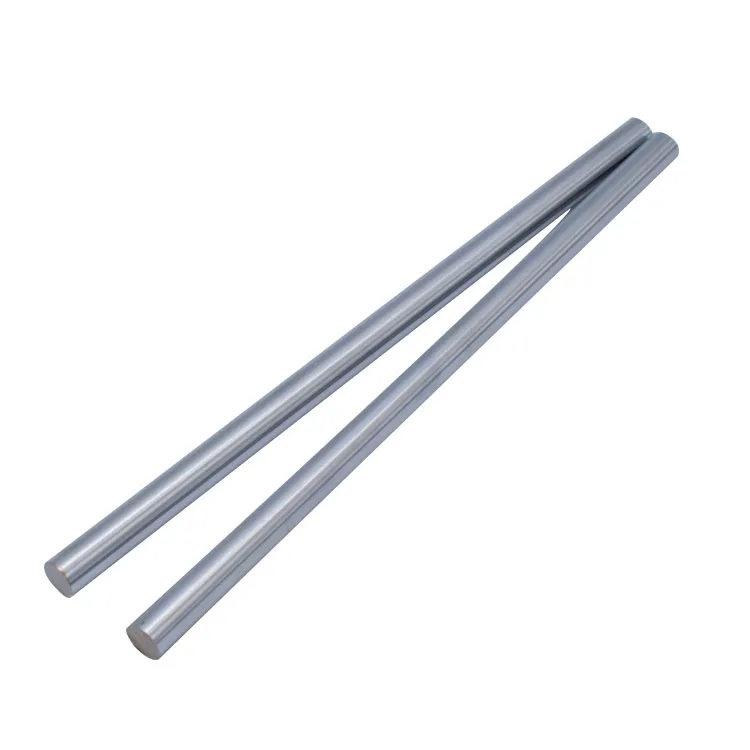

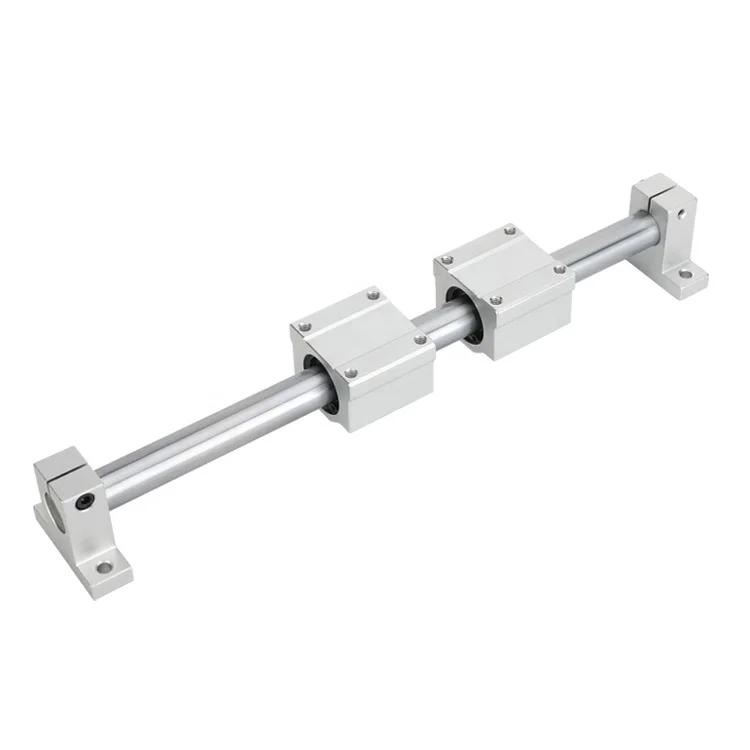

High Precision 30mm Heat Treated Linear Optical Axis for CNC Machines
- Category: Linear Guides >>>
- Supplier: Lishui Yuxuan Automation Manufacturing Co. Ltd.
Share on (62580816649):
Product Overview
Description
Product Description
Product Name | Hard Chrome Plated Steel Linear Optical Axis |
Model No. | WCS30 |
Shaft Diameter | 30mm |
Weight(kg/m) | 5.55kg |
Length | 50mm - 6000mm / Customized(We can cut into any length as you need.) |
Material | Carbon Steel, Gcr15 |
Precision | g6 h6 h7 |
Hardness | HRC62 ± 2 |
Coating | Hard Chrome Plated |
Sample Policy | Sample Charge Free, Courier Charge Required |
Lead Time | 3 - 10 Days for In-stock Products, Others need be Negotiated |
Service | OEM Service Provided |
Features | 1. Rust and corrosion resistant |
2. Friction reduction | |
3. Special grinding, hard chrome plating and mirror polishing on surface | |
4. Hardness enough and can extend the life of using machines | |

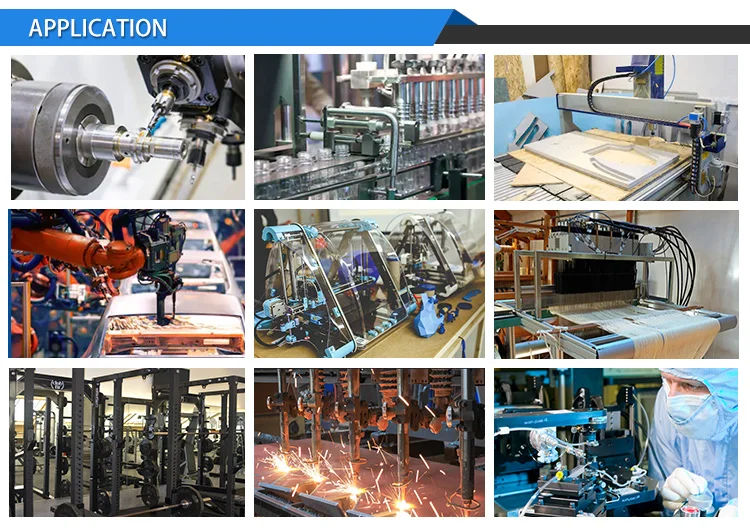

Application | Linear shaft is widely used in automatic transmissions, such as CNC machines, 3D printers, industrial robots, fitness machines, textile machines, laser cutting machines, automatic recording instruments, precision printers, special gas tank, automatic wood machines and other industrial machines. |

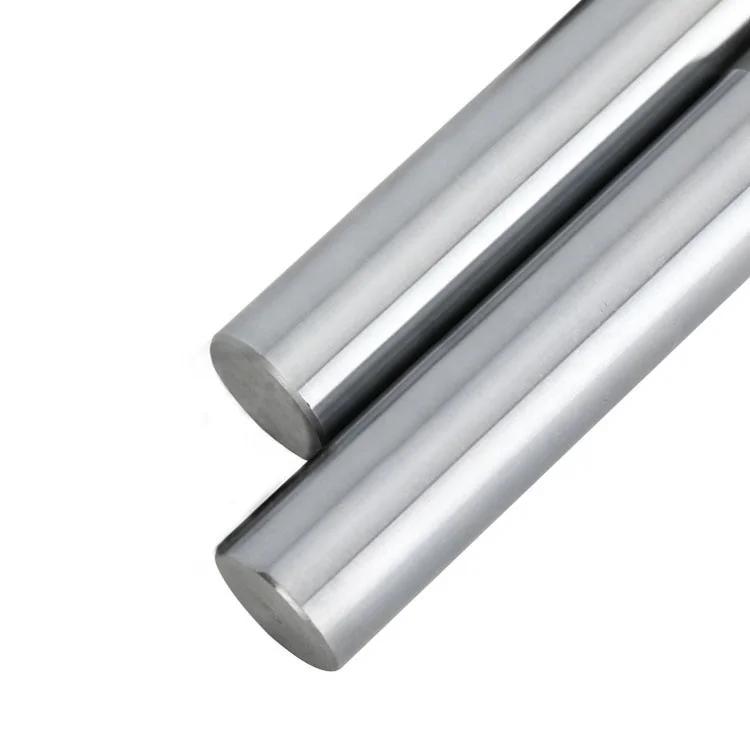

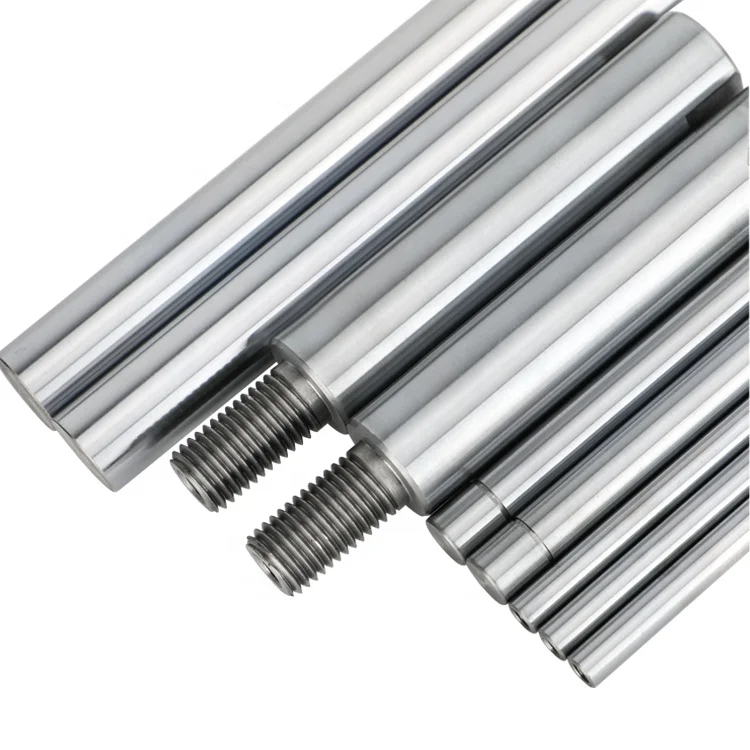

Hard Chrome Plated Linear Optical Axis
Smooth, hard, and wear resistant, linear motion shafts work with linear bearings to reduce friction in manual and automated systems, such as those found in packing, machine tool, and material handling operations. The smooth surface reduces friction and wear on the bearing—the lower the microinch value a shaft has, the smoother its finish and the less friction it will create. All are turned, ground, and polished to tight diameter and straightness tolerances.
Standard Dimensions:
Hardened Shaft: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 13mm, 14mm, 15mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 28mm, 30mm, 32mm, 35mm, 40mm, 45mm, 50mm, 60mm
Flexible Shaft: 12mm, 14mm, 15mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm
Hollow Shaft: 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm
NOTE:
1. We can cut into any length you need.

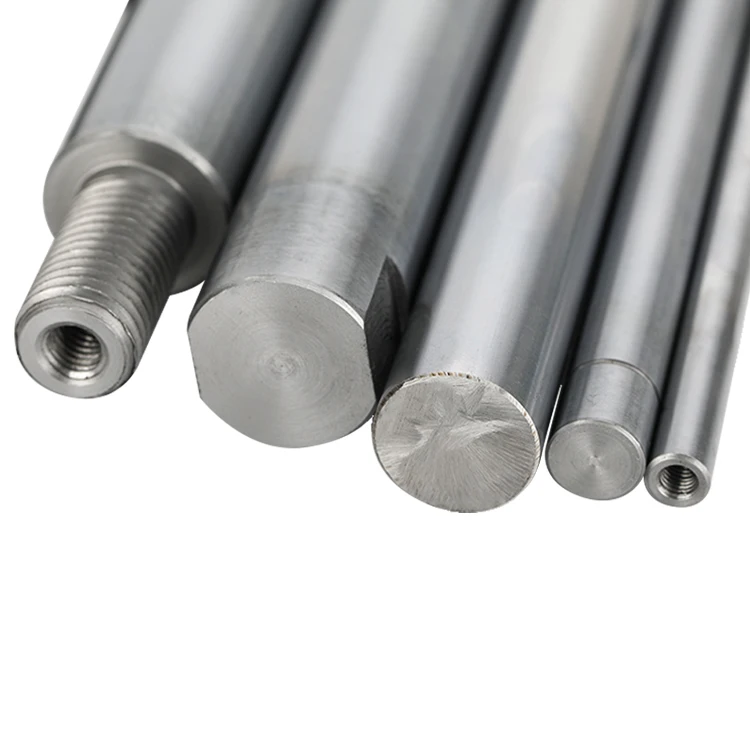

2. We can provide special processing requirements of shaft ends.
3. We can provide customized service of shaft diameter.
Please just contact us if you wish.
We are professional in producing linear motion stuff such as linear shaft, linear bearing, linear guide block and unit, square guideway, shaft support and so on.
If you want to know more about our products, we are looking forward for your inquiring. Thank you.

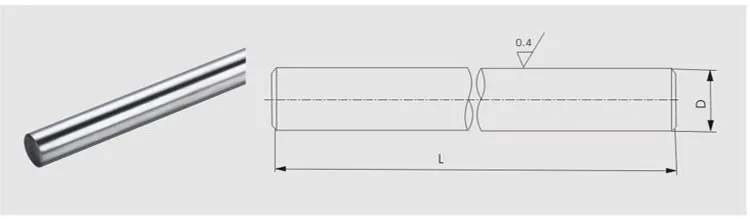

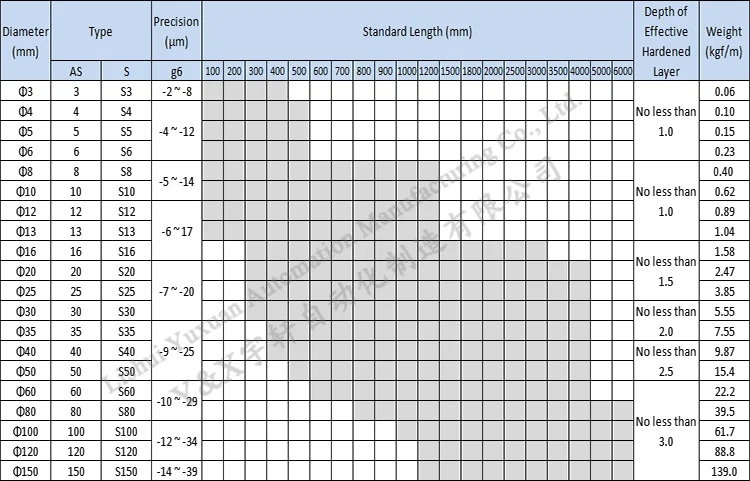

Specification Table

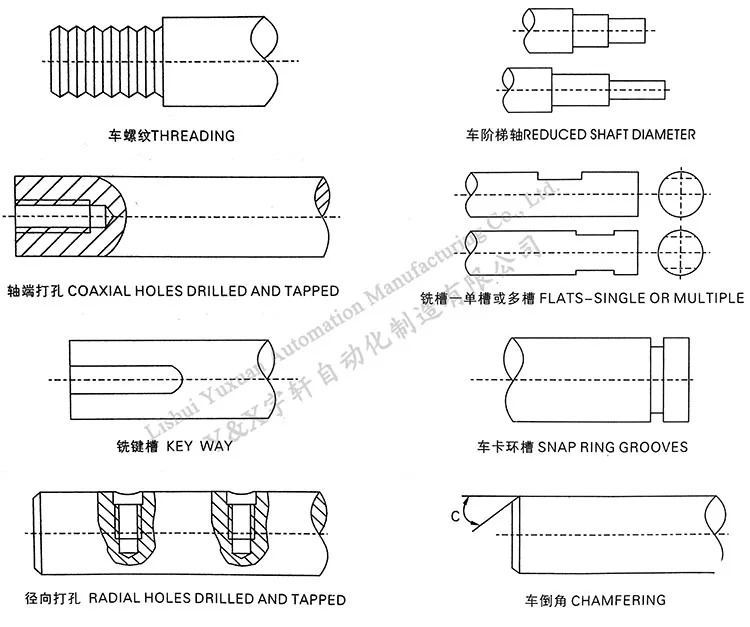

Processing Types of Shaft Ends

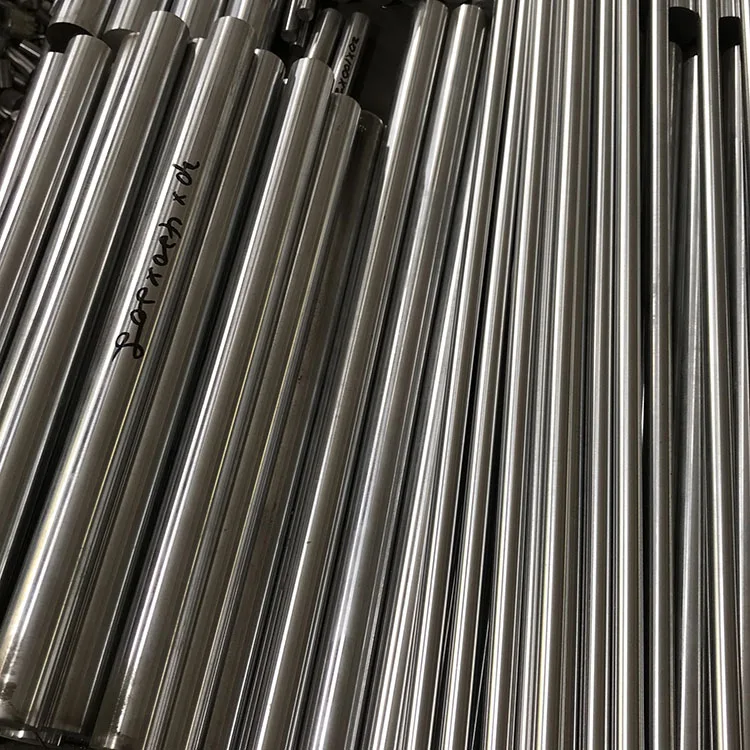

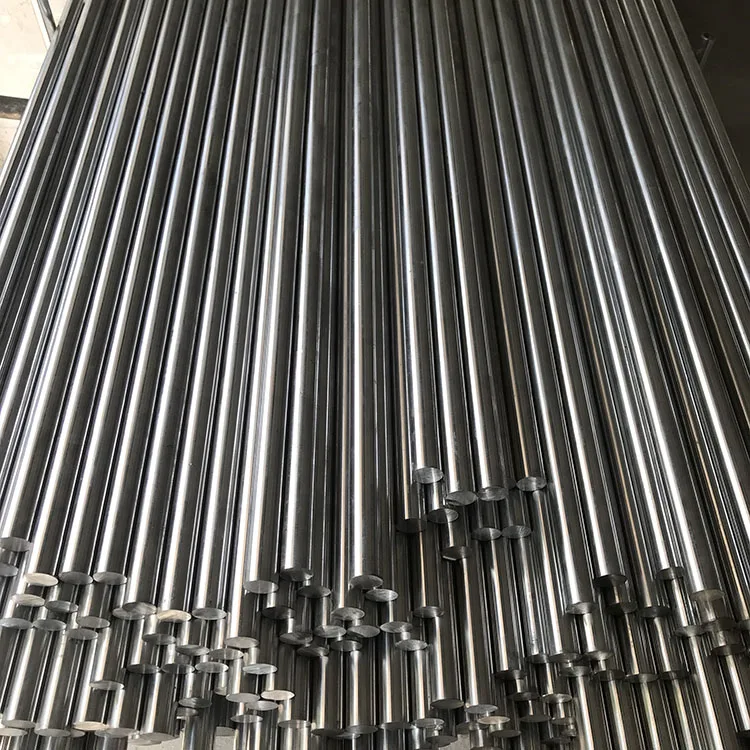

Prodcut Display
Company Information
FAQ
Q: Are you a factory or trading company?
A: We have our own factories. The type of our company is factory + trading.
Q: Why choose us?
A: 1. We have the experience of bearing manufacturing more than 10 years.
2. Even though we are new in ALIBABA, we have our own online and offline stores in domestic market 6 years. The quality of our products can be ensure.
3. We can provide first hand price and OEM service.
4. The lead time is short.
Q: What are your main products?
A: Our main products are linear guide series, linear bearing series, linear shaft series, ball screw series, rod end bearings. We are specialized in linear motion series.
Q: Can you provide samples for free?
A: Yes, we can provide samples for free, but the freight should be afford by customer.
Q: How about the transportation methods?
A: If it's small quantity , we suggest to send by express, such as DHL, UPS, FEDEX. If it’s large amount, we suggest yo send by air or sea shipping.
Q: What about the lead time?
A: 3-7 days for sample or in stock products, 3-4 weeks for mass production.
