Product Overview

Description



\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t

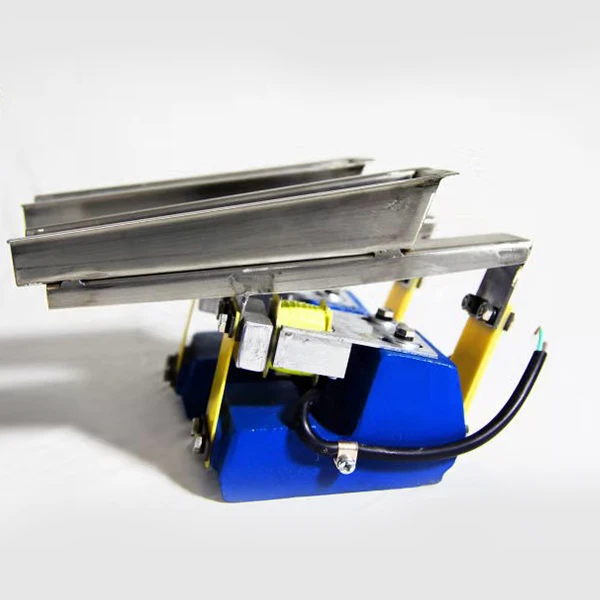

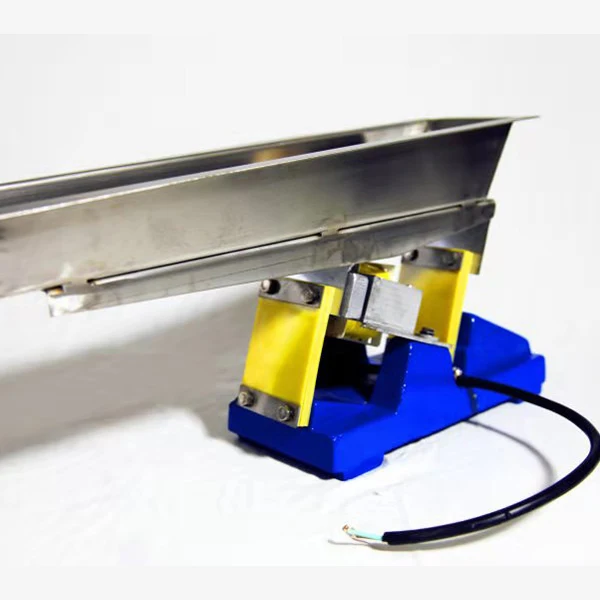

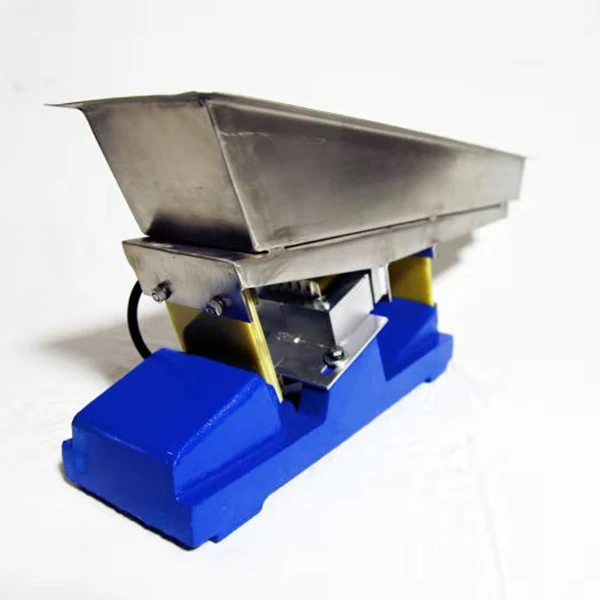

GZV Vibration Feeder

Vibratory parts feeder is the machine which can orient and feed small parts to the assembly line by vibration.

Characteristic

The utility model has the advantages of small size, light weight, simple structure, convenient installation and low operating cost;

The use of half wave rectifier control, can be used in the stepless adjustment.

The feeder in the course of continuous feeding thrown the parts up, so to wear small trough.

In order to reduce the noise and improve life and feed efficiency, the inside of the bowl is usually coated by urethane.

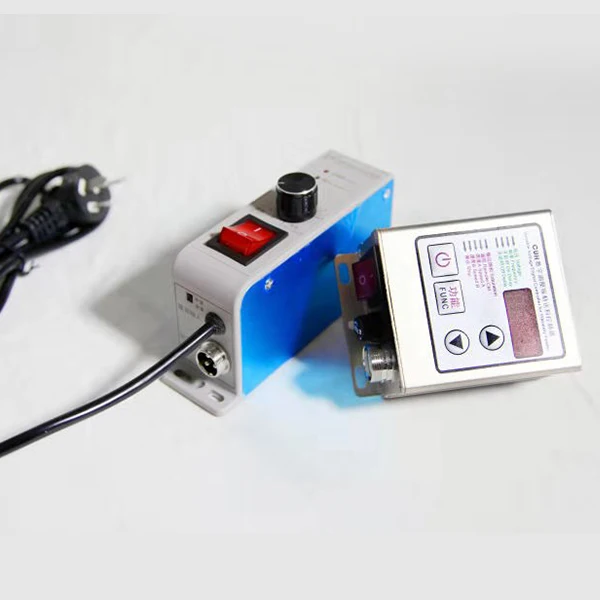

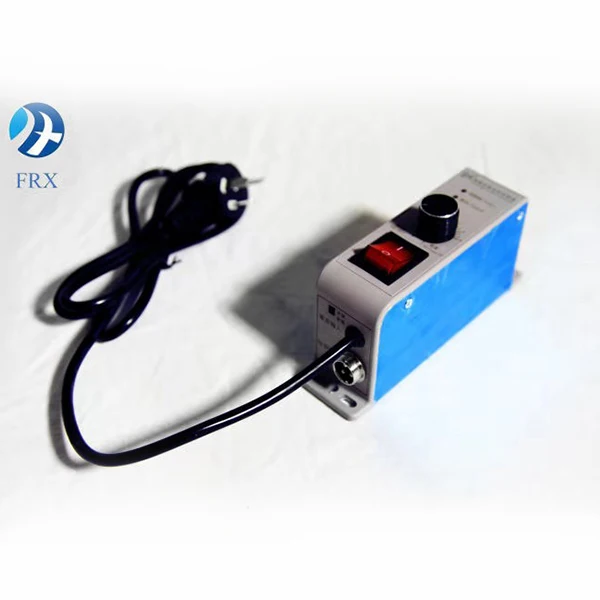

The vibrators are controlled by control boxes.









Technical parameter for GZV vibrating feeder
Model
GZV1
GZV2
GZV3
GZV4
GZV5
GZV6
GZV8
Capacity(t/h)
0.1
0.5
1
2
4
6
8
Double amplitude(mm)
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Frequency(tim/min)

3000
3000
3000
3000
3000
3000
3000
Power(w)

5
8
20
25
30
50
100


Control

equipment
Model
XKZV-Ⅱ

Control way
Controllable half wave rectifier

Voltage
220
220
220
220
220
220
220

Frequency(HZ)
50
50
50
50
50
50
50

Current(A)
0.08
0.12
0.15
0.2
0.25
0.6
1.0
Weight

4
7
12
18
27
45
60


Shape and size


Machine dimensions

The overall dimensions of the mainframe are shown belowr





Model
Outline dimension
B
B1
B2
B3
L
L1
L2
H
H1
GZV1
40
60
50
80
200
273
92
20
155
GZV2
60
80
50
80
300
374
95
30
168
GZV3
80
110
60
100
400
480
224
40
222
GZV4
100
130
70
120
500
568
310
50
256
GZV5
120
150
70
120
550
630
310
60
295
GZV6
200
240
120
180
300
760
440
70
330
GZV8
300
340
180
230
1000
1050
560
80
340


Use and installation


Design and installation of hopper feeder

In order to ensure the normal operation of feeder,Should pay attention to several points in the installation of hopper.



The outlet and the feed tank should have 5mm gap,Ensure the hopperis not affected by the process of feeding.



Chute exit should design oblique,To avoid the vertical pressure direct pressure on the feeder,Otherwise it will seriously affect the efficiency of feeder.



2. installation

The size of the opening of the hopper shall be guaranteed to obtain sufficient material,In order to adjust the number of materials should be set gate.

GZV series vibrating feeder for seat type structure,Install flat on the support plate
