Product Overview

Description


Products Description

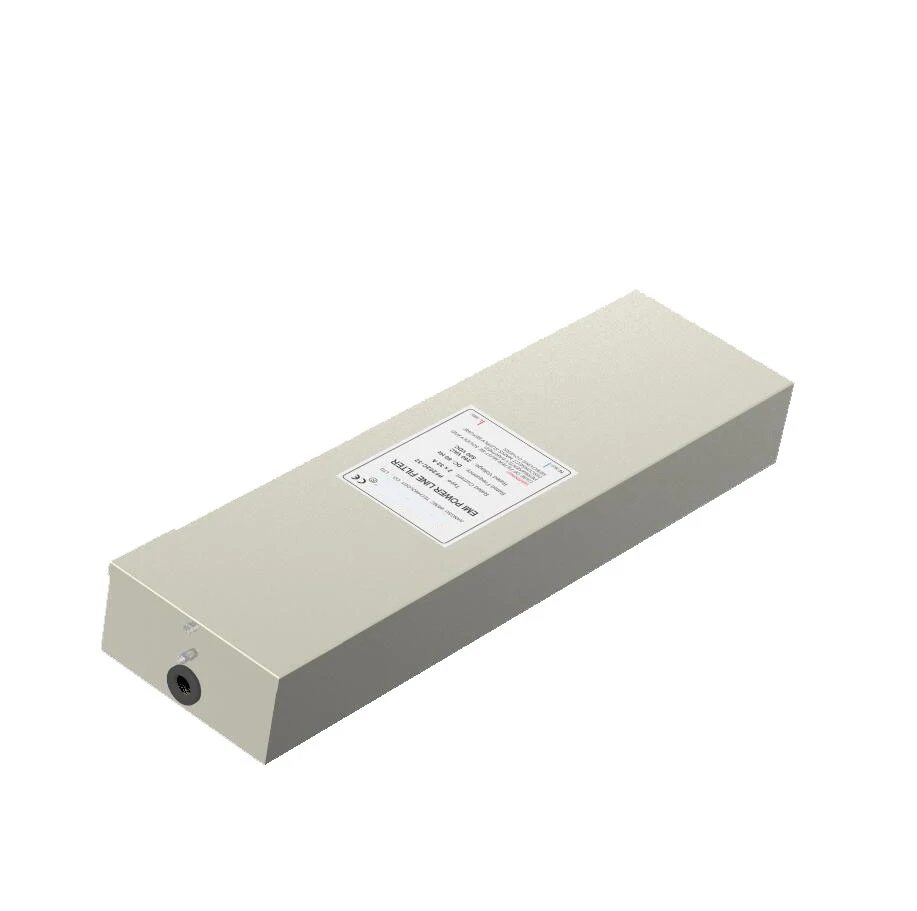

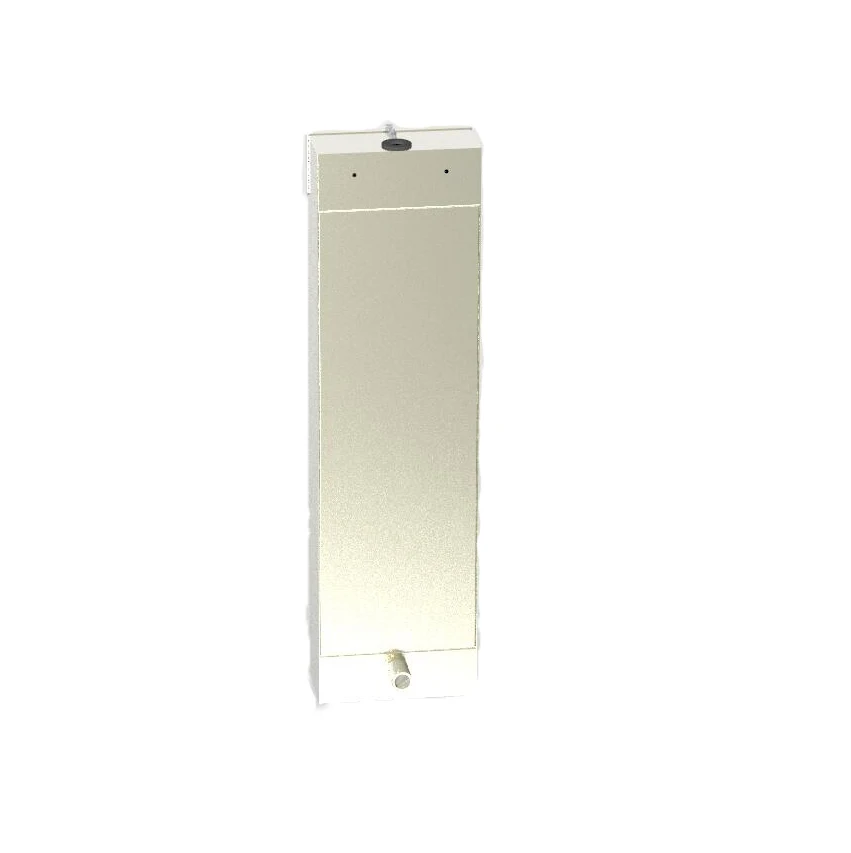

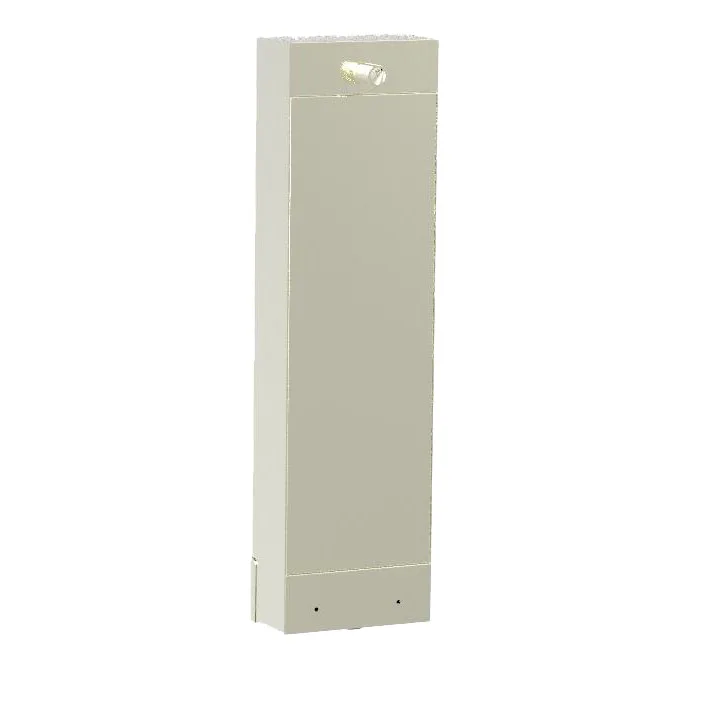

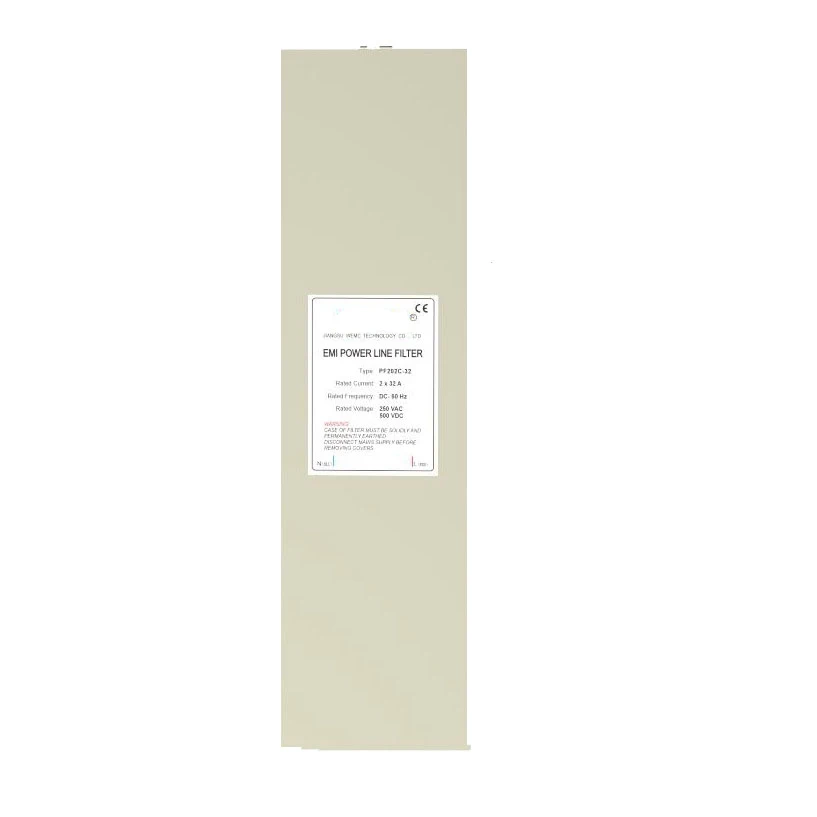

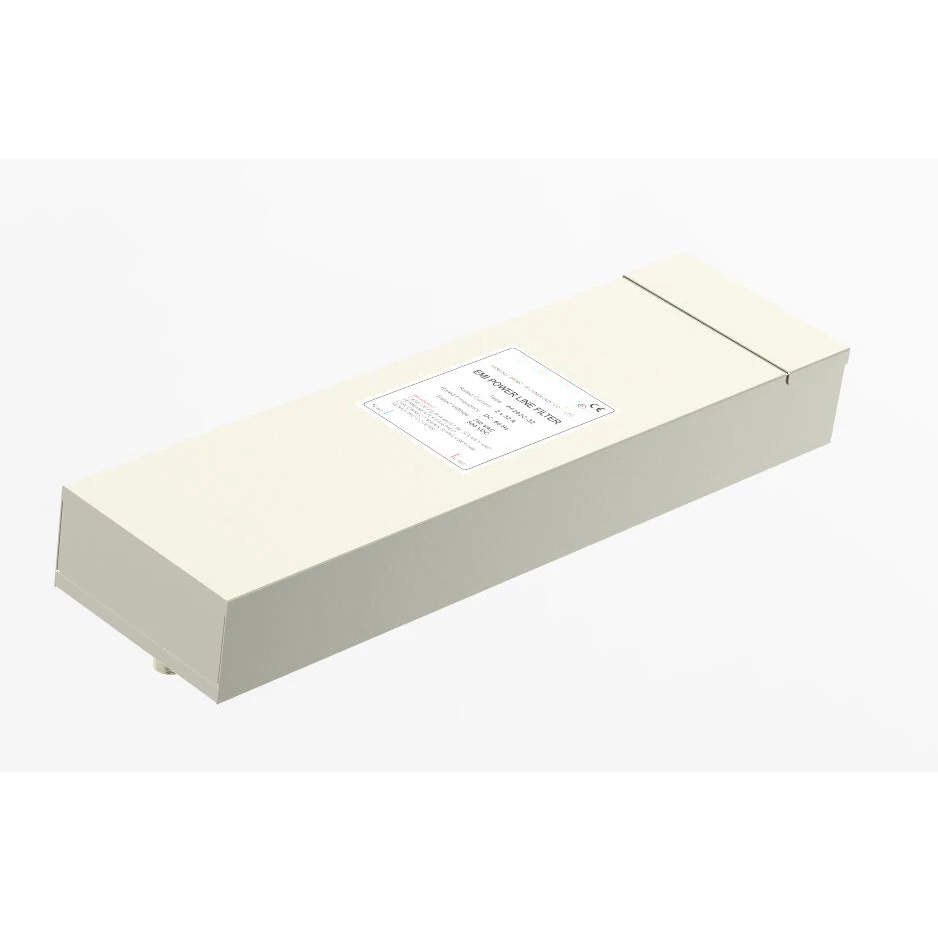

PF202C series Power Line Filter
The PF202c series power Line filter is a special support for antenna darkroom, shielded room, cabinet and electronic shelter, which can effectively suppress radiated interference.
SIZE :720mm*160mm*100mm
①Rate voltage：250VAC/500VDC
②Rated Frequency：0-60Hz
③Shielding Effectiveness(dB)：100dB, 14kHz-40GHz
④Climatic category：25/070/21
Product Details

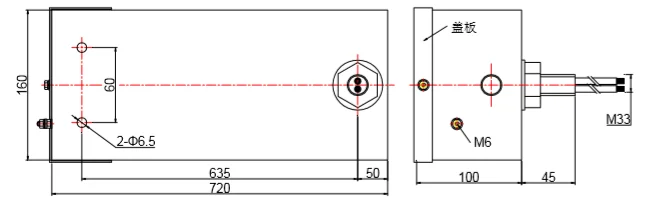

PF202c-16
Size(mm):720*160*100
Rate Current：16A

PF202c-32
Size(mm):720*160*100
Rate Current：32A

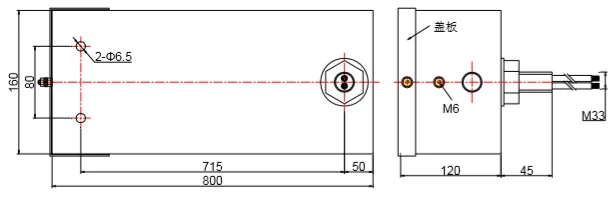

PF202c-63
Size(mm):800*160*120
Rate Current：63A

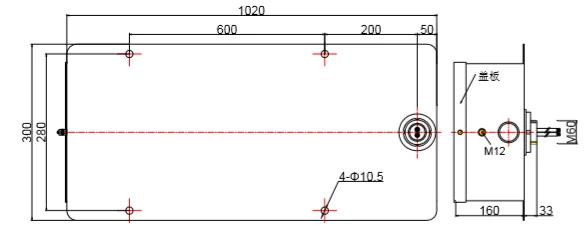

PF202c-100
Size(mm):1020*300*160
Rate Current：100A
Supporting Parts
One M33 guide screw
One flat washer 33
One M33 nut
One Wire mesh washer 33
Company Profile

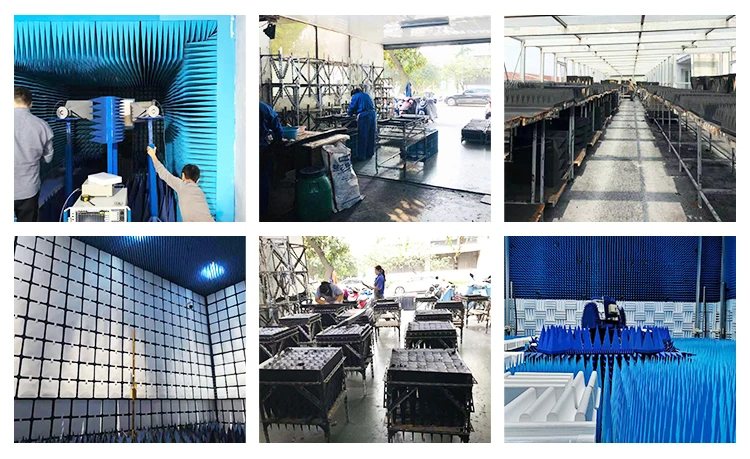

Nanjing MJK Electronic Engineering Co., Ltd
Nanjing MJK Electronic Engineering Co., Ltd. is a high-tech enterprise specialized in engineering design, development and production of absorbing materials, microwave anechoic chamber and antenna measurement system. Relying on the technology resources of CLP Group, it is formed by a team of well-known experts and scholars in this field in China
Please contact us:
Email: 910061638@qq.com
Tel: 18915969090
Address:Room 301, Zhengyang Building, 56 Yudao Street, Qinhuai District, Nanjing
