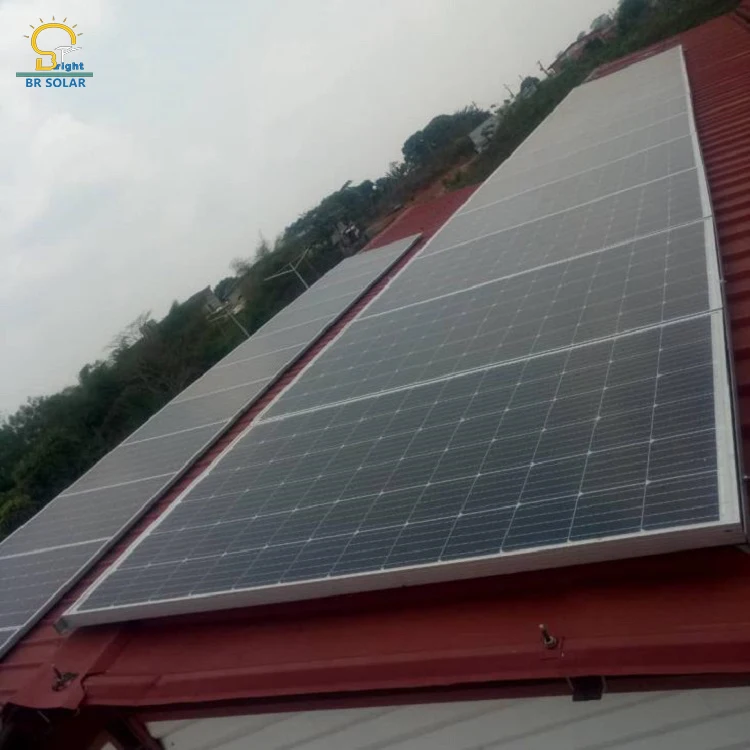

DC24v AC220v inverter solar system home off grid solar power system 1kw
- Category: Solar Energy Systems >>>
- Supplier: Yangzhou Bright Solar Solutions Co. Ltd.
Share on (62583442183):
Product Overview
Description
Our Services
Product Description
DC24v - AC220v inverter solar system home off grid solar power system 1kw

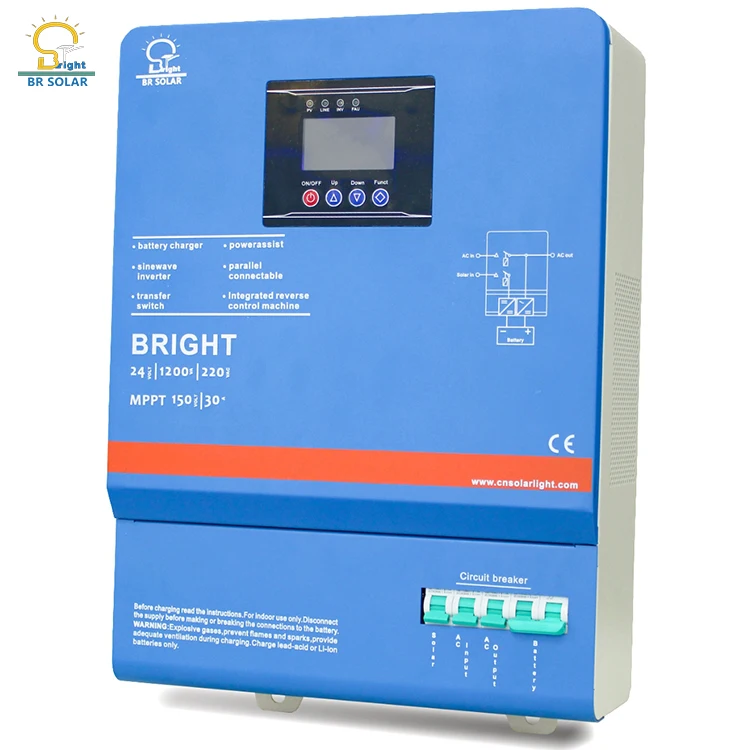

 | Off grid solar inverter&controller > Name: 1KW/24V Inverter with Built-in Controller > Specification:Pure Sine Wave Inverter 1KW 24V MPPT Controller : 30A/24V LCD Display, With AC Charger Built-in Automatically Protection Against Short-circuit, Over Load, and Low-voltage Protection Output:110v,120v,220v,230v,240v( Optional) Product Size: 420*320*122mm > QTY: 1PC
|
Panel Rack > Name: Slope Rooftop or Flat rooftop > Spcecification:Including Complete Fittings Wind load:55m/s, Snow load:1.5kn/m2 Structure:Anodized Aluminum+ Stainless Steel, Angle Adjustable (Customized Rack Is Available ) > QTY: 1SET
|
|

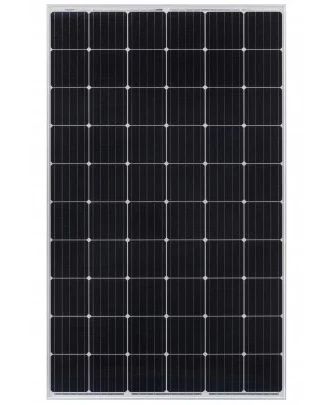

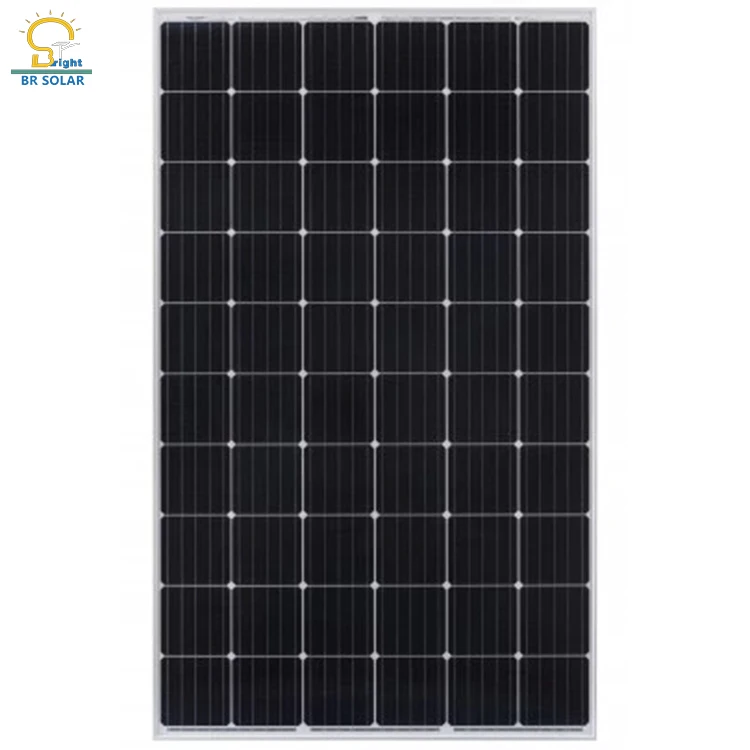

| Solar Panel > Name:BR-P200W Poly Crystalline Solar Panel > Specification: Vmp:17.8V Voc: 21.6V Imp: 11.22A Isc: 12.83A Size: 1230*992*35mm Terminal Block: IP65 with MC4 connector > QTY: 4PCS |

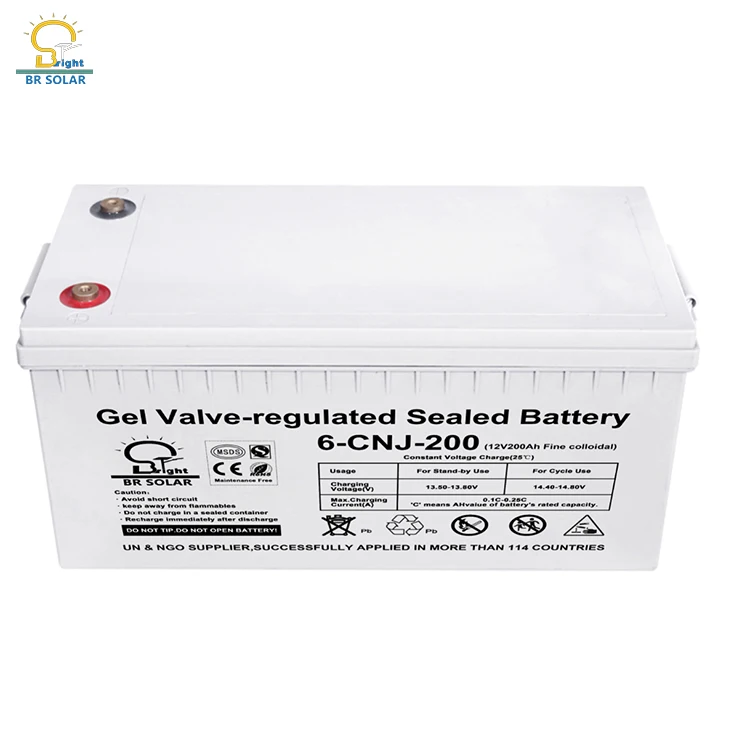

| Gel Battery > Capacity: 200AH/12V > Specification:Full Sealed Maintenance-Free Gel Battery, Service Life:6-10 Years Size: 522*240*242mm Connect way: 2PCs In Series to Get 24V > QTY: 2PCS |  |
| Specification | ||||||
| Model: MPPT | 0.3-1KW | 1.5-6KW | ||||
| power rating(w) | 300 | 700 | 1500 | 3000 | 5000 | |
| 500 | 1000 | 2000 | 4000 | 6000 | ||
| Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
| Charge Current | 10A MAX | 30A MAX | ||||
| Battery Type | Can be set | |||||
| Input | Voltage Range | 85-138VAC/170-275VAC | ||||
| frequency | 45-65Hz | |||||
| Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | ||||
| frequency | 50/60Hz±1%( Inverter mode) | |||||
| Output wave | Pure Sine Wave | |||||
| Change time | < 10ms(Typical load) | |||||
| frequency | >85%(80% Resistive load) | |||||
| overcharge | 110-120%/30S;>160%/300ms; | |||||
| Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | |||||
| Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V ~150VDC | ||||
| PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | ||||
| Rated charge current | 30A(Max) | 60A(Max) | ||||
| MPPT efficiency | ≥99% | |||||
| Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||
| Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||
| Operating ambient temperature | -15-+50℃ | |||||
| Storage ambient temperature | -20 - +50℃ | |||||
| Operating / storage environment | 0-90% No Condensation | |||||
| Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | ||||
| Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | ||||
| Gross Weight (KG) | 12 | 19 | 25 | 35 | ||
| 20 | 30 | 38 | ||||
Connection Diagram:
Product guidance
A.Just connect the solar panel interface to the input end of the machine, and then adjust the button. The machine will be charged automatically.
B.This kind of system can only use TV, fans, computers, lights and other small power appliances.
C.The configuration of this system is provided by our company. ,We can change the configuration of the battery and solar panels according to the customer's needs.
D.When the machine has overload, short circuit, low pressure, high pressure, high temperature and so on, the machine will make noise and stop working automatically. Protection machine will not be damaged
E. Charging mode: 1.Solar 2.City power
Safe Packing
Global Project
Certifications
FAQ
Q1: Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 5-7 days, mass production,Depend on the quantity
Q3: Are you a factory or a trading company?
A: We are the factory with high production capacity and product range of solar products in China. Welcome to visit us anytime.
Q4: How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL, UPS, FedEx ,TNT etc. It usually takes 7-10 days to arrive. Airline and sea shipping also optional .
Q5: What is your Warranty Policy?
A: We offer 3 to 5 years warranty for the entire system and replace with new ones for free in case of quality problems.
