Product Overview

Description


Products Description

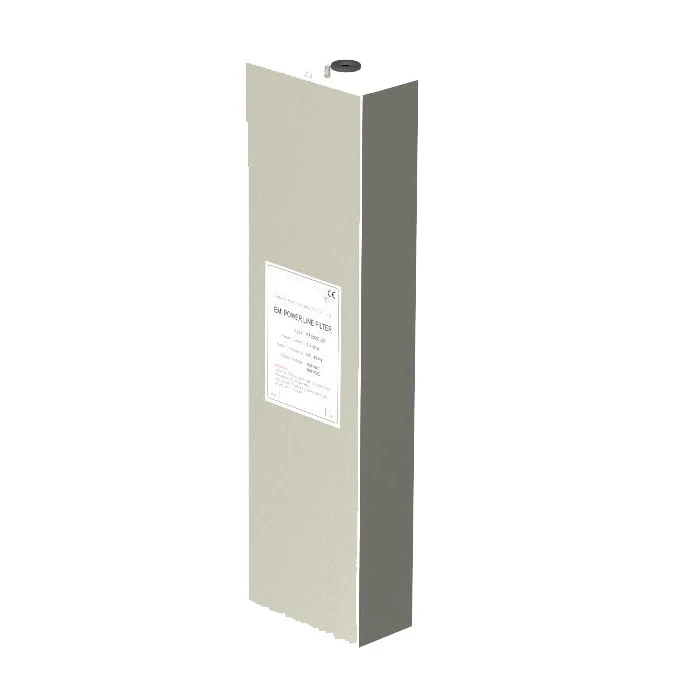

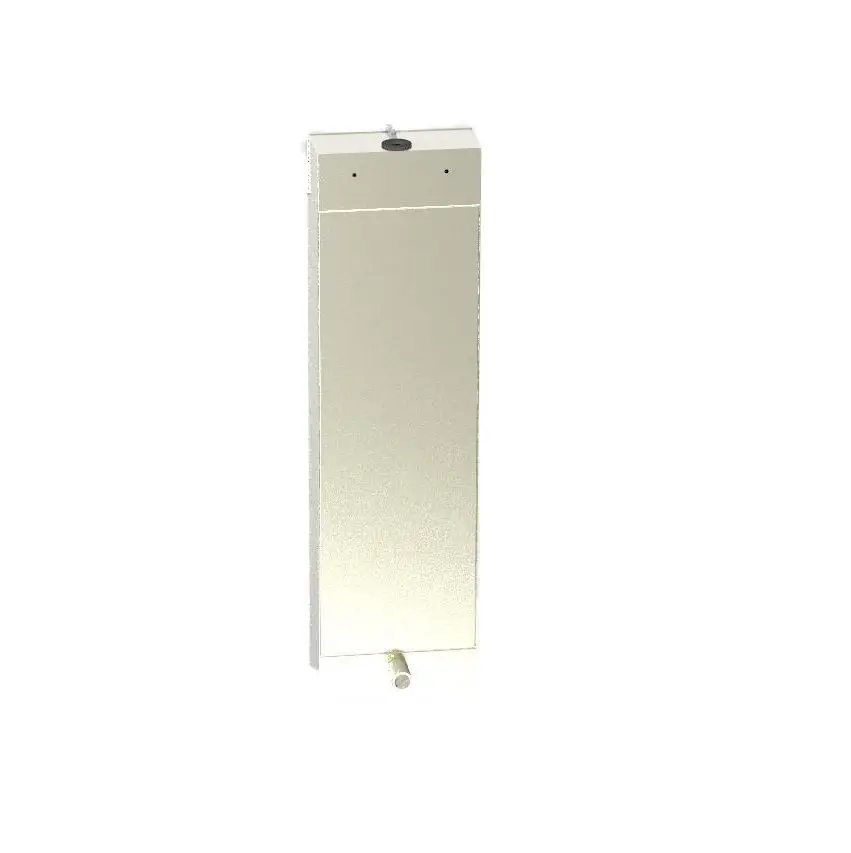

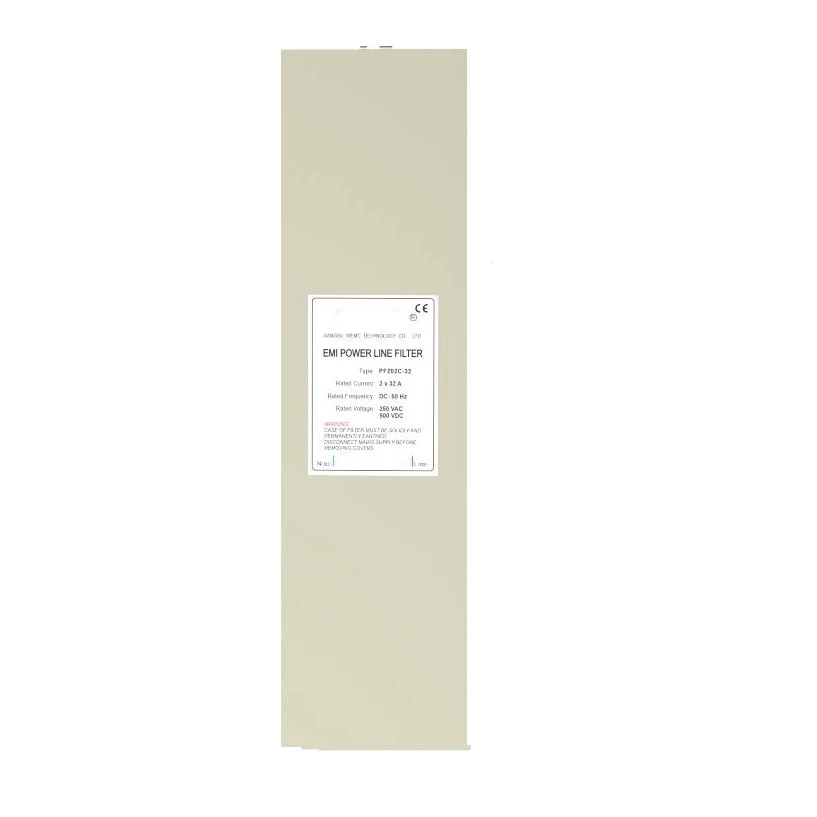

PF402C series Power Line Filter
The PF402c series power filter is a special support for antenna darkroom, shielded room, cabinet and electronic shelter, which can effectively suppress radiated interference.


PF402C-16

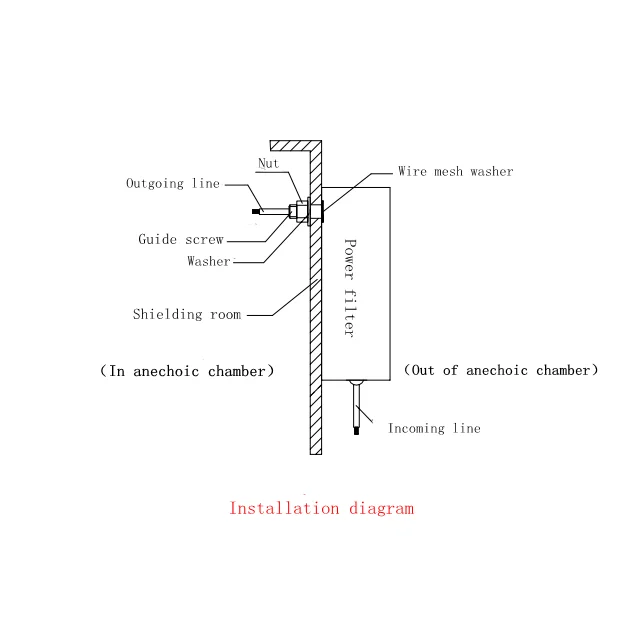

installation instructions: M33 conduit screw

Outline drawing: 4

IR (A): 4×16

I Leakage (A)*: 0.7

Terminal connection:
In:M6 Screw
Out: Line legs

Insertion loss(dB): 100dB, 14k-40GHz

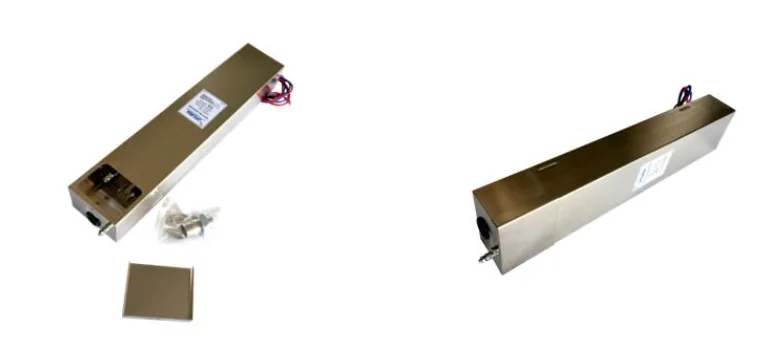

Product Details
PF402C-16

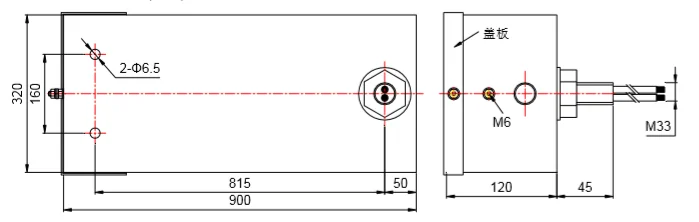

SIZE : As you can see on the picture, unit: mm

Outline drawing: 4
IR (A): 4×16
I Leakage (A)*: 0.7

Terminal connection:
In:M6 Screw
Out: Line legs

Insertion loss(dB): 100dB, 14k-40GHz

installation instructions: M33 conduit screw

PF402C-32

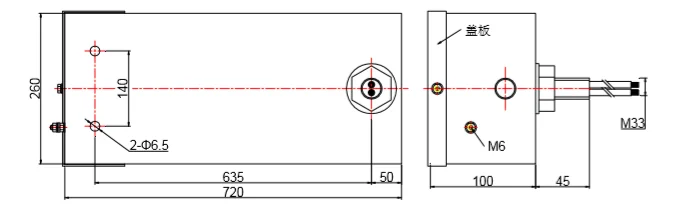

SIZE : As you can see on the picture, unit: mm

installation instructions:M33 conduit screw

Outline drawing:4
IR (A): 4×32
I Leakage (A)*: 0.9

Terminal connection:
In:M6 Screw
Out: Line legs

Insertion loss(dB): 100dB, 14k-40GHz
PF402C-63
SIZE : As you can see on the picture, unit: mm

installation instructions:M33 conduit screw

Outline drawing:4

IR (A): 4×63

I Leakage (A)*: 0.9

Terminal connection:

In:M6 Screw
Out: Line legs

Insertion loss(dB): 100dB, 14k-40GHz
PF402C-100

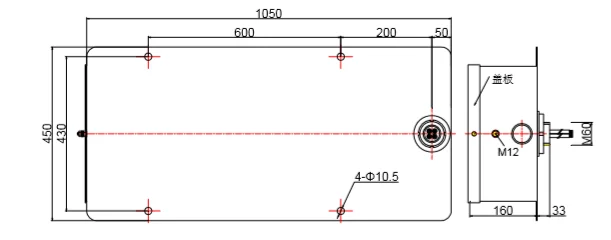

SIZE : As you can see on the picture, unit: mm

installation instructions:M60 conduit screw

Outline drawing:7

IR (A): 4×100
I Leakage (A)*: 1.7

Terminal connection:
In:M12 Screw
Out: Line legs

Insertion loss(dB): 100dB, 14k-40GHz

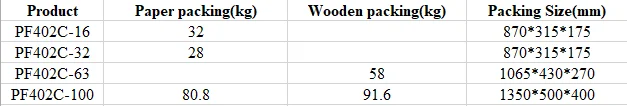

Product packaging
Certifications
Company Profile
Nanjing MJK Electronic Engineering Co.
Nanjing MJK Electronic Engineering Co., Ltd. is a high-tech enterprise specialized in engineering design, development and production of absorbing materials, microwave anechoic chamber and antenna measurement system. Relying on the technology resources of CLP Group, it is formed by a team of well-known experts and scholars in this field in China
