Напольная стойка из нержавеющей стали, машина для производства мороженого с тремя вкусами, распродажа

Share on:


Price:465,00 $ - 510,00 $
Price in USD:Details

Quantity:


Product Overview

Description

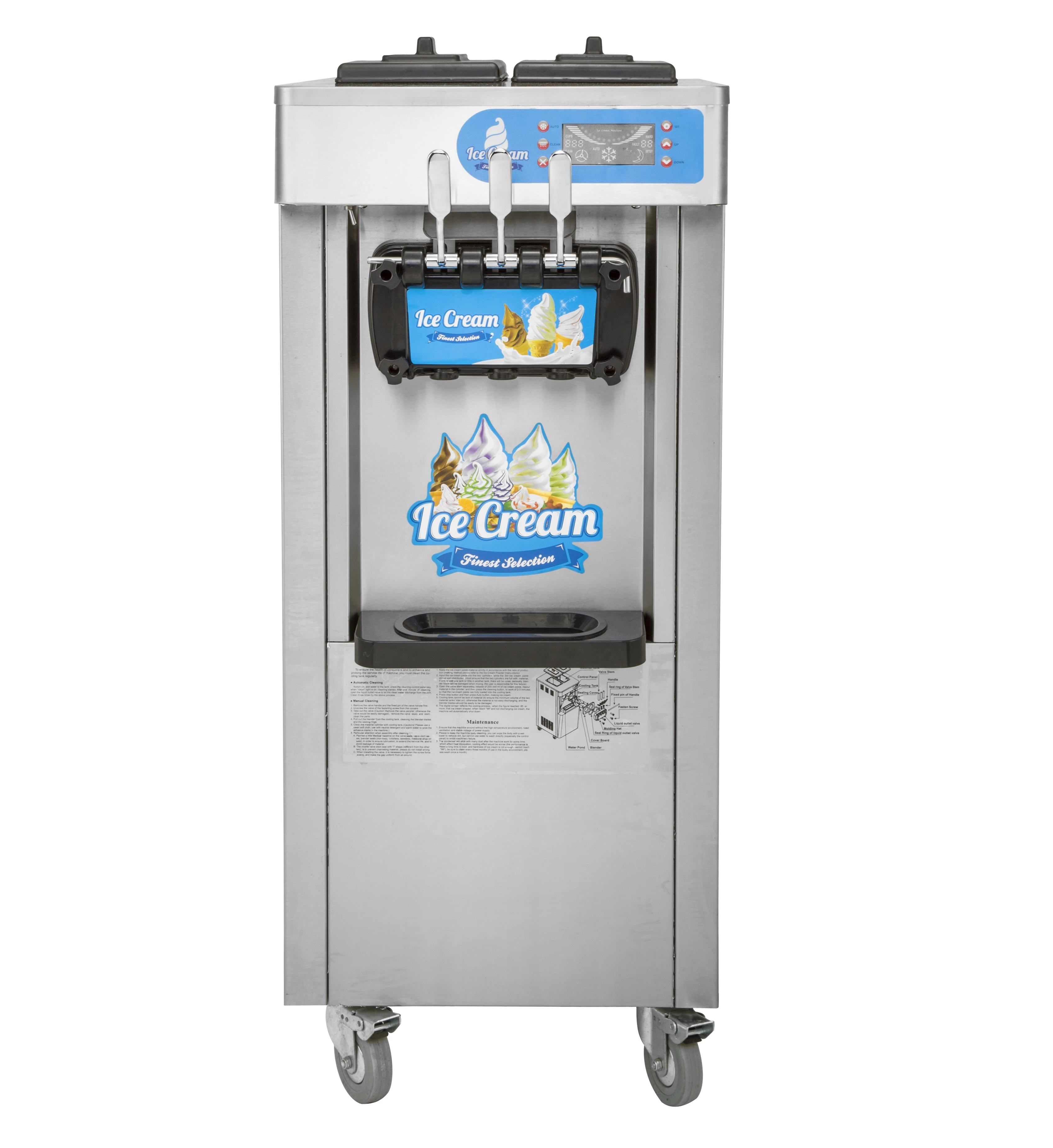

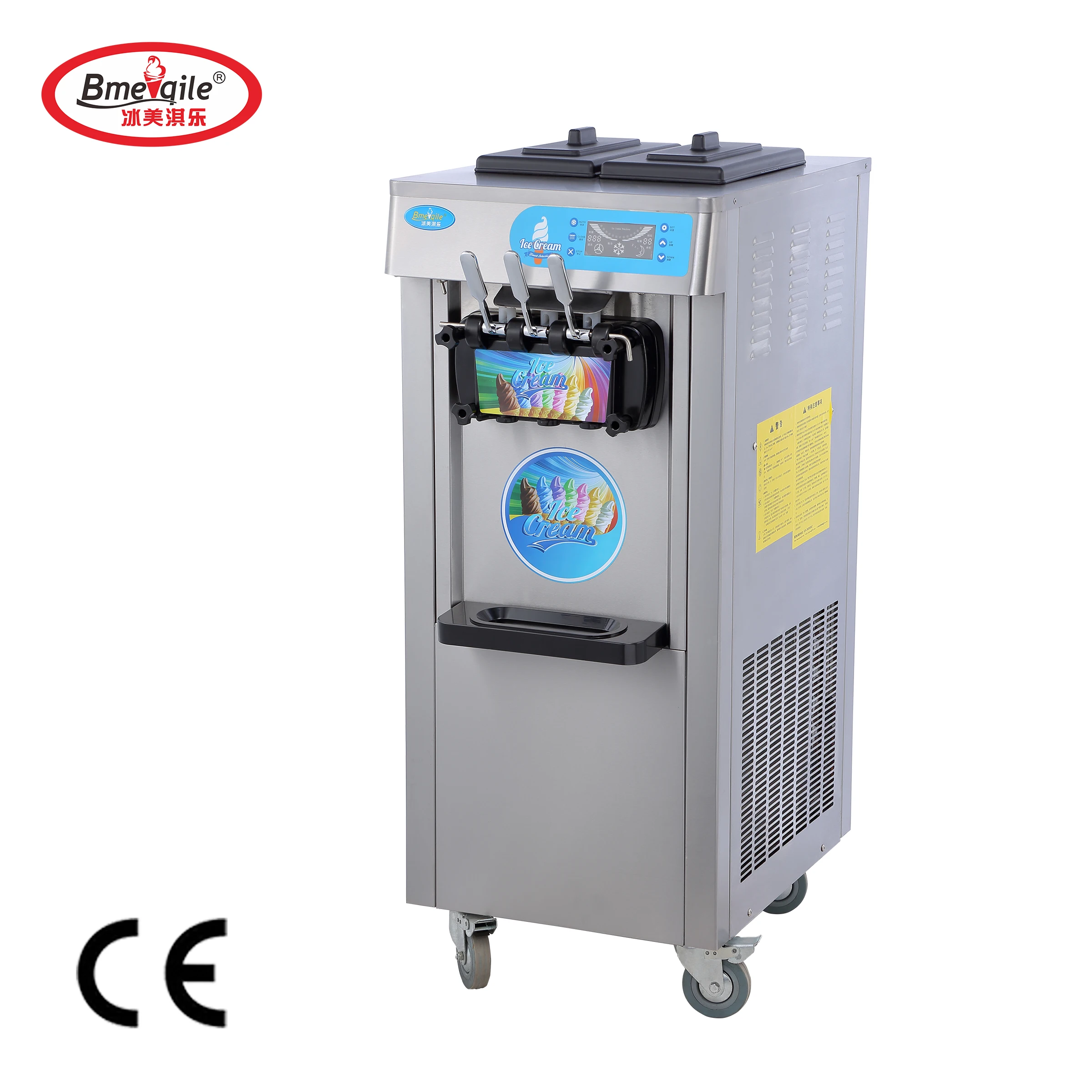

Floor stand Stainless Steel Three Flavor ice cream making machines for sales

Product Description

Super slient. Good performance.
220v/50Hz and 380V/50-60Hz available.

About Functions:
Self cleaning system
Low power consumption

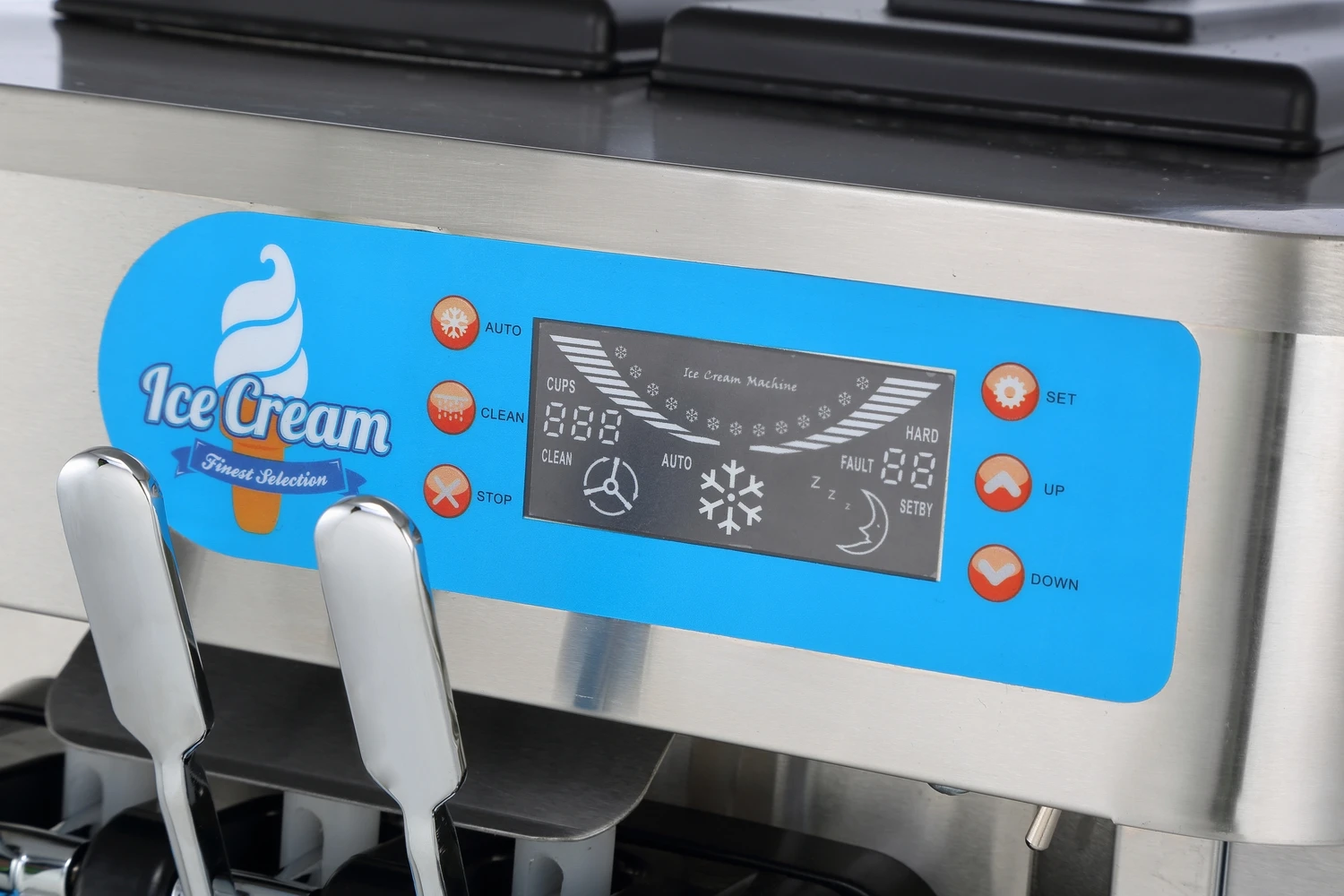

Cone count and temperature display function

There is a shock absorber in it so low noise make
Ten shift for hardness and softness alteration
Numerical speed control, formation ratio indicating display
Problems alerting system:belt skid alert, refrigeration trouble alert, switch trouble alert.

alternatives:air pump,precooling system and rainbow system.



Ice cream Show

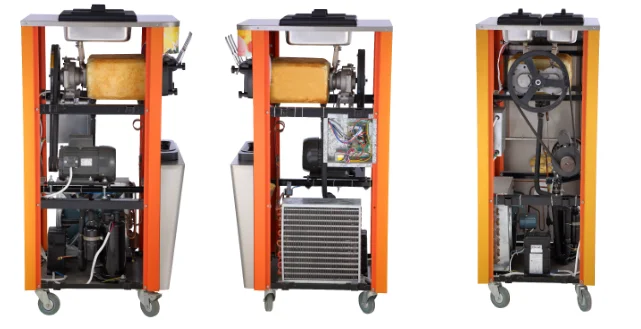

Inside design


About Components:



Low magnetism and thick frame.
Using mitsubishi low-temp compressor, top digital controlling board, edible standard silica gel seals and high-efficiency stainless steel evaporator and professional CPU chips set.
High force blender moter

1. speed sensor

_V0B5403



2.PCB main board.

  _V0B5401~1



3. Handle



4. Transmission Motor

_V0B5418~1



5. Compressor



_V0B5413



 6. Material Tanks (6 L S/S deep tank)



00000279



Specification:


Model :MQ-L20BN
Power supply:220V/50Hz
Capacity(L/h):20-25
Hopper Volume:4L×2
Power(w): 1850
Compressor(HP) 1
Refrigerant :R22 /R404a
N.W.(kg):115
Dimension(mm):500×670×1280
Packing size(mm):560×750×1300
Loading capacity(20'/40'):30pcs/126pcs


Showroom






.jpg



Production Line



.JPG

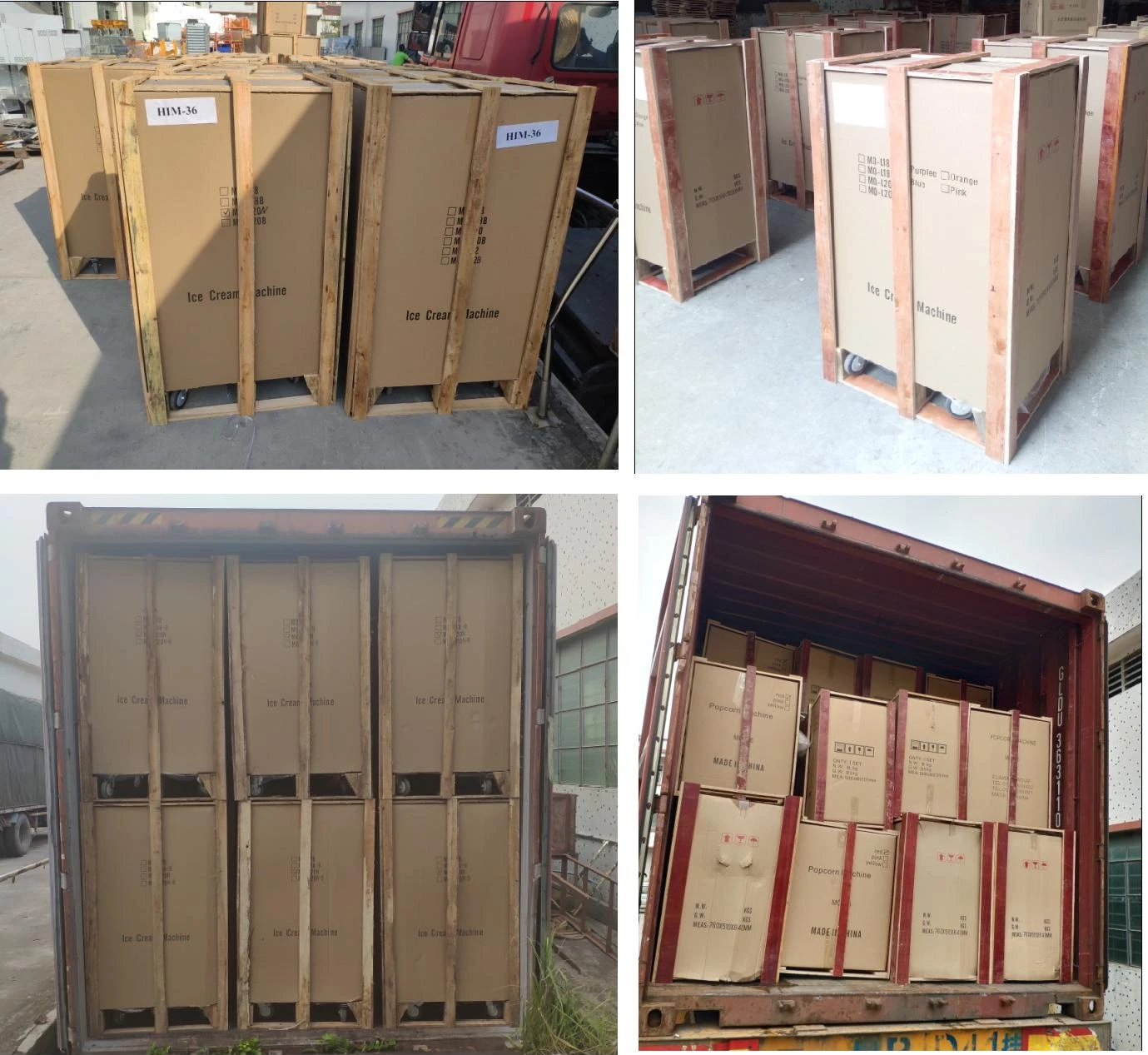

Package and contain loading



.JPG
