6 Axis Industrial MIG Welding Robot For Scaffolding tube
- Category: >>>
- Supplier: Wuxi Jihoyen Industrial Automation Co. Ltd.
Share on (62585484105):
Product Overview
Description
6 AXIS SCAFFOLDING TUBE WELDING ROBOT

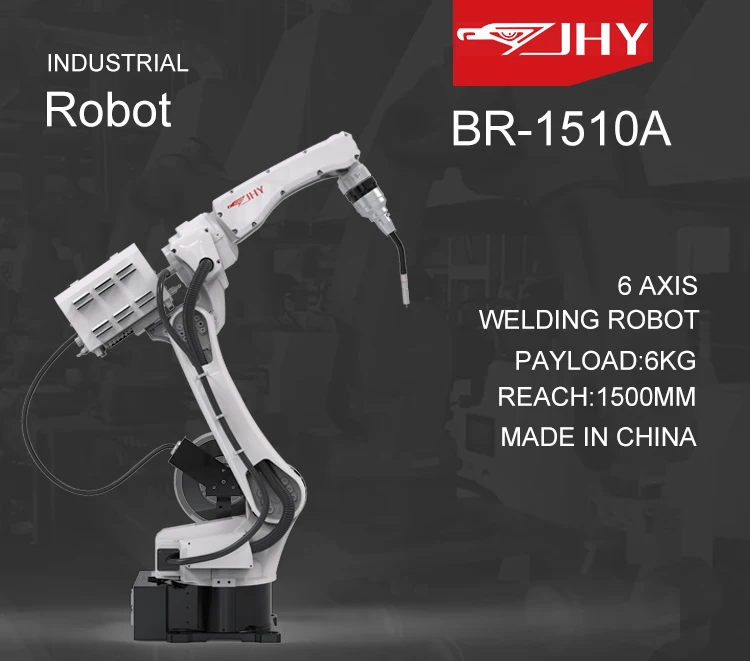

*6 AXIS MIG Welding Robot--BR-1510A, Payload 6 kg, Reach 1450mm, hollow wrist.
*Control system, easy operation, rich welding process package in, control 14 axis at most
* Welding Torch,air-cooled With Anti-Collision sensor
*Welding Power Source--Ehave CM350 X 1, 350 A (Include Wire Feeder, Cables)
*Positioner--JHY4030A-180 X 2, 1 Axis, Payload 300 kg, Framework 1800 X 800 mm.
*Welding Power Source--Ehave CM350 X 1, 350 A (Include Wire Feeder, Cables)
*Positioner--JHY4030A-180 X 2, 1 Axis, Payload 300 kg, Framework 1800 X 800 mm.
Positioner is a basic 1-axis positioner whose payload is 300 kg, 500 kg and 1000 kg. Standard working table size is 1800*800 mm or 2500*800 mm. If you need bigger table,we can tailor made for you according to your workpiece or your requirements
Model | BR-1510 | Motion Range | J1 | ±170° | Motion Speed | J1 | 133.9° /s | ||||
Axis | 6 | J2 | ±155° ~-42° | J2 | 124° /s | ||||||
Reach | 1500mm | J3 | ±80° | J3 | 173.6° /s | ||||||
Max Payload | 6KG | J4 | ±150° | J4 | 228° /s | ||||||
Repeatability | ± 0.08mm | J5 | ±105° ~-130° | J5 | 223.5° /s | ||||||
Power Capacity | 2KVA | J6 | ±220° | J6 | 737° /s | ||||||
Protection Class | IP65 | Installation Method | Ground | ||||||||
Robot Weight | 172KG | Use Environment | 0-45°C,20-80%RH(No condensation) | ||||||||
Function | Welding | Input Voltage | Single-phase 220V±10% 50/60Hz | ||||||||
One set robot workstation configuration | ||
Robot body | 1 set | |
Welding power source | 1 set | |
Welding torch | 1 pc | |
Control cabinet | 1 set | |

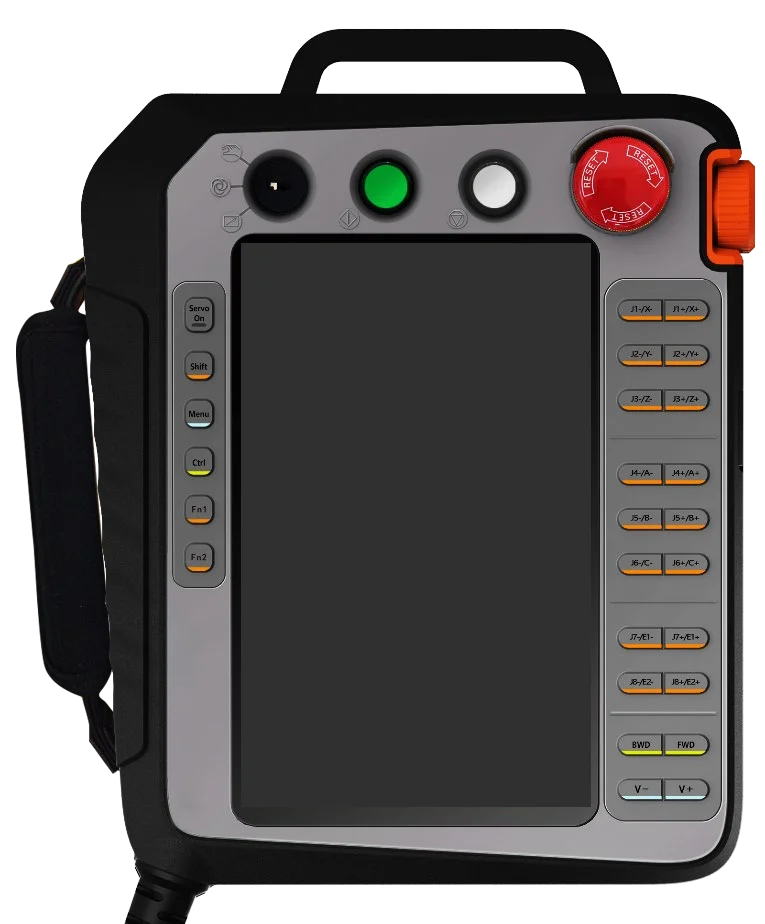

Teach pendant | 1 pc | |
Remote control box | 2 pcs | |
Welding positioner(optional) | 1-2 set | |
Torch clean device(optional) | 1 set | |

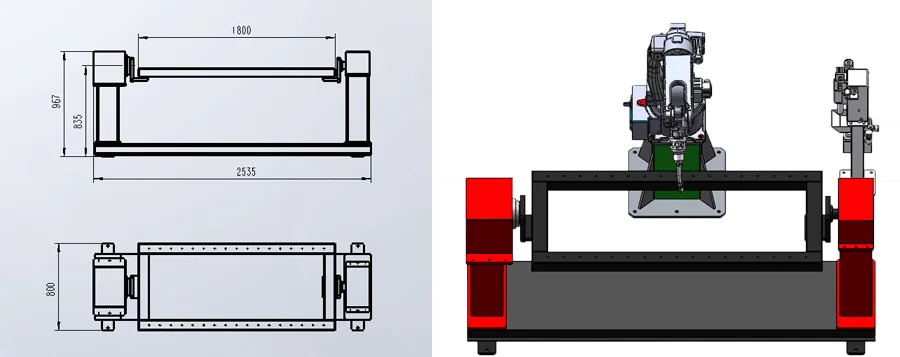

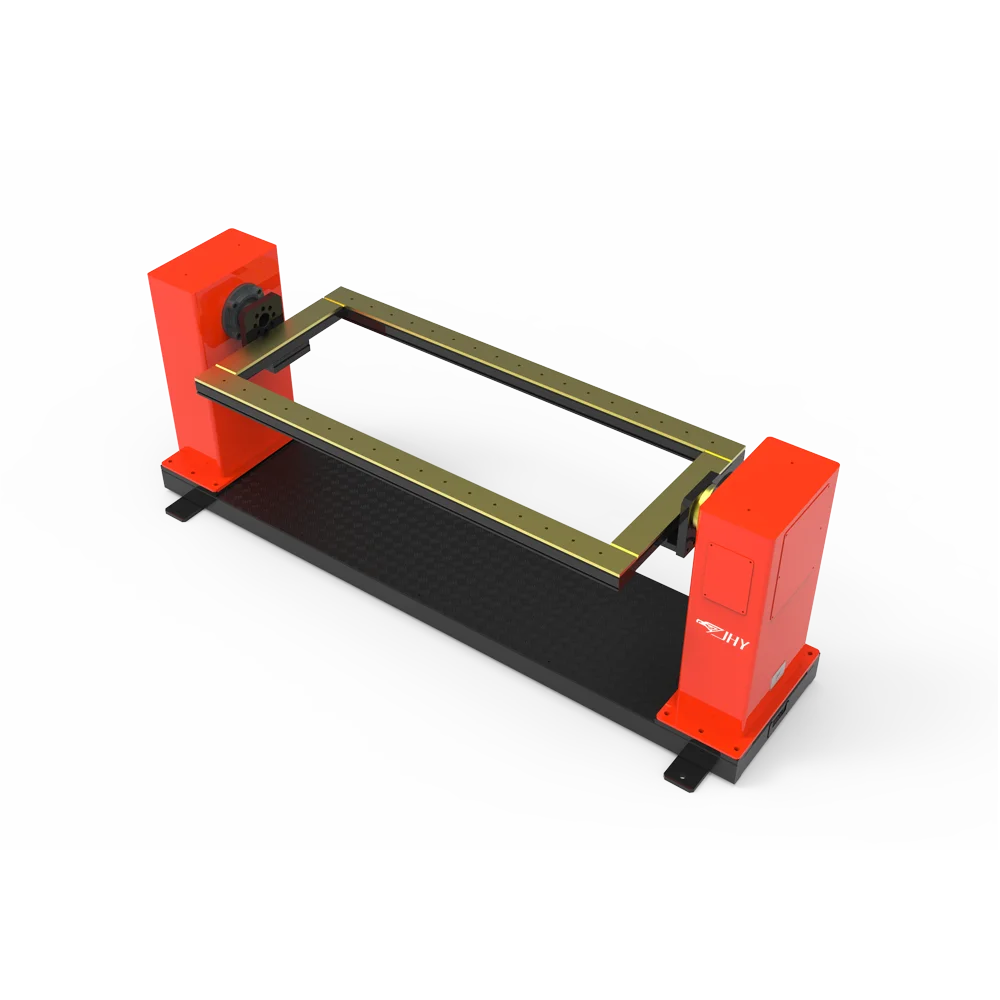

1-Axis Rotating welding robot positioner
Model | JHY4030A-180 |
Type | One Axis Rotate Type |
Axis | 1 Axis |
Payload | 300kg(500kg and 1000kg are available) |
Frame | 1800X800mm(2500*800mm size is available) |
FAQ
Q: How many people should I employ for a welding station?
Answer: One worker can be responsible for at least two welding tables. Skilled workers can afford four welding tables.
Q: Do I also need to buy a positioner to match with the welding robot?
Answer: That depends on the complexity of your workpieces. If your workpiece is complex, then you need to buy a positioner to match with the welding robot.
Q: What information should I provide so you can recommend a suitable robot for me?
Answer: Please provide the detailed drawings of the product, including the material, thickness, welding position, dimensions of product, etc.
Q: Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.
Q: What's the warranty period and delivery time?
Answer: Warranty period is 12 months. And the delivery time is within 30 days after receiving your deposit.
Q: Can you send engineer to our country for setting up the machine?
Answer: Yes. We will send engineer to your country to help installation and commissioning, and training. Any problems, we can also provide online service.
Q: I want to know the welding quality for our product, what should I do?
Answer: You can send your samples to our factory to do test welding. After testing welding, we will send the welding video and pictures to you for reference. Also we will send the samples back to you for verification.
Answer: One worker can be responsible for at least two welding tables. Skilled workers can afford four welding tables.
Q: Do I also need to buy a positioner to match with the welding robot?
Answer: That depends on the complexity of your workpieces. If your workpiece is complex, then you need to buy a positioner to match with the welding robot.
Q: What information should I provide so you can recommend a suitable robot for me?
Answer: Please provide the detailed drawings of the product, including the material, thickness, welding position, dimensions of product, etc.
Q: Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.
Q: What's the warranty period and delivery time?
Answer: Warranty period is 12 months. And the delivery time is within 30 days after receiving your deposit.
Q: Can you send engineer to our country for setting up the machine?
Answer: Yes. We will send engineer to your country to help installation and commissioning, and training. Any problems, we can also provide online service.
Q: I want to know the welding quality for our product, what should I do?
Answer: You can send your samples to our factory to do test welding. After testing welding, we will send the welding video and pictures to you for reference. Also we will send the samples back to you for verification.
