1.Adopt special electronic controlling circuit for heating;high efficiency in simultaneous controlling one lamp or more; lower power consumption. 2.Adopt the theory of heat transfer and feedback while design the shape and thikness of preform. 3.The preform will be heated evenly, not be influenced by outside environment. 4.Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles. 5.The air exhaust system designed by CAD can guarantee the deviation of heating furance tempreature ±1 degree. 6.Air circuit system consists of movement and blowing so as to meet the needs of different air pressure ,also to provide stable high pressure for blowing different shapes of big capacity bottles. 7.The system is equipped with silencer, connecting rod and articulated refueling devices. 8.Two modes of operation:semi-automatic mode and automatic mode. 9.Small size,low investment,one person enough to operate,simple and safe.
Specification

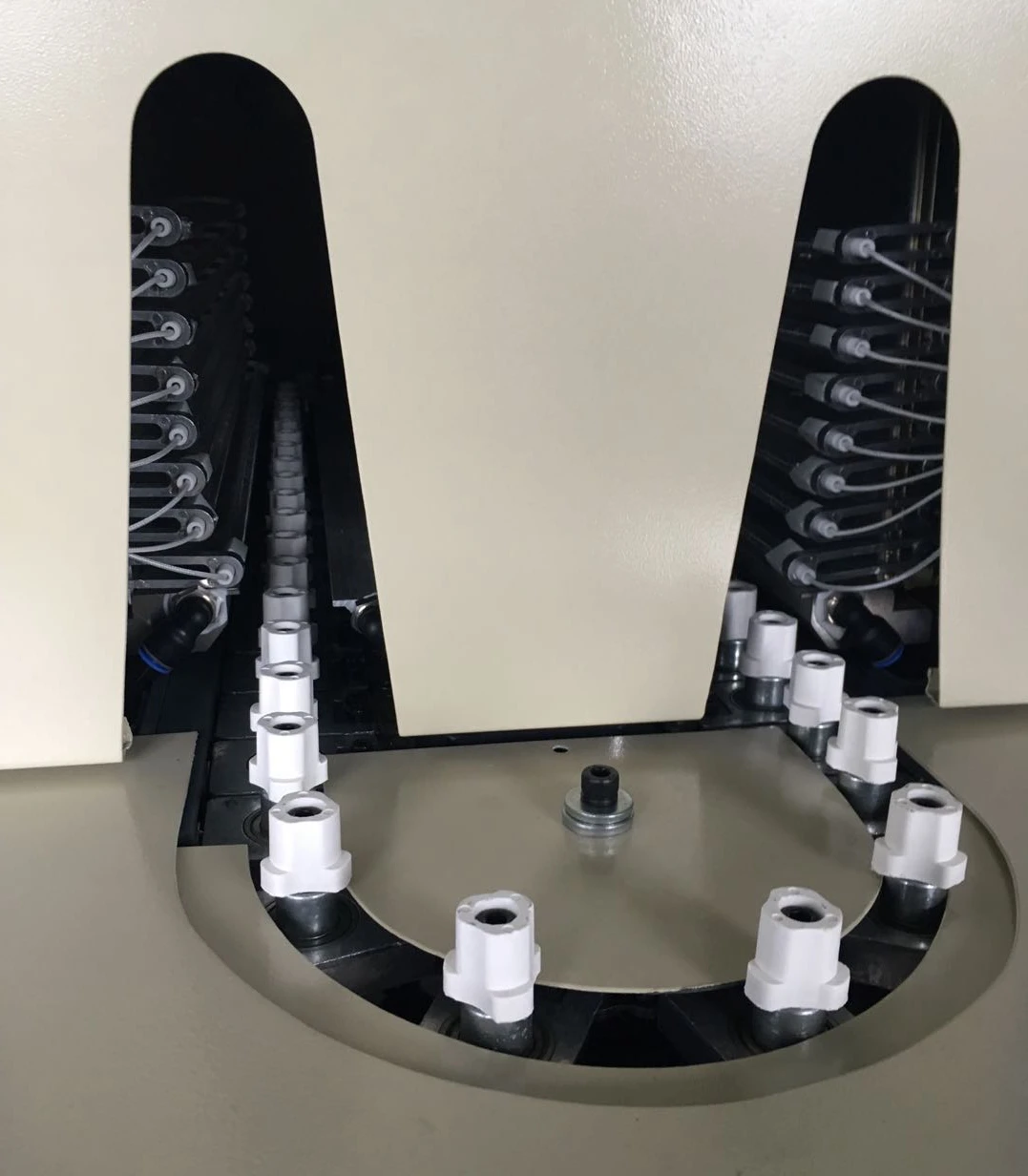

ITEM
单位
OGS-2
理论产量
Theoretical output

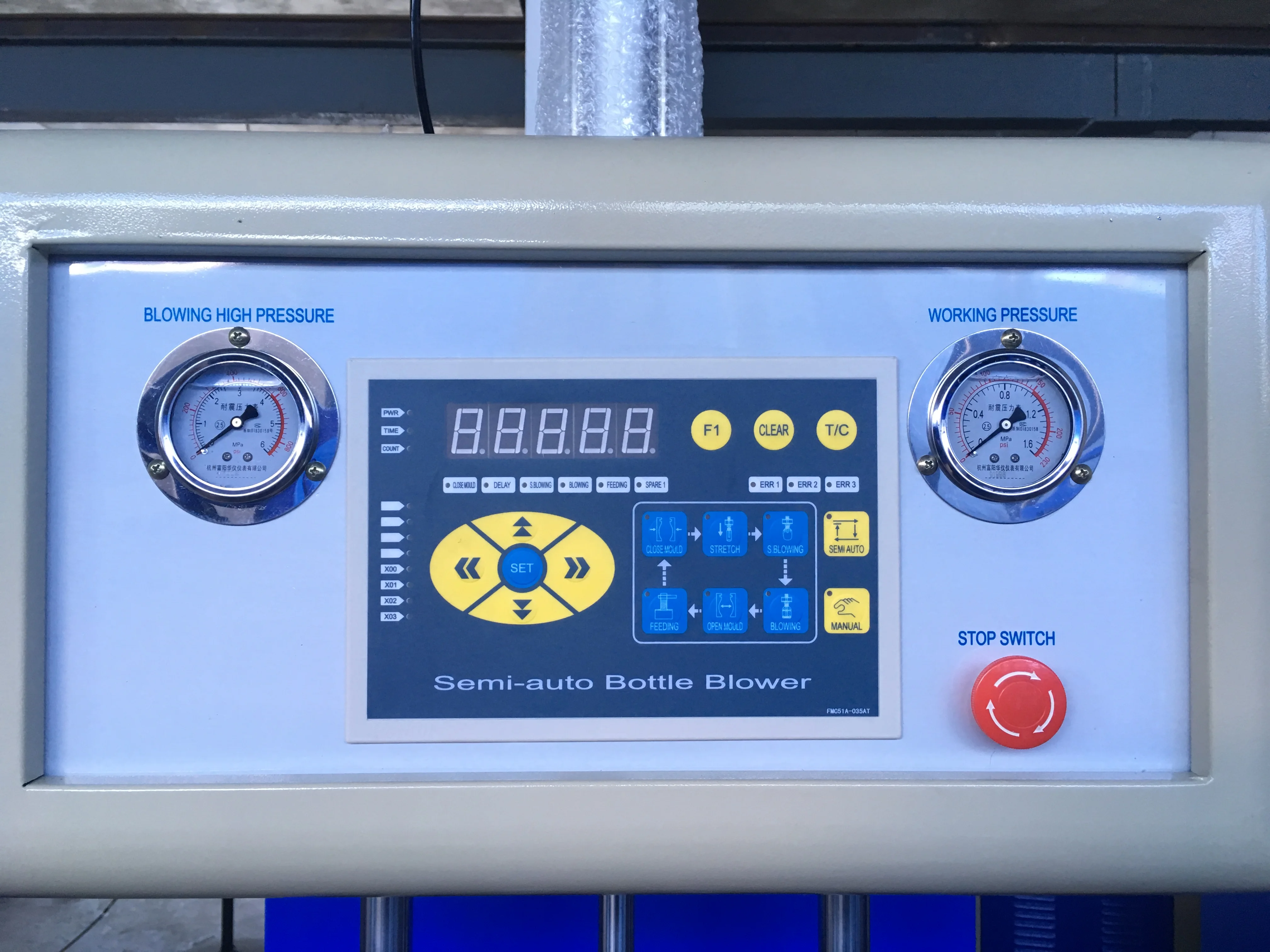

Pcs/h
900
瓶型规格
PRODUCT
最大容积
Max. Volume
L
3
最大高度
Max. height
mm
360
最大直径
Max. diameter
mm
105
成型组规格
MOULD
模穴数
Number of cavities
/
2
模板尺寸
Mould plate dimension(LxH)
mm
490×405
模厚
Mould thickness
mm
220
开模行程
Mould opening stroke
mm
180
电力规格
ELECTRICAL
电源
Power
220-380V
50-60Hz
总功率
Total power
KW
11
加热功率
Heating power
KW
10
机器规格
MACHINE
吹瓶机主机尺寸
Main body dimension(LxWxH)
M
1.5×0.65×2.0
吹瓶机主机重量
Main body weight
KG
550
加热烘箱尺寸
Pre-heater dimension
M
1.4×0.6×1.4
加热烘箱重量
Pre-heater weight
KG
300
Company Profie
OUGE offers total solutions of PET bottles for you
OUGE company is located in the East China Sea coast, the famous “land of plastic mold”----
Huangyan zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. The main products include: all kinds of carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles ,etc. OUGE consists of many professional engineers with rich experience in the PET industry and high-quality staff. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
Exhibition
The 125th Canton Fair
2019 Chinaplas
2019 SWOP Show
Certifications
Packing & Delivery
Packaging √Package type: wooden case &plastic packaging Shipping √Shipping:By sea Payment term √30% by T/T as deposit, the balance should be paid by T/T before shipment. Delivery time √30-45days after customer send the deposit and confirm the bottle drawing. Guarantee time √12 months after machine running in buyer’s factory.
FAQ
Q1. What's your company's main products? A: Our company is specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds.
Q2. Is it all right to make customer's own brand name? A: OEM is ok.
Q3.What is the language of the PLC and touch panel? A: Don’t worry, we will translate the language in English,Spanish or any other language to make sure you will have an easy operation.
