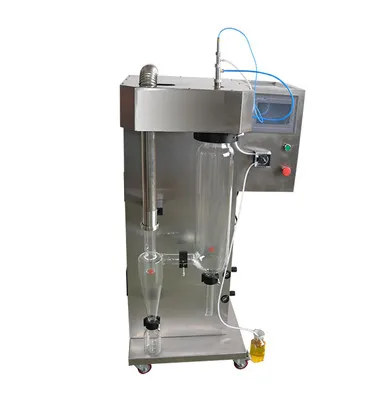

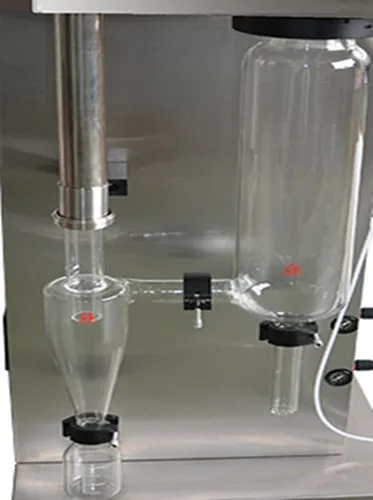

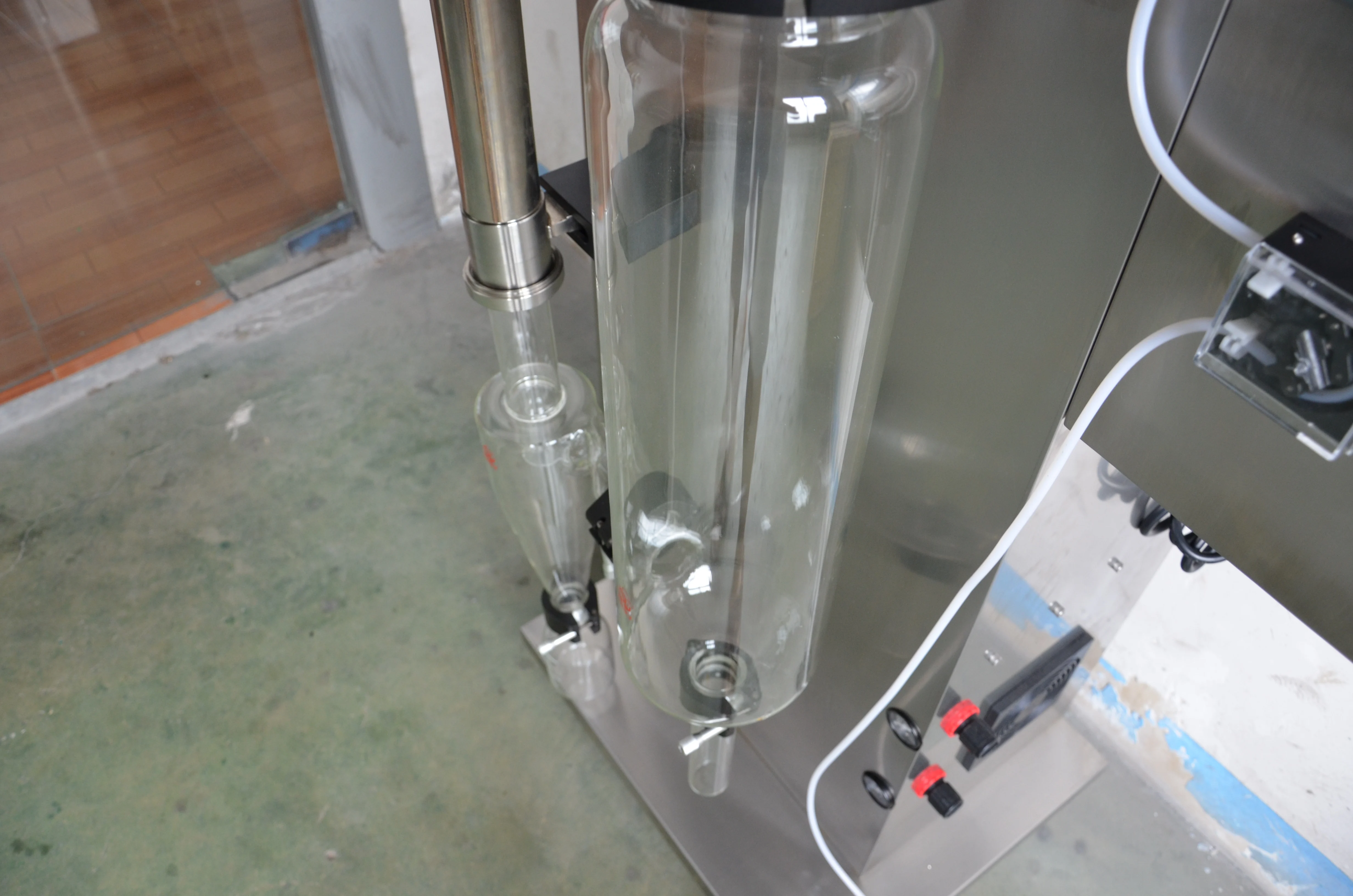

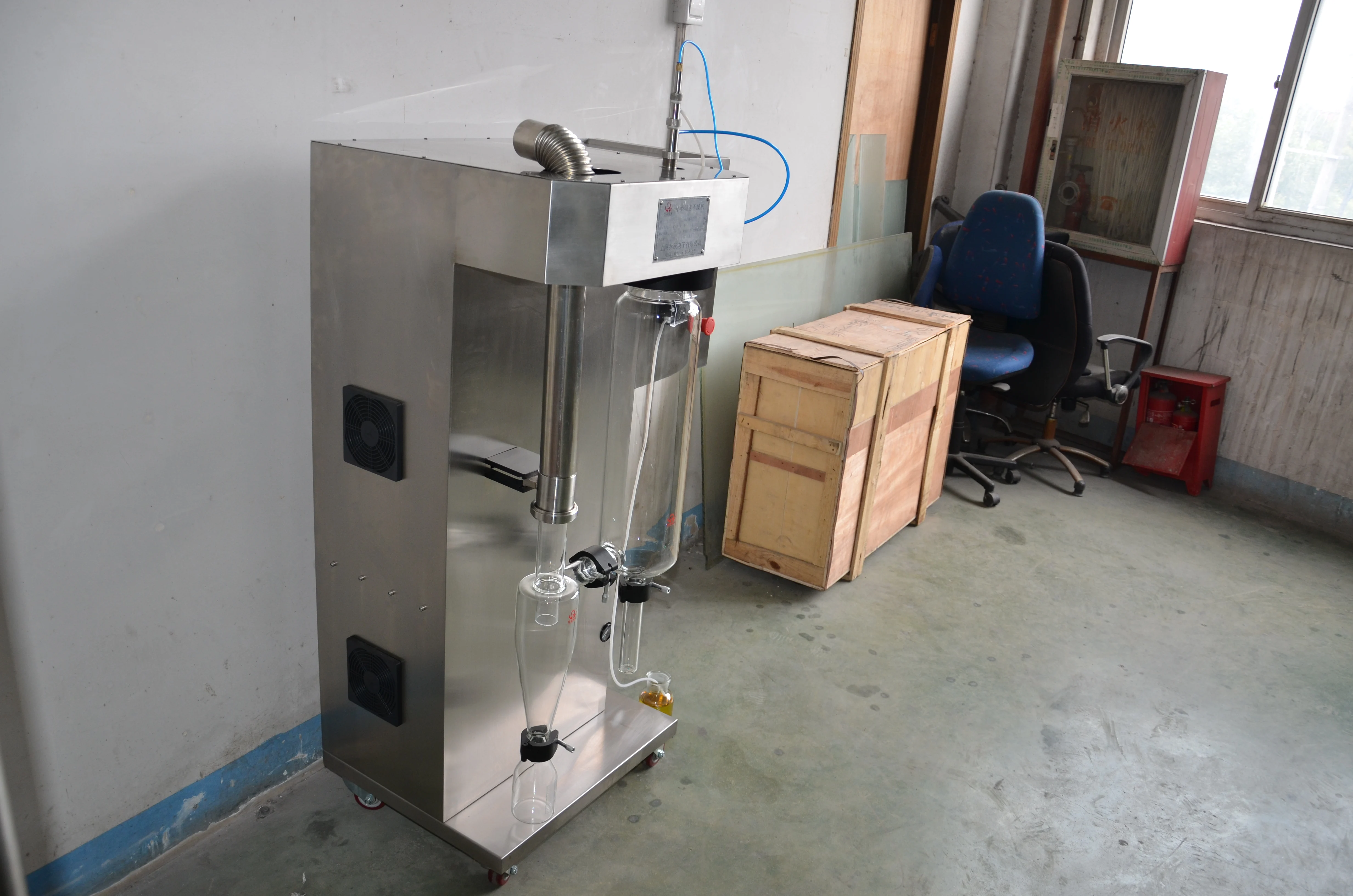

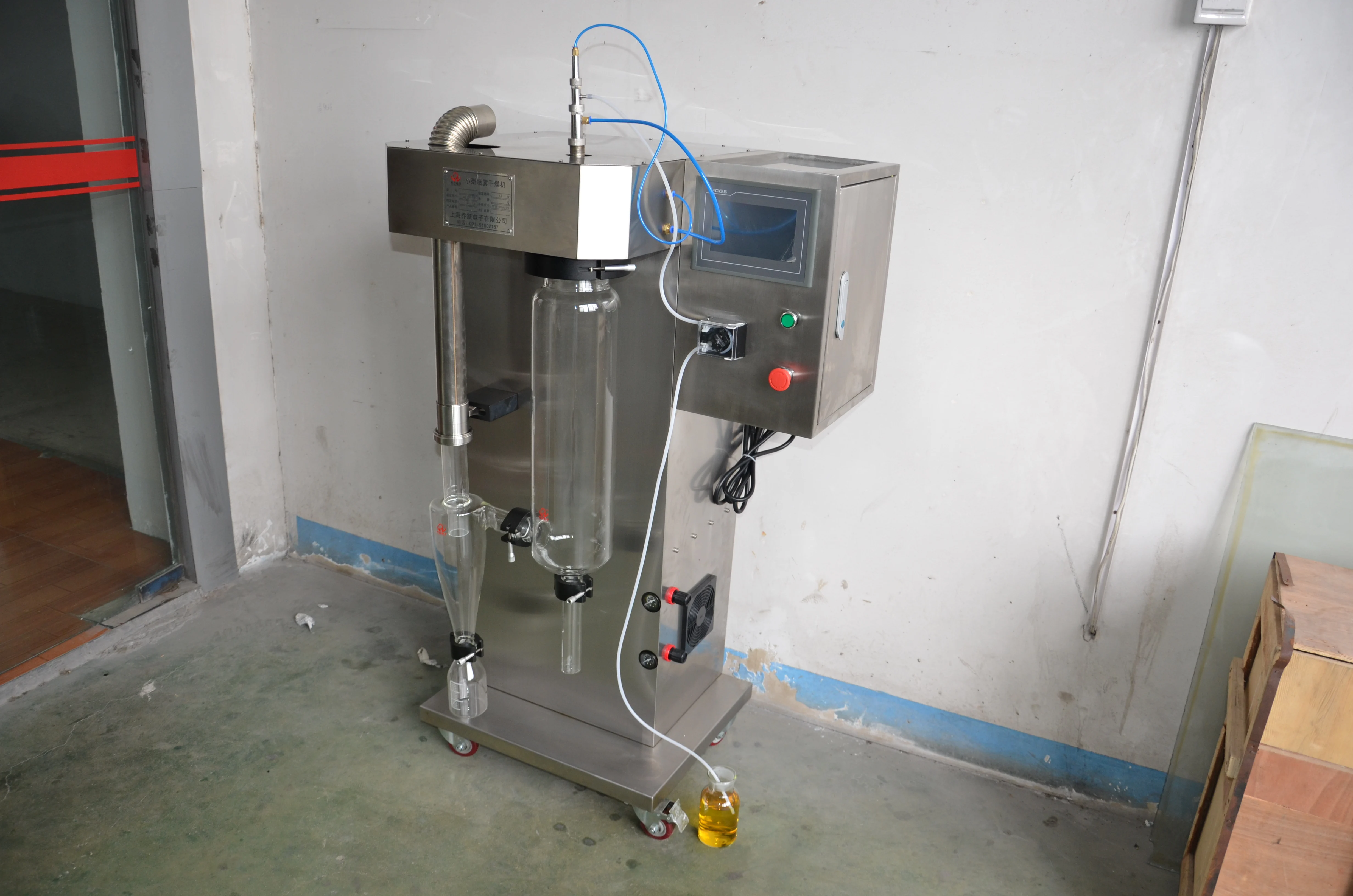

High Quality Mini Laboratory Spray Dryer Factory Best Price Spray Drying Machine is specially developed for thermal sensitive materials. The whole machine is compact and self-contained, and can run without any other facilities. One button start-up, large LCD touch-screen operation, can adopt two operation modes of full automatic or manual monitoring, which is convenient for operation and monitoring of experimental process, especially realizing instant drying of materials under low temperature conditions (30℃), providing extremely convenient and safe drying methods for heat sensitive materials, such as biological products such as enzyme preparation, active bacteria, and extracts of natural products of traditional Chinese medicine with high sugar content , high polymer materials that are not heat-resistant, materials that are vaporized in case of heat, etc.

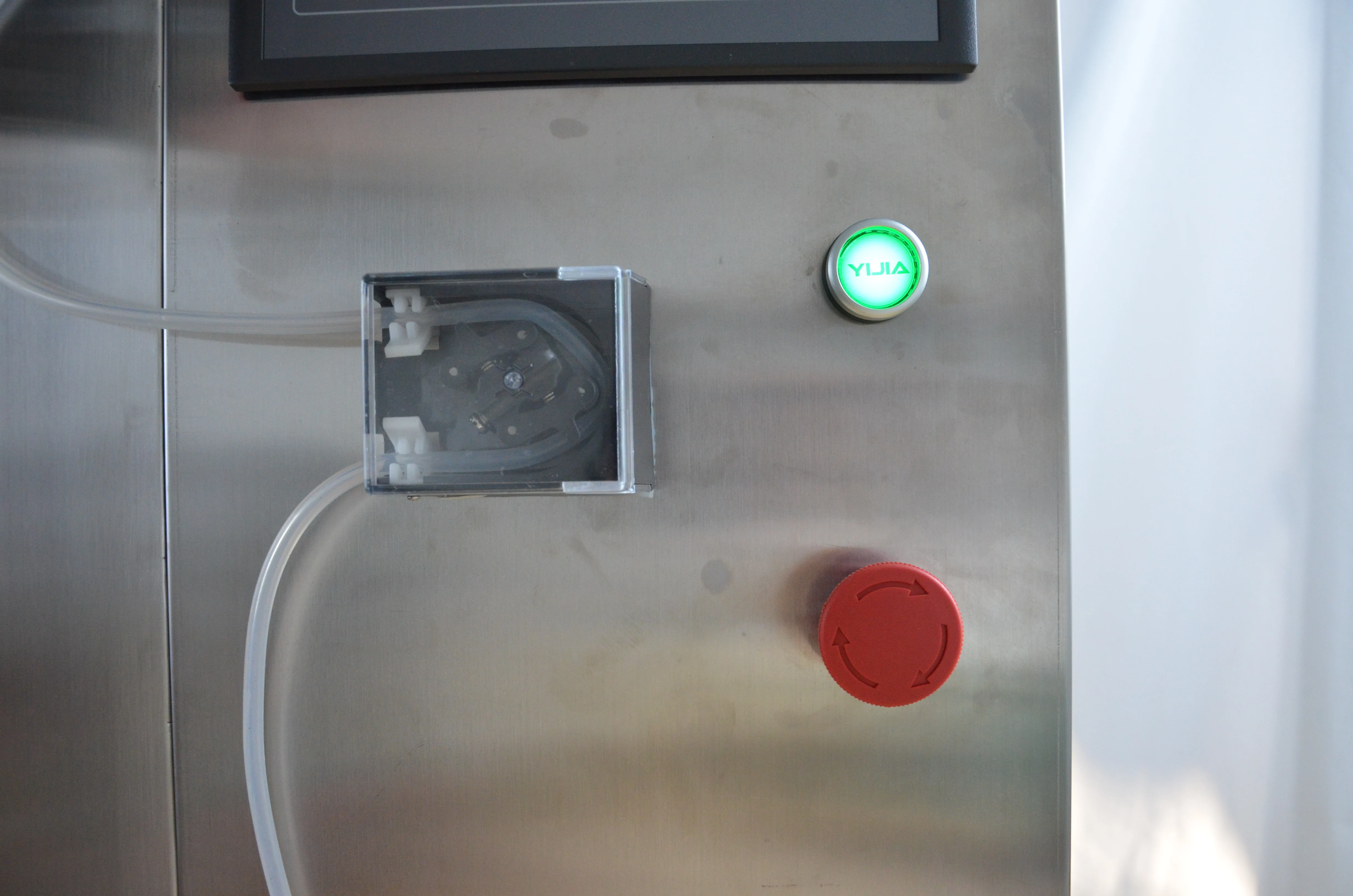

The small-sized spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. Both use a clear touch screen display , the operator can control the following functions: Inlet Temperature Airflow Volume Air compressor flow Pump Speed De-blocker Frequency
Machine Application of Mini Spray Dryer:
1.The spray dryer is mainly for food, biology, beverage, chemical, medicine, etc for lab-use; widely used for all kinds of solutions such as emulsion and suspension liquids; and also suitable for drying heat-sensitive materials such as biological products, bio-pesticides, enzymes, etc. 2.Can be used to dry spices and pigments, polymer and resins, milk and egg products, plant and vegetable extracts, oxide, pharmaceutical synthesis, thermal plastic material, bone and tooth powder, aromatic agent, fragrances, blood products, biochemical products, dyes, soap and detergents, food adhesive,etc. 3.Applicable to these fields: colleges and universities, research institutes and micro-enterprise about laboratories development and production of micro-particles powder in food, biology, beverage, chemical, materials, pharmaceutical and other aspects.
Specification
Model
AY-PWGZ1000S
Power Supply
220v/50-60HZ
Power Rate
3.8KW/220V
Diameter of Nozzle
0.5/0.7/1.0/1.5/2.0mm (can be customized)
Water Evaporation Capacity
1500-2000ml/h
Drying Time
0.8～1.0S
Max Inlet Amount
2000ml/h
Min Inlet Amount
50ml
Inlet Temperature
30℃～300℃
Outlet Temperature
30℃～200℃
Vacuum degree
- 0.05~0.06Mpa
Weight
170kg
Size
1380*770*590mm
Technical Features

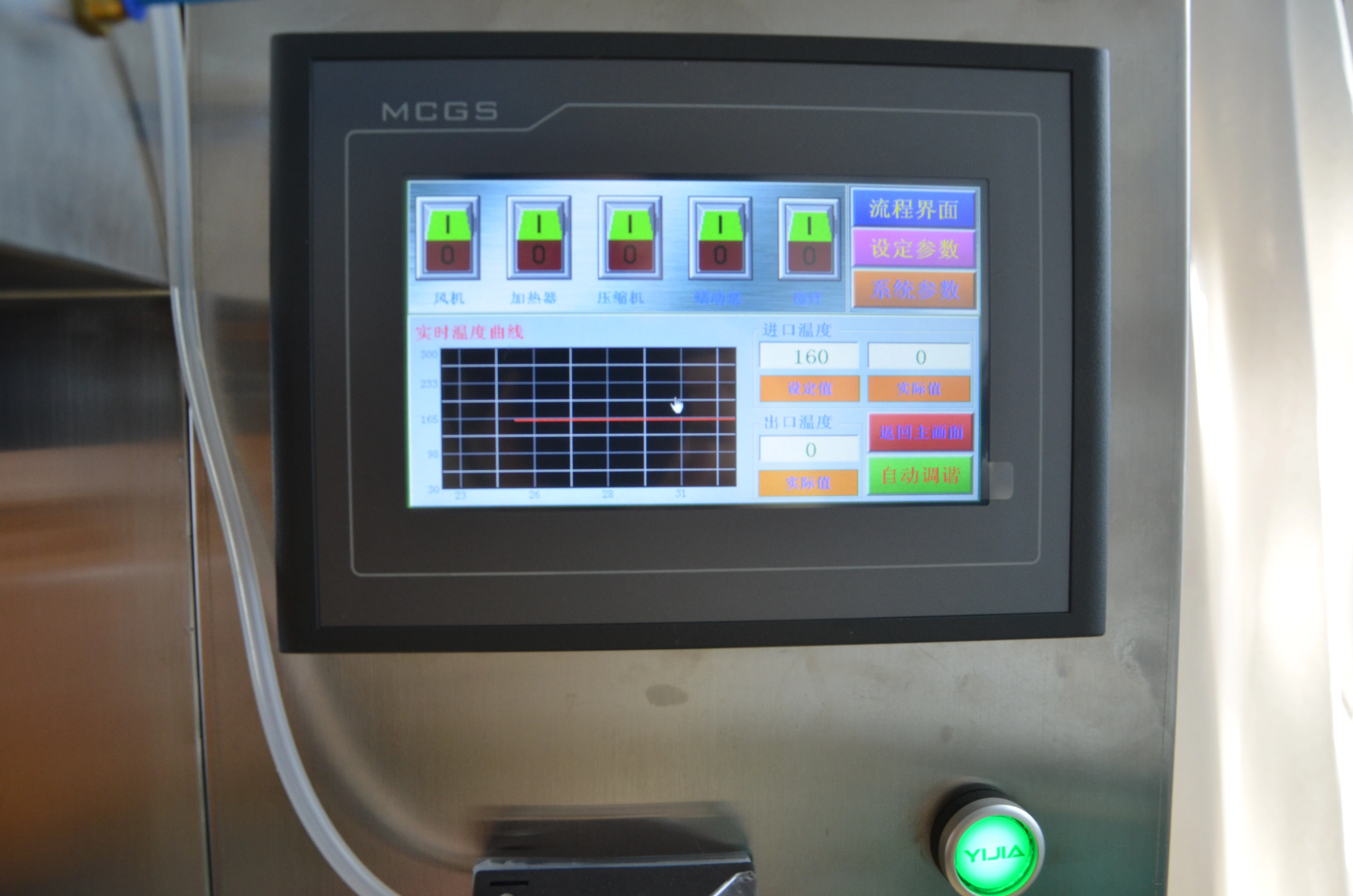

1. It adopts color large touch screen operation, full-automatic control and manual control, ten program temperature control, with memory function: 2. Full automatic control: one button start, set the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the touch screen displays animation, and the running process is clearly displayed. 3. Manual control: if it is necessary to adjust the process parameters during the experiment, it is convenient to switch to the manual state, and the whole experiment process is dynamically displayed on the color touch screen (animation). 4. Shutdown protection function: just press the stop button when shutting down, the machine will stop running immediately except for the fan, to ensure that the heating part of the equipment will not be burnt out due to misoperation (forced shutdown of the fan). 5. The machine has the function of misoperation protection. When the fan and heater switches are pressed in the wrong order, the machine will automatically remind to prevent the novice from damaging the machine by misoperation. 6. Built in imported oil-free air compressor, the particle diameter of powder spraying is normal distribution, the fluidity is very good, and the noise is very low, less than 60 dB, which meets the National Laboratory noise standard; 7. Atomization structure of two fluid atomizing machine. The machine is made of high quality stainless steel, with compact design, no need for accessory equipment, and convenient use. 8. In order to meet the user's requirements of adjusting various parameters in the experimental range, the real-time PID constant temperature control technology is adopted in the design of drying temperature control to make the temperature control in the whole temperature area accurate and the heating temperature control accuracy ± 1 ℃. 9. In order to keep the sample pure, the air inlet filter is equipped. 10. Time setting function: the user can set the working time of the machine by himself, without the need of manual watch. When the working time is over, the machine stops workingautomatically, no need to keep an eye on it, which greatly saves the valuable time for the customer to do experiments. 11. The whole machine is made of stainless steel and atomized by two fluid atomization. The spray, drying and collection system is made of transparent high-quality borosilicate heat-resistant glass material. 12. The feed volume can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml. Magnetic stirrer is anoptional 13. After drying, the particle size of the dried powder is relatively uniform, and more than 95% of the dried powder is in the same particle size range. 14. By adjusting the atomization state, it can achieve different drying and collection of different particle size powder. 15. Small spray dryer for viscous materials, with a spray cleaner (through the needle), when the nozzle is blocked, will automatically remove, the frequency of the needle can be adjusted automatically. 16. Innovative tower wall purging device, higher material recovery rate (optional). 17. Automatic cleaning function, greatly enhancing the recovery rate of dry samples (optional). 18. Automatic cleaning function of drying tower, no need for manual cleaning, greatly saving experimental time (optional).
Packing & Delivery
Packing and Shipping -The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases; -Both neutral and customized packaging can be available. -We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
Company Profie

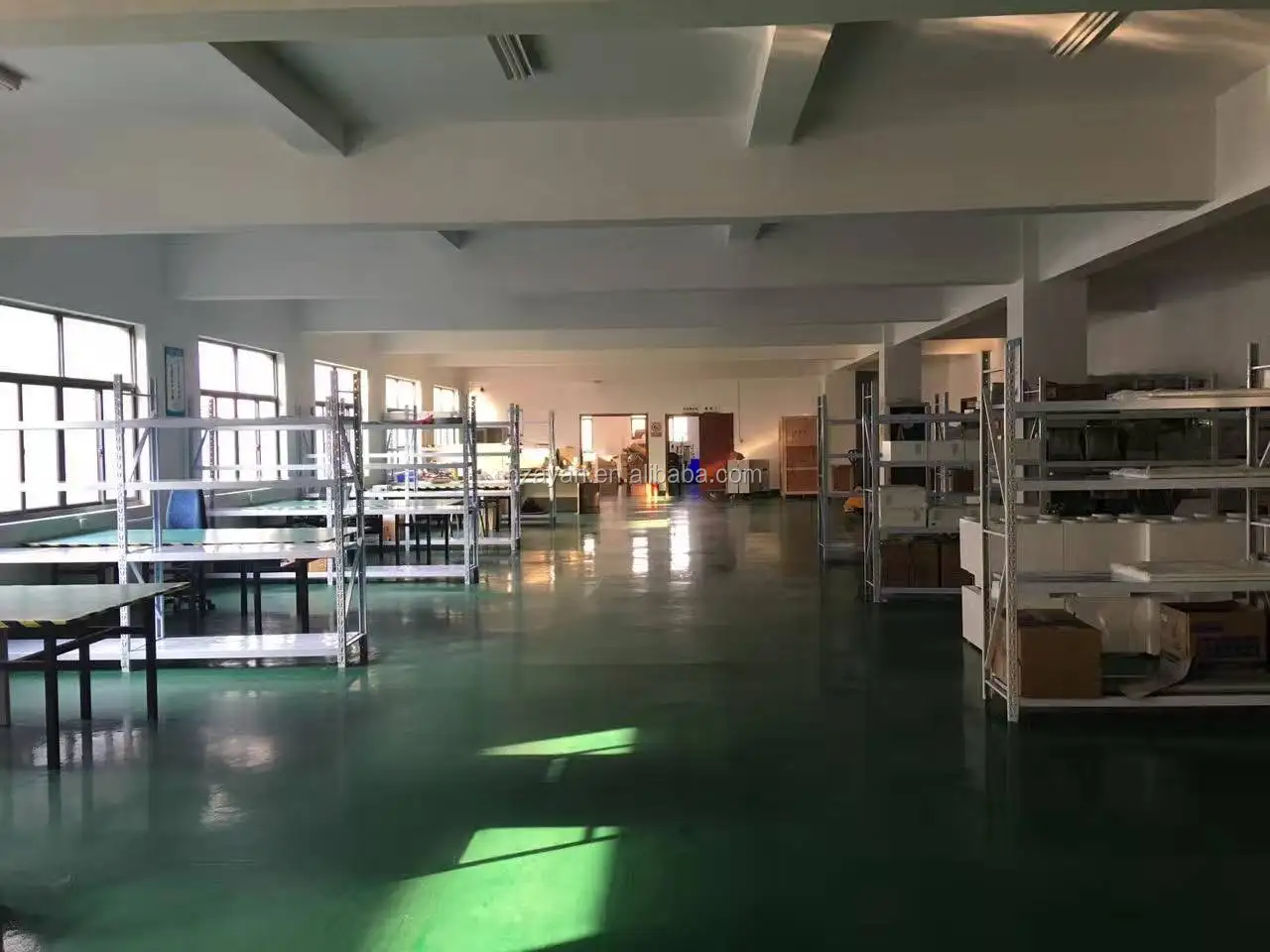

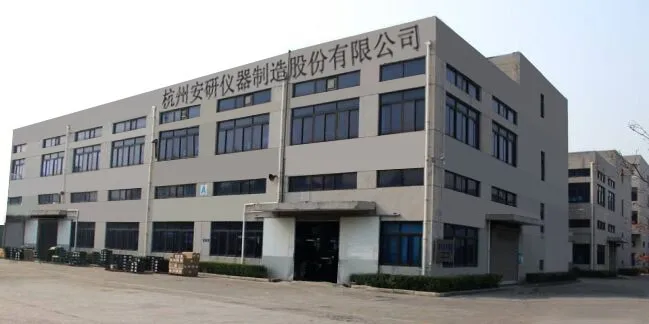

Hangzhou Anyan Instrument Manufacturing Co., Ltd. Is located in Yuhang District, Hangzhou city. It’s a professional manufacturer focusing on R&D, production, sales and service of lab equipments. More than 90% of the company’s R&D personnel are senior experts engaged in scientific research instrument industry for many years. Strong technical force greatly ensure the quality of our products and technical support service. The company’s main products are Molecular distillation equipment, Thin film evaporator, Fully-closed nitrogen blowing instrument, Nitrogen generator, Constant temperature thawing instrument, Low temperature spray dryer, Solid phase extractor, Fat analyzer, Soxhlet extractor and so on.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic university laboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.
FAQ
1.Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer of apparatus for laboratory and pilot plants. We can customize according to clients' requirements.
2.Q: Where is your factory?
A: Our factory located in Hangzhou City, Zhejiang Province.
3.Q: How long is your delivery time?
A: Generally our delivery time is within 15 working days. Ayan occupies a 2000 M2 production base, is able to guarantee our quality and fast delivery to users. Genuine products are assured by factory direct sales.
4.Q: What are your MOQ and your payment term?
A: Our MOQ is 1 set. While the value is less than 10,000USD, 100% prepayment. While the value more than 10,000 USD, 50% T/T in advance, balance before shipping.
5.Q: What is your package?
A: Sufficient inner protection with different materials, including bubble bag, foam board and foam grain. Then pack into plywood boxes or cartons for different products.
6.Q: How to install the apparatus and how to operate?
A: All of our apparatus are designed by simplicity assembly. The critical parts will be fixed in our plant and the whole equipment is debugged and tested before transportation.
