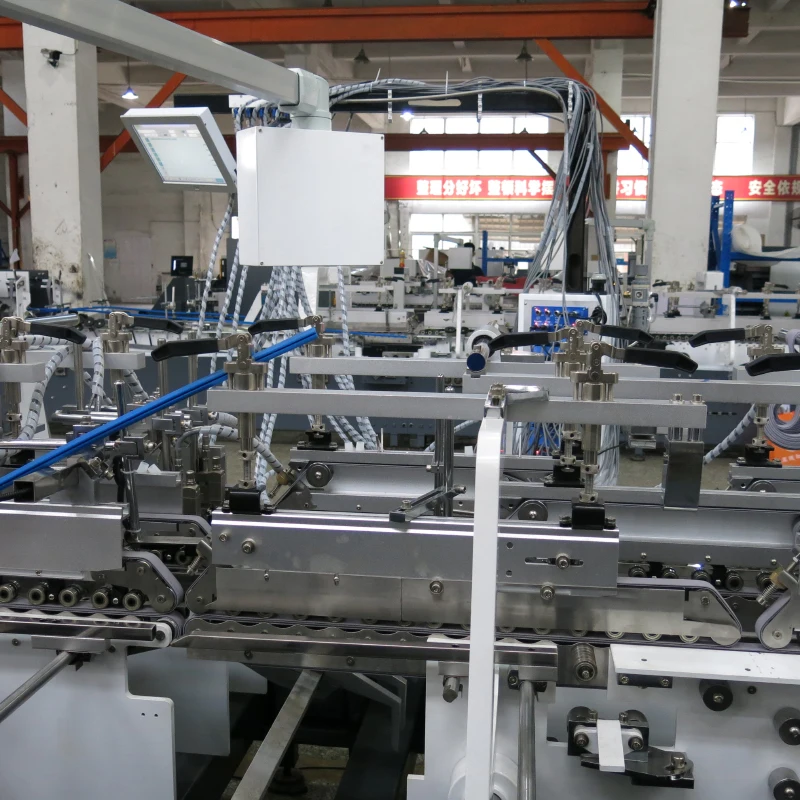

GS 1100 высокоскоростная автоматическая машина для склеивания папок 4 и 6 углов
- Category: Gluing Machines >>>
- Supplier: Shanghai Printyoung International Industry Co. Ltd.
Share on (62591009348):
Product Overview
Description
Products Description
Technical Parameters

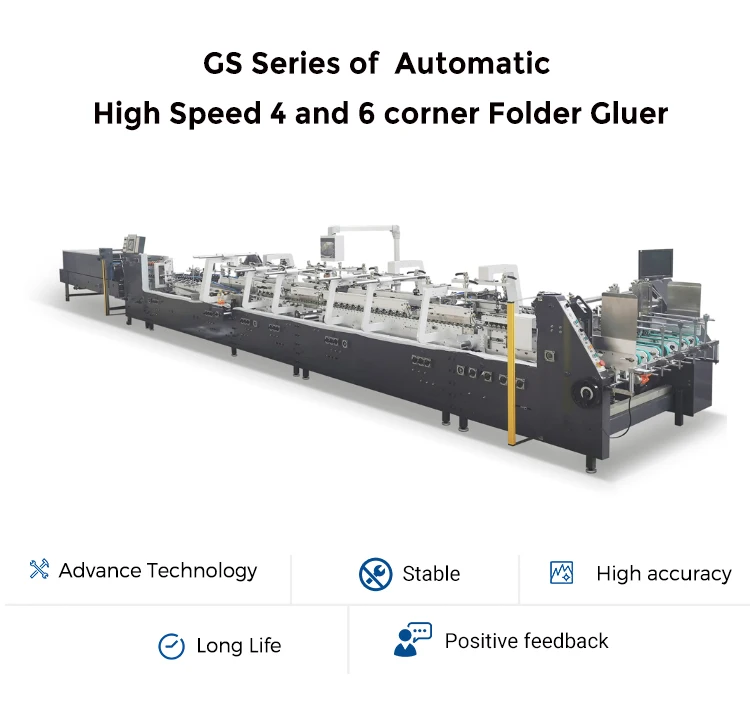

Automatic High Speed 4 and 6 Corner Folder Gluer | ||||||
Model | 1100 | 800 | 1100 | |||
Paper Material | Cardboard 210-800gsm, A/B/E Flute | |||||
Max.Speed | 400m/min | |||||
Max.Thickness of Folded Box | 12mm | 12mm | 12mm | |||
Way of Folding | Fold 1 and fold 3 are 180°and 165°,fold 2 and fold 4 are 180° | |||||
Power Supply | 3P 380V 50HZ | |||||
Blank Width | 1100mm | 800mm | 1100mm | |||
Length x Width x Height | 15x1.53x1.3m | 15x1.53x1.3m | 15x1.53x1.3m | |||
Net Weight | 7.5T | 6.5T | 7.5T | |||
Total Power | 31.18Kw | 31.18kw | 31.18kw | |||
Configuration
Paper Feeding Section
The feed part is driven by variable frequency motor and synchronizes with the main engine.Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample.Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.Operators can operate feeder switch in any regional.
Aligner Section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Pre-Folding Section
Special first folding line pre-fold 180°. third line 165° ,which perfectly meeting the requirements of automatic packaging industry.

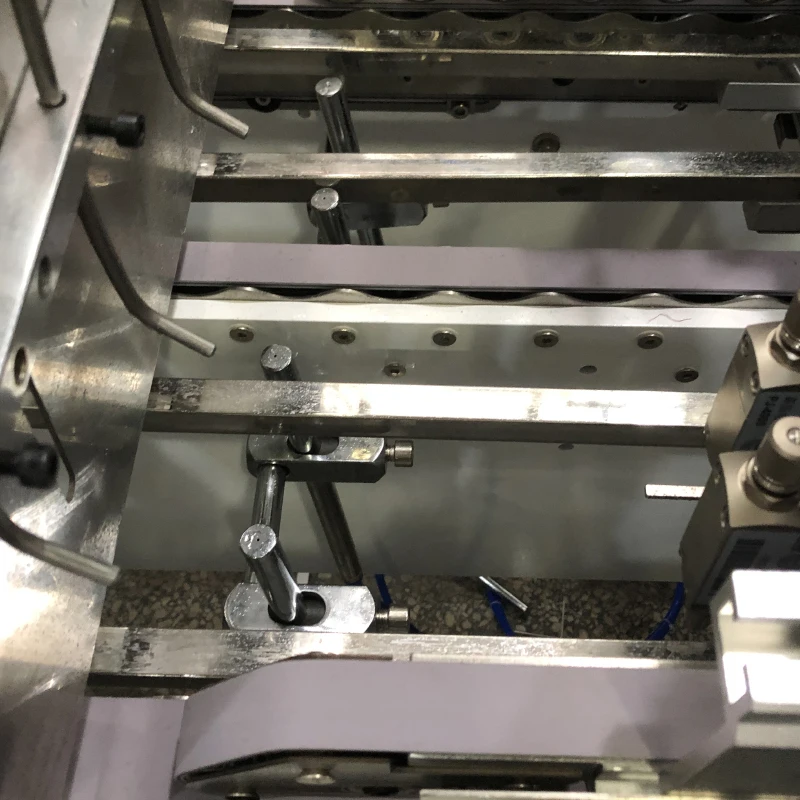

Crash Lock Bottom Section
Compete set of crash lock bottom device makes the lock bottom Part perfectly .Sectional-type upper Belt board with special
design.
design.
Lower Gluing Tank
lower gluing tank is large volume.
Easy to remove and clean.

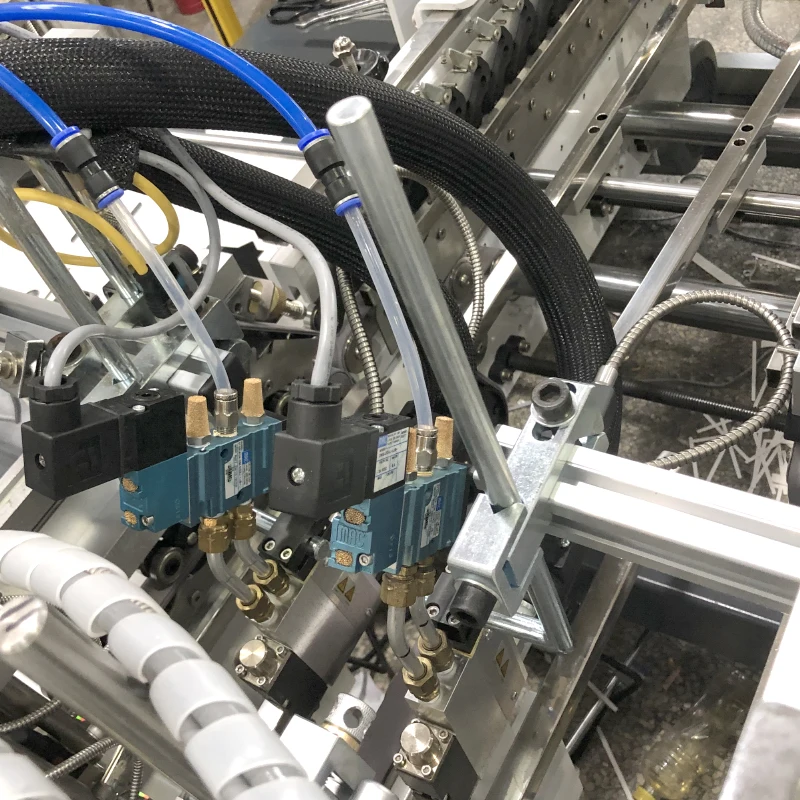

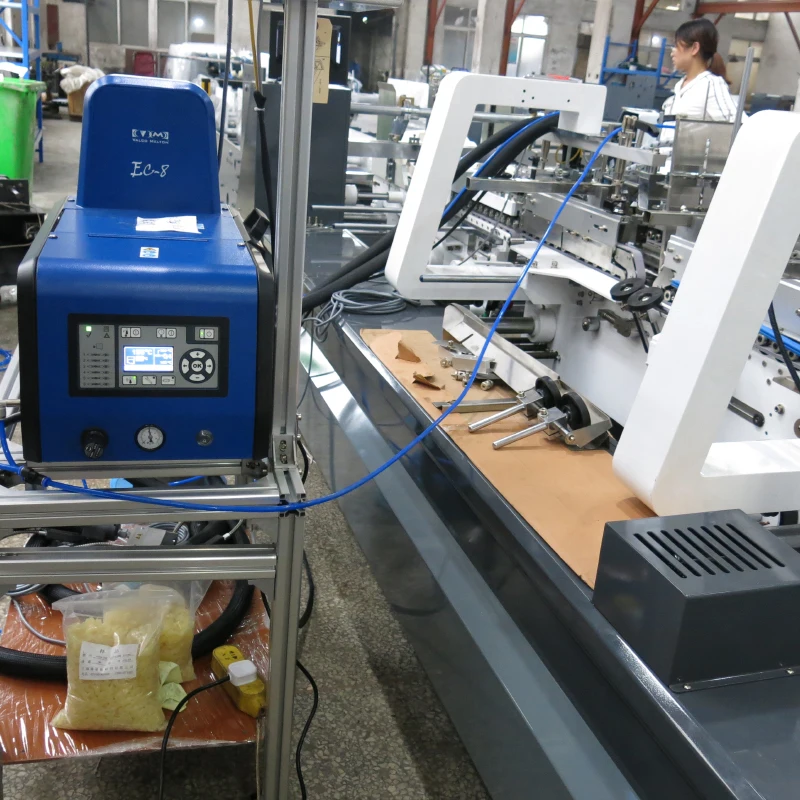

Electronic upper gluing system by guns.

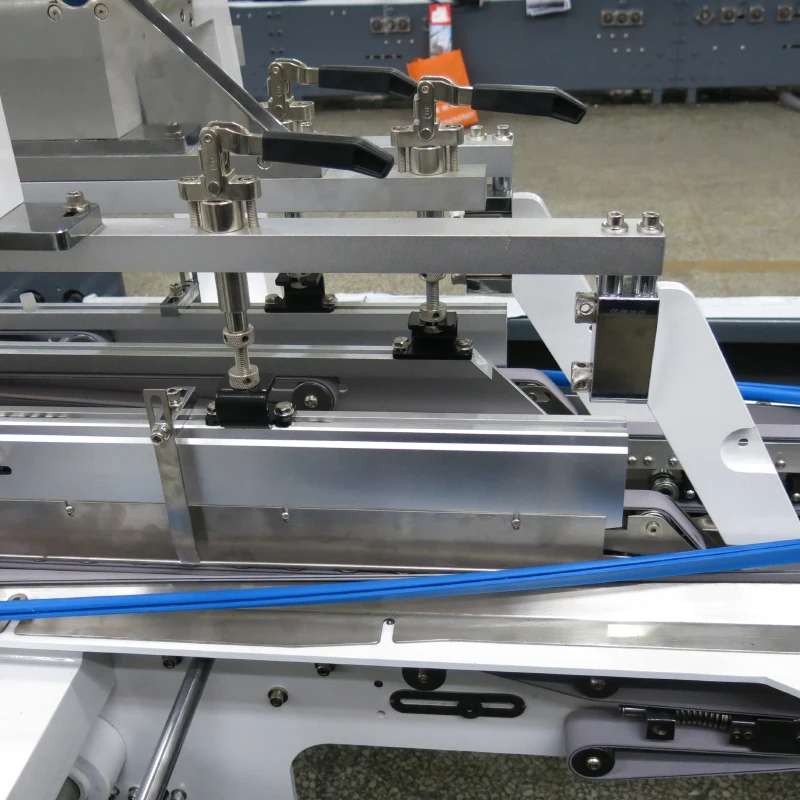

Folding and Closing
The Second and fourth folding line 180°.Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Trombone Section
Up and down belt can be adjusted separately.
Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.
Transmission.
Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,guaranteeing a well aligned flow.
4 and 6-corner device
Motorized and untimed electronic back folding system with intelligent servo motor technology
Straight Line Box | ||
Model | 1100Type | |
Way of Folding | Two /Three Carriers | |
B+C+D+E | 130/280-1100 | |
C+D | 65/140 | |
C+D+E | 70 | |
F | 70-800 | |
G(Max) | 800 | |
D+E(Max) | 300 | |
G（Max） | 500 | |
Crash Lock Bottom Box | ||
Model | 1100Type | |
Way of Folding | Two /Three carriers | |
B+C+D+E | 130/280-1100 | |
C+D | 65/140 | |
F | 70-800 | |
G(Max) | 800 | |
H(Min) | 25 | |
L | 30-100 | |

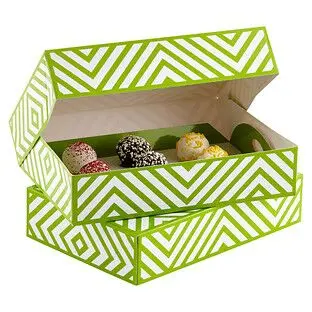

4 Corners Box | ||
Model | 1100Type | |
Way of Folding | Two /Three Carriers | |
A+B+C | 160-1100 | |
B(min) | 90 | |
F | 70-800 | |
G(max) | 800 | |
H(min) | 25 | |
L | 30-100 | |

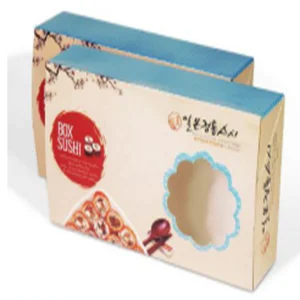

6 Corners Box | ||
Model | 1100 Type | |
Way of Folding | Two/Three Carriers | |
A+B+C+D+E | 260/310-650 | |
B+C(min ) | 80/140 | |
B(min) | 80 | |
C(min) | 30 | |
D(min) | 70 | |
F | 70-800 | |
G(max) | 800 | |
H(min) | 25 | |
L | 30-100 | |
Customer
Company Profile
Why Choose Us

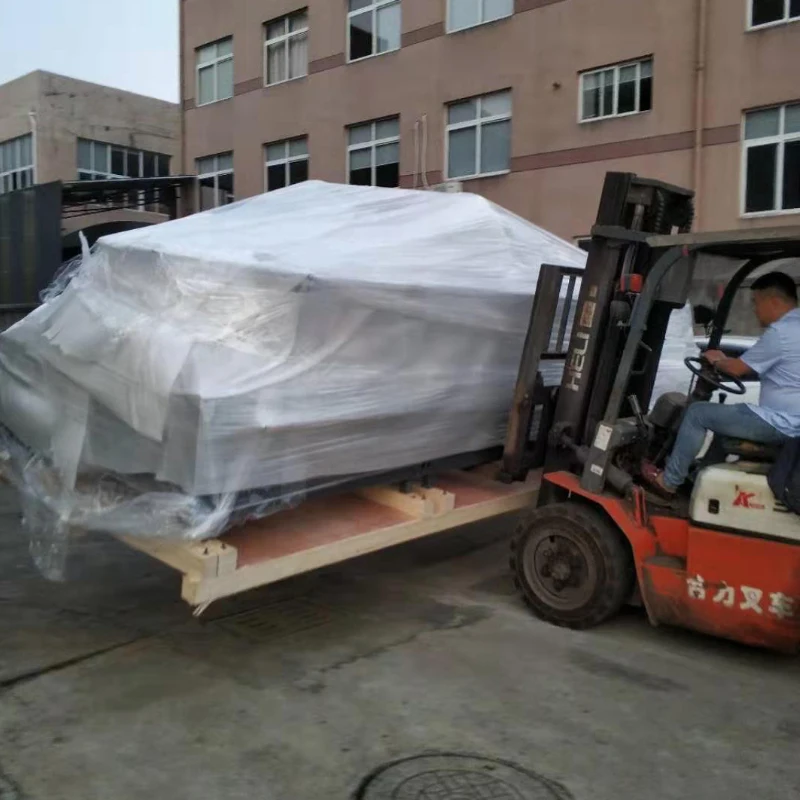

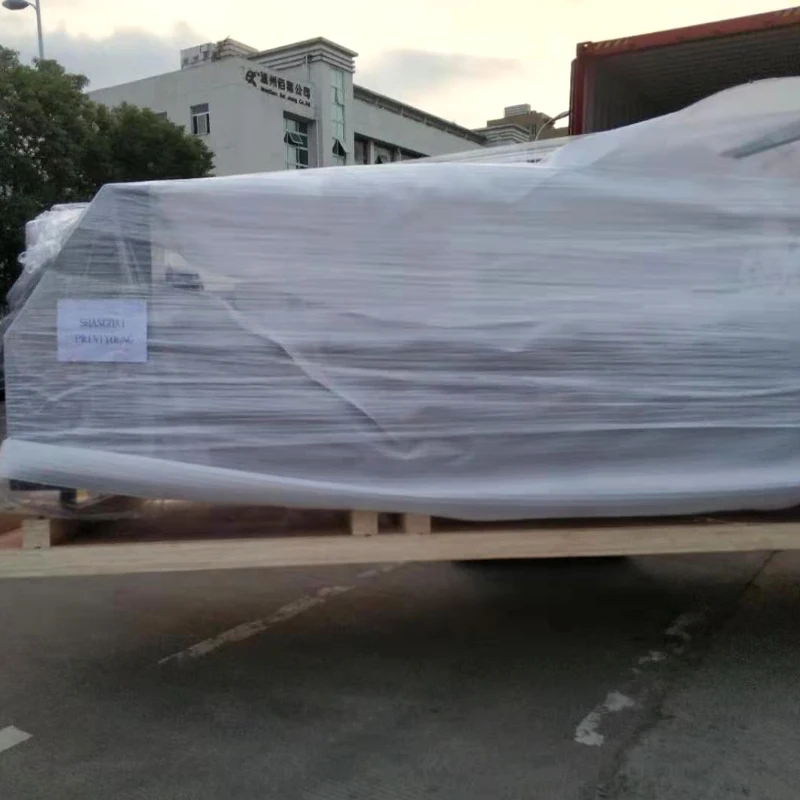

Packaging&Shipping
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
Q7. How about the machine installation and training ?
A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q11. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: Shanghai company is 12 years old, the factory is more than 20years.
