max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor
max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor
max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor
max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor
max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor
max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor
max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor

max load 250kg 1200w brushless dc 16 inch tractor road tire single shaft servo robot hub motor

Share on (62592024469):


Price:$185.00 - $265.00

Quantity:


Product Overview

Description


Product Description

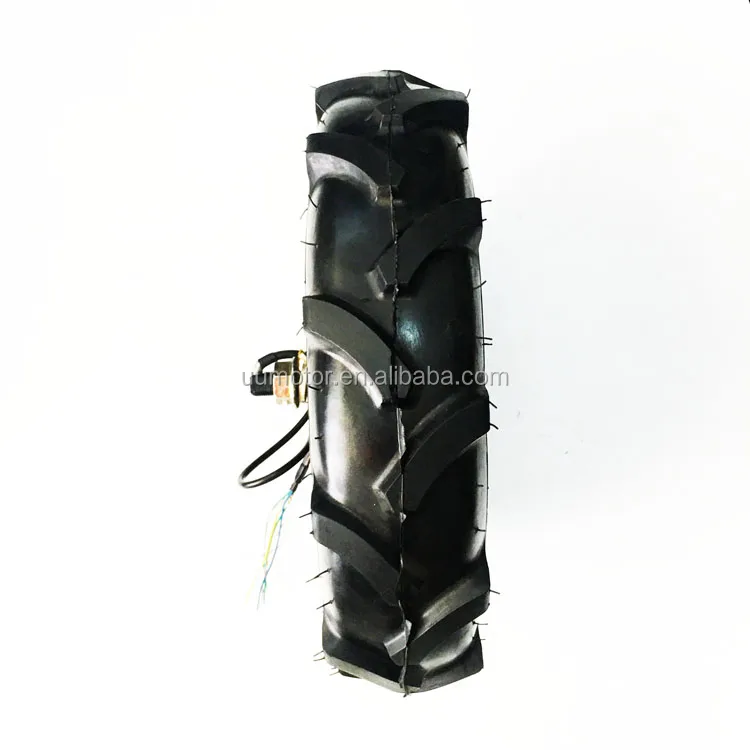

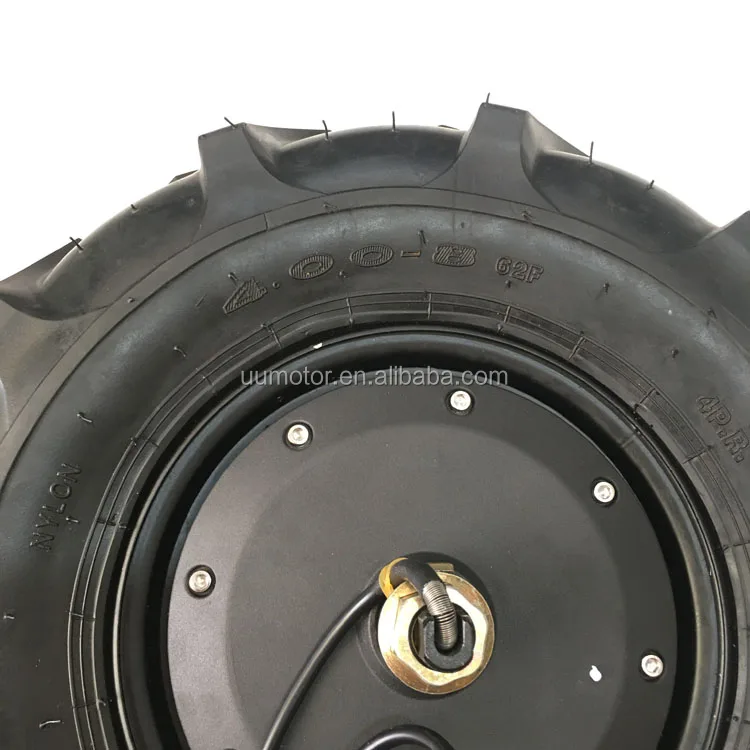

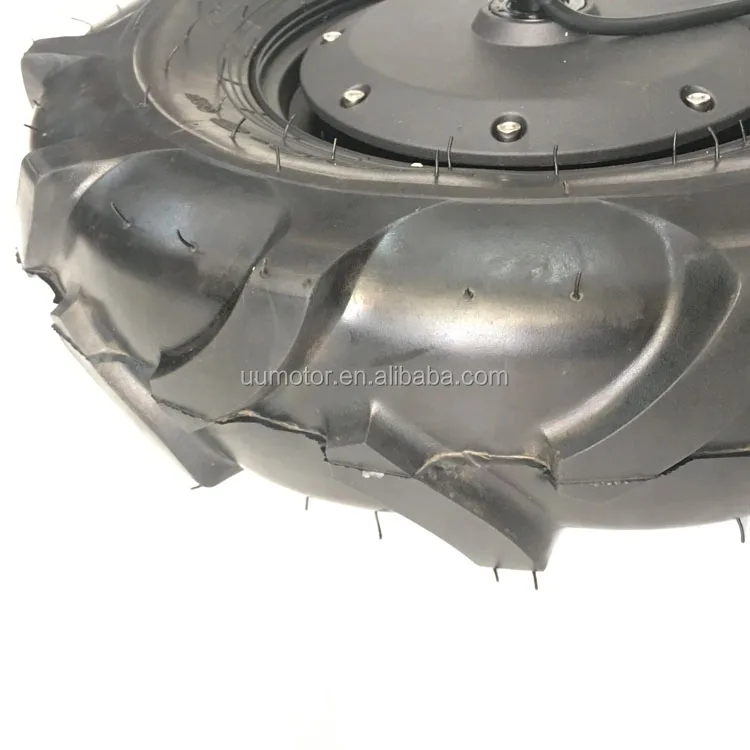

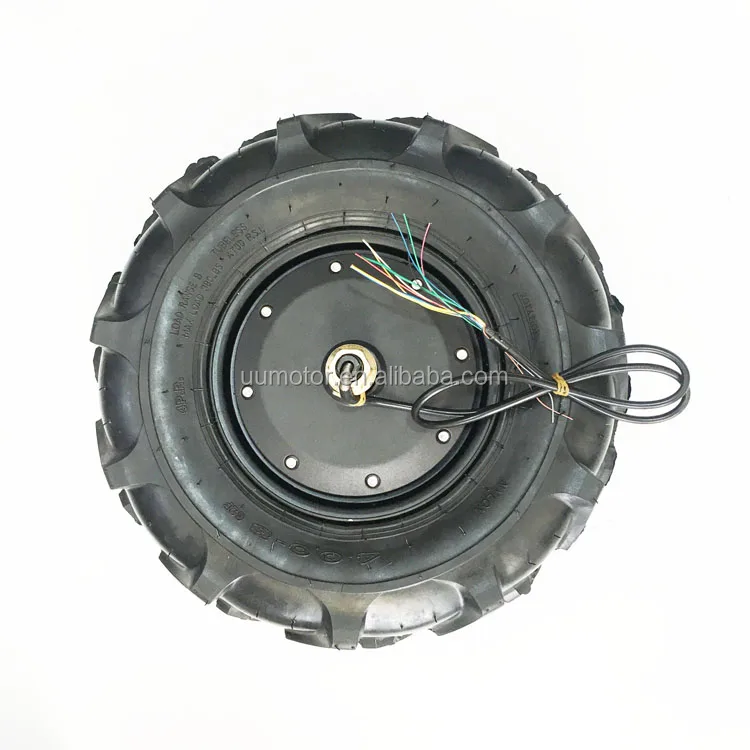

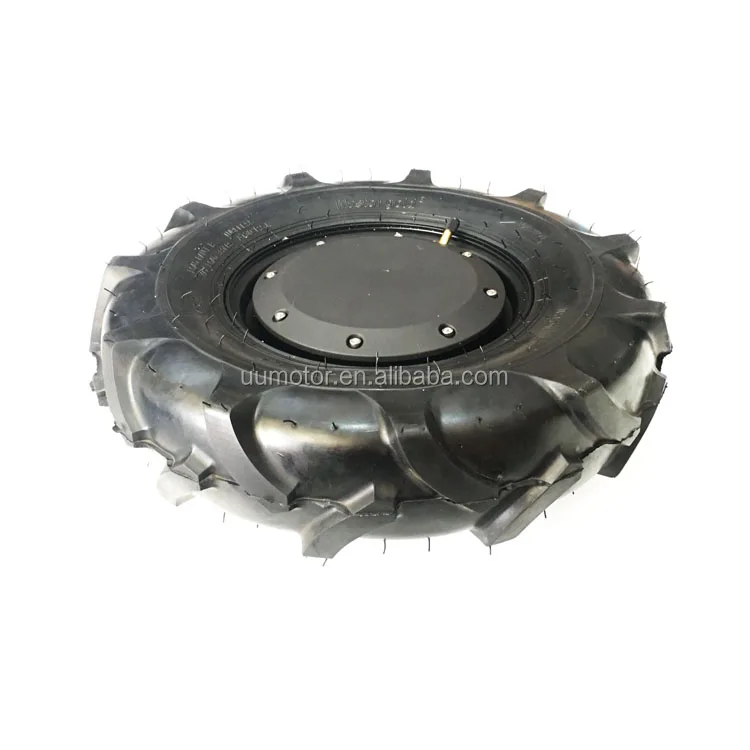

16 inch tractor tire, 4.0-80 off road tire, 500w-1200w, Max load 250kg, mono/single shaft version.please email us or leave notes for your specific request, like rated voltage, power, speed and so on.

Motor cable define:
3 thick wires: yellow(phase A), green(phase B), blue(phase C):
9 thin wires:
1. red(+5V,for motor hall sensors and encoder),
2. black(GND),
3. yellow(hall a),green(hall b),blue(hall c):
4. white(encoder A),purple/brown(encoder B)
5. gray and orange (thermal resistor wires)

Rated voltage: 48v-72v
Motor weight: 9kg
Efficiency:83%
Poles: 20 pairs
Rated Power: 500w-1200w
Rated speed: 200-400RPM by controller
Rated current: 10-25A(peak current 55A)
Rated torque:45N.M(peak torque 90N.M)
Max load: 250KG
Diameter: 380mm tubeless air tire
Encoder type: 1024 line Incremental Photoelectric Encoder
Rated voltage
48V-72V
Motor weight
7.6kg
Rated Power
500w-1200w
Rated speed
200-500RPM
Rated torque
45N.m(peak torque:95N.m)
rated current
10-25A(peak 55A)
pole pairs
15 pairs
max load
250kg
motor diameter
380mm
