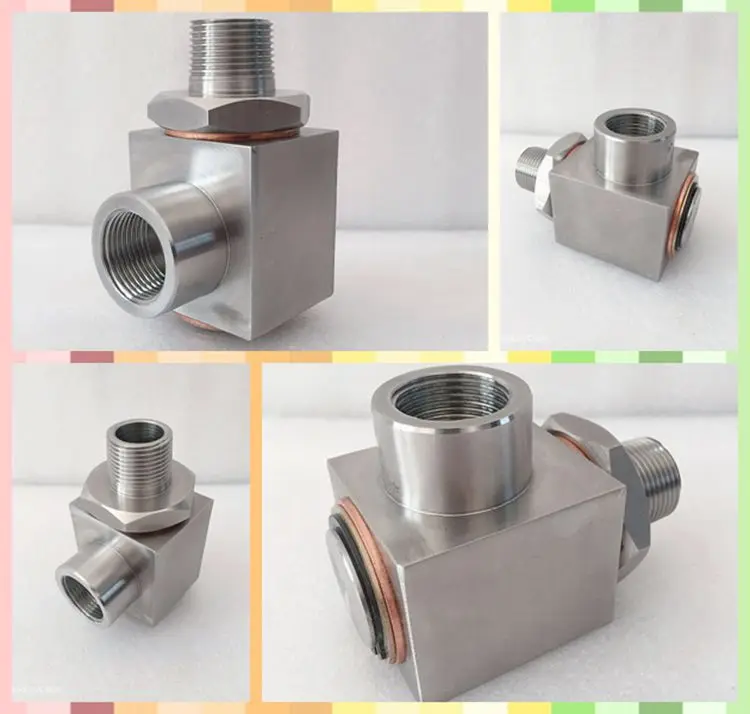

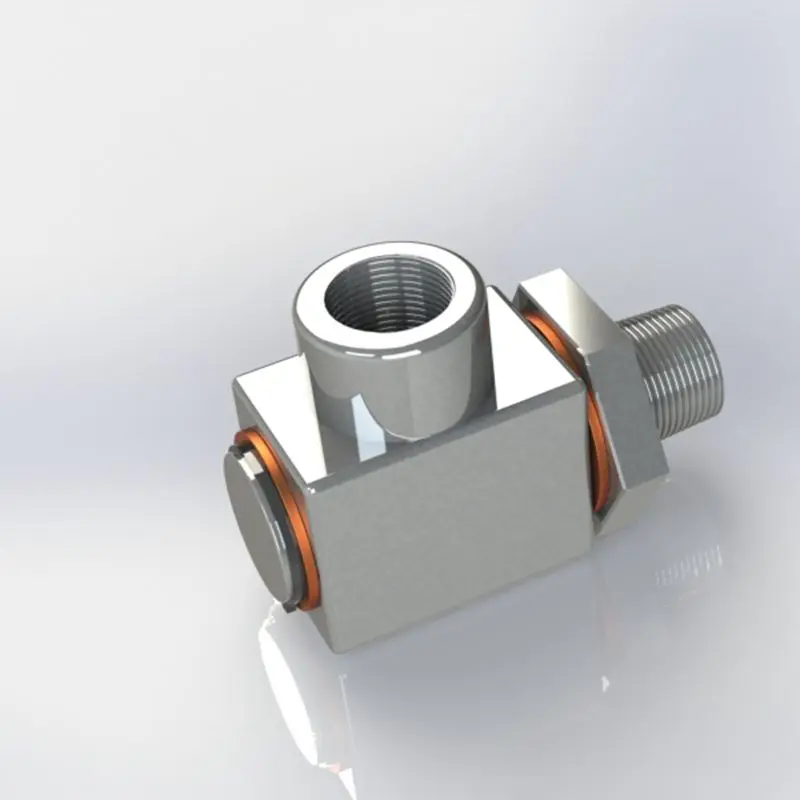

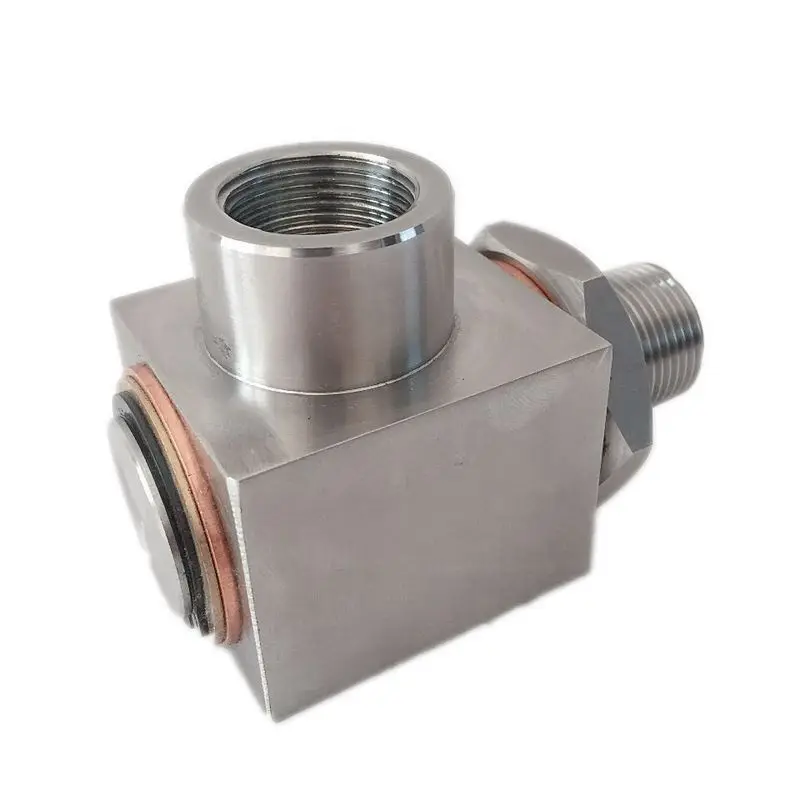

Specializing in the production of high-quality stainless steel high-pressure rotary joint, 360 ° cooling water rotary joint.Factory direct sales, professional research, production of various specifications of rotary joints.
Material
stainless steel
pressure
1-25MPA
temperature
120℃
speed
1-100RPM
Connection
thread
medium
Water air hydraulic oil
Correct use method of rotary joint
1. Long-term non-use of the machine will cause the rust damage of the rotary joint, and there will be stuck or leaked when it is used again. 2.There are left-handed and right-handed rotating shafts and inner tubes of rotating joints. Pay attention to thecorrect direction of rotation during installation and design. 3.Use qualified rotary joints (refer to matters such as medium, size, pressure, temperature, speed, rotation direction, inner tube, etc.). 4.When using threaded rotary joints, pay attention to whether the thread specifications are correct and the length of the locking roller is sufficient. 5.When the medium is not passed, long-term operation should be avoided.
Description of application effect
1.Forge products with true feelings and build quality with love.
2.Process control, keep improving, do well at one time, with zero defect.
3.Quality is the best guarantee to maintain customer loyalty.
4.Products are widely used in machine tools, metallurgy, papermaking - printing -packaging - textile, semiconductor IC- wind power - solar - photovoltaic, rubber - plastic - tire, automobile, mechanical engineering, petroleum machinery and other industries.

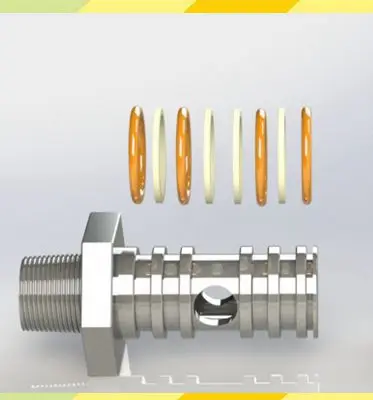

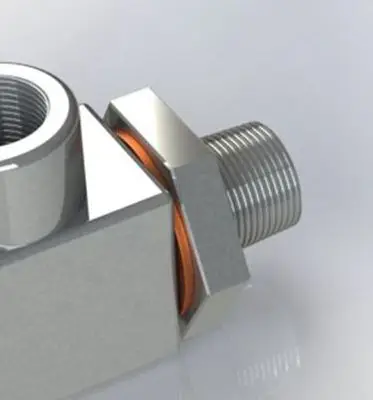

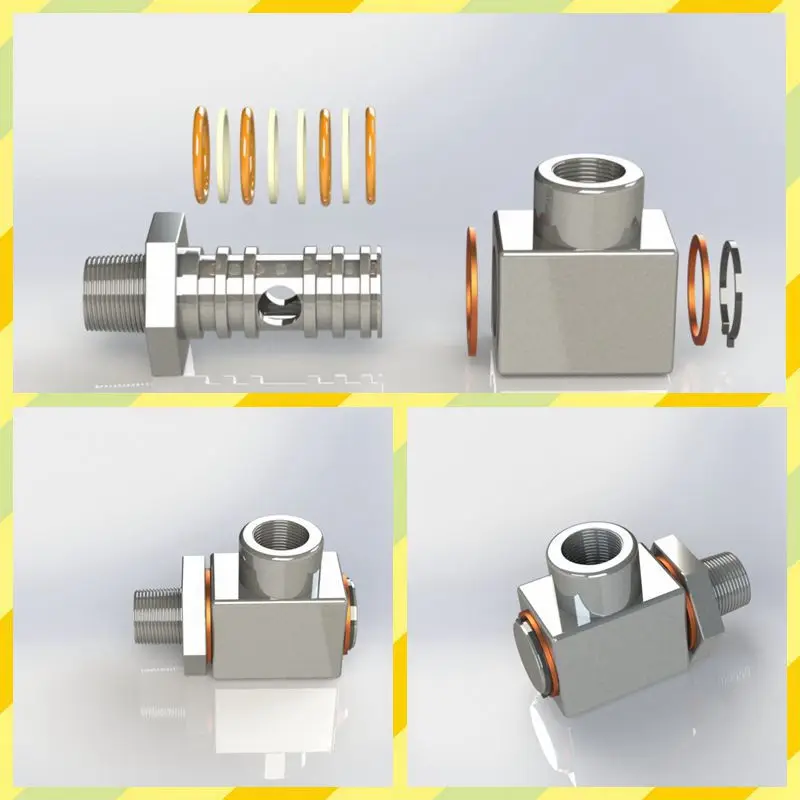

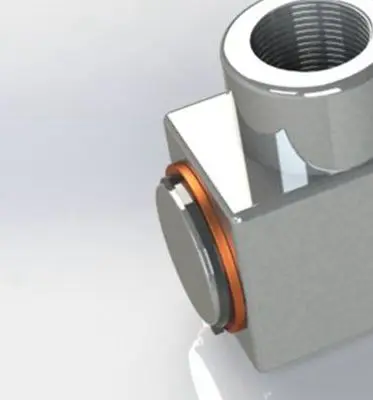

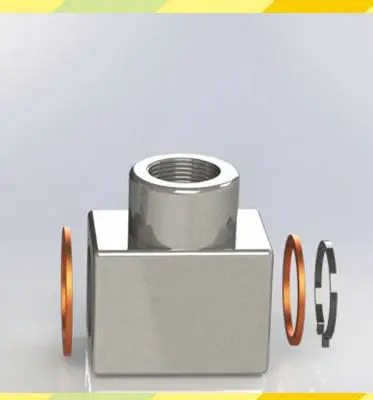

Detailed Images
Size Information
Size Chart of This Design
Model
Specifications
R*G
L
A
B
d
C
H
Z
JL04DD
04
1/4
49
36
17
5
16
19
31
JL06DD
06
3/8
56
42
20
8
19
22
36
JL08DD
08
1/2
66
50
23
11
22
27
43
JL12DD
12
3/4
80
63
27
16
25
36
51
JL16DD
16
1
89
70
29
21
28
41
57
JL20DD
20
11/4
102
81
31
28
30
50
64
JL24DD
24
11/2
116
93
33
34
32
55
72
JL32DD
32
2
129
106
36
43
35
70
80

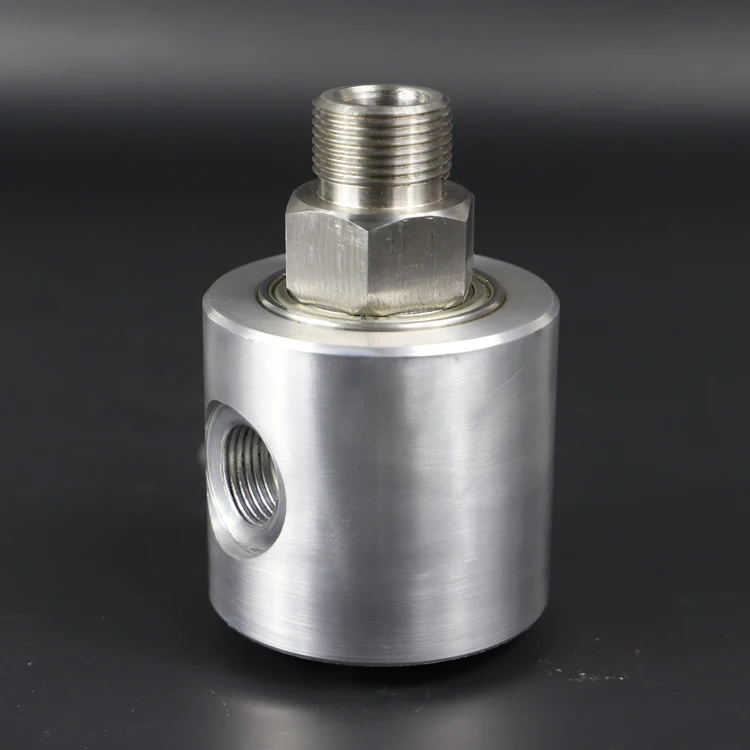

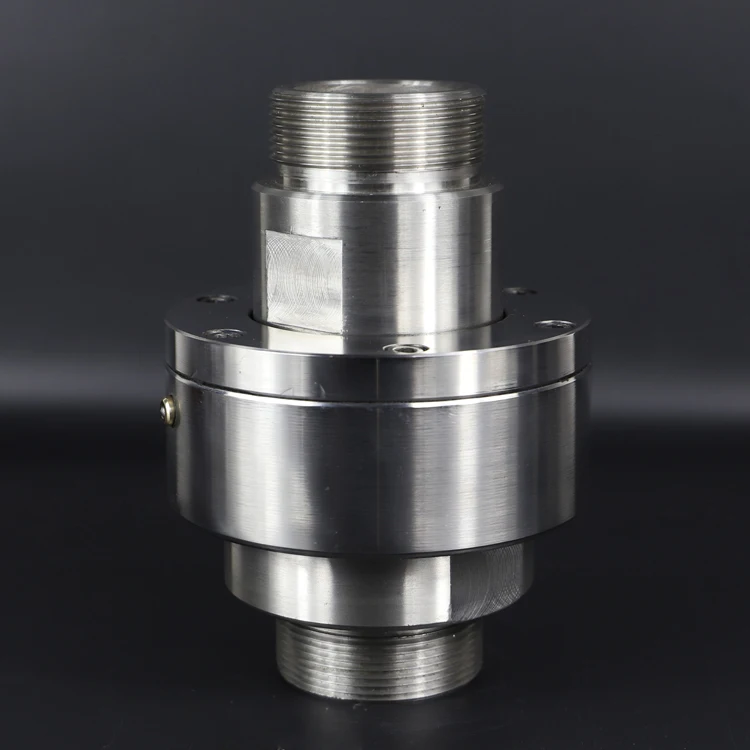

Related Products
Packing&Shipping

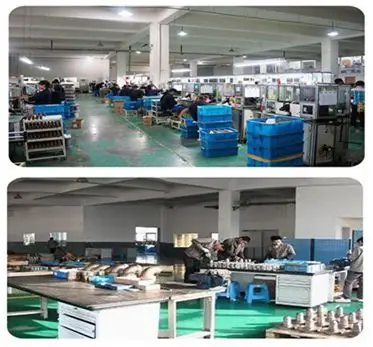

Company Introduction
Tengzhou Jingxuan Machinery Equipment Co., Ltd. is a company that manufactures and maintains rotary joints. The company is locatedin Lunan area, west of Weishan Lake, north of Kongfu Taishan, beautiful environment, convenient transportation, Beijing-ShanghaiRailway, Beijing-Fuzhou Expressway The highway and the 104 national highway run through the north and south, and the industry isdeveloped. The company occupies an area of 180 square meters and an office area of 1,000 square meters. The company employs 75people, including 25 middle and senior technical workers. It produces more than 50,000 joints per year. The products are exportedto Malaysia, Australia and other countries and regions.
Our Services & Strength
1.The company is a scientific and technological enterprise integrating R & D, manufacturing, sales and service, with a solid R & D team, supporting production capacity and perfect sales service network.
2.The company specializes in the production of rotary joints, for many years, has been committed to fluid static and dynamic transmission sealing device and drainage connection pipe fittings, to provide customers with feasible and reliable solutions and technical support.
3.Since its establishment, the company has always regarded quality and reputation as the primary premise of all our work.
4.The company provides free design services for you.
5.The company's sales department is responsible for reporting the product manufacturing progress to you at any time.
FAQ
1.Q: Why choose us? A: We are a leading Rotary Joint manufacturer with many years,provide high quality, competitive price and good after-sale service. 2.Q:Your company can be customized for us? A: Can develop according to customer's drawings or samples, OEM, ODM is available in our factory. 3.Q: What's the MOQ A: 1 piece (Only customized product is accepted) 4.Q:What is the delivery date? A: Shipment within 4~15 days after the payment ( According to the amount of orders ). 5.Q:What are your after-sale service? A: All product warranty for 12 months.If you experience technical problems can always contact us. 6.Q:Where is factory located? A: Our factory is located in Tengzhou City, Shandong, China. You are welcome to visit us. 7.Q: Can you send samples? A: Of course! But you must pay 30% deposit in advance, you need to bear the freight back and forth! After receiving the samples we refund the deposit!
