F8913 wireless switch zigbee module for smart house oil field medical treatment zigbee
- Category: Zigbee Modules >>>
- Supplier: Xiamen Four-Faith Communication Technology Co. Ltd. [Fujian China]Xiamen
Share on (62596099714):
Product Overview
Description
1. general info
F8913 ZigBee module is a kind of data terminal device that provides data transfer function by ZigBee network.
The product uses high-performance industrial-grade ZigBee solution, support transparent data transmission function; low power consumption design, the lowest working current can less than 1uA; supply 5 I/O channels, compatible 3 analog inputs and 2 pulse input counters.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
2. Product Feature
Design for Industrial Application
High-powered industrial ZigBee chip
Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest
Support UART
Power range: DC 2.0~3.6V
High-performance
Support ZigBee wireless data transmission
Support repeater and end-device function

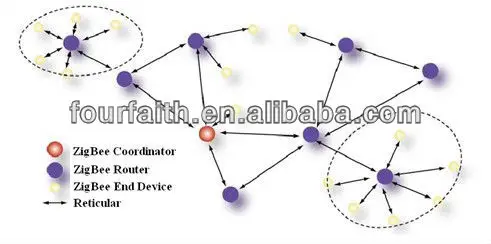

Support Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh network
Support 65000 nodes
Support center node, route node and terminal node
Support broadcast and target address transfer
Wide communication range
Supply 5 I/O channels, compatible 3 analog inputs and 2 pulse input counters
Standard and Convenience
Adopt a miniature package, support 2.0mm spacing stamp hole for SMT and 2.0mm spacing through-hole pins simultaneous
Support intellectual mode, enter into communication state automatically when powered, support several work modes.
Convenient configuration and maintenance interface
Support for serial software upgrades
3. Product Specification

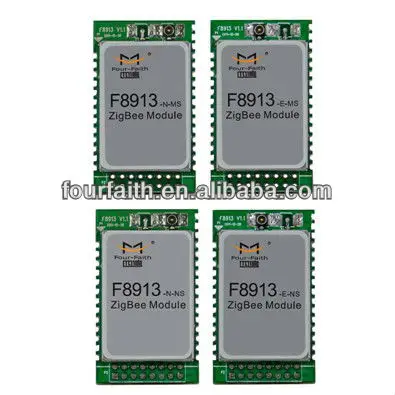

Model | Content |
F8913-N-MS | Without PA,SMT |
F8913-E-MS | With PA,SMT |

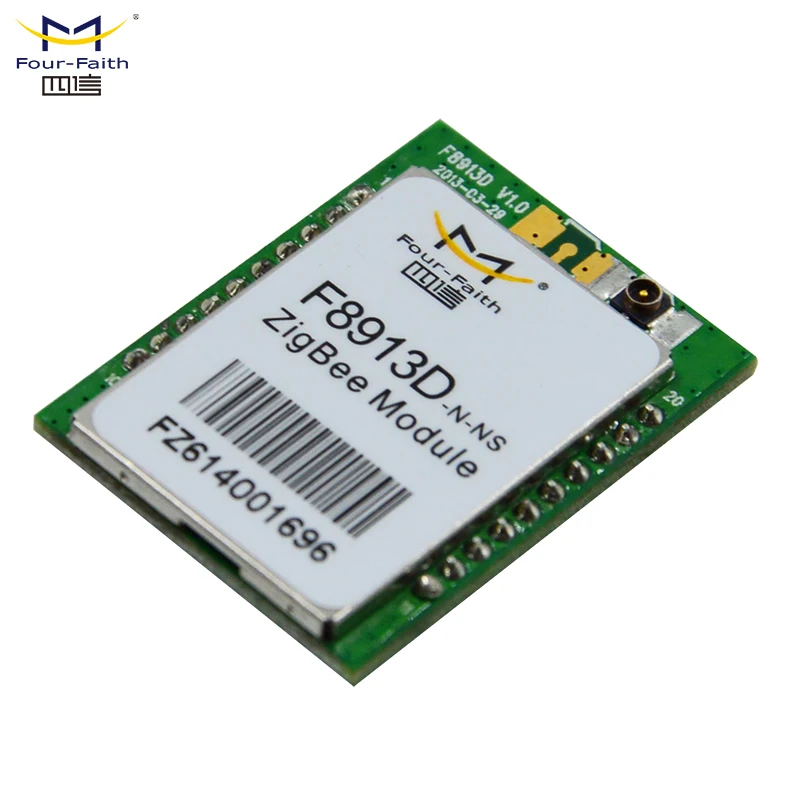

F8913-N-NS | Without PA,DIP |

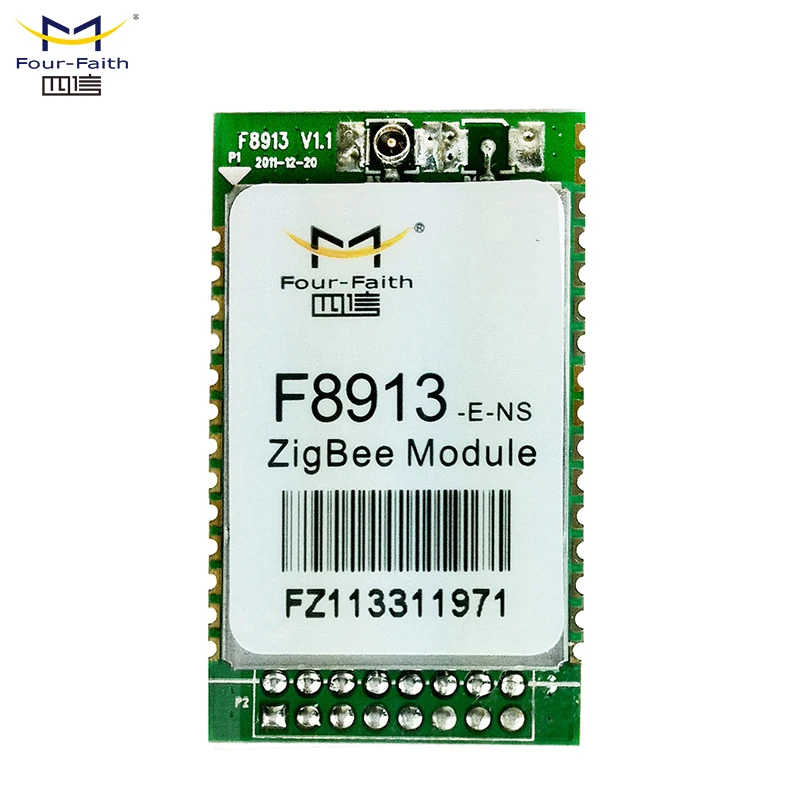

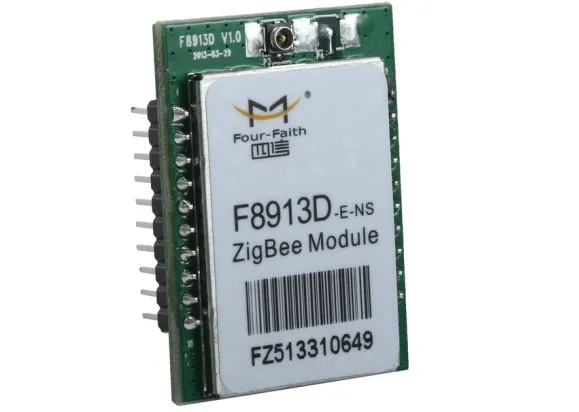

F8913-E-NS | With PA,DIP |
Interface Type
Item | Content |
UART | Data bits: 8 Stop bits: 1, 2 Checksum: none,odd,even Baudrate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400,57600, 115200 bps |

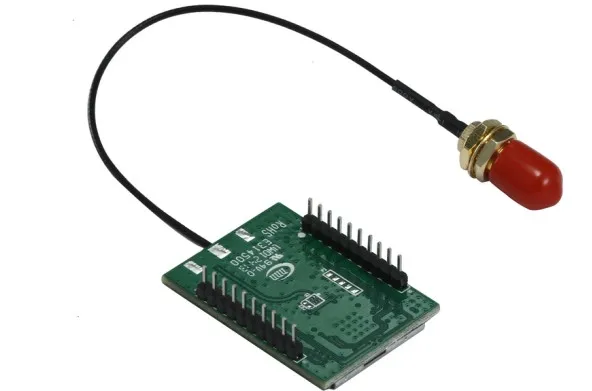

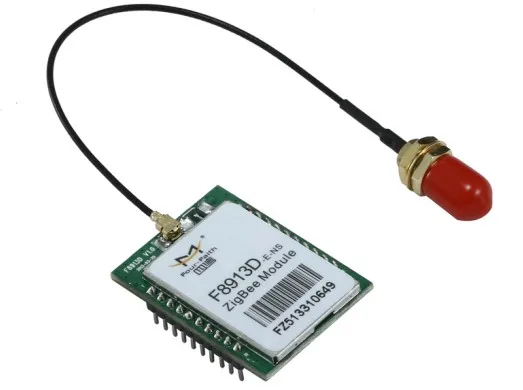

Antenna | U.FL RF connector, impedance 50 ohm |
Package | Support 2.0mm spacing stamp hole for SMT and 2.0mm spacing through-hole pins simultaneous |
Power Input
Item | Content |
Recommended Power | DC 3.3V/0.1A |
Power Range | DC 2.0~3.6V |
Physical Characteristics
Item | Content |
Dimensions | 37.5 x 22.1 x 2.8 mm |
Weight | 3.5 g |
