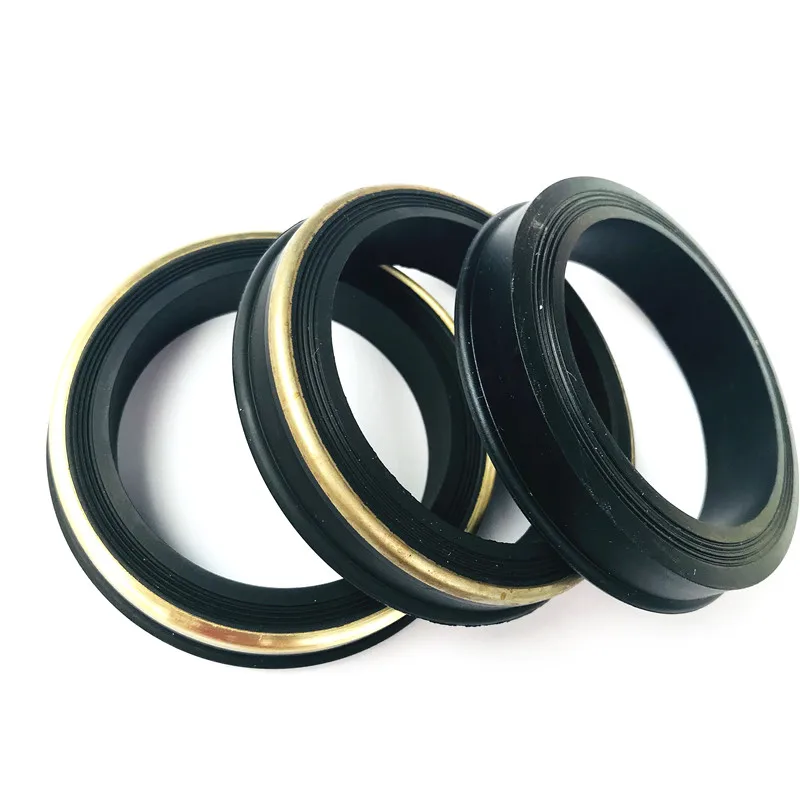

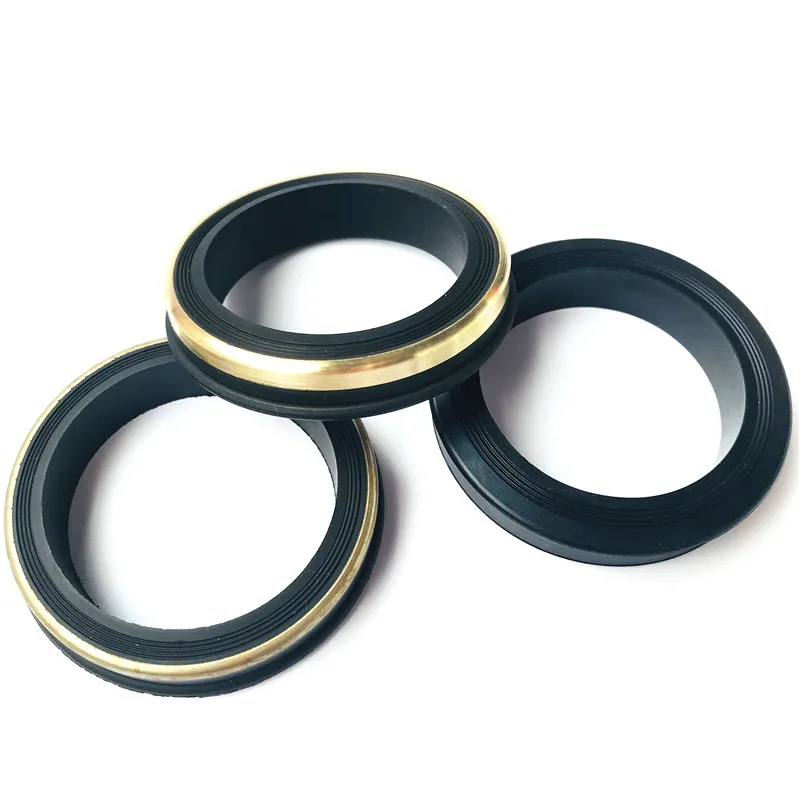

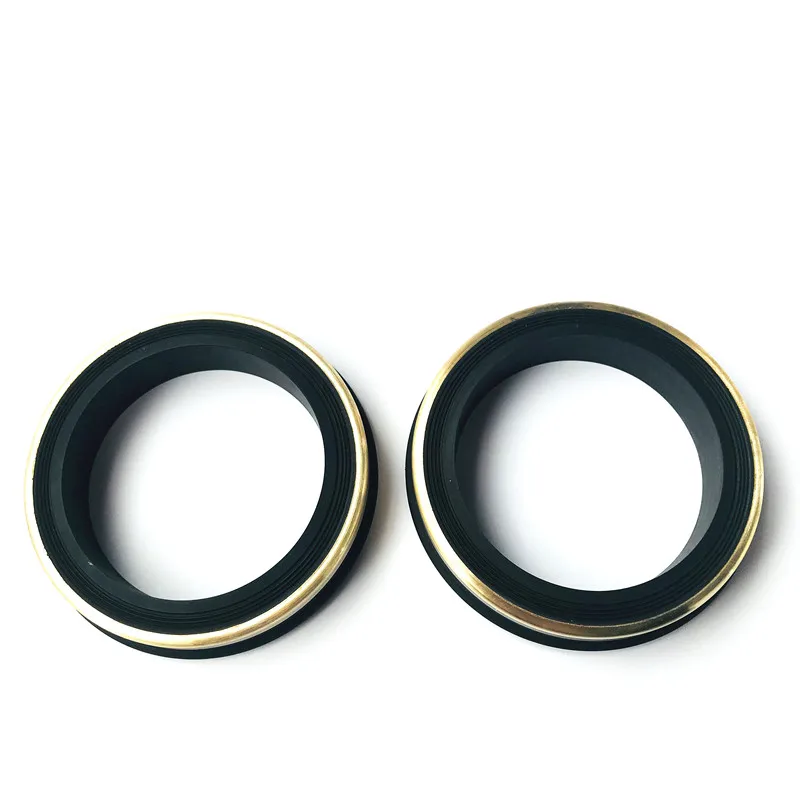

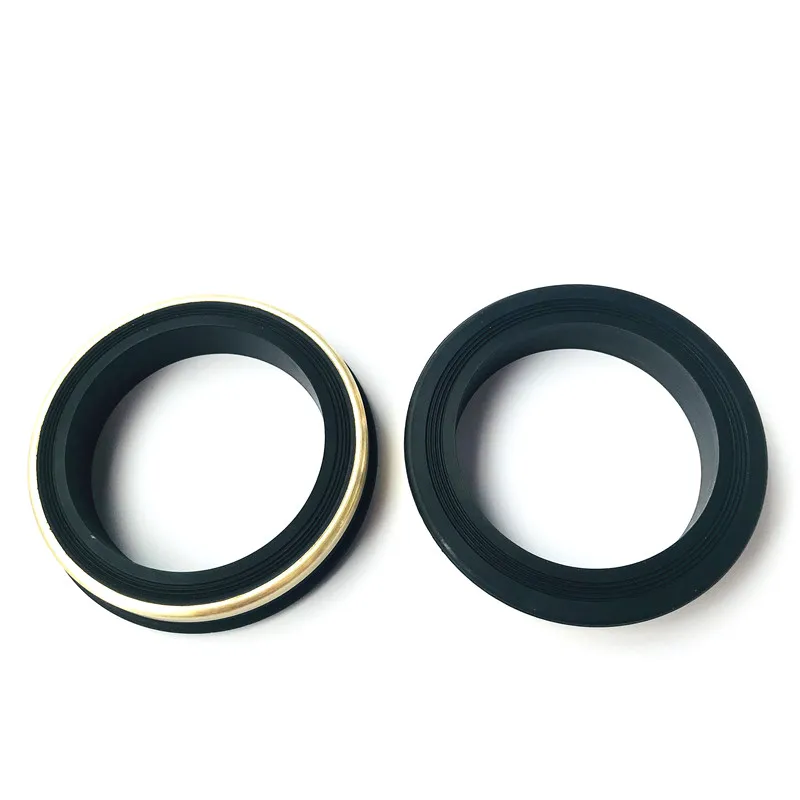

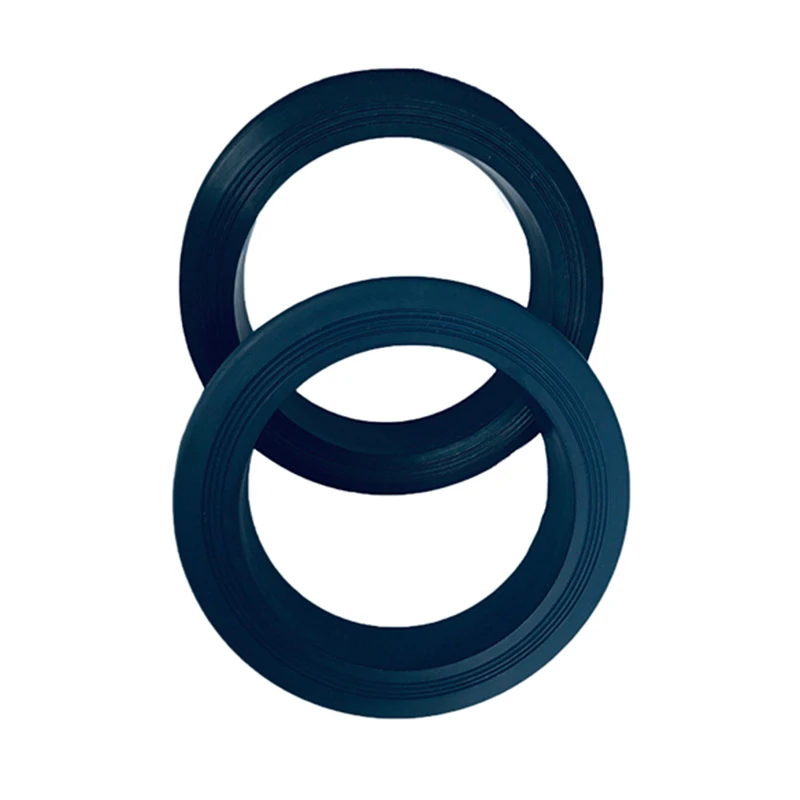

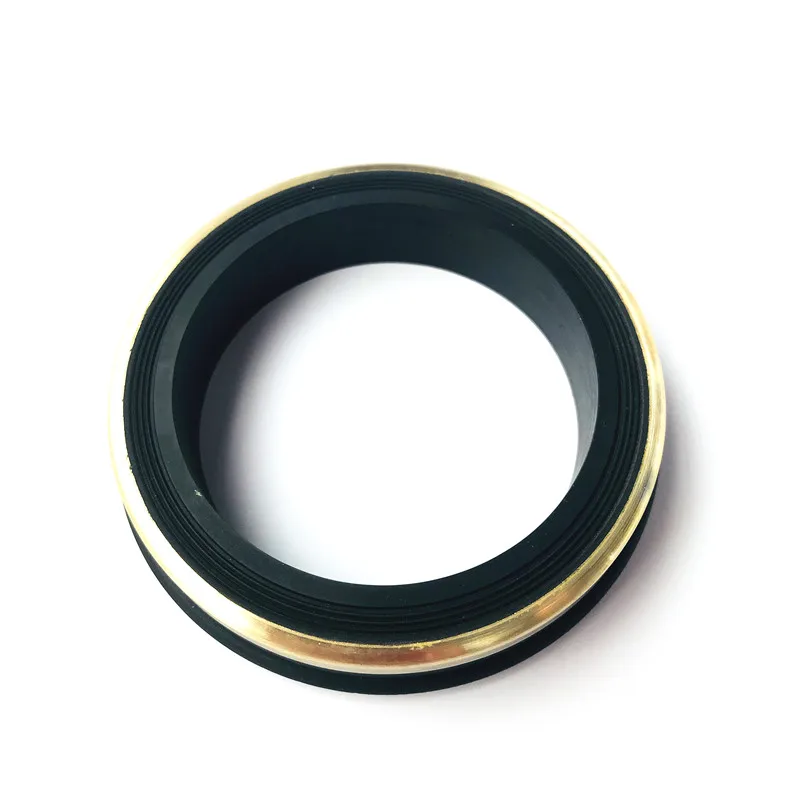

SHQN Preservative High Pressure FiG 1502 Weco Seal with w/brass Backup Buna Hammer Union Seal
- Category: >>>
- Supplier: Shanghai Qinuo Industry Co. Ltd.
Share on (62597498707):
Product Overview
Description
Product Description
Product name | SHQN Preservative High Pressure FiG 1502 Weco Seal with w/brass Backup Buna Hammer Union Seal |
Product size | 1", 1 1/2", 2'', 3" and 4" |
Product color | Black or custom color |
Pressure | 1-10000 Psi |
Material | 80 Buna+Brass Backup |
HAMMER UNION SEAL:
A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.
O-RINGS & SEAL RINGS
- O-Rings & Seal Rings for hammer unions are available in nitrile for standard service and viton for H2S service
- Available for various figures and styles
- O-Rings
- Lip Seal Rings
- Brass Backed Seal Rings
- Stainless Steel Backed Seal Rings
O-RINGS & SEAL RINGS
- O-Rings & Seal Rings for hammer unions are available in nitrile for standard service and viton for H2S service
- Available for various figures and styles
- O-Rings
- Lip Seal Rings
- Brass Backed Seal Rings
- Stainless Steel Backed Seal Rings
Application: Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Sealing Design: The conical and spherical surfaces of the female and male subs respectively; form an effective metal-to-metal seal in case of low pressure services.
For medium pressure mostly; an ‘O’ ring is provided in the male sub; in addition to the metal to metal seal. For high pressure, a lip type seal ring is provided for primary seal in the female sub. The seal protects the secondary metal to metal seal from corrosion and limits fluid flow turbulence. For sour service applications, viton seals are provided.
Detailed Images
Circular Cross-Section
* They are circular in shape, round in cross-section.
* Designed for use in a wide variety of sealing applications.
* Commonly provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in
engines, faucets, flanges, valves, and various cylinders.
* They are circular in shape, round in cross-section.
* Designed for use in a wide variety of sealing applications.
* Commonly provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in
engines, faucets, flanges, valves, and various cylinders.
Nitrile Rubber O-rings
*Good mechanical properties and high wear resistance. Good resistance to many petroleum oils, greases, hydraulic fluids, alcohol, mineral oil and grease.
*Buna-nitrile is vulnerable to acetone, ethers, esters, ozone, sunlight and weathering and should therefore not be used in ozone-generating electric motors, welding equipment, or in applications with exposure to UV light.
*Good mechanical properties and high wear resistance. Good resistance to many petroleum oils, greases, hydraulic fluids, alcohol, mineral oil and grease.
*Buna-nitrile is vulnerable to acetone, ethers, esters, ozone, sunlight and weathering and should therefore not be used in ozone-generating electric motors, welding equipment, or in applications with exposure to UV light.
Packing&Shipping
Company Introduction
Shanghai Qinuo Industry
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales.Our main services include develop and manufacture rubber parts and molds, plastic parts and molds.We can also according to customers requirement to provide various kinds of mixing rubber.Since its inception, we adhering to the Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, all components passed ROHS certification, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
FAQ
1.What is hammer union seal ?
Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal
provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
2.Material of Hammer union seals
We supply Hammer Union Seals in 80 Nitrile, 80 Viton, 90 Viton, 80 HNBR. High pressure seals are available in HNBR/Brass, Nitrile/Brass, Viton/Brass, and Viton/Stainless. Also available in Teflon (PTFE)or Customized color and material .
3.Standard and Sizes of Hammer union seals
2", 3", and 4" for standard service and Sour Gas Service are matched with Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 hammer union etc.
4.Hammer union seals Pressure
These Hammer union Seals are designed to seal on a Figure 1502 unions with typical pressure ratings for standard service of 15,000 PSI and are tested to 22,500 PSI.
Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal
provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
2.Material of Hammer union seals
We supply Hammer Union Seals in 80 Nitrile, 80 Viton, 90 Viton, 80 HNBR. High pressure seals are available in HNBR/Brass, Nitrile/Brass, Viton/Brass, and Viton/Stainless. Also available in Teflon (PTFE)or Customized color and material .
3.Standard and Sizes of Hammer union seals
2", 3", and 4" for standard service and Sour Gas Service are matched with Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 hammer union etc.
4.Hammer union seals Pressure
These Hammer union Seals are designed to seal on a Figure 1502 unions with typical pressure ratings for standard service of 15,000 PSI and are tested to 22,500 PSI.
