Product Overview
Description
Specification

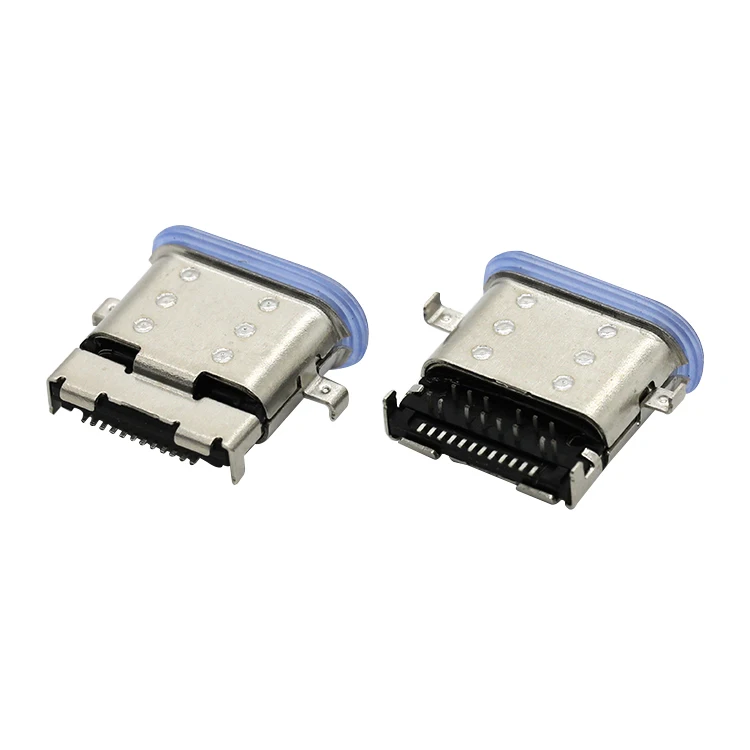

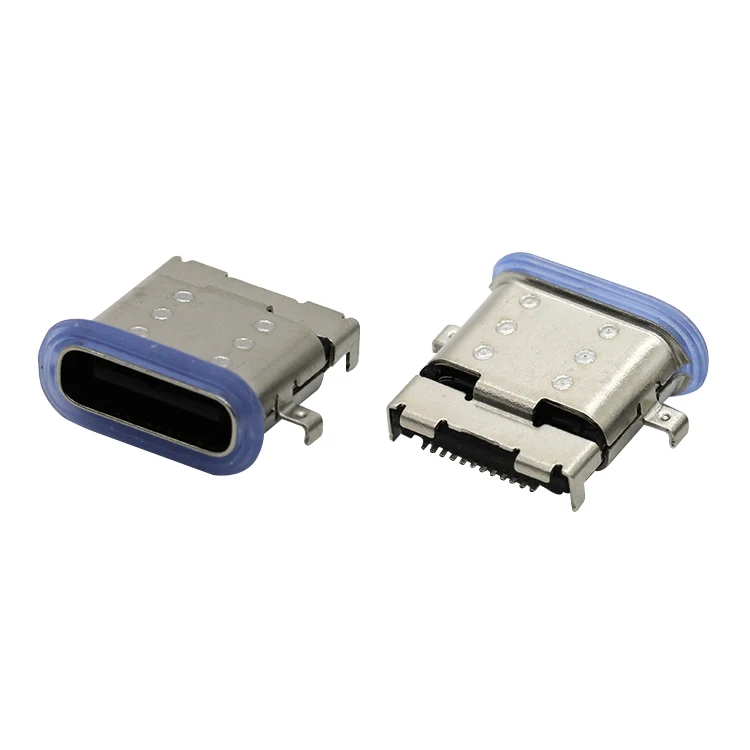

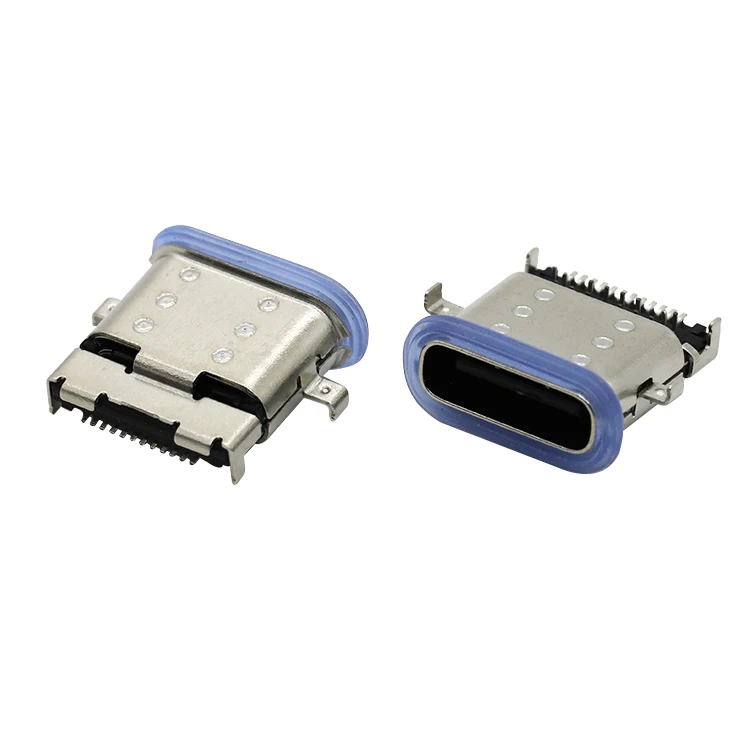

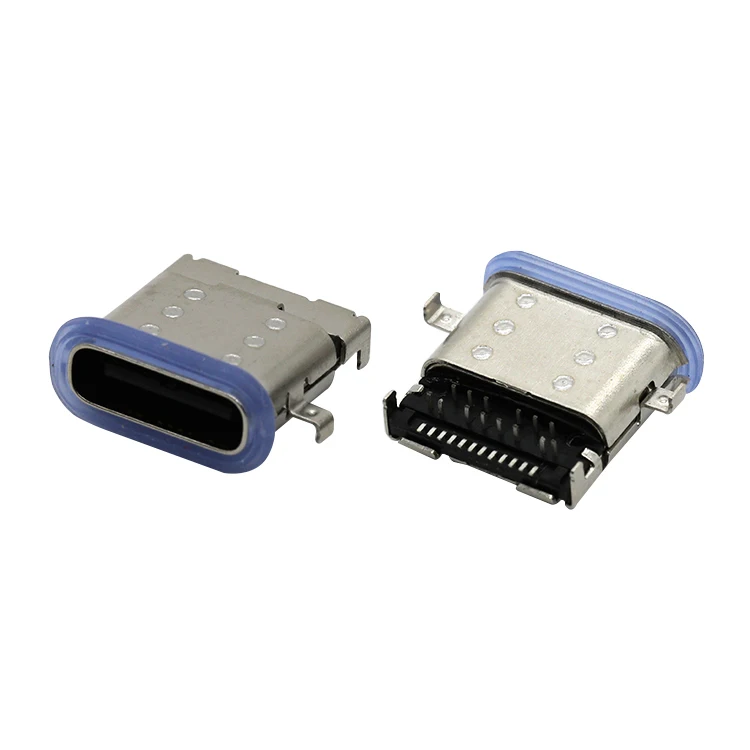

High durability 24Pin USB 3.1 C Female reversible connector IP67 Waterproof type-C Connector 3A Current rating | ||||||
WATERPROOF | IP-67 | |||||
Shell | Stainless Steel | |||||
Housing | LCP | |||||
Contact | Nickel Plated | |||||
Current Rating | 3A | |||||
Voltage Rating | 100V AC MIN | |||||
Operation Temperature | -40°C~80°C | |||||
Insertion Force | 5~20N | |||||
Removal Force | 8~20N(INITIAL), 6~20N(AFTER 10000 CYCLES) | |||||
Insulation Resistance | 40 MEGOHMS | |||||
Certification | ROHS Approved | |||||
Durability | 10000 Cycles | |||||

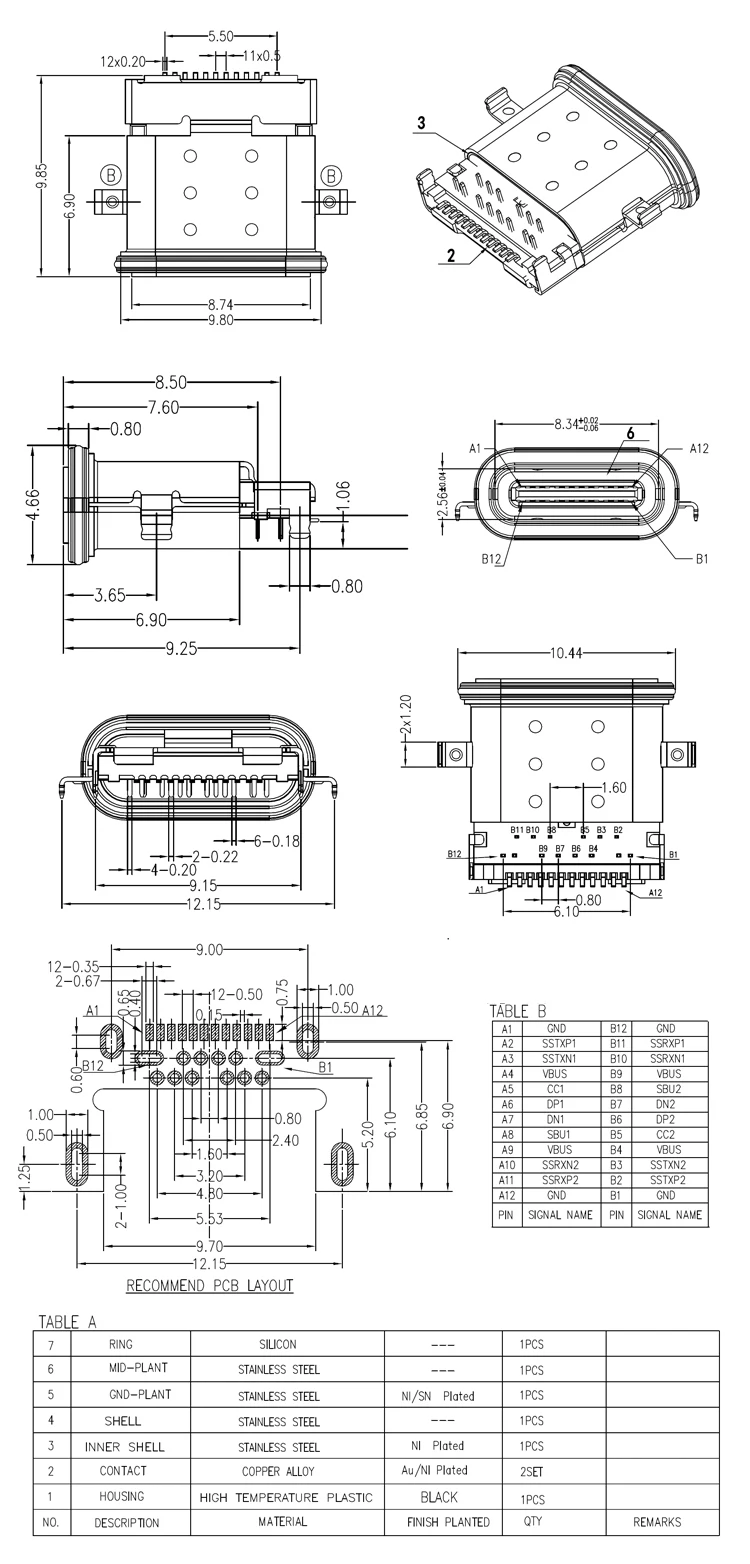

Drawing for reference:
Contact me to get PDF and 3D Drawing.
Contact me to get PDF and 3D Drawing.
Email: bella@bsc-elec.com
Tel/Whatsapp: 0086-13712299763
Skype: belle.wu3340
