selective wave soldering machine with automatic system and easy wave soldering process for led outdoor display

Product Overview

Description

  selective wave soldering machine with automatic system and easy wave soldering process for led outdoor display

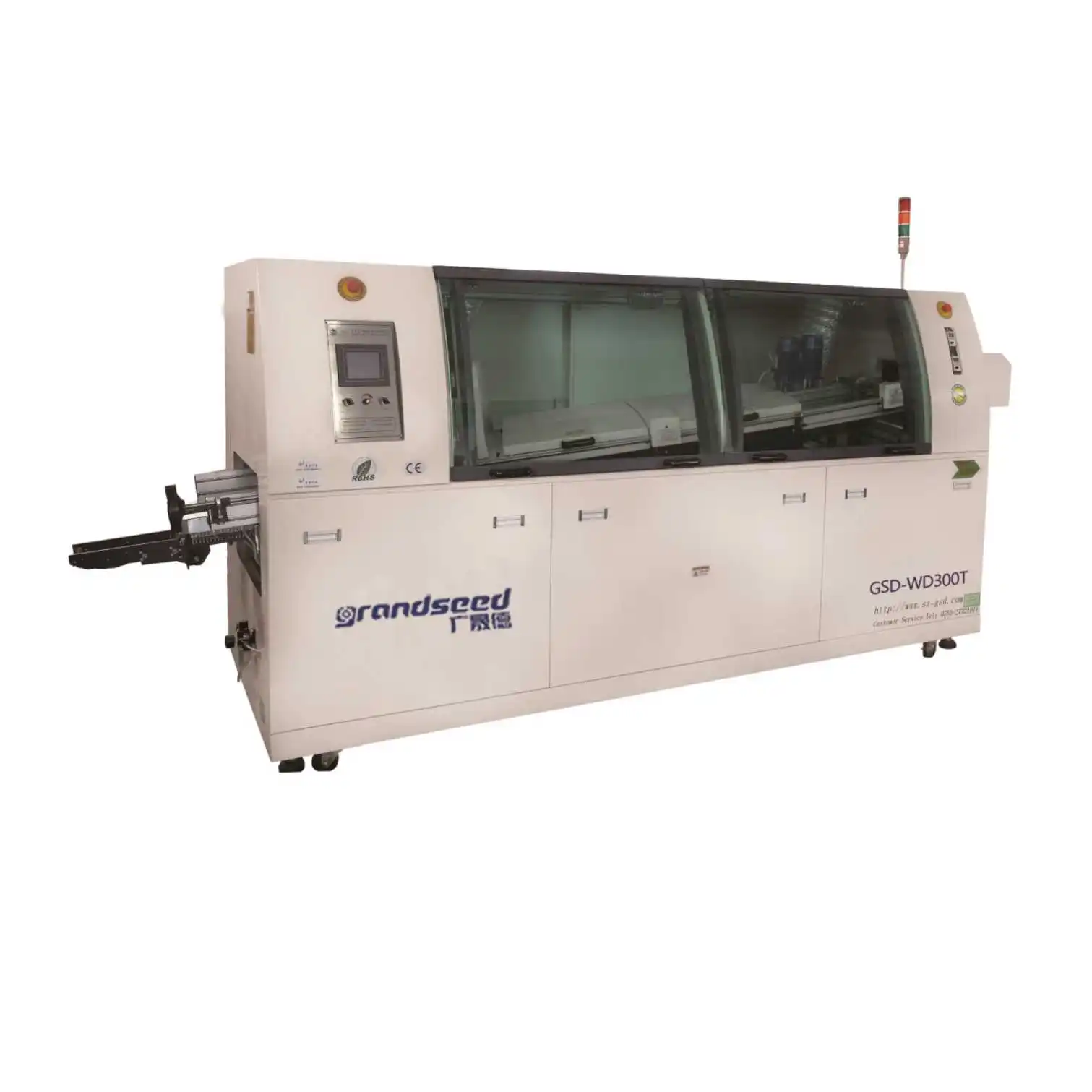

----------------    GSD-WD300T Lead free Wave Soldering Equipment







ITEMS	SPECIFICATION
Control      method	Touch screen + PLC
Conveying  motor	1P  AC220V,60W
Conveying  speed	0-2000mm/min
PCB  size	30-300mm(w)
Flux capacity	6L
Pre-heating zone	1300mm, 3 sections preheating ,room temperature--250°C
Solder pot temperature	1KW*9PCS     Zone temperature300°C
Solder pot capacity	240KG
Wave motor	3P  AC220V,      0.18KW*2PCS
Finger cleaning pump	1P  AC220V 6W
Conveying  direction	L→R (R→L optional)
Soldering angle	3—6 º
Flux  pressure	3—5 BAR
Power supply	AC380V 50HZ / 60HZ
Normal working power/ Total Power	5KW/18KW
Outside dimension	3560(L)*1200(W)*1650(H)
Dimension	2700(L)*1200(W)*1650(H)
Net weight	890KG

Features:

• Efficient,energy-saving,lead-free,environment-friendly,safe,and brand-new design,simple operation,convenient maintenance
• Automatic power system,stepless frequency control,automatic board input system
• Flux spray system using scanning spray nozzle,Japanese nozzles and rodless pneumatic cylinders and Plc control ,accurate and reliable

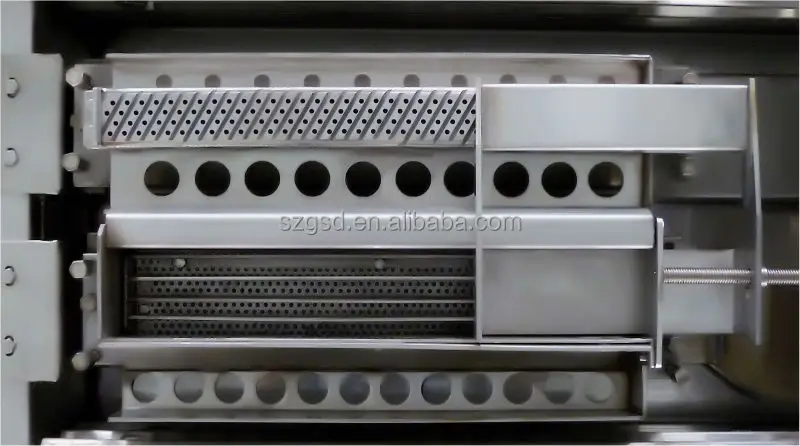

• Preheating system uses 3-stage powerful air system,excellent heat preservation ,temperature warm-up ,temperature uniformity ,no more than ±2 degrees celsius

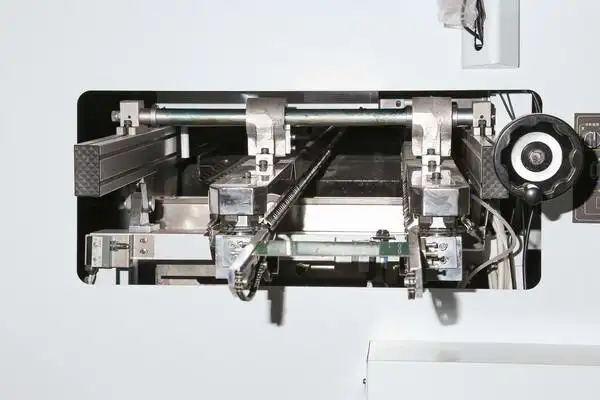

• Special alloy transportation chain claws , non-stick tin,reinforced, and ensure the quality of welding PCB board

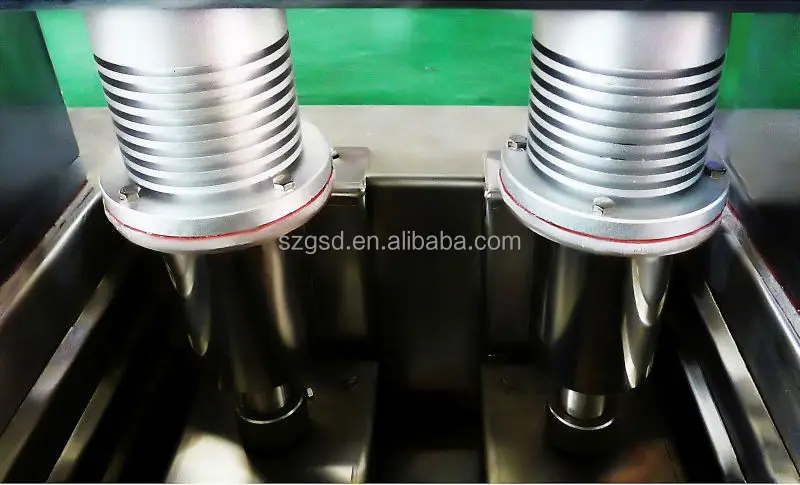

• Tin stove adopts imported high frequency stepless conversion motor independent control,stable performance
• Lead-free solder furnace with independent design ,environment protection and safety , easy to clean
• Tin heating furnace uses high-speed PID and 2-stept independent outer –heating control ,warm-up quickly and eliminates the flaws of stove tin explodes
• With time controller ,can preset switch functions ,tin stove machine heating picks up in 90minutes
• With black box memory function ,can always get at production management records , improve work efficiency
• Reasonable design of environment protection,and automatic washing claw ,ensure the cleanliness of claws
• The design is reasonable and safe with sensitive fault alarm system ,to ensure the stable performance the safety of operators
