RGB LED Dot Matrix 8 x 8

Product Overview

Description

RGB LED Dot Matrix 8 x 8 display Specification

[Φ1.9mm/Φ3mm/Φ5mm diameter dot LED matrix display]

Single color: RED/ BLUE/ GREEN/ ORANGE/ YELLOW etc.

Free sample provided!!!

a.Various emitting colors and size are available

 1     These devices are made with black surface and white segments.

 2     Scan and drive continuously

 3     Low current operation.

 4     Excellent character appearance

 5      Solid package, High stability

b. Images of LED Dot Matrix 8*8:

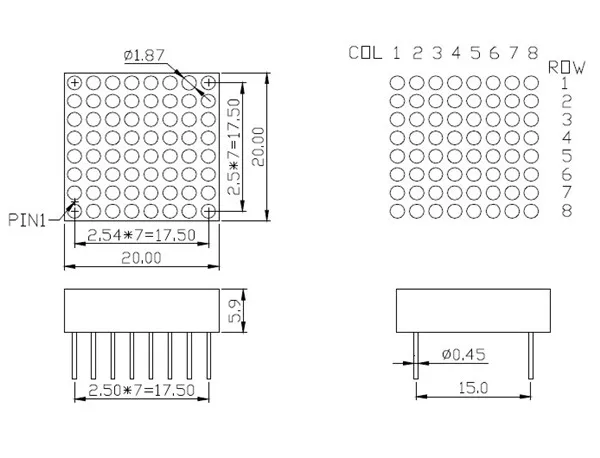

XH-788 :PIN Layout and Circuit Diagram [1.9MM 20MM*20MM Size/Dimension]

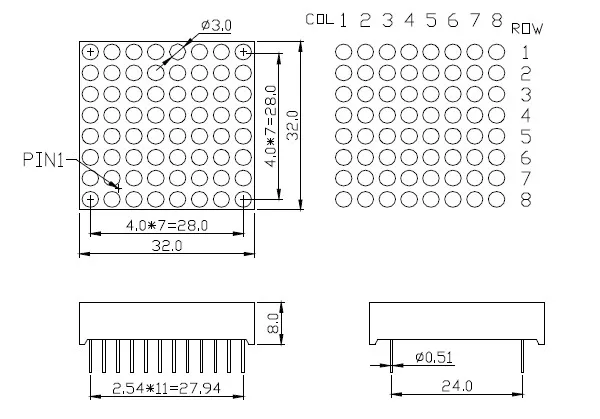

XH-12088 [3MM , 32MM*32MM Size/Dimension LED Dot Matrix,  Single /bi-color]

 XH-15088  [3.7mm, 38mm*38mm size/dimension, Single/bi-color LED dot matrix]

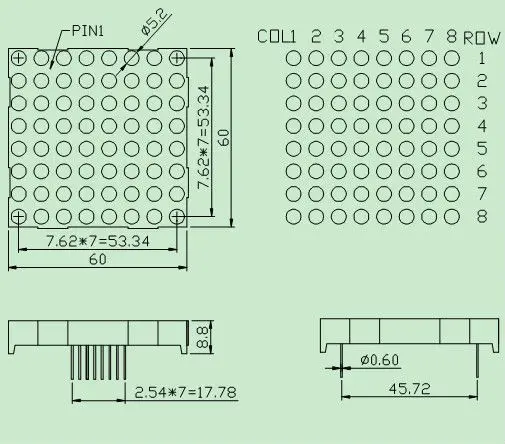

XH-23088  [5mm,  60mm*60mm size/dimension, Single/bi-color /triple color, RGB LE Dot Matrix.]

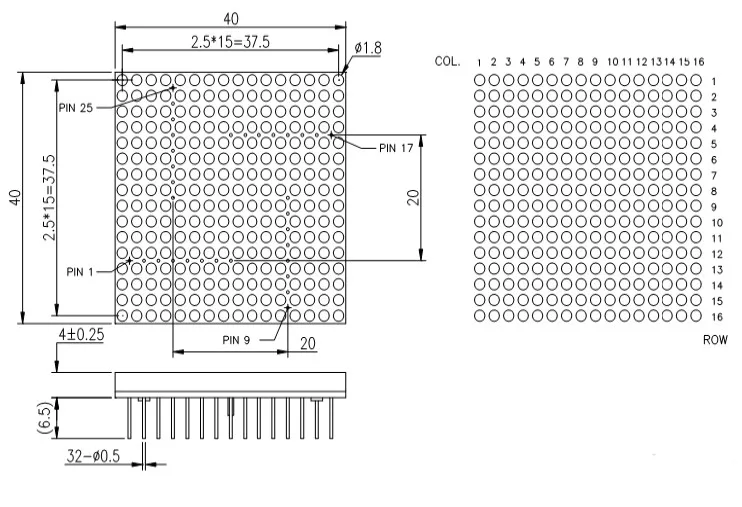

XH-1616 series [1.8mm,  40mm*40mm dimension,  Single color LED dot matrix 16*16]

c. Why  choosing Shenzhen newshine 8*8 16*16  LED dot matrix?

• Energy saving-up to 80%
• Long life 30,000 hours
• No heat, UV or infrared in the light beam
• No toxic gasses or mercury
• Easy installation

d. Payment Details:

Payment Terms:

• T/T or L/C  FOB Shenzhen
• PAYPAL ,Western Union for samples

MOQ: 10pcs      Sample: Available    Lead Time: within 1 week
