Product Overview

Description



Product Description

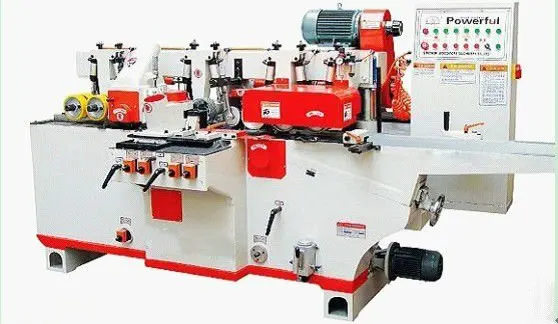

MB4013 four side wood flooring planer moulder machine with 4 side spindles


_01


Features:


1. Stable performance of 20 m / min speed from system, and can be5-20 meters of stepless speed regulation, effectively improves the production efficiency.
2. Feeding wheel adopts a cylinder pressing type feeding, can be individually adjusted feed wheel pressure, feed more smoothly.
3. With SKF bearing of high speed spindle, more effectively improve the cutting workpiece smooth.
4. Bench with actively feeding system, feeding smooth and powerful.


According to your demand, we can produce it for you.





Technical parameter:


























































Technical parameter



MB4013



Working width



18-130mm



Working thickness



8-100mm



Feeding speed



5-20m/min



Feeding power



1.5kw



Knife speed



6000r/min



Lower horizontal shaft power



2.2-2.2kw



Upper horizontal shaft power



4kw



Right side vertical knife arbor power



2.2kw



Cross beam lifting and lowering power



0.37kw



Total power



12.47kw



Max.turning circle



115mm



Total weight



1400kg

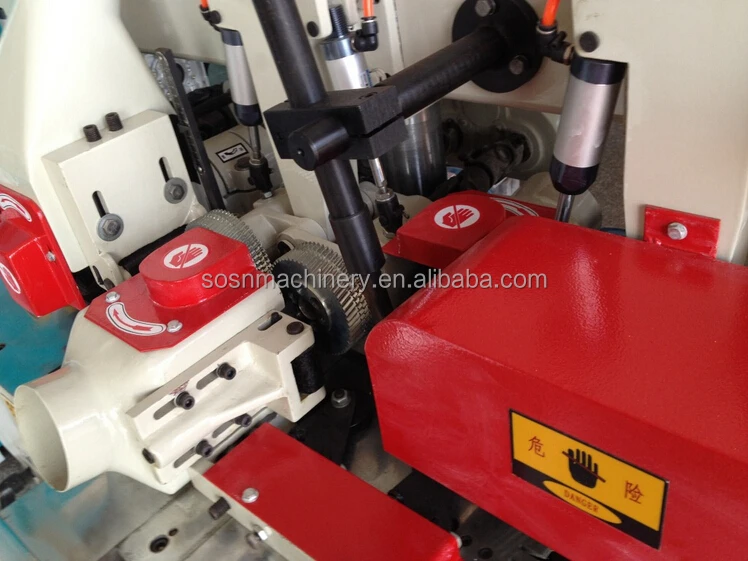

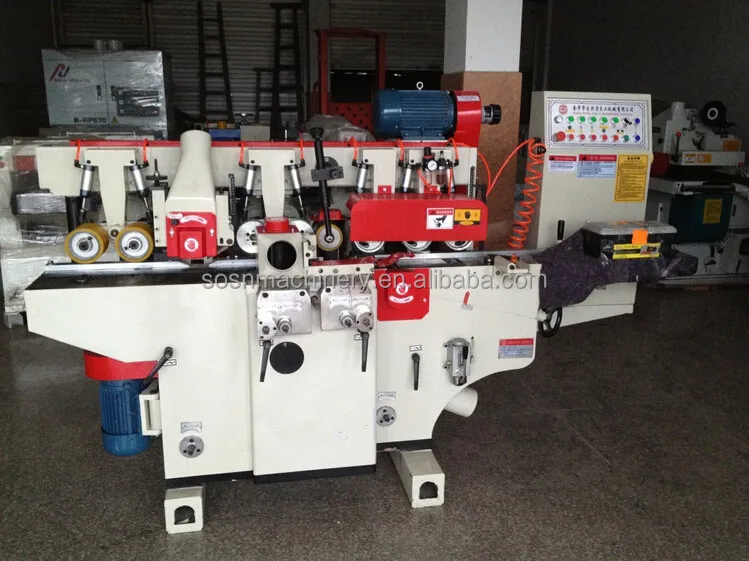

Details show:




 4013GR function.jpg





Essential Configuration:












<br{RKRTNDEWUFZ82YW9(%}Y.jpg" style="vertical-align: middle; width: 723px; height: 435px;" ori-width="803" ori-height="483"/>


















Finished Products


_03





Company Advantage


_05





Certificate&Prais


_07_08

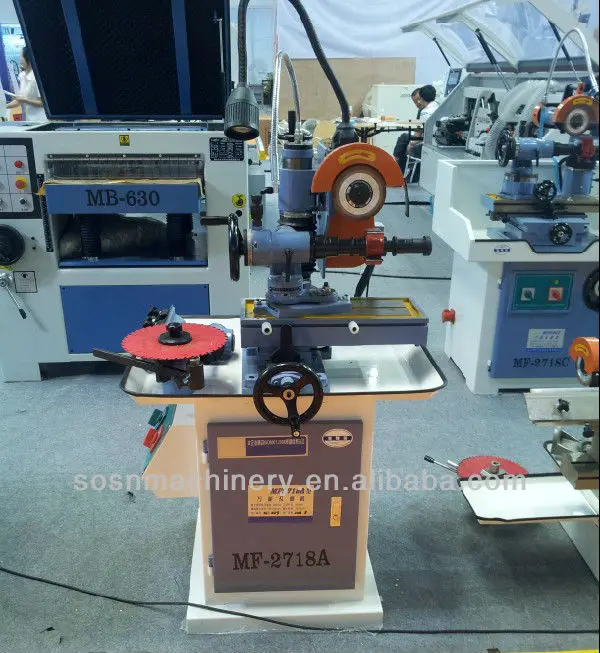

Exhibition


_06





Packaging & Shipping


_09





FAQ


_10


Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?



Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.



Q: Can you promise to deliver the machine in time?
A: Yes, we can.





Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.
