4.Taper angles up to ± 30°. Standard is equipped with ± 6° taper.
5.Molybdenum wire diameter 0.18 mm (optional).
6.Accuracy: 0.015mm,0.01mm, even 0.008mm.
7.Roughness: Ra 1.0-2.5 µm.
8.Wire speed adjustable 5m/s~11.5m/s.
9.High precision ball screw.
10.Stable and durable.
Advantages of Vertical Incorporate Controller
1, High intelligent grape exchange software system;
2, Graphically programming and vector programming;
3, 3B, G codes compatible, communicating with microprocessor;
4, DXF, AUTOP graphic document, CAD character library document;
5, Hard disk with big processing and storage capacity;
6, Return, retreat and stop functions for graphing ordinary curves;
7, Simultaneous indication of processing tracks and data, power-off memory function;
8, Interaction of four shafts, processing special shaped surfaces;
9, Parallel work, inputting program while processing;
HL, HF, AutoCut
1. Windows 98/Windows XP;
2. Industrial computer;
3. Auto CAD file can be transferred into working;
4. Return, retreat and stop functions;
5. Simultaneous indication of processing tracks and data, power-off memory function;
6. Interaction of four shafts, processing special shaped surfaces;
7. Parallel work, inputting program while processing.
Optional
1. Taper (± 15°, ± 30°);
2. Linear guide ABBA;
3. Servo motor;
4. High pressure pump;
5. DRO digital read out is optional, accuracy of 0.005mm;
6. Environmental and protection cover;
7. Higher speed control , speed up to 160 mm²/min ;
8. Multi-cut function to reach better accuracy and surface roughness;
9. Thickness up to 1000mm;
10. Color.
C

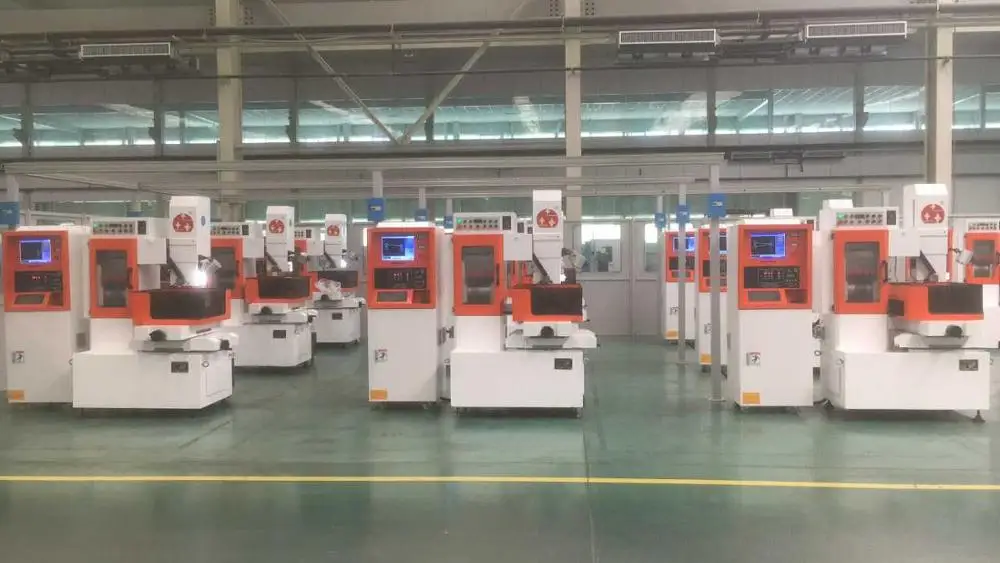

FINISHED PRODUCTS

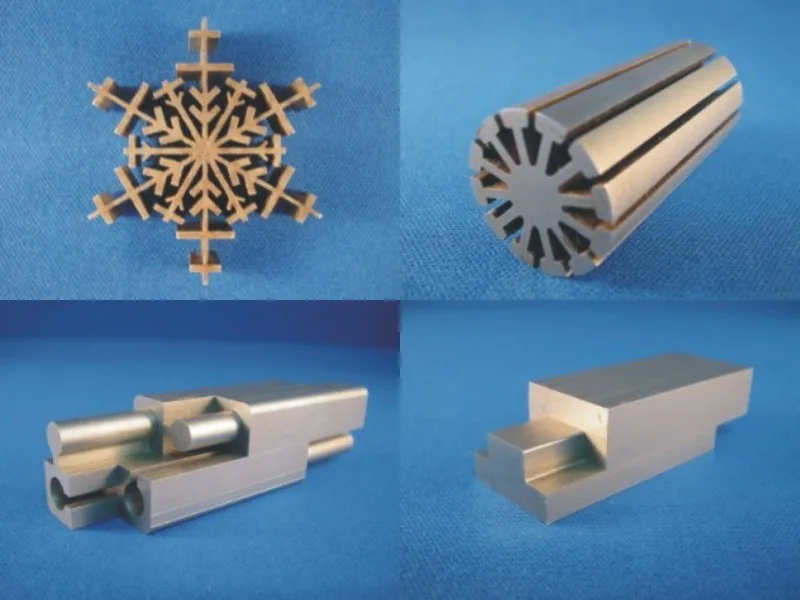

CUTTING SAMPLES
C

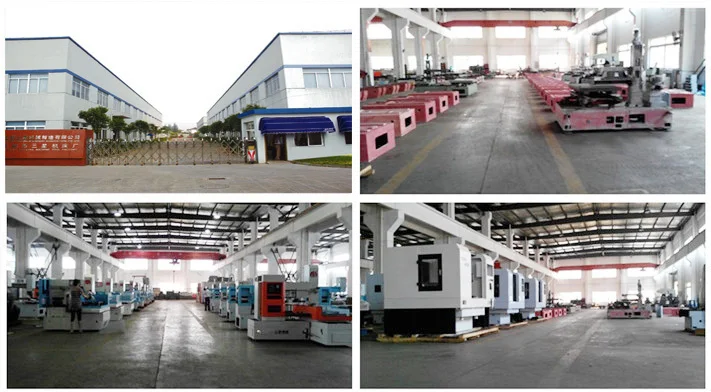

COMPANY INFORMATION
Jiangsu Sanxing Machinery Manufacture Co.,Itd was founded in 1993. The company is a high-tech enterprise integrating research and development, production and sales. Our company has been awarded IS09001-2008 international quality certificate CE certificated for Europe, and also honored with "enterprise of high-tech". Our many products are titled “high-tech products” and “provincial famous trademark”, get the Machinery Industrial Science And Technology Award and the Small & Medium Enterprises Innovation Award of the Ministry of Science and Technology, meanwhile, the products own 3 invention patents, 27 New practical patents, 3 designing patents and 7 patents during application.
P
PACKAGING & SHIPPING
♦ Packaging details: inner plastic, outer plywood case
♦ Delivery detail: 15-20 days afterpayment
Minimum order quality: 1 set
Port: Shanghai or any Chinese port
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
C
CERTIFICATIONS
F
FAQ
1. Could we use our own brand on your machine ?
Yes, we would love to accept.
2. Could your engineers go to our factory to install the machine and train our workers?
Yes, our engineers could go to your factory and assist you.
3. Can your company change the control system according our requirement ?
CNC system is optional.
