Product Overview

Description

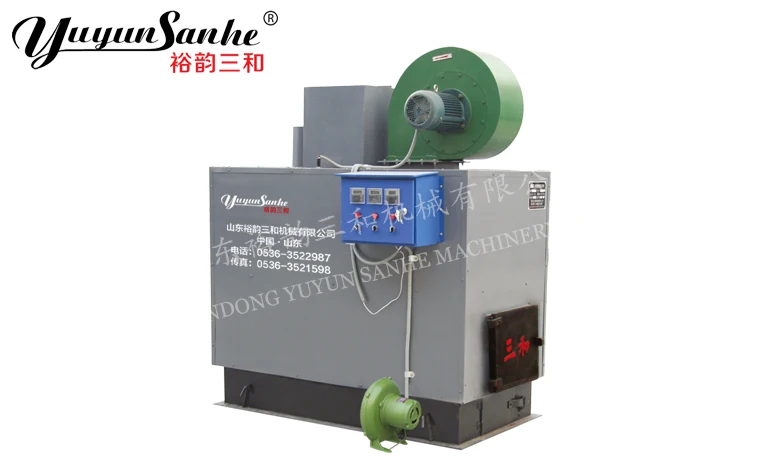

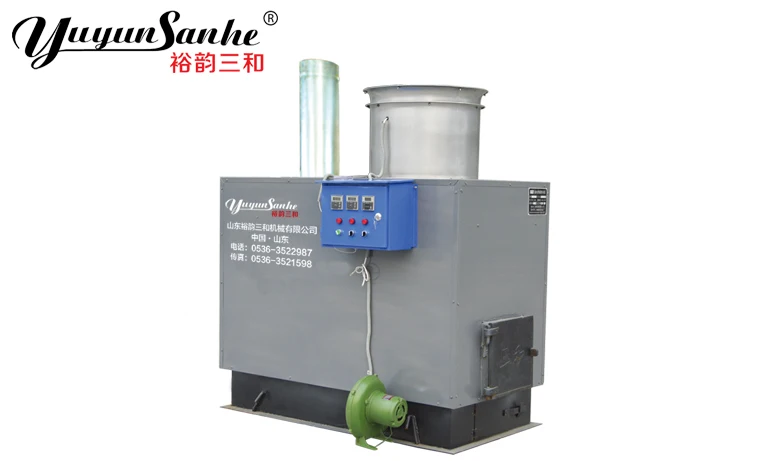

Auto Coal-burning Heater




Model
Thermal Output (kcal/h)
Rated Voltage
(v)
Air Flow (m³/h)
Fuel consumption
(kg/h)
Hot Air Temperature
(℃）
Power
(kw)
N.W (kg)
Product Size  (mm)
FSH-10
100000
220/380
4500
6-12
60-110
3
600
1400X1000X2100
FSH-15
150000
220/380
5000
10-18
60-110
3
750
1700X900X2000
FSH-20
200000
220/380
5500
15-25
60-110
5
850
2000X1100X2200
FSH-25
250000
220/380
7000
18-28
60-110
5.5
1000
2100X1100X2300
FSH-30
300000
220/380
7000
25-35
60-110
5.5
1000
2100X1100X2300


Specification:
1.Heat Exchanger adopts special three-pass design, remove dust automatically
2. Both auto-alarm and auto-protection devices are equipped
3. Fan blowers can start on and off automatically (manually)
4. Air input, hot air output and environmental temperature can be automatically controlled
5.Computer-controlled and digital-controlled for temperature controlling system is optional
6. Special heating and insulation design to minimize heat loss
7. Special designed combustion chamber , longer service life , various coal are available.
This machine combines combustion chamber with heat exchanger together. Exchange heat among the highest temperature parts, this latest indirect-heating technology make smoke and hot air walk their own way, absolutely no pollution.
8. Thermal conversion reach as high as 80%-95%, fast warming,small volume, easy installation, reliable use, and low cost. (The cost is only half, compared with the same capacity boiler )
Application:
It’s widely applied to greenhouse，poultry farm, livestock house, mining and factory buildings, also used in drying wood, tea, medicine, foodstuff and other fields.

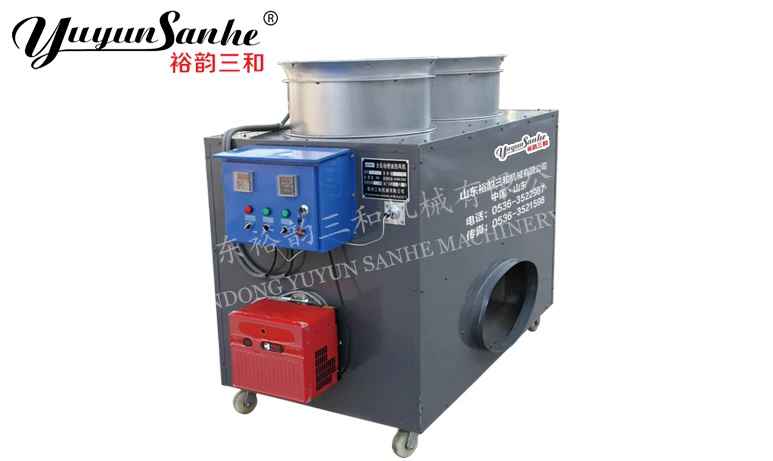

Auto Oi-burning Heater




Model
Thermal Output
Rated Voltage
Heating Area
Fuel consumption
Hot Air Temperature
Power
(kw)
Product Size  (mm)
FSH-5
50000kcal/h
220/380V
300㎡
4.9L/h
60-110℃
0.6
1400X850X1370
FSH-10
100000kcal/h
220/380V
600㎡
9.8L/h
60-110℃
1.0
1600X900X1400
FSH-20
200000kcal/h
220/380V
1200㎡
19.6L/h
60-110℃
1.2
1700X1000X1500


Specification:
1. Heating area: 300/600/1200㎡.
2. Stainless steel combustion chamber, thermal conversion can reach 90%
3. Stainless steel heat exchanger is made of high temperature resistent 321(1Cr18Ni9Ti) stainless steel plate and tube.
4. Double air inlet and outlet design.
5. Equipped with the world brand Riello burner. warming quickly. After setting, burner would automatically start on, fire, supply air and stop, keep steady temperature. Save large labor and financial resources.
6. Heat exchanger adopt the special three-pass design.
7. Special insulation design which minimize heat loss.
8. All the technical index meet the national environmental protection I standard.
Application:
It’s widely applied to greenhouse，poultry farm, livestock house, mining and factory buildings, also used in drying wood, tea, medicine, foodstuff and other fields.

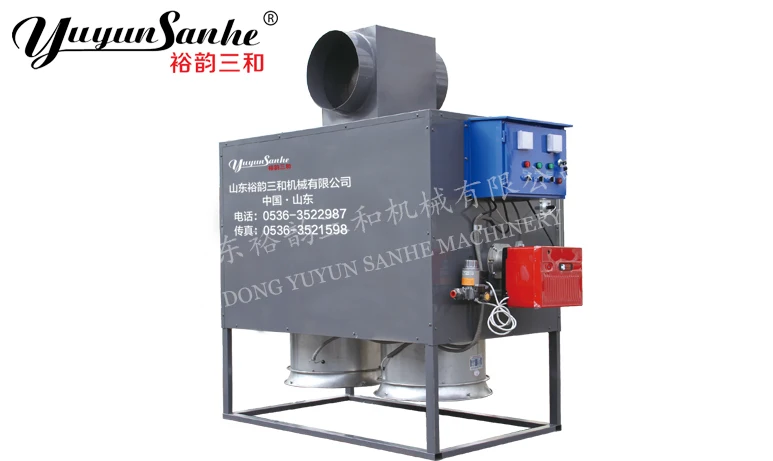

Auto Gas-burning Heater




Model
Thermal Output (kcal/h)
Rated Voltage
(v)
Air Flow (m³/h)
Fuel consumption
(kg/h)
Hot Air Temperature
(℃）
Power
(kw)
Heating Efficency
(>%)
Product Size  (mm)
FSH-5
50000
220/380
8700
5.85
40-80
0.6
95
1400X850X1370
FSH-10
100000
220/380
14000
11.7
40-80
0.7
95
1600X900X1400
FSH-20
200000
220/380
17400
23.4
40-80
1.2
95
1700X1000X1500


Specification:
1. Adopt the latest international technology, unique large volume design in combustion chamber.
2. Equipped with the world brand Riello burner ensures full combustion, higher efficiency and lower failure rate.
3. Adopt advanced corrugated furnace design,increasing heating area, resist its expanding after heated.
4. Thermal conversion can reach as high as 99.9%，stable air supply.
5. Automatic control system, easy operation, quick warming. After setting, burner will automatically start on, fire, supply air and stop,keeping steady temperature.
6. Special insulation design which minimize heat loss.
7. All the technical index meet the national environmental protection I standard.
Application:
It’s widely applied to greenhouse，poultry farm, livestock house, mining and factory buildings, also used in drying wood, tea, medicine, foodstuff and other fields.

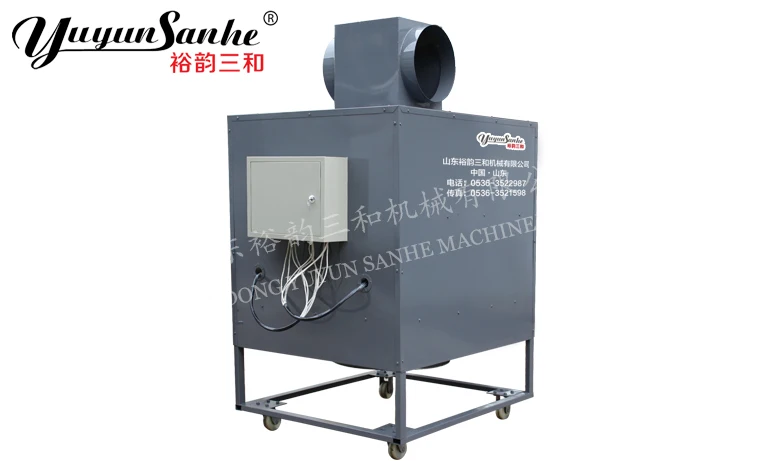

Auto Electric Heater




Model
Thermal Output (kcal/h)
Rated Voltage
(v)
Air Flow (m³/h)
Rated Power (kw)
Hot Air Temperature
(℃）
Heating Area
(㎡）
Heating Efficency
(>%)
Product Size  (mm)
30KW
25000
220/380
8700
32
60-120
300-600
99
1100X1100X1800
50KW
40000
220/380
14000
52
60-120
600-800
99
1400X1100X1800
80KW
65000
220/380
17400
83
60-120
800-1000
99
1600X1100X1800
120KW
10000
220/380
20000
123
60-120
1000-1200
99
1800X1200X2200


Specification:
1. Automatic control, quick temperature rising, high thermal efficiency, long service life.
2. There is a special isolation and overheating protection device setting between internal heating element and outer housing.
3. No oxygen consumption, no smoke, no smell, no moisture, low noise.
4. Thermal conversion can reach as high as 99.9%.
5. Low noise when running, smooth working, easy installation and maintenance.
6. Adopt artificial intelligent instrument, clear and easy to operate.
Application:
It’s widely applied to greenhouse，poultry farm, livestock house, mining and factory buildings, also used in drying wood, tea, medicine, foodstuff and other fields.


Certificate


Yuyun Sanhe Company have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise",  "Alibaba Assessed Supplier".  International authority certified, Trustworthy
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"

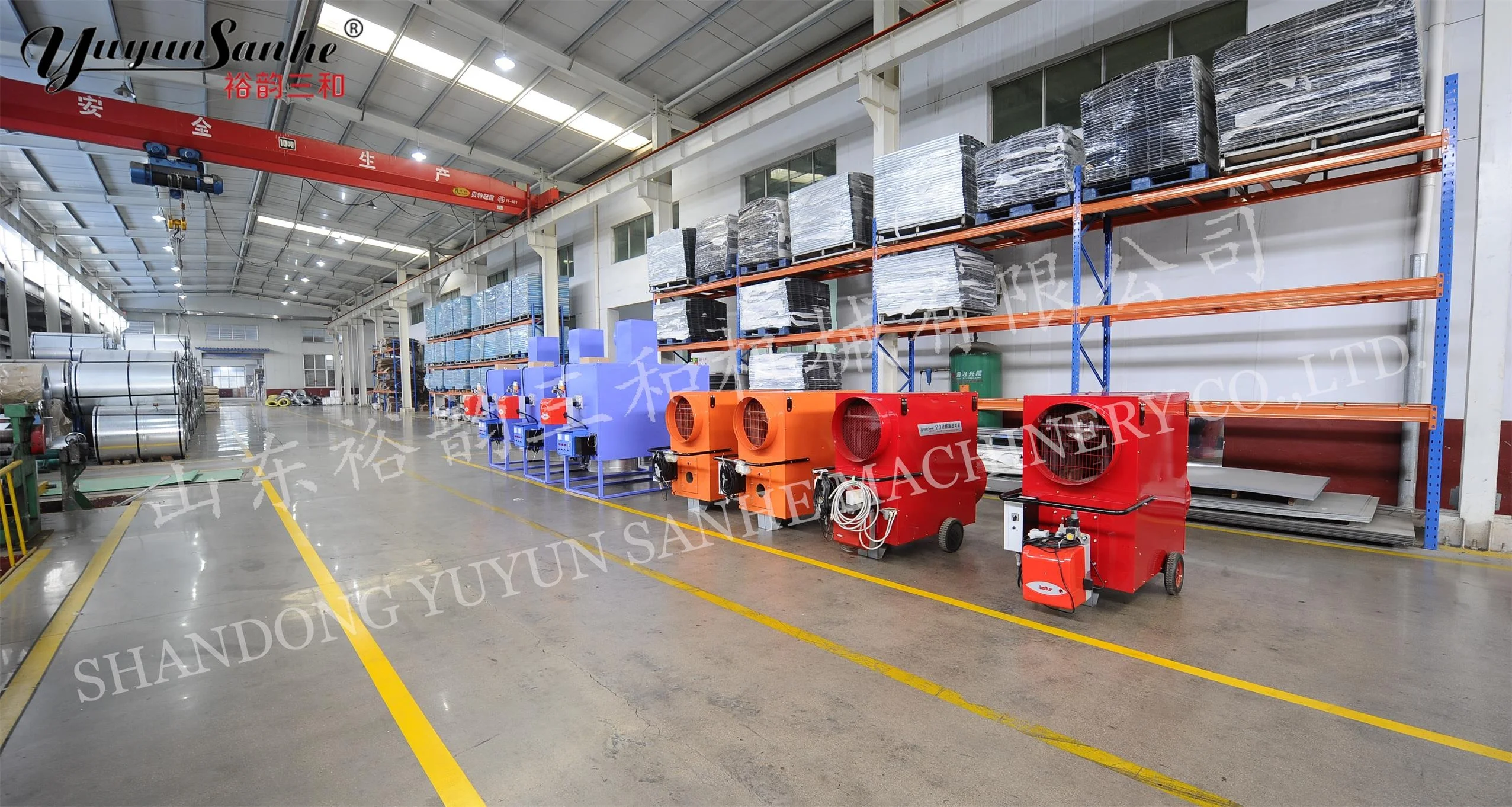

Factory&Workshop
