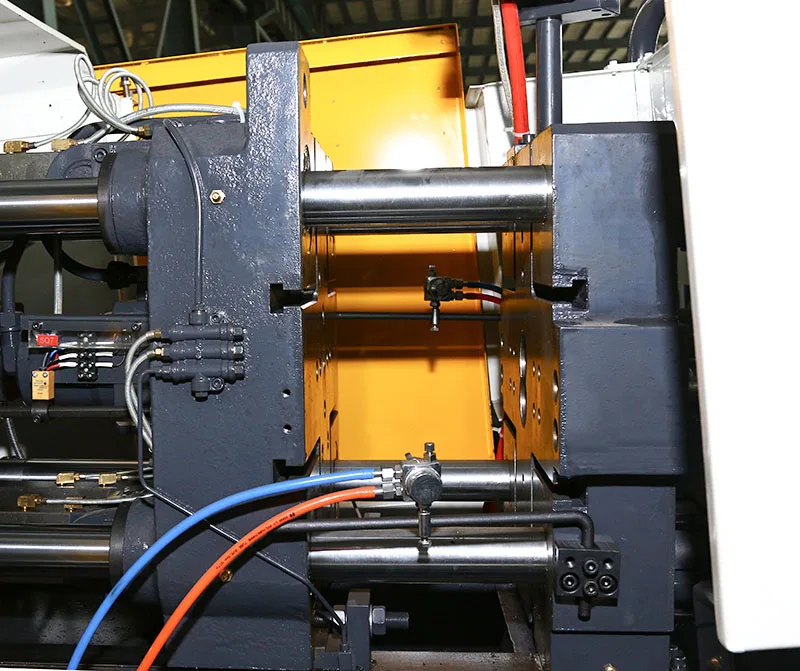

680kN Hot chamber lead & zinc metal casting machine

Product Overview

Description

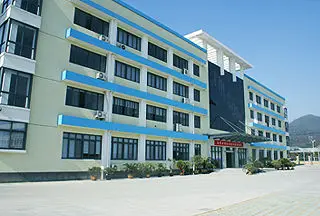

About us

In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service.  We are devoted ourselves to higher and better die cast technology in die casting are in China.

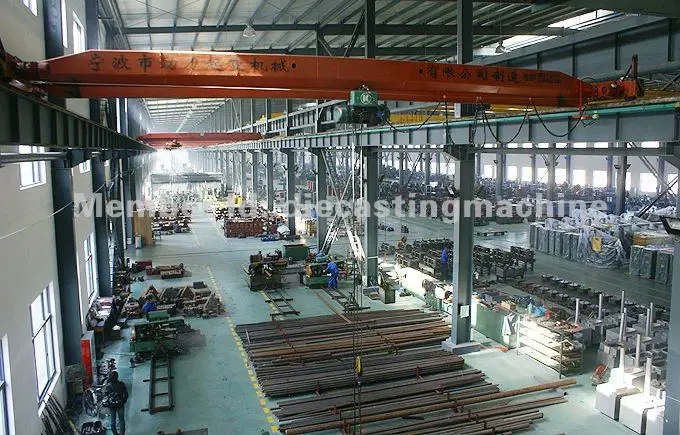

* With a history about  40 years                        * Factory Area : 40,000 square meters

*Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center            * Main Machines: 100sets





We are engaged in offering a wide gamut of Casting Machine at market leading prices. Our products are widely demanded due to their longer functional life, high efficiency  and low maintenance. These are applicable in various production industries and are  highly appreciated by our clients.



Hot chamber die cast machine

 We can supply hot chamber die casting machine  with the die locking force from 160kN to 1900kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.



Features and applications  for YSH66 die cast machine

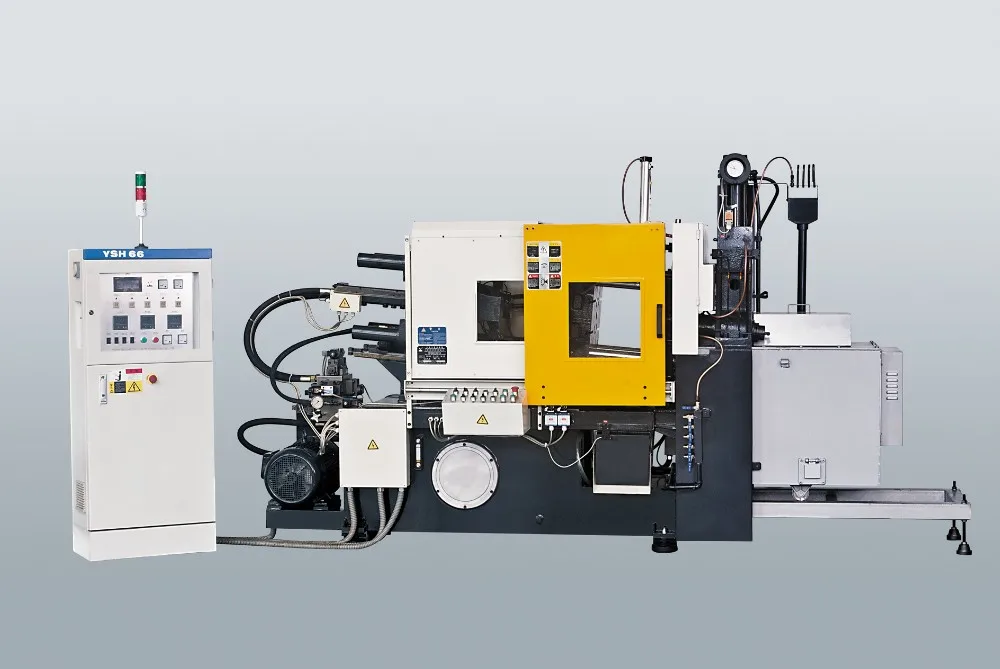

1.68T hot Chamber Die Cast Machine

2.Suitable for zinc and lead alloy with low melting point

3.Computer-programmed

4.Energy saving

5.Trouble location and remote controlled



This die cast machine is suitable for die casting of non-ferrous metal with low melting point, such as Zn, Pb and its alloy. It is widely applied for die casting of fittings of automobile and motorcycle, as well as parts for instrument or meter and household appliance hardware of daily necessities.



YSH66 is convenient and time-saving and effortless in operation and maintenance. The process parameter of die casting can be designated through programming controller.



YSH66 die cast machine has advantage of energy saving. The trouble location and adjust of machine are remote controlled, via communication net.

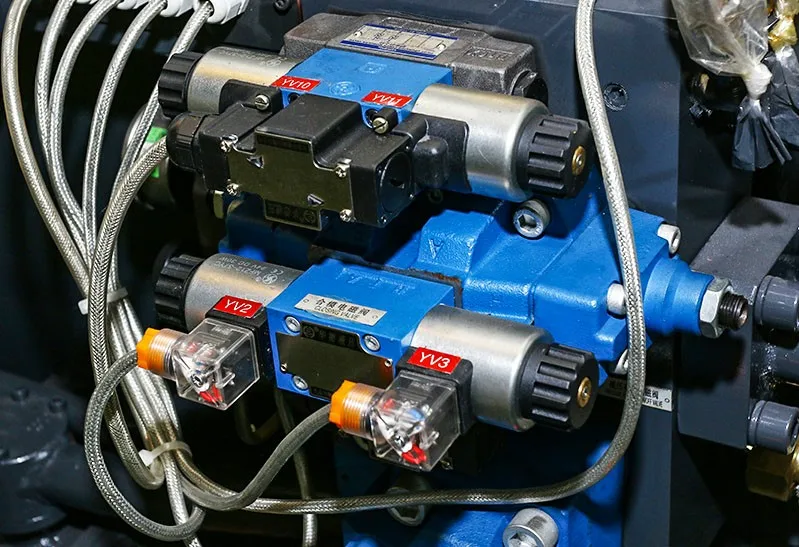

The machine proper has stable and reliable performance of operation, as it is consisted of high quality electric and hydraulic units.



The machine proper has stable and reliable performance of operation, as it is consisted of high quality electric and hydraulic units.



The project	unit	YSH66
Die locking force	kN	680

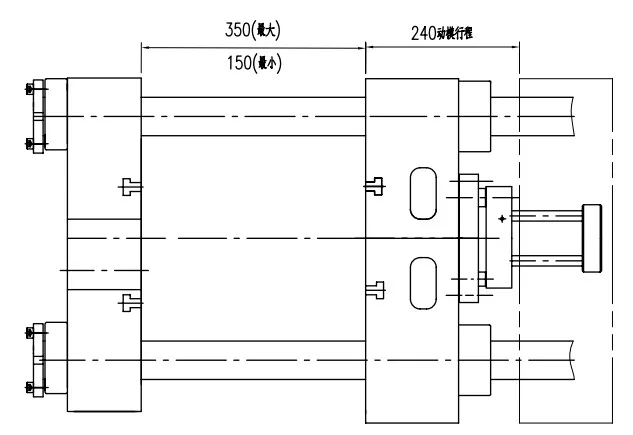

Stroke of movig platen	mm	240

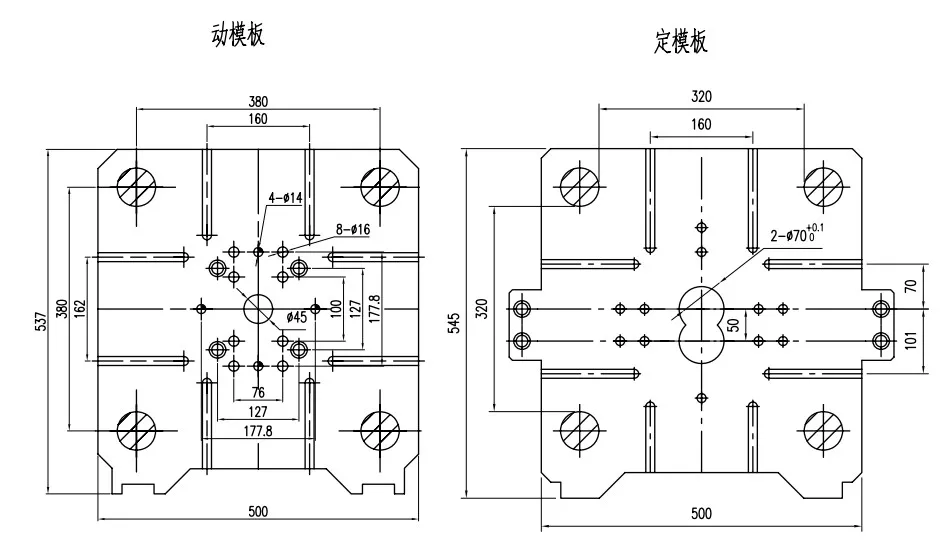

Inner space between the bars(HxV)	mm	320x320
Thickness of die block (HxV)	mm	150x350
Injection force	kN	66
Injection stroke	mm	130
Ejection force	kN	60
Ejection stroke	mm	60
Diameter of shot sleeve	mm	50
Max projecting area of casting	cm2	202
Working pressure of vane pump	MPa	12
Motor power	kW	11
Dosage of fluid metal per shot (zinc)	kG	1.5
Effective volume of crucible(zinc)	kG	250
Oil consumption of burner	kg/h	1.5-6.0
Volume of oil tank	kG	280
Machine weight	kG	3950
Overall dimensions (L*W*H)	mm	3900x1500x2000
