Smooth movement of ore flow, even pulp mixture, less power consumption; The air enters the tank through the transmission hollow shaft, and the air disperse evenly with the blade agitation; Compact structure, easy to maintain; Hollow shaft is ventilated to the bottom end, and the air enters into the tank with uniform distribution and small bubbles; Adopt two new impellers, the agitation tank is featured with large impeller diameter, low rotation speed, small power consumption, which can reduce the wear of carbon; Moderate agitation intensity, and uniformly distribution in pulp concentration and fineness, which can improve the leaching rate of cyanidation and the adsorption rate of carbon. The impeller of this leaching tank is lined with wear-resistant rubber, low rotation speed and long service life.
Application
Leaching Tank — Application
Dual impeller Gold Leaching Tanks is applicable to carbon process and rubber chemical process.
Working principle
Leaching Tank — Working principle

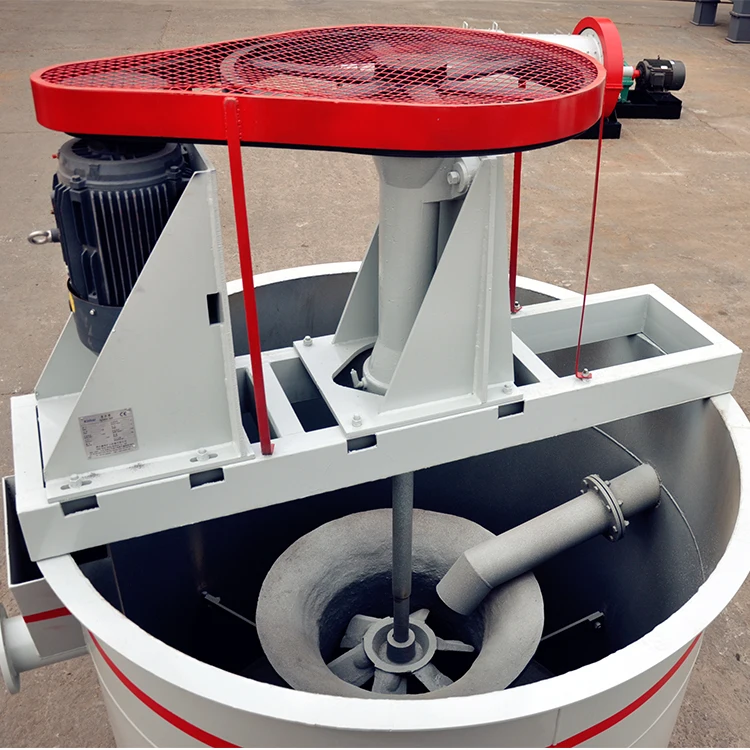

Gold Leaching Tanks bank is equipped with other auxiliary devices like carbon screen and carbon pump, etc. Made of steel and covered with rubber, upper impellers and lower impellers are connected with blot which improves balance capacity and service life. Main shaft is divided into two layer and linked by flange and reduces the slinging height. Multiple and disperse air holes can ensure the performance of mixing air and liquid.
Technology parameter
Leaching Tank — Technical parameters
Model
Tank dimension diameter ×height (mm)
Effective volume (m³)
Impeller speed (r.p.m)
Impeller Diameter (mm)
Motor model
Motor power (kw)
Planetary Cycloid Reducer model
Tank Weight (kg)
Gross weight (kg)
SJ2.0×2.5
2000×2500
6
52
909
XLD-4
2.2
XLD2.2-4-29
1609
2144
SJ2.5×3.15
2500×3150
13.14
935
2241.36
3095
SJ3.0×3.0
3000×3000
18
40.85
1130
XLD4-4
4
XLD4-5-35
3391
4583
SJ3×3.15
3000×3150
18.93
43
XLD-4
2801.12
4160.6
SJ3×3.5
3000×3500
21
XLD-4-5
2974.69
4334.6
SJ3.15×3.55
3150×3550
24
1260
XLD-4-5-35
3330.15
4322.8
SJ3.5×3.5
3500×3500
30
52
1310
XLD5.5-5.29
5.5
XLD5.5-5-29
4285.6
5025
SJ3.5×4
3500×4000
32.7
4630.6
5429
SJ3.55×4.0
3550×4000
33.6
43
XLD4-5-35
4
XLD4-5-35
4059.6
5025
SJ3.7×4.2
3700×4200
38.4
42
XLD4-5-43
XLD4-5-43
5057.76
6153
SJ4.0×4.5
4000×4500
48
35
1750
XLD7.5-7-43
7.5
XLD7.5-7-43
6105.17
7569
SJ4.5×5.0
4500×5000
71.57
1750
XLD7.5-7-43
7505.78
10864
SJ5.0×5.6
5000×5600
98
31
2046
XLD11-8-47
11
XLD11-8-47
10482.4
14291
SJ5.5×6.0
5500×6000
112
2100
14209
18745
SJ7.0×7.5
7000×7500
245.4
21
2400
XLD22-10-47
22
XLD22-10-47
22090.22
29030
SJ7.5×8.0
7500×8000
268.6
2900
Y225S-8
18.5
24594.36
32796
SJ8.0×8.5
8000×8500
342
16.4
3200
Y250M-8
30
XLD22-11-59
33488.82
42467.3
SJ8.5×9.0
8500×9000
395
18.5
3300
Y250-8
36695.5
46623
