Seamless UV resistant jacketing solar water heater tube doul way solar tube

  doul way solar water heater tube  ,Smart Design,:Twin pipe-- 2 x flexible corrugated stainless steel tubes (feed and return), Twin pipe--2 x EPDM insulation pipe ,Seamless UV-resistant Jacketing, 2-wire Silicone-sensor line.

l         Flexible high-grade stainless steel tube SUS304,SUS316L

l         EPDM insulation pipe, up to 175 °C (347 °F) operating intermittent.

l        Seamless Jacketing. UV resistant and high mechanical resistant protective

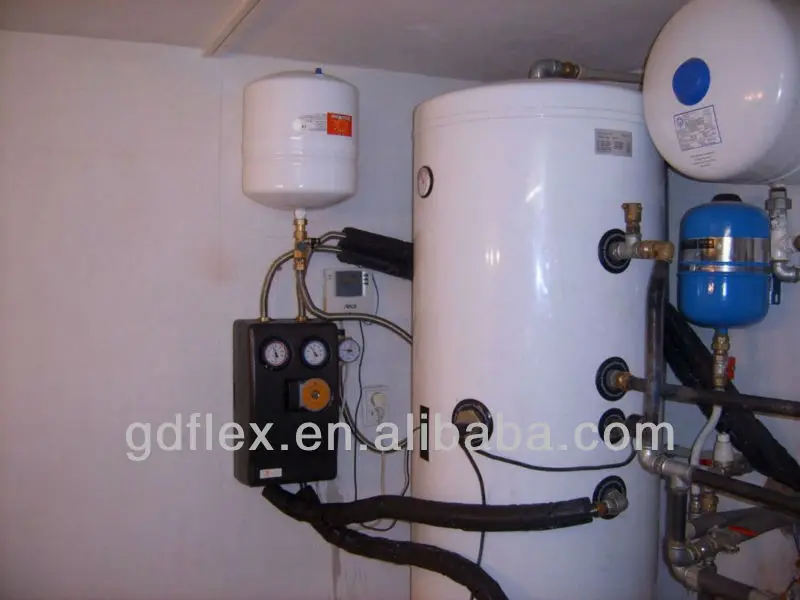

twin-way pre insulated stainless steel solar hose Application: Piping systems for solar hot water, heating, heat pumps and air conditioning technology indoor, out door or underground piping system.

dual pre insulated solar tube Performance Data

CORRUGATED FLEXIBLE STAINLESS STEEL TUBE : Flexible high-grade stainless steel tube 316L(or 304) for a temperature range of -196 °C to +600 °C. Maximum pressure 17.5 bar; Rated burst pressure 200 bar

EPDM INSULATION PIPE  , light, flexible, closed cell, synthetic caoutchouc; free of

PVC and non- CFC. Material class: B1 according to DIN 4102. operating intermittent up to +175°C

SEAMLESS JACKETING  outside of EPDM INSULATION pipe: means the jacketing coated on the insulation pipe is with a super high density water proof polyolefin copolymer jacketing. have excellent performance of Seamless UV-resistance ,water proof and bird peck-Protective

TEMPERATURE SENSOR WIRE Wire insulation material is silicon, work temperature range from from -200°C to +200°C,flexible copper 0.75 0.75mm² , Rated voltage 300/500v ,electric resisteace 23.0 Ohm/km

Seamless UV resistant  Jacketing
