Интеграл быстрозажимный сверлильный патрон с BT,DIN69871 конических фрез, таких как BT30 APU13,BT40 APU13,BT40 APU16 и т. д.

Product Overview

Description

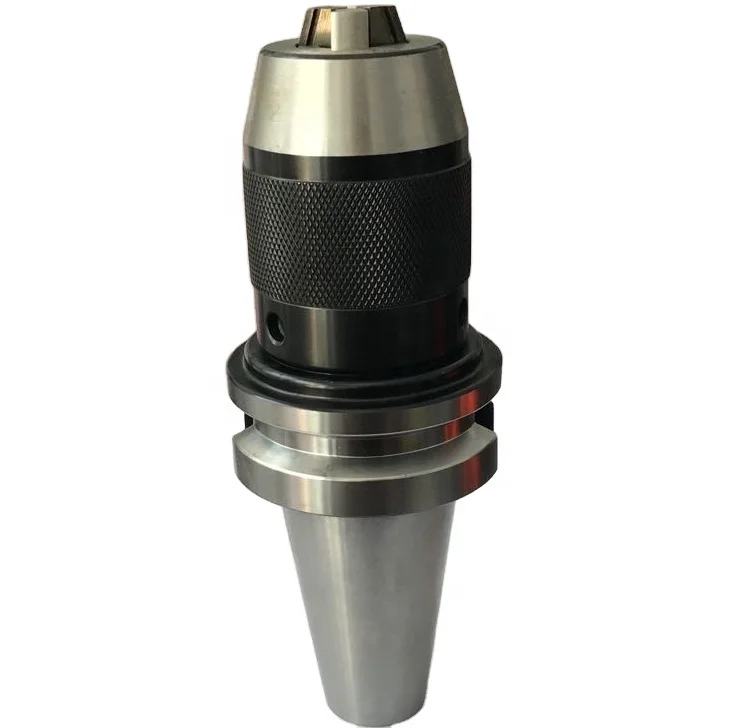

integral  keyless drill chuck with BT,DIN69871 standard:



They are mainly used for heavy duty and high speed drilling.

1.This integrated design can prevent drill chuck separate accidently with arbor.

2.High precision,big grip force,high Reliability.

3.Flimsy parts are shaped by quenching.

4.Self-tighting feature automatically increase gripping proportional to incrased torque to prevent tool shank sliping.

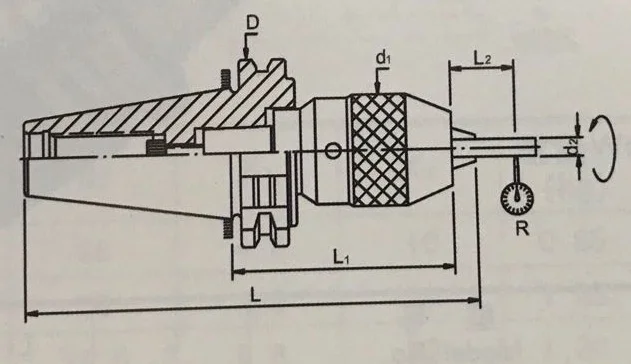

model	L1	L	L2	D	d1	d2	R
BT30xAPU8-80	80	137.4	55	46	37	6	0.04
BT30xAPU13-110	110	170.4	75	46	50	13	0.04
BT30xAPU16-110	110	180.4	80	46	57	16	0.04
BT40xAPU8-85	85	159.4	55	63	37	6	0.04
BT40xAPU13-100	100	177.4	75	63	50	13	0.04
BT40xAPU16-105	105	187.4	80	63	57	16	0.04
BT50xAPU8-90	90	200.8	55	63	37	6	0.04
BT50xAPU13-110	110	213.8	75	100	50	13	0.04
BT50xAPU16-105	105	223.8	80	100	57	16	0.04





Model No.	L1	L	L2	D	d1	d2	R
DIN69871.30xAPU8-80	80	139.8	55	50	37	6	0.04
DIN69871.30xAPU13-120	120	179.8	75	50	50	13	0.04
DIN69871.30xAPU16-125	125	179.8	75	50	57	16	0.04
DIN69871.40xAPU8-75	75	155.4	55	63.55	37	6	0.04
DIN69871.40xAPU13-100	100	180.4	75	63.55	50	13	0.04
DIN69871.40xAPU16-115	115	195.4	80	63.55	57	16	0.04
DIN69871.50xAPU8-75	75	188.75	55	63.55	37	6	0.04
DIN69871.50xAPU13-100	100	213.75	75	97.50	50	13	0.04
DIN69871.50xAPU16-105	105	218.75	80	97.50	57	16	0.04





:
