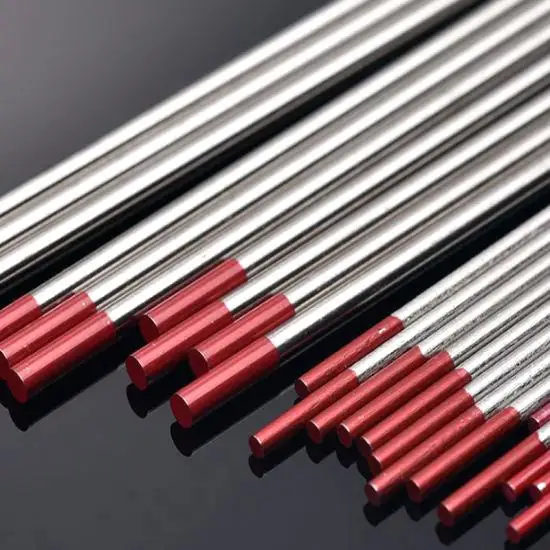

thorium tungsten electrode(WTh20)

Product Overview

Description





--------Description----------------







1) Thoriated tungsten electrode is the most widely used welding material.



2) 2% Thoriated Tungsten contains 2% thorium oxide (ThO 2 ) that is dispersed inside the whole length of the Tungsten rod.



3) 2% Tungsten electrode provides excellent resistance from weld pool contamination and offers the welder easier arc starting capabilities and a more stable arc.







-------- Characteristic ----------------





Applications characteristics	Current
High quality tungsten electrodes for TIG WELDING	AC/DC
Easy to run at low or high temperatures
With high current load ability
Stable arc
Works best on stainless steel, carbon steel, nickel alloy, titanium metal





1) 2% thoriated tungsten contains a nominal 2wt-% or thorium oxide (tho2) that is evenly dispersed throughout the entire length of the tungsten. The most common type of tungsten used today. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Generally used for DC electrode negative or straight polarity applications such as carbon and stainless steels, nickel alloys and titanium.

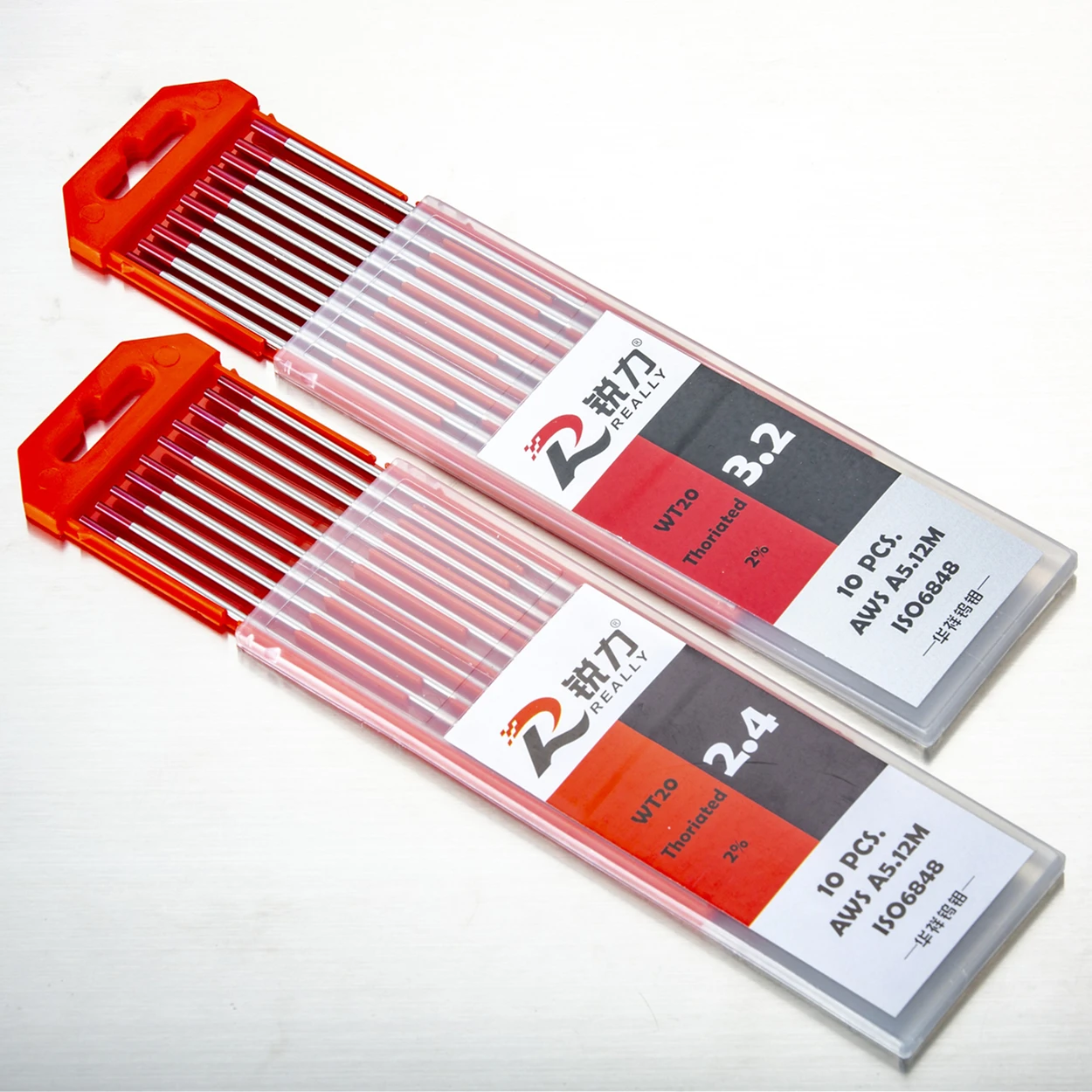

2) color mark: WT20 (red)

3) other impurity: _0.20%

4) diameter: 1.0 - 12.0mm

5) length: 50.00, 75.00, 150.00, 175.00mm,178MM

6) quality of surface: Ground finish, Polish finish











--------Technical Parameters ----------------











-------- Package Detail----------------









--------Our WorkPlace ----------------
