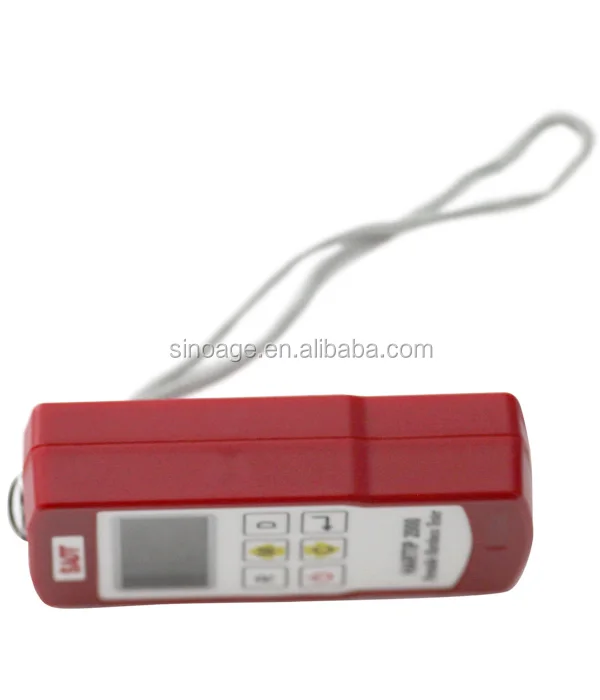

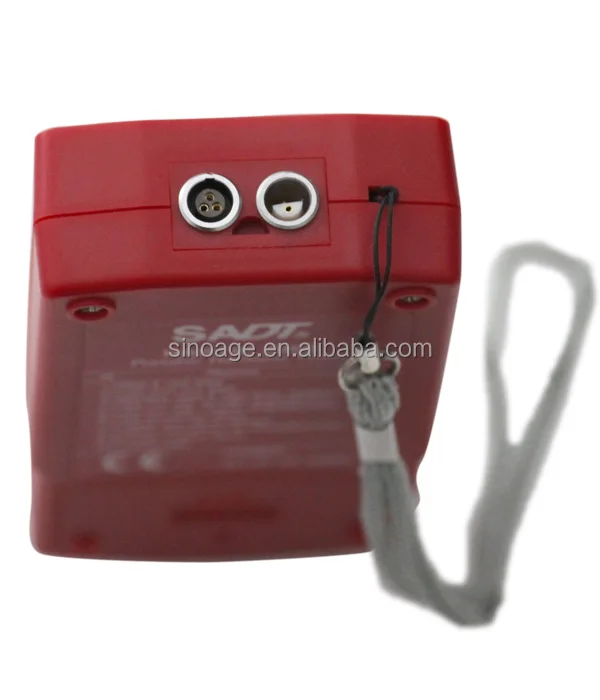

Digital portable sclerometer HARTIP 2000

Share on (658420862):


Price:

Quantity:


Product Overview

Description



Introduction





HARTIP 2000 hardness tester is an innovative portable Leeb hardness tester with our new patent technology. Which make HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method. HARTIP 2000 is also a cost saving hardenss tester and has many other features.like "Universal Angle; More accurate: ±2 HL;Linear accuracy for any angles;No need to setup impact direction;No compensation for impact direction.


Key features:



  • High accuracy: +/-2HL( or 0.3% @HL800)

  • Dual values( Leeb value and one conversion value) can be displayed at the same screen

  • Big LCD display with backlight

  • Ten testing materials including forged steel

  • It has strength conversion value

  • Bluetooth / RS232 interface, it can connect micro-printer directly

  • 999 data for memory

  • Customer re-calibration allowed

  • Power on/off automatically

  • More economic and more convenient to use.

  • Packed in water-proof and rigid carrying case










Specifications


























































































Model



HARTIP 2000/HARTIP2000 DL



Principle



Leeb hardness measurement



Accuracy



±0.3% @ HL=800, Repeatability: ±2HL



Display



Digital LCD with backlight



Hardness scale



HL/HRC/HRB/HB/HV/HS/σb



Measuring range



HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5



Impact device



D / D-DL 2-in-1 (External)



Impact direction



Universal angle type



Materials



11 common metal materials



Memory



300 data can be stored and re-readable



Statistics function



Calculated automatically



Recalibration



Allowed by user



Interface



Bluetooth / RS232 to Micro-printer



Indicator



Low battery



Power off



Auto



Power supply



1.5V AA alkaline battery x 2



Working environment



-10~+40ºC



Standard



Conforming to ASTM A956



Dimension (mm)



124x67x30



Net weight (g)



240

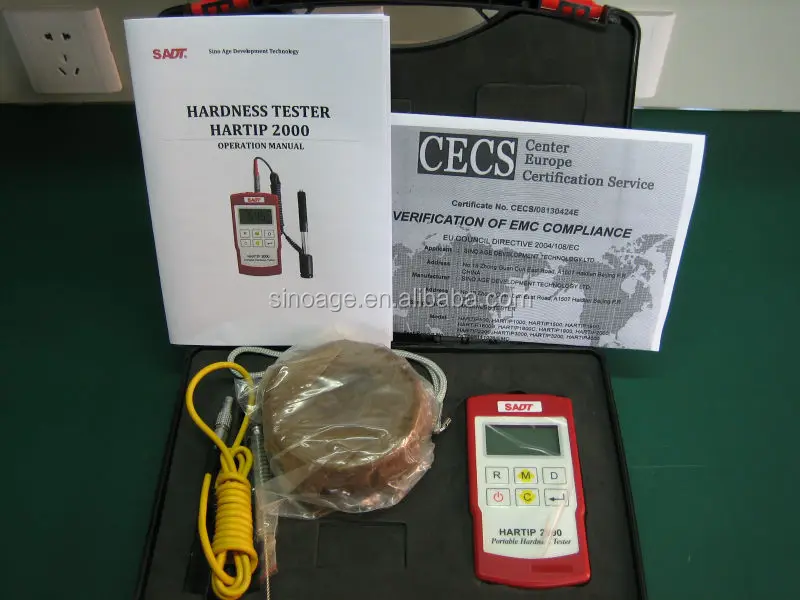

Standard package









HARTIP 2000/2000 D&DL
HARTIP 2000 main unit 1
Probe D(for HARTIP2000) 1
Probe D&DL 2-in-1(for HARTIP2000
D&DL) 1
Test block D 1
Small support ring 1
Cleaning brush 1
Operation manual 1
Test certificate 1
Carrying case 1
