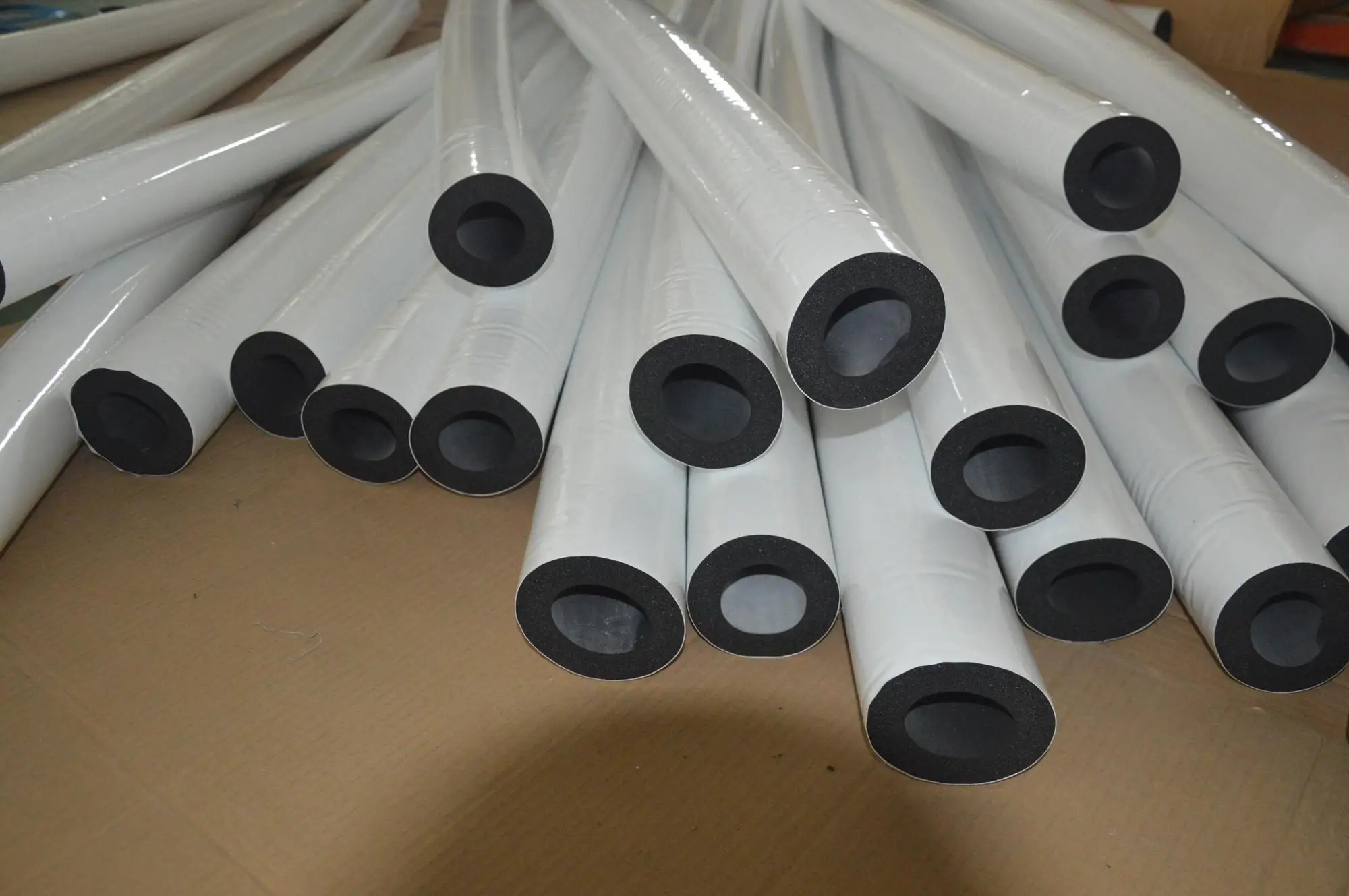

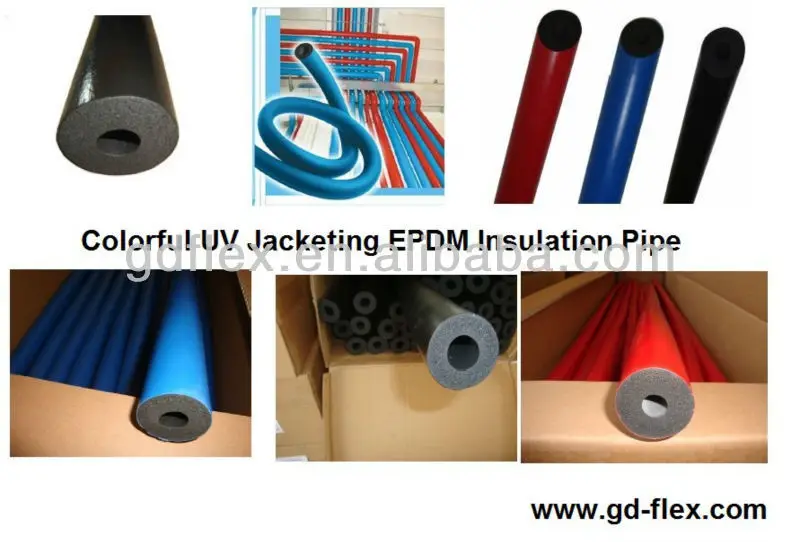

Red Seamless UV resistant pre jacketing for hot line epdm insulation pipe

Product Overview

Description

Red Seamless UV resistant pre jacketing epdm insulation pipe

l         PVC FREE EPDM insulation pipe, up to 175 °C (347 °F) operating intermittent.

l         Seamless UV resistant and high mechanical resistant protective jacketing.

l         Easy Installation, Save both time and labor cost.

l         Red pipe for hot line, can easy distinguish in different pipes system.









Red Seamless  UV  resistant pre jacketing epdm insulation pipe Application: Piping systems for hot water,solar water heater, heating, heat pumps and air conditioning technology indoor, out door or underground piping system.



Red Seamless  UV  resistant pre jacketing epdm insulation pipe performance data

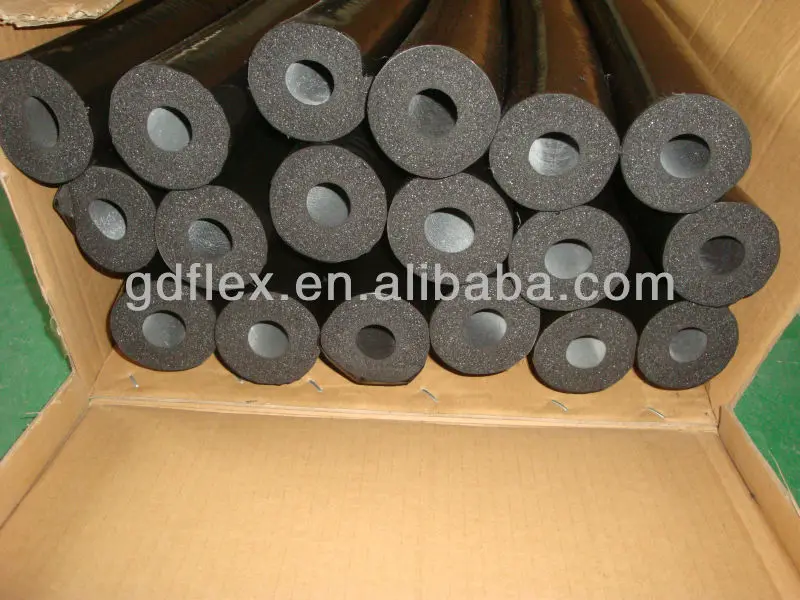

EPDM INSULATION PIPE  , light, flexible, closed cell, synthetic caoutchouc; free of

PVC and non- CFC. Material class: B1 according to DIN 4102. operating intermittent up to +175 Celsiu

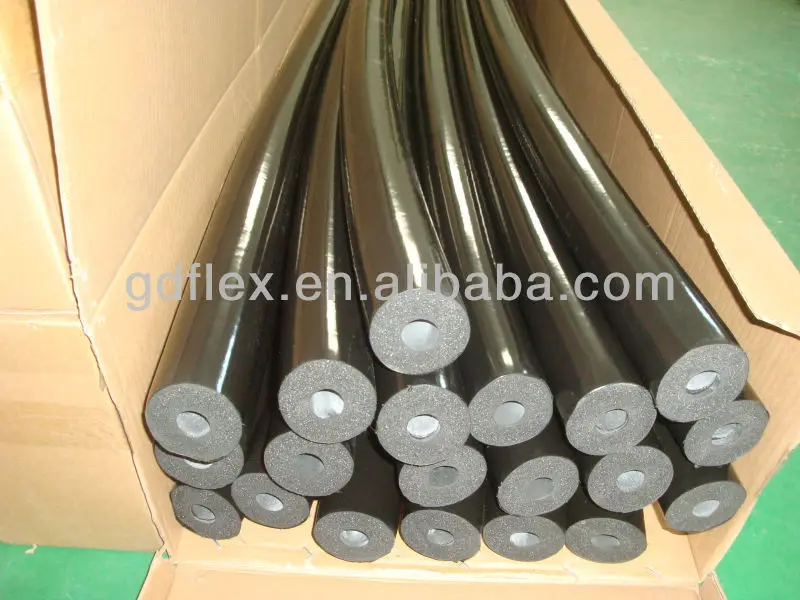

SEAMLESS JACKETING  outside of EPDM INSULATION pipe: means the jacketing coated on the insulation pipe is with a super high density water proof polyolefin copolymer jacketing. have excellent performance of UV-resistance ,water proof and bird peck-Protective





Available ID:13mm,16mm,19mm,22mm,25mm,28mm,32mm......115mm

Available Thickness:10mm,13mm,20mm,25mm,32mm,40mm,50mm

length :2M,5M,10M,15M,20M ,25M,50M



EPDM insulation pipe Specification

Item	Unit	Specification
Foam texture		Close Cell Foal
Density	Kg/m3	48-80
Temperature Range		From -50°C to +150°C (up to 175 °C operating intermittent.)
Flammablility		B1
Oxygen index	%	≥32
Conductivity factor Average temperature -20°C 0°C 40°C	W/(M*K)	0.032 0.034 0.039
Water absorption ratio in vacuum	%	≤5
Dimension stability 93±°C7d	%	≤6
Crack resistance		good
Formaldehyde		Exclusive
Ammonium nitrite		Exclusive
Polyethylene		Exclusive

Application Instruction type of medium for the insulated pipe Environmental Temperature Medium Temperature relative humidity Insulation Pipe Wall thicnkness Frozen Water Pipe 28°C 7°C 75% 20mm-38mm condensated water pipe 28°C 18°C 75% 13mm Duct Piping 26°C 16°C 70% 13mm Water supply and drainage pipe 28°C 32°C 75% 13mm High temperature hot water pipe 22°C 95°C 65% 20mm seasonal or intermittent; 25mm perennial Low temperature hot water pipe 22°C 60°C 65% 13mm seasonal or intermittent; 20mm perennial
