Product Overview

Description

2 sets 400w electric motor kits and 1 set 750w servo kit has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.

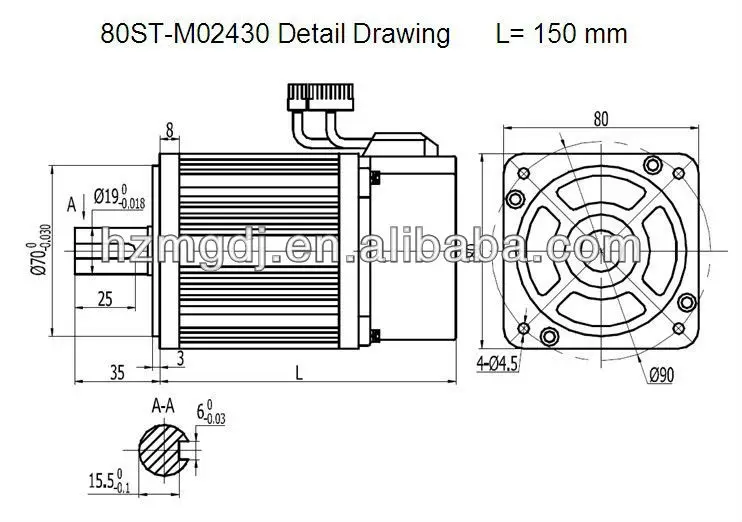

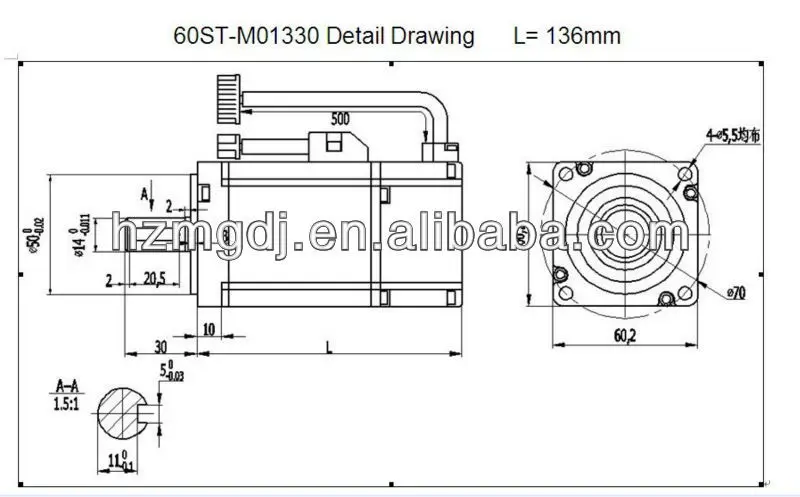

Motor model	60ST-M01330C	80ST-M02430
Rated power(w)	400	750
Rated current(A)	2.8	3
rated speed(rpm)	3000	3000
Rated torque(N.m)	1.27	2.4
Peak torque(N.m)	3.9	7.1
Voltage constant (V/1000r/min)	29.6	48
Moment coefficient(N.m/A)	0.45	0.8
rotor inertia(Kg.m2)	0.29 x 10-4	1.82 x 10-4
Resistance line-line (Ω)	2.35	2.88
Inductance line-line(mH)	14.5	6.4
Electrical time constant(ms)	6.17	2.22
Encoder line(PPR)	2500	2500
Pole-pairs	4	4
Weight(KG)	1.63	2.86
Insulation class	Class B (130 degree)
Grade of Protection	IP64 & IP65
The operating of Evironmental conditions	Temperature	-20 ~ + 50 degree
	Humidity	Below 90%RH No dewing
	Environment	Far away active gas, combustible gas, oil drop,ash.
