Мягкая кофеварка для мороженого 6238A большой емкости с одним вкусом

Product Overview

Description

Single flavor big capacity soft ice cream maker  6238A



Feature:

*  Single Systems

*  Air Pump

*  Single flavours

*  3.2 Liters Cylinder

*  15 Liters Hopper

*  38 Liters/H

*  Stainless Steel Panels

*  LED touch button control panels



Product Offering:

Offer all popular soft serve variations from low or non-fat ice creams to custards,yogurt and sorbet.



Freezing Cylinder:

One, 3.2 liters

Mix Hopper:

One,15 liters

Separate hopper refrigeration (Pre-cooling) maintains mix temperature below 4.4ºC



Microprocessor Control:

Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.



Mix low light:

The mix low light turns "ON" to alert operator to add mix,preventing cylinder over freezing.



Standby:

Maintains product temperature in the mix hoppers and freezing cylinder below 4. 4ºC during long no-use periods.



Counter:

Records number of dispenses per day and total number of dispenses.

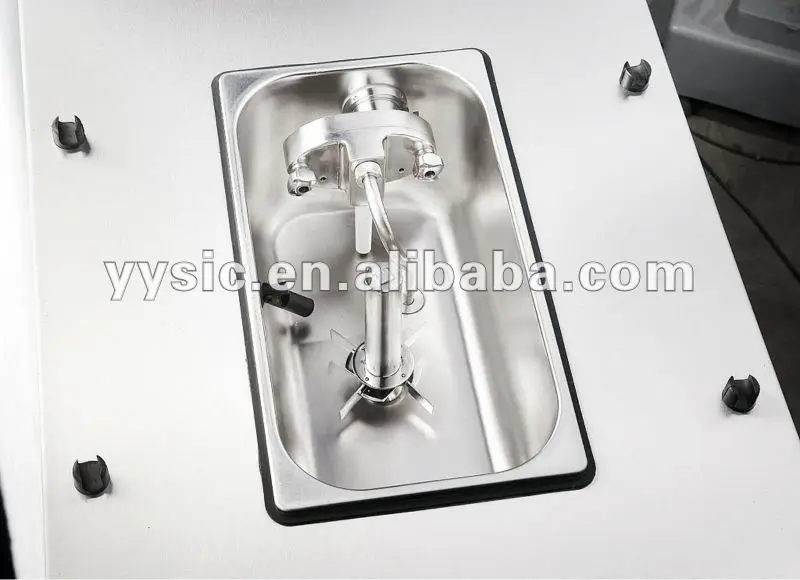

Agitator in the hopper:

Mixture has better liquidity,the temperature of the mix to be more uniform.



Output:

38 Liter/Hour

(At 4ºC Liquid &24ºC Ambient)



Electrical requirements:

One dedicated electrical connection is required

Make the voltage steady when machine is ON.



Main motor:

One, 2.0 HP

Refrigeration System:

Two compressors: 6486BTU/hr. R404a

Separate hopper refrigeration (Pre-cooling.):

One compressor: 400 BTU/hr. R134a

(BTU may vary depending on compressor used.)


Air cooled:

Minmum clearance of 152mm on both sides is to achieve optimum performance.

Specifications

Voltage : 210-230V/50HZ     Power : 2.8 KW

Net weight:180kg              Gross weight: 200kg

Machine size:917x554x1520mm   Packing size:850x645x1665mm

Quantity for20":22 sets        Quantity for 40":44 sets



Options:

1,Manufactured upon request, not available in stock

2,Ice cream cone&cup dispenser

3,Power Supply:380V/60HZ

4,Local specific plugs of power supply wire.

5,Cover of dispenser door

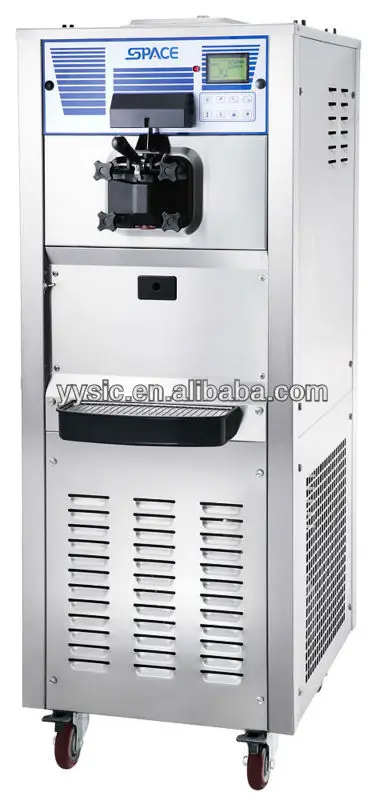

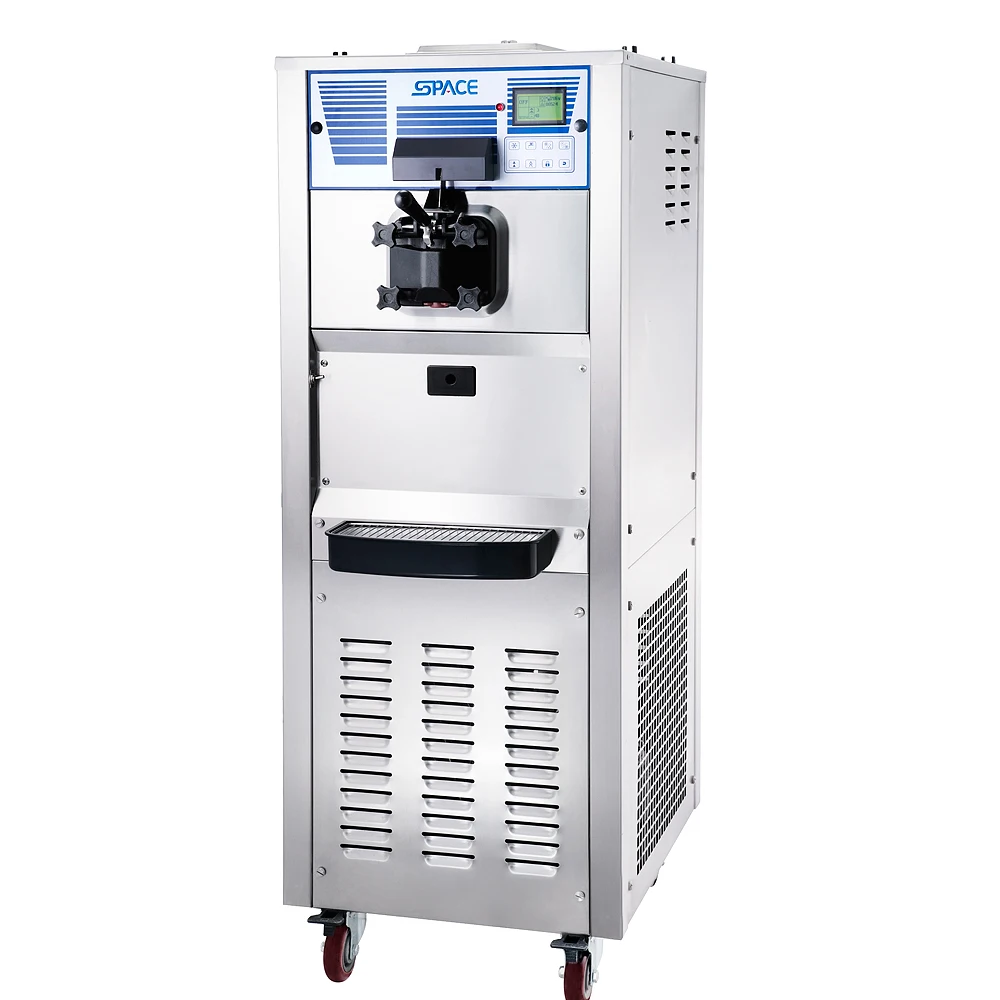

PRODUCT PICTURE
