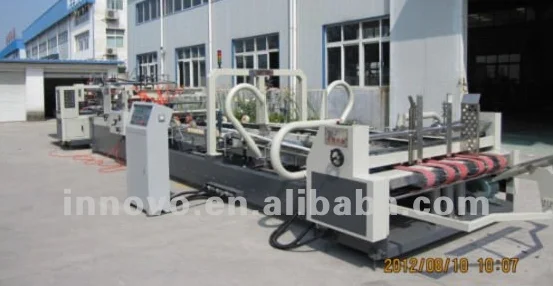

Automatic folder gluer machine









Automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and


folding section, counter and stacker section. Frequency conversion motor with quality inverter


adjust speed. PLC and Touch screen control system for easy operation and running stable. Average speed is 150sheets/min. Energy conservation and high speed, saving labor cost.


Introduction:


 Feeding section:


1.Vacuum suction feeding to feed warping paperboard easily


2.Quality electromagnetic clutch and brake adopted, feeding section controlled independent,


   operation easily


3.Scorer wheel adjustable, suit for 2-8mm thick paperboard


4.Second creasing struction can impress again the paperboard which was not creased well





Gluing and Folding section


1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily


2.Stainless steel glue wheel adopted, long life and saving glue cost


3.Imported quality rubber belt adopted, automatic fold in


4.With paperboard rectify device and creasing rectify device





Counter and Stacker section:


1.Stacking and counting are simple and reliable


2.Digital control,operation easily and reliable. No-stop put in data and automatic counting


3.With rectification function.


4. Counting and put out by pneumatic, stable and quickly





Specification:



  1. Application Ranges: A.B.C.AB flutes 3/5 layers corrugated paper

  2. Max Cardboard Specification: W*L


JH-2000 type 900*1900mm


JH-2800 type 900*2600mm



  1. Min Cardboard Specification: W*L


JH-2000 type 250*700mm


JH-2800 type 300*850mm



  1. Conveyor Speed:0-120m/min

  2. Total Power:


JH-2000 type 7.9 KW


JH-2800 type 7.9 KW



  1. Air Pressure:0.4---0.6MPA buyer provide

  2. Power Supply: Three phase 380V

  3. Dimension:


JH-2000 type L*W*H 11000*2600*1800mm


JH-2800 type L*W*H 12000*3000*1800m


Information of electrical and belt


1. 2.2KW Delta Transducer Brand of Taiwan


2. 3.7KW Delta Transducer Brand of Taiwan


3. 5.7Inch Hitachi Touch Screen Brand of Taiwan


4. Vigor PLC-30 Brand of Taiwan


5. High Touch Sensitivity Air Circuit-Breaker Brand of Taiwan


6. Schneider Contactor Brand of France


7. FUJI Button Brand of Japan


8. Omron Photo Electricity Switch Brand of Japan



















































Name



Brand



Type



Frequency converter



Delta



2.2KW/3.7KW



Power



Taiwan Mean Well



S-50-24



Contactor



French Schneider



LC1-D0910M5C



Control button



Shanghai Tianyi




Control knob



Fuji




Photoelectric switch



Omron



E3F3-D11



Air switch



Delixi



DZ47



Touch screen



Fuji



190mm

































































name



Brand



quantity



1



Feeding belt



HRZ.VIGOR



6



2



Receiving belt



Forbo-siegling



13



3



Conveyor belt



Forbo-siegling



8



4



Medium-pressure fan



Shanghai(Sanxiao)



1



5



High-pressure centrifugal fan



Shanghai(Halon)



1



6



Motor



Simens(beide)



1



7



Reduction motor



Zhejiang



7







5. Spare parts










































Name



Quantity



1



Internalhexagonalwrench



1



2



Screwdriver (cross)



1



3



Screwdriver (minus)



1



4



Wire cutter



1



5



Spanner wrench



1



6



Openend wrench



3

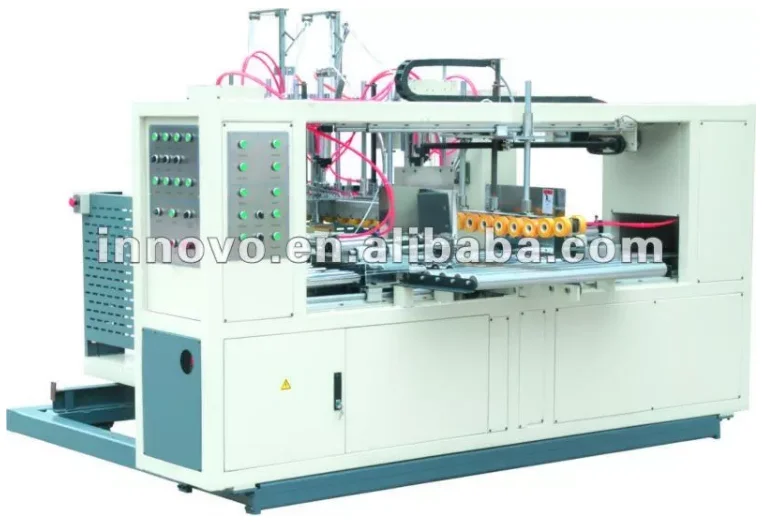

Automatic packing machine











Specification:



  1. Application Ranges:A.B.C.AB Flutes, 3/5 Layers Corrugated

  2. Max Cardboard Specification:1400×900mm

  3. Mini Cardboard Specification: 400×240mm

  4. Speed:8~14 Bale/Min

  5. Total Power:3KW

  6. Air Pressure :0.4---0.6 MPA .buyer provide

  7. Power Supply :Three Phrase Four Wire System Power Distribution(Three Phase Four Wire System)

  8. Machine Size:L*W*H 2700×2900×1900MM

  9. Machine Weight :2.2T


10.Using Material : PE---28 Packing Rope


Mayor Electrical Configuration:


1. Delta PLC-40 Taiwan


2.High Touch SensitivityAir Circuit-Breaker Taiwan


3.Schneider Contactor France


4.Tianyi Button Shanghai


5. Omeron Photo Electricity Switch Japan


6. Intermediate Relay HONEYWELL USA


7. Frequency converter Delta Taiwan












Packaging & Shipping


1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case’s thickness is generally 1 cm.


2. In order to be waterproof, we usually use bubble film to wrap machine.


3. We can handle shipping for customers too.
















Our Services


We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.


Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.





Company Information


*With 10 years' Experience


*Having ISO 9001-Certified Factory


*Strong R&D capability


*High Quality Guaranteed


*First Class Service And Best Prices


*Primary products:


    Automatic High Speed Flute Laminater


    ZXSCM Book Case Making Machine


    650UV Coating Machine


    ZX-650C Manual Paper Pasting Machine


    Box Making Machine


    Hot Melt Gluing Machine and Gluing Machine


    Table Gluing Machine


    Paper Pressing Machine.etc


    Welcome to visit our factory!










.jpg
















FAQ


1.What is Innovo company machine warranty?----one year.


2.Does your machine with CE certificate?----Yes.


3.What is the production time while placing order?----Arounding 7-30 days


4.What is the delivery time?----Within 7-30 days after get the payment.


5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can        check the shipping charge and arrange shipping for your order)


6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to          export packing standard.


7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your    problem as soon as possible.


8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.


9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high            quality products and excellent services.


10Do you have stock product to sell?----Maybe, It depends on which machine you like.


11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC         department before  shipping.


12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via              West Union too. You can choose as you like.
