Деревообрабатывающий толщиномер и строгальный станок для продажи

Product Overview

Description

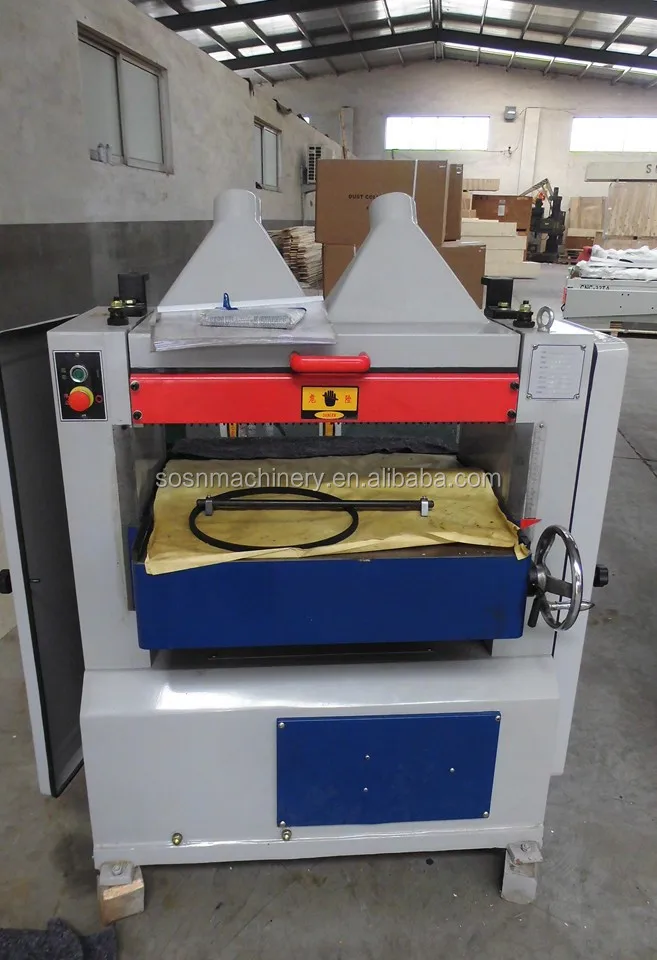

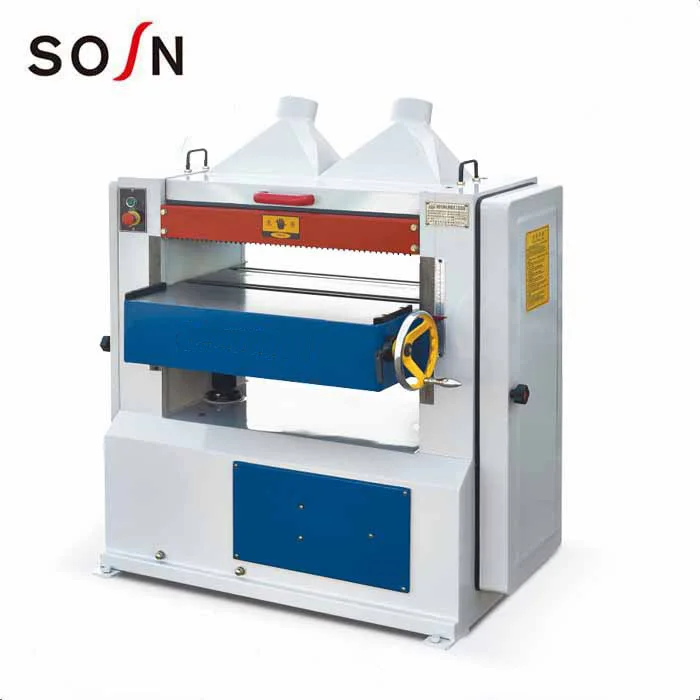

 woodworking thicknesser and planer for sale

Main characteristics in product

1. All-in-one structure of the machine ensures long-time stability while excluding deforming.

2. User-friendly dust collector avails more convenient use;

3. The main shaft is furnished with four blades, ensuring the smoothness of shaping and planing;

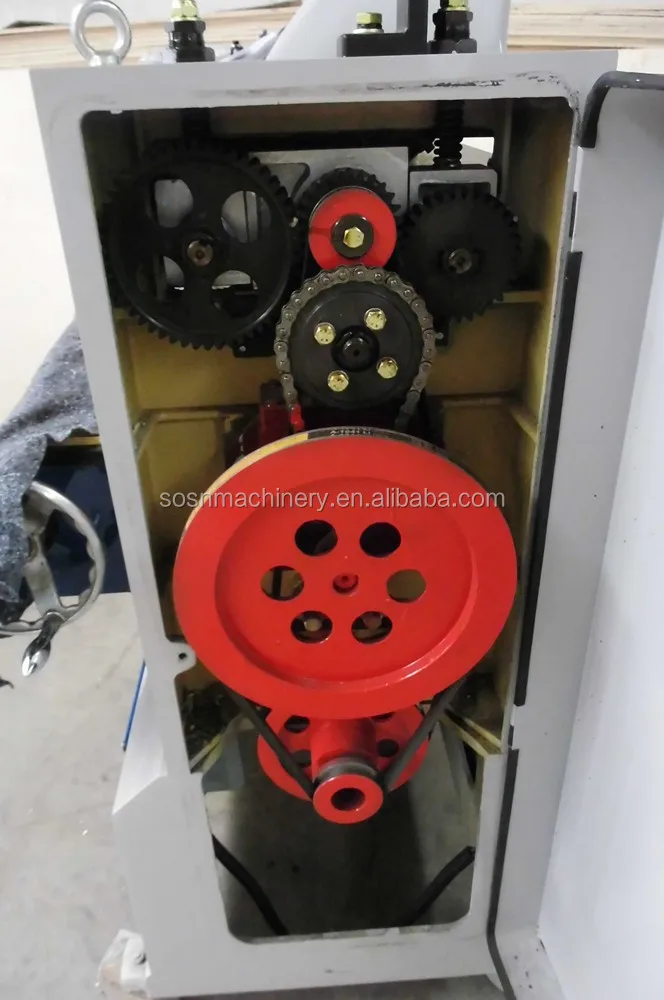

4. The new conveying and feeding roller adjusting device provides easier adjustment.



Main technical parameter





name	MB106H	MB105H	MB104H
Max working width	630mm	500mm	400mm
Max working thickness	180mm	180mm	180mm
Min working thickness	5mm	5mm	5mm
Min working length	220mm	220mm	220mm
Max cutting depth	5 mm	5 mm	5 mm
Cutter head speed	5000r/min	5000r/min	5000r/min
Feed speed	9,6.5m/min	9,6.5m/min	9,6.5m/min
Main motor	7.5kw	4kw	3kw
Machine weight	600kg	500kg	420kg
