-For Indoor and outdoor pipes of 50mm*200mm (2"-8") - Wheels to the job site – sets up fast, cleans up fast -The finest all-around sewer and drain cleaning machine.One man can easily clean the heaviest blockages – indoors or out. High-speed cleaning gets the job done faster...better. -Unique, easy-to-use, instant-acting cable clutch maximizes operator control: – Pull handle down, cable spins at constant 700 RPM – Release handle frees cable instantly, no overrun to loop or break cable. -Equipped to run, easy to handle, 4.6M sections of 30mm cable to clean 50mm-200mm lines up to 60M

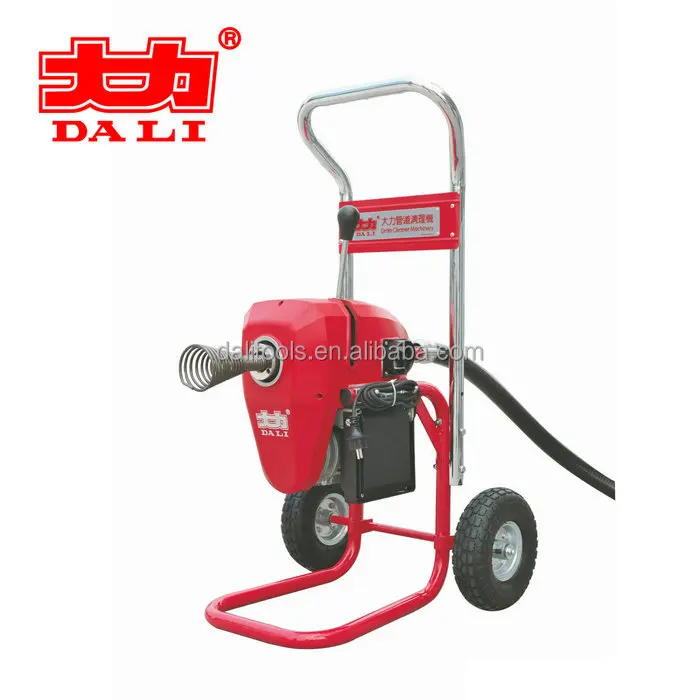

SPECIFICATIONS FOR DRAIN CLEANER D-200-1A
For Diameter of pipes:
Φ50mm-200mm
Input Power:
1100 W
Max.working length:
60M
Rated Voltage:
220-240V;110V, optional;
Soft Shaft Spec.:
Φ30mm
Rated Frequency:
50Hz, 60Hz, optional
Machine Weight:
45Kg
Rotate Speed:
700 rpm
Dimensions(L×W×H):
75*62*73cm
Protection Class:
IP 44

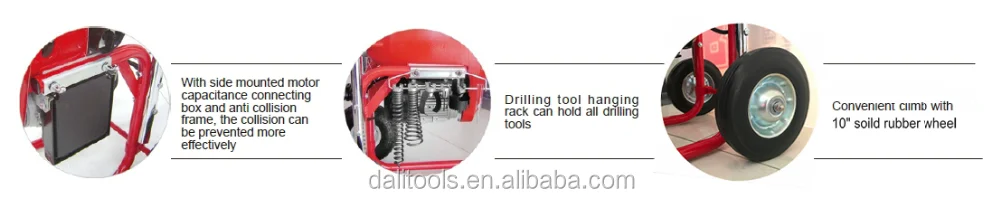

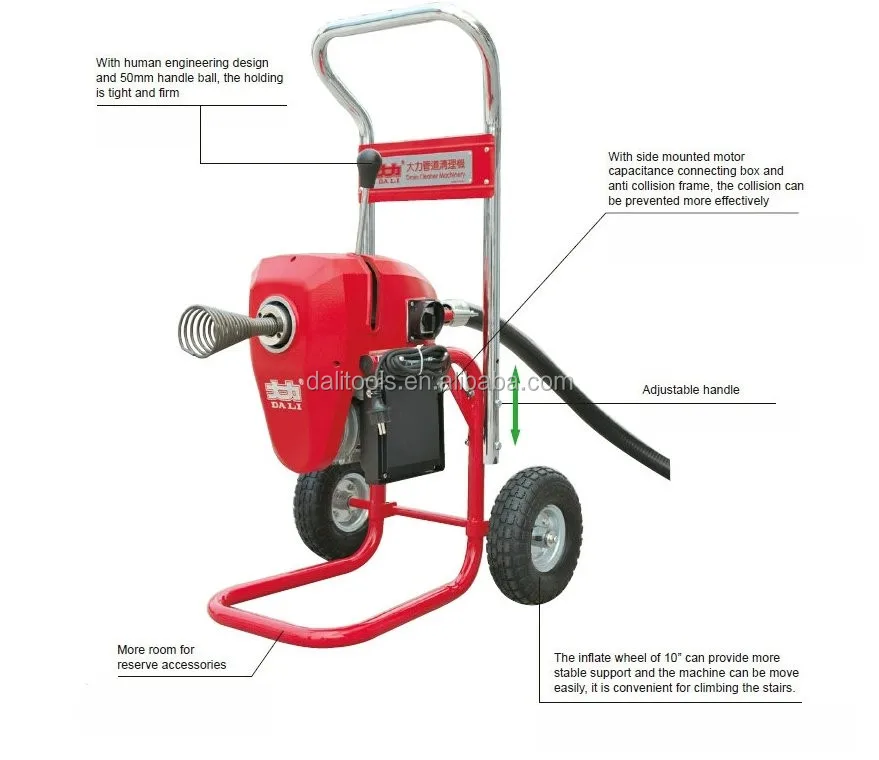

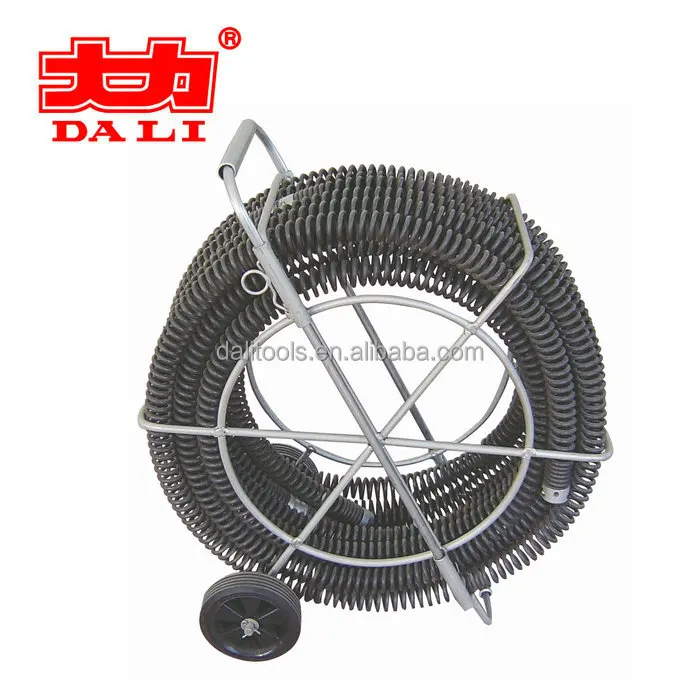

Storing And Transporting Cable
-- The main machine and cables have walking wheels.
--2 Wheels In Rear w/Upright Handle On Frame Assembly and Cable Storage Capacity.
--Cables can be stored and transported on frame models.
--One man can easily clean the heaviest blockages indoors or out. High-speed cleaning gets the job done faster better.

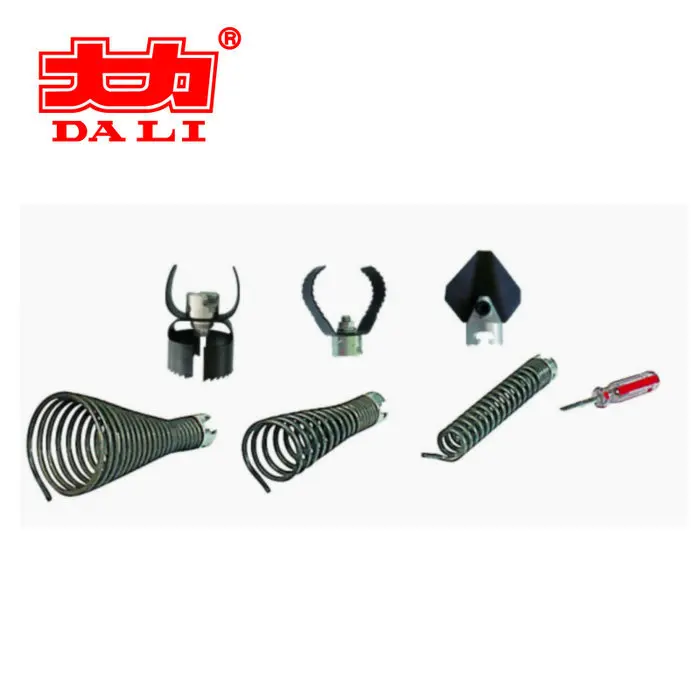

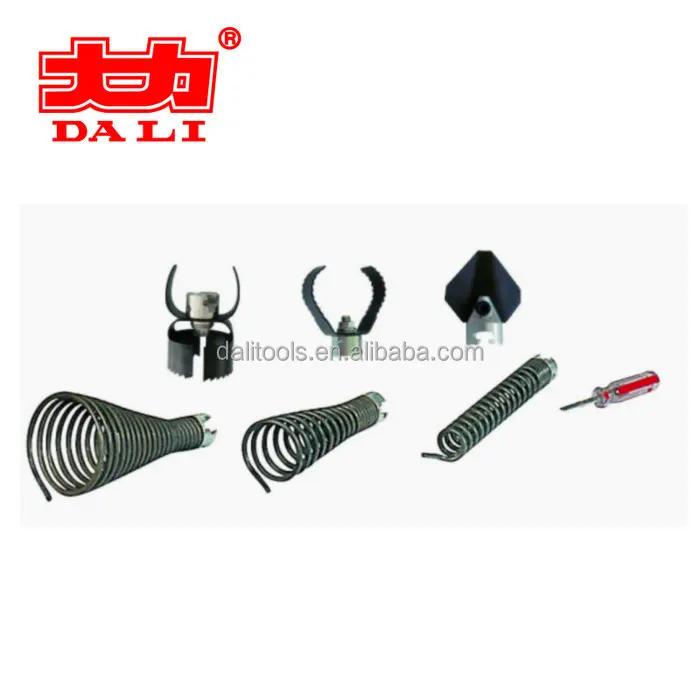

Accessories List
Catalog No.
Type.
Description
Quantity
Main Machine
1
2.0143
R-4-3
Φ30mm*4.6M soft shafts
4
2.0213
T-1-c
Φ30mm Straight Auger
1
2.0243
T-4-c
Φ30mm Funnel Auger
1
2.0253
T-5-c
Φ30mm Retrieving Auger
1
2.0273
T-7-c
Φ30mm Grease Cutter
1
2.0283
T-8-c
Φ30mm Sawtooth Cutter
1
2.0293
T-9-c
Φ30mm “C”- Auger
1
2.0317
F-1-g
Φ500mm Soft shaft holder
1
2.0391
F-9-a
Drill Shelf
1
2.0332
F-3-b
Φ5.5 Key
1
2.0351
F-5-a
Protection Gloves
1
2.0372
F-7-b
Protection tube
1
